| Main Configuration | |

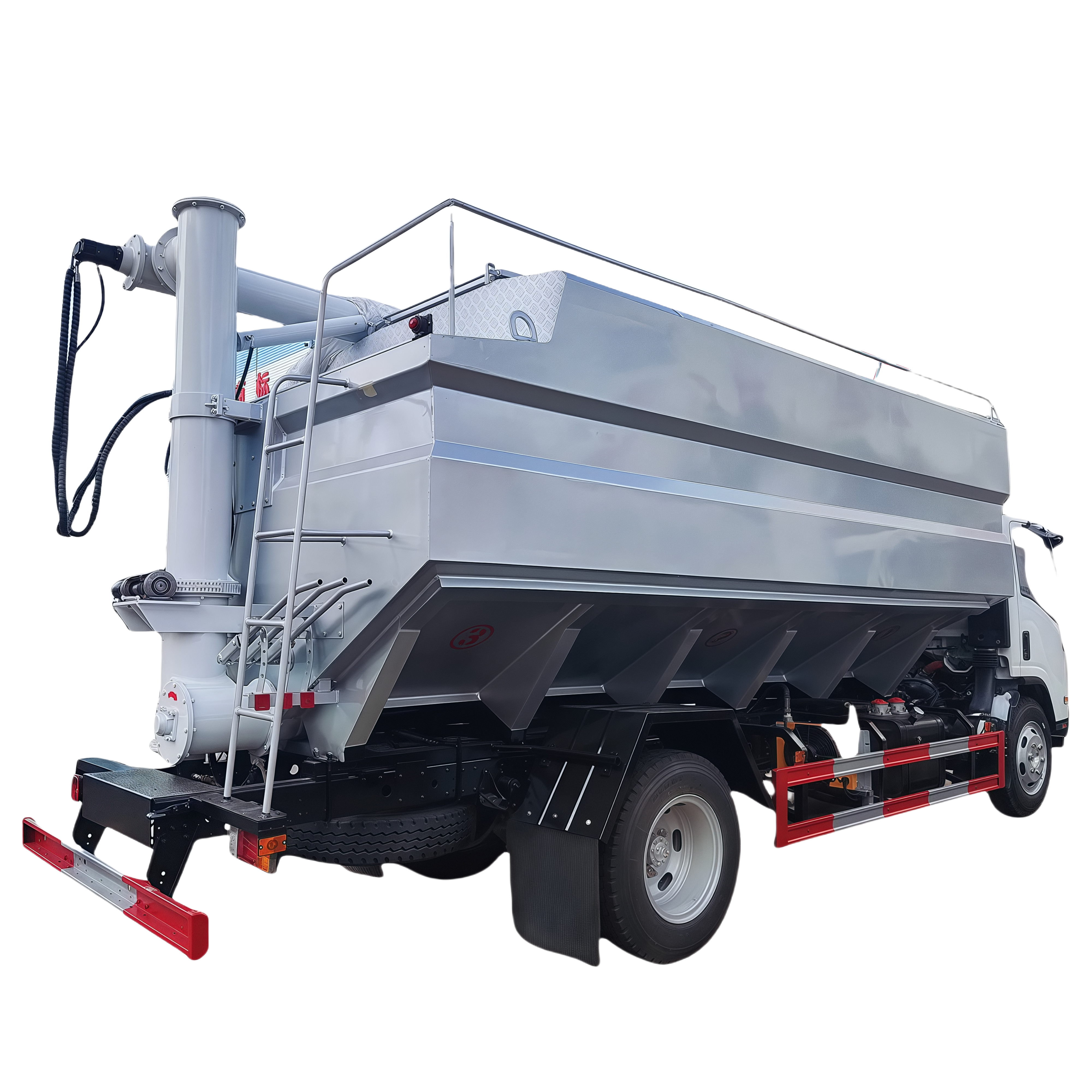

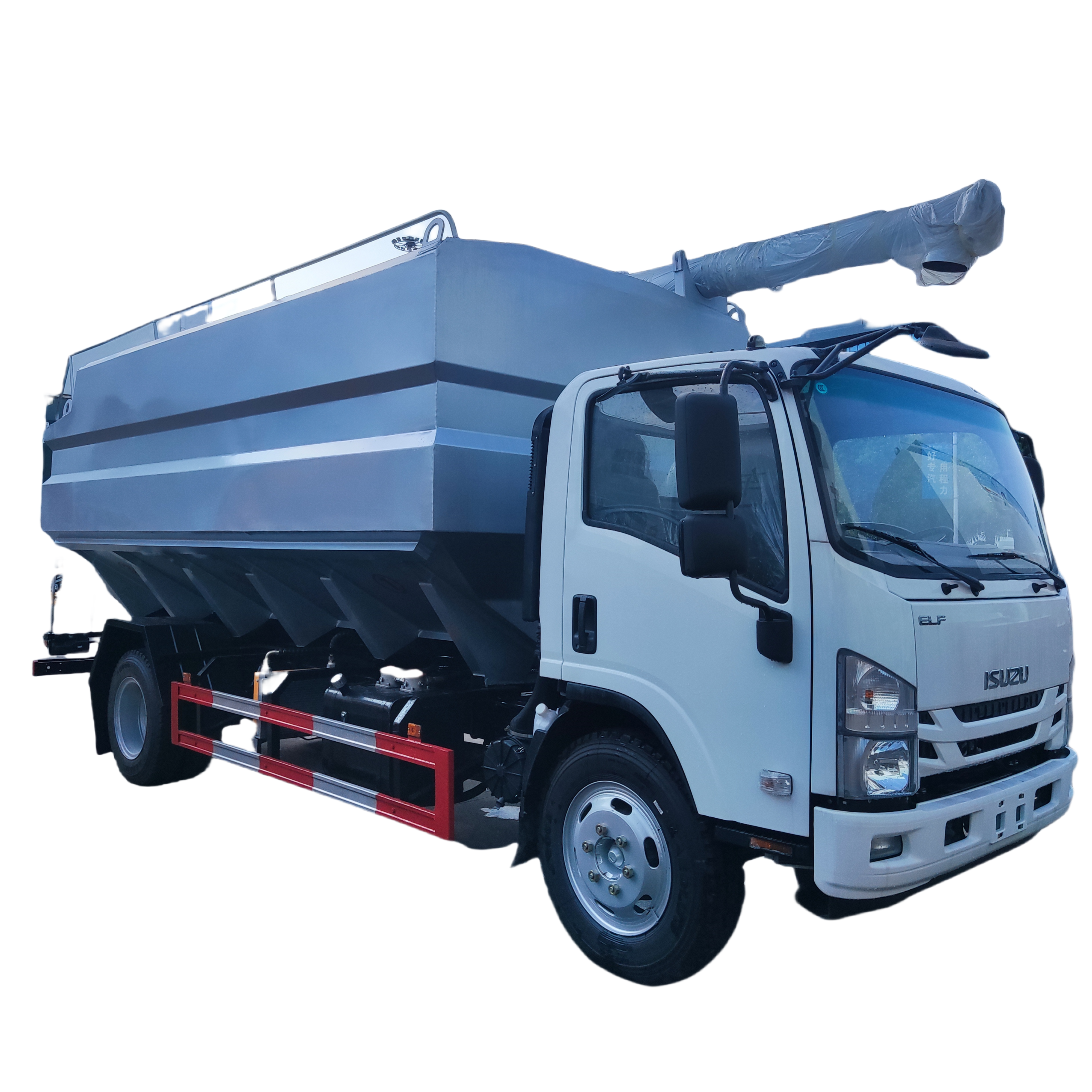

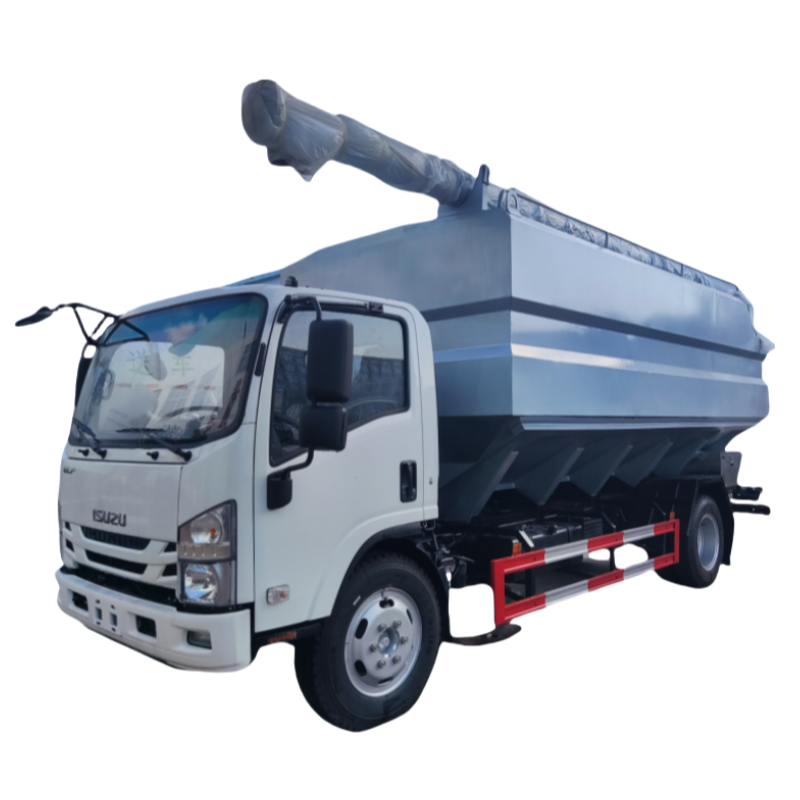

| ISUZU 4X2 feed transport truck | |
| Project | Parameters |
| Product name | feed transport truck |
| Chassis brand | Isuzu |
| Drive mode | 4X2 |
| Vehicle dimensions | 8400*2500*3800mm(customizable) |
| Tank dimensions | 5300*2500*2550mm |
| Engine | 180-200 horsepower |
| Wheelbase | 4200-4500mm |
| Tank | 10 tons (20 cubic meters) |
| Gearbox | Small eight gears |
| Tire | 1000 steel tires |
| Number of tank compartments | 4 warehouses (optional 2~6 warehouses) |
| Unloading speed (kg/min) | 500-600 |
| Active swing angle | ±180 degrees |
| Maximum horizontal conveying distance (m) | 7.5 meters (customizable length) |
| Maximum elevation angle of active unloading auger | 60-70 degrees |
| Maximum vertical conveying distance (m) | 8.5 meters |
| Residual material rate (%) | 0.01 |
| Unloading principle | Hydraulic auger, blade rotation |
| Auger blade material | Alloy steel |
| Unloading system | Blade rotation |
| Operating system | |
| Hydraulic motor unloading | Engine working-gearbox equipped with power take-off-drive hydraulic pump-drive hydraulic motor unloading Equipped with remote control, radiator |
| Electric motor unloading | 1 External 380V power supply drives motor unloading Equipped with remote control |
| 2 Installed on-board generator Engine working Gearbox equipped with power take-off-drive on-board generator to generate electricity (24KW or 30KW)-drive motor unloading | |

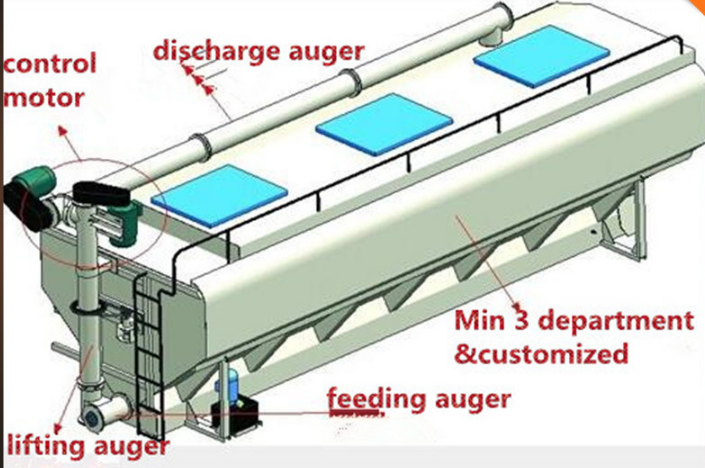

| The bulk feed body for sale of the feed transport truck is set on the walking base, and the dedicated part is composed of the tank assembly, the conveying system (consisting of the horizontal conveying system, the vertical conveying system and the movable conveying system), the hydraulic system, the electric system, etc. | |
Feed trucks for sale , also known as bulk feed truck, feed transport truck, bulk feed body for sale, bulk feed truck. With simple structure, large conveying capacity, convenient operation, strong mobility, and material sensitivity, it is applied to the transportation of feed for various large, medium, and small breeding enterprises. It is mainly used to transport bulk feed products or raw grains for feed production from feed factories to livestock farms, poultry farms, and feed processing users. It can also be used to transport certain non corrosive powder and granular raw materials, such as pharmaceutical factory powder and grain depot turnover.
Characteristics of feed trucks for sale:
1.Transporting feed in bulk not only saves labor, but also is lower than packaging and transporting it in bags
2.Bulk feed is sealed and transported within the tank to reduce loss, quality, and avoid pollution.
3. Fully automatic loading and unloading, allowing continuous operation, greatly improving production efficiency.
4. The tank can be equipped with separate warehouses, which can simultaneously transport various types of feed or expansion media.
5. Components are standardized and easy to maintain
high quality customized bulk feed body for sale

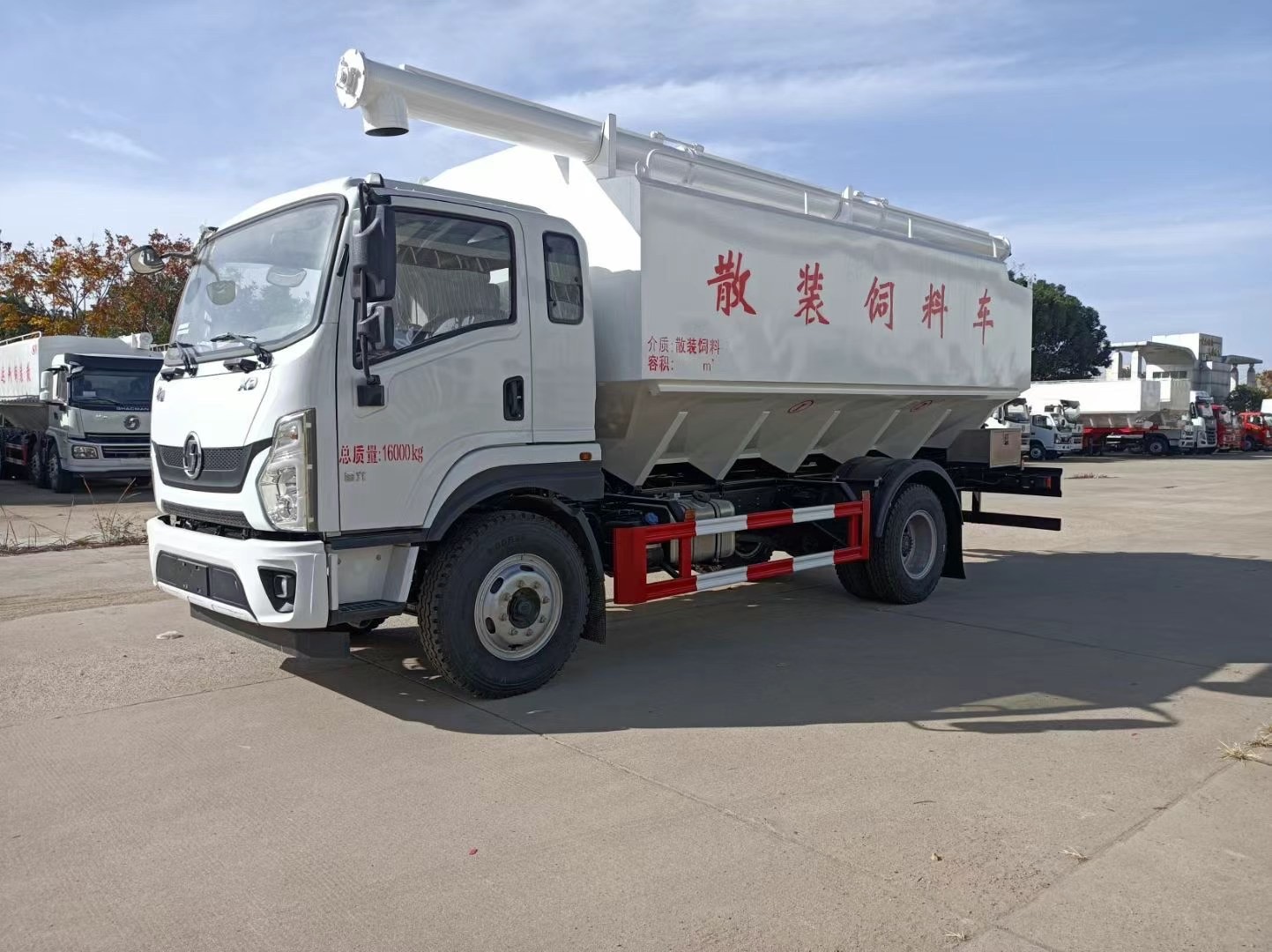

SHACMAN feed transport truck

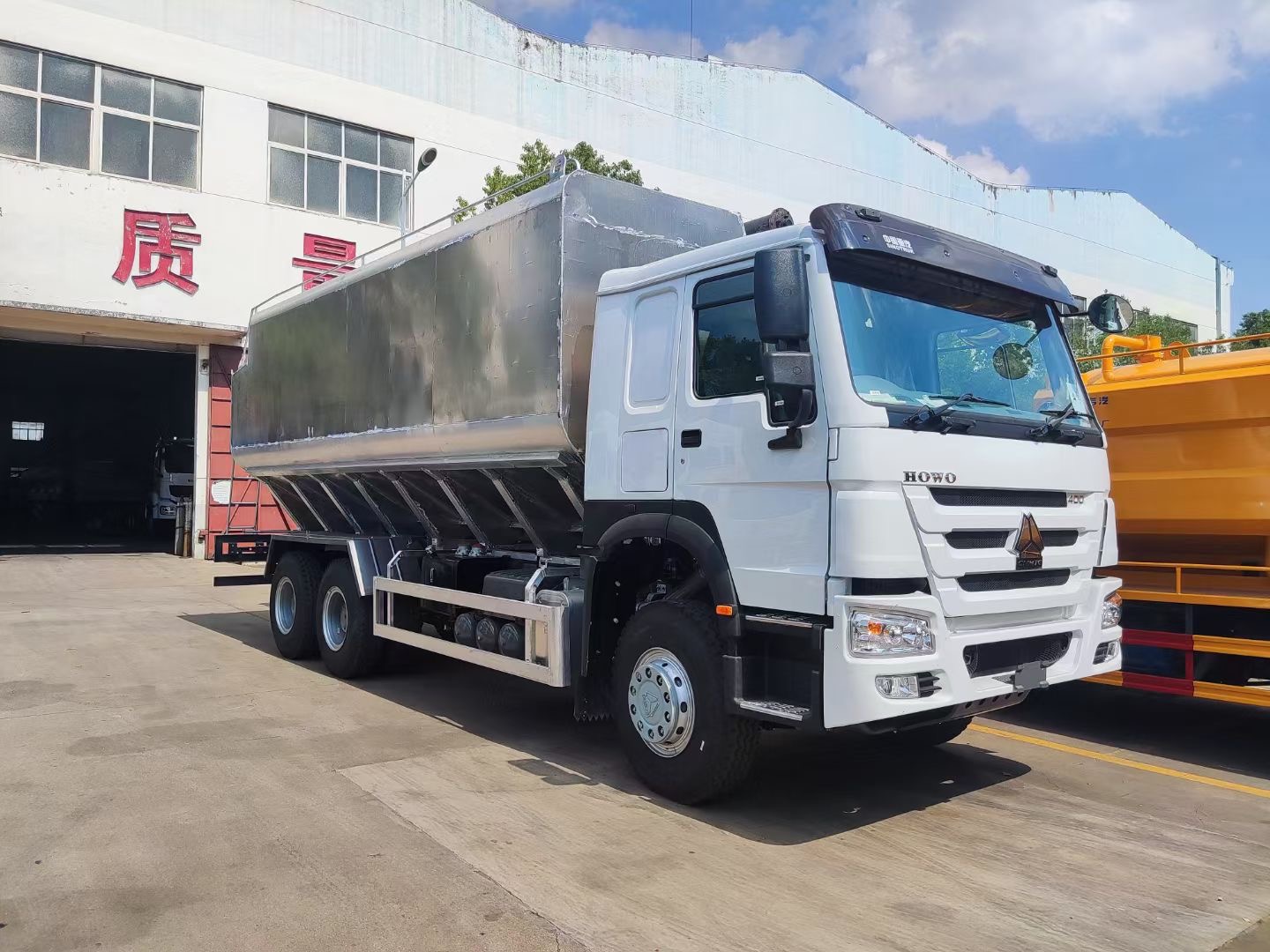

feed trucks for sale SINOTRUK HOWO aluminum alloy material for sale

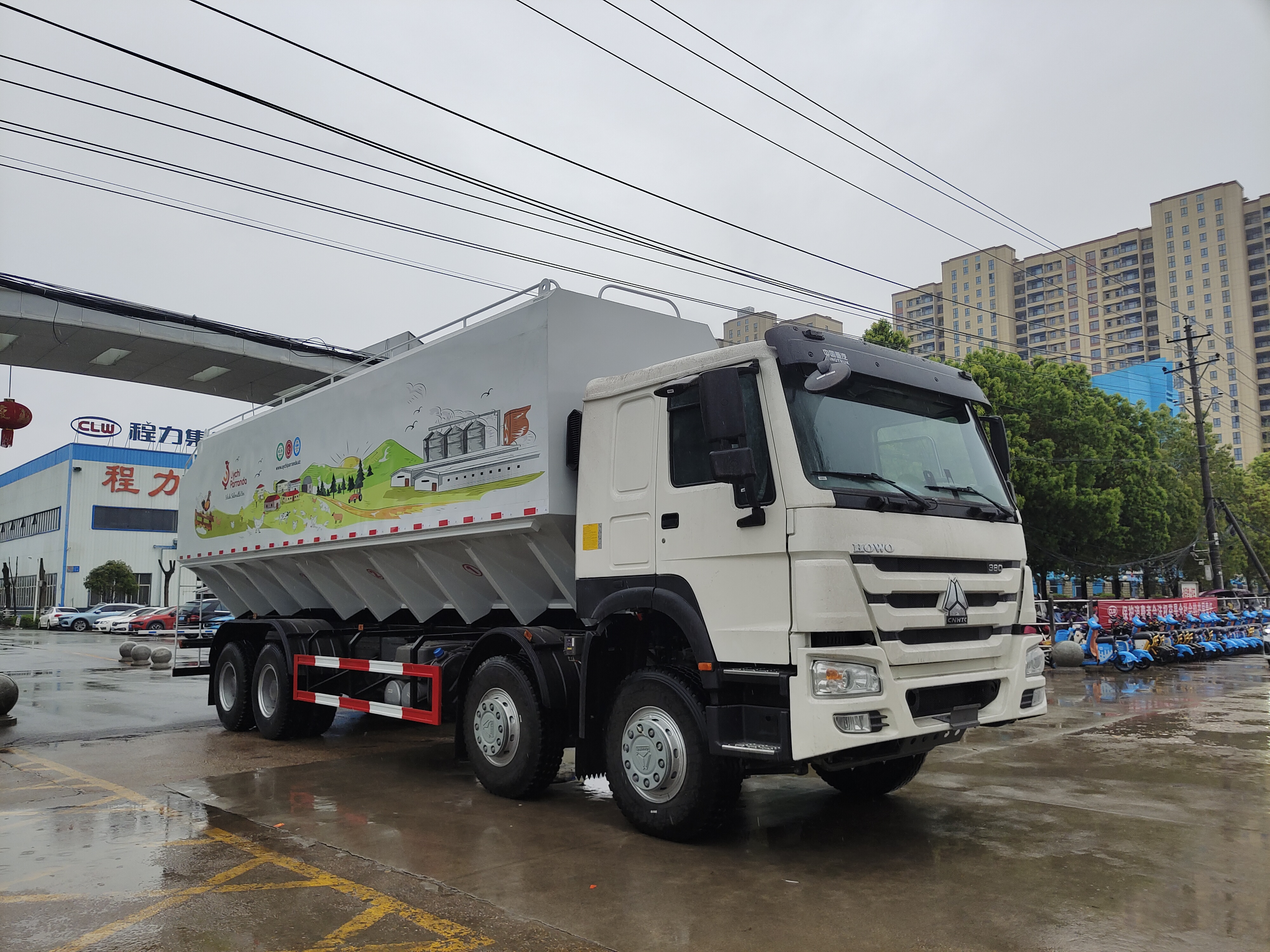

feed transport truck howo
Key words: feed transport truck, feed trucks for sale, bulk feed body for sale, bulk feed truck, bulk feed semi trailer, poultry feed truck, bulk feed truck price .
We are a leading manufacturer of special trucks, tankers, trailers, and spare parts in China Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles
T/T 30-50% as deposit, and the rest before delivery. We'll show you the photos of the products and packages before you pay the balance
EXW, FOB, CFR, CIF, DAF, DDU
Generally, it will take 20 to 30 days after receiving your advance payment. The specific deliver time depends on the items and the quantity of your order
Yes. We have professional R&D team, we can produce the product exactly according to your requirements
We are direct sales from the factory, so the price is very competitive. Different products have different prices. The price also depends on your special needs. To know the exact price, please contact us
Yes, we have 100% test before delivery
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. lf you need, we will also supply original spare parts and you just need to pay the freight
