shacman feed truck is main used for delivering, loading and discharging of feed pellets of different feed factories, large-type poultry farms, and also for transporting some non-corrosive feed pellets, such as pellets from pharmaceutical factory and turnover of grain depots, etc. the shacman feed truck manufactured by Chengli Special Automobile Co., Ltd. can transporting various feed pellet with the different compartments, the dream transporting vehicles for poultry farms and feed factories.
shacman feed truck is a specialized vehicle designed for transporting powdered/granular feed mixtures, primarily serving breeding enterprises and feed processing plants.
Tank Mounting of feed truck : The bulk feed body is mounted on the truck chassis.
Specialized Components of 20tons feed truck: The dedicated system comprises:
· Tank Assembly of bulk feed transporter : The main container body.
· Conveyance System of feed truck: Consisting of:
· Horizontal Discharge System
· Vertical Discharge System
· Articulated Discharge System
· Hydraulic System of bulk feed transporter 40m³: Feeder tank-specific hydraulics where a high-pressure oil pump connects via piping to a control valve. This valve directs flow to:
· Rotary Hydraulic Motor (for swing)
· Lifting Hydraulic Cylinder
· Hydraulic Motors (for Horizontal, Vertical, and Articulated Discharge Augers - connected in series)
· Electrical System of bulk feed transporter : Feeder tank-specific electrical controls.
· Pneumatic Compartmentalization Mechanism of bulk feed truck: For dividing the tank into sections.
Bottom Discharge Mechanism of bulk feed truck:
· A discharge gate is located at the tank bottom.
· Directly beneath the gate is the Horizontal Conveying Auger.
· Power is taken from the truck transmission via a Power Take-Off (PTO) unit.
· The PTO drives the high-pressure hydraulic pump.
· The hydraulic pump powers the hydraulic system.
· Hydraulic motors drive the shafts and blades of the Horizontal Conveying Auger via transmission devices.
Operation of bulk feed transporter
Articulated Discharge Auger of bulk feed transporter :
· A movable discharge auger is positioned horizontally on the tank roof during transport.
· For unloading, this auger lifts and articulates radia
Unloading Process of 10tons bulk feed truck :
· The hydraulic system activates the Articulated Discharge System.
· The movable auger lifts and swings into position.
· The outlet spout at the end of the auger tube connects and aligns with the inlet hatch on the top of the livestock/poultry farm's storage silo.
· Feed is conveyed from the tank bottom by the Horizontal Auger.
· Feed is then transferred through the Articulated Discharge Auger into the farm silo, completing the unloading cycle.
The features of shacman feed truck are as below.
· Automated loading/unloading via auger conveyor systems
· Compartmentalized transport capability
· Sealed containment to prevent contamination
· Core structures: tank body, hydraulic/electric drive units, horizontal/vertical discharge systems
Main technical parameters | |
Product name | Farm-oriented and livestock shacman feed truck for sale |
Overall dimension(L*W*H) (mm) | 11550×2500×3730 |
Total mass(Kg) | 25000 |
Max speed | 89km/h |
Transmission | 9+1 gears, manual type |
Tyre nos. | 6+1*12.00R20 |
Axles | 7.5ton front bridge/13Ton rear bridges |
Driver cab | SHACMAN H3000 one row and a half driver cab |
Engine model | WP10.300E22 |
Engine emission standard | Euro 2 |
Engine power | 300hp diesel engine |
Engine displacement(ml) | 9726ml |
Feed tank | |
Volume | 32cbm |
Feed container dimension(L*W*H)(mm) | 8600×2450×2100 |
Loading capacity | 15-16tons(According to the proportion( feed proportion is from 0.45tons/m3 to 0.55tons/m3) |
Discharging way | Hydraulic system discharging or 3 phases 380 volts electric system discharging |
Compartments | 3 compartments with 3 different kinds of feed pellet |
Discharging auger length | 6.85m |
Average discharging speed（kg/min） | 500-600 kg/min or 1m3/min |
Full discharging time (minutes) | 14 to 16 |
Rotation angle of auger when discharging | ±180 degree |
max elevation angle of auger when discharging | 60 degree |
Residual rate | No more than 0.10 |
The volume of 20Tons feed truck shacman is 32cbm, adopts high quality carbon steel material. There are 3 compartments for 3 different kinds feed pellet, etc. Client chooses electronic system discharging or hydraulic system discharging, etc.

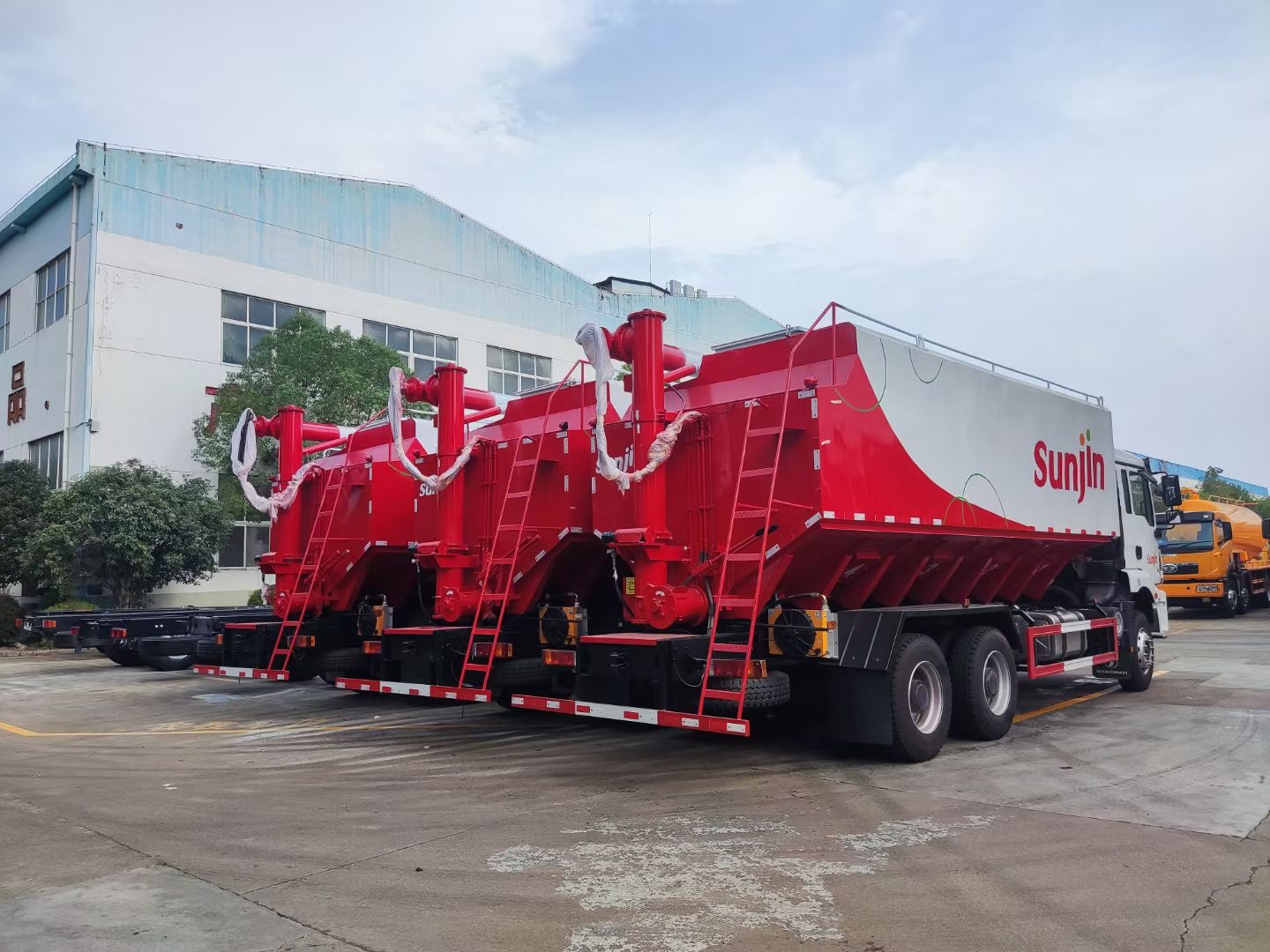

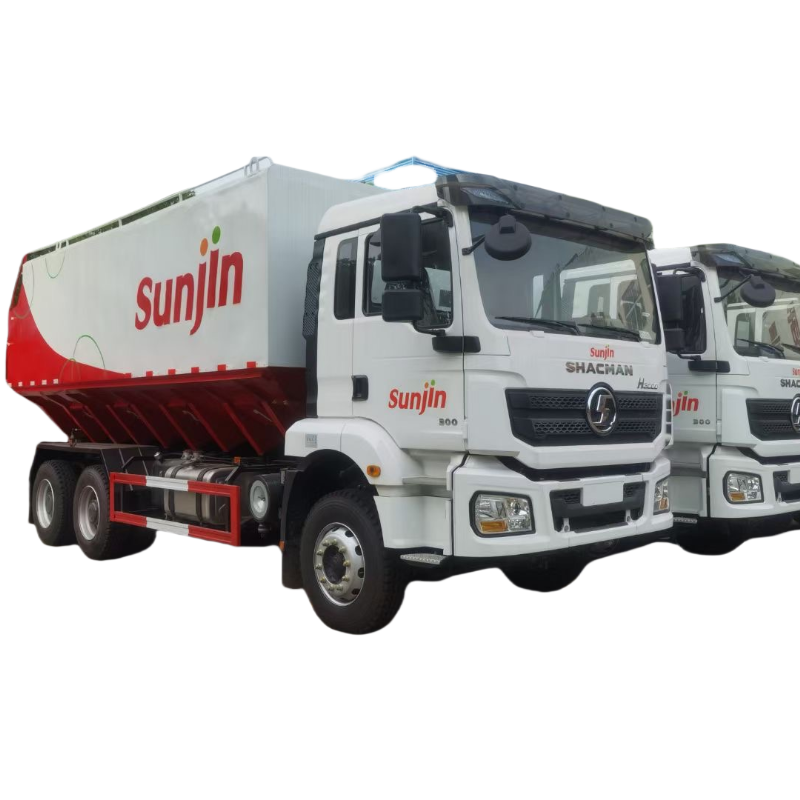

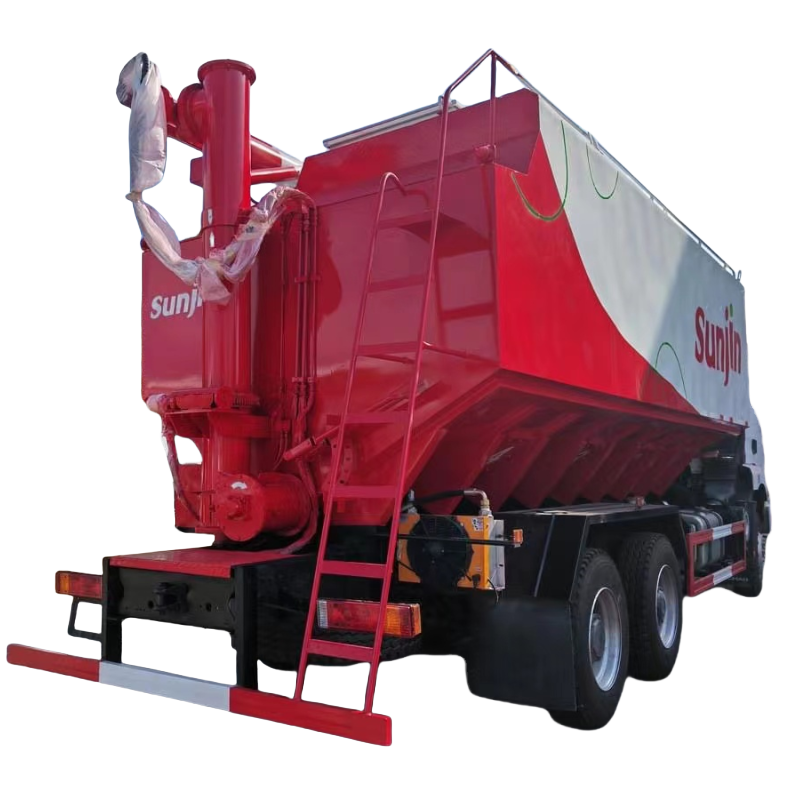

More pictures of SHACMAN feed truck are as below.

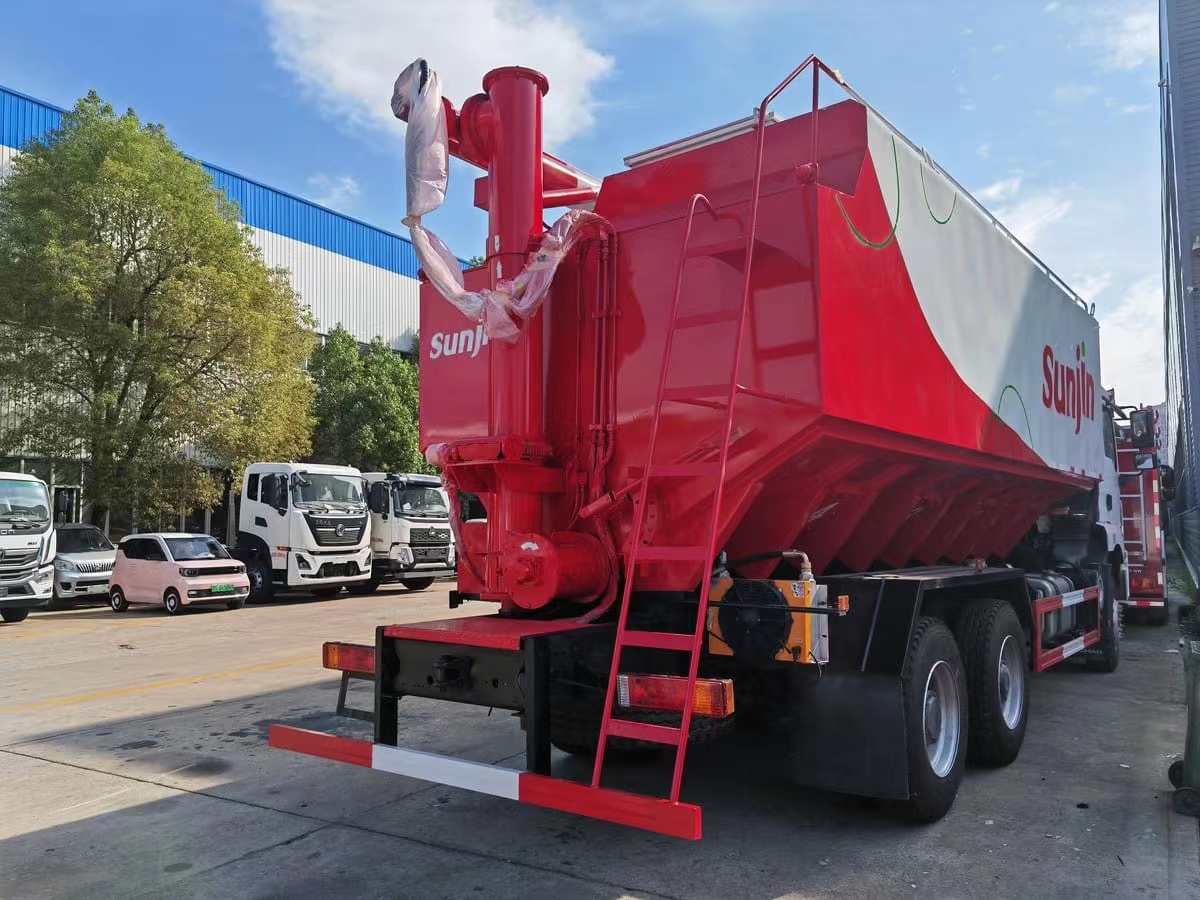

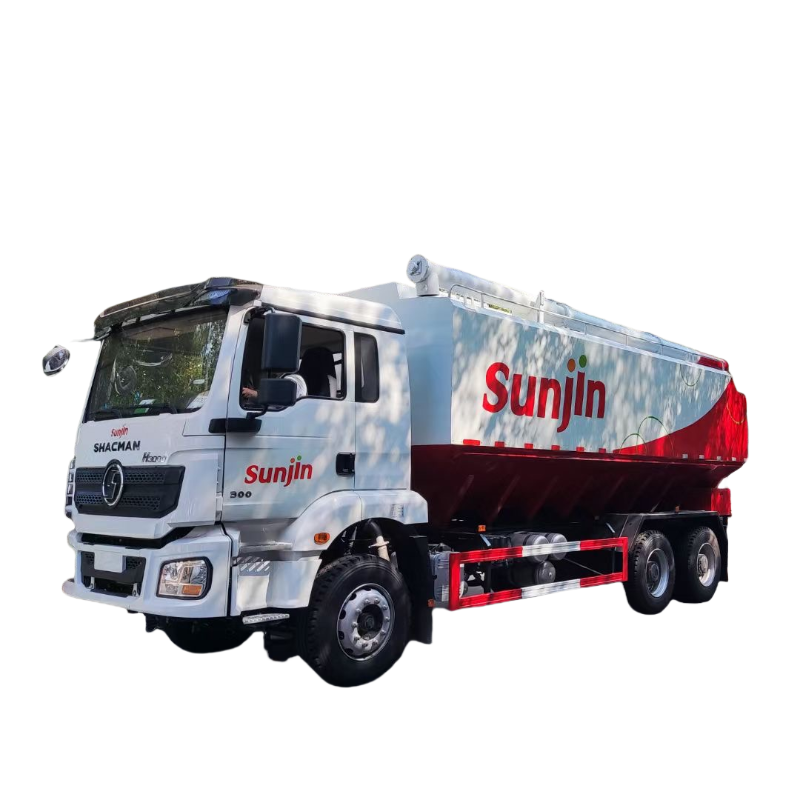

SHACMAN feed truck for sale 6*4

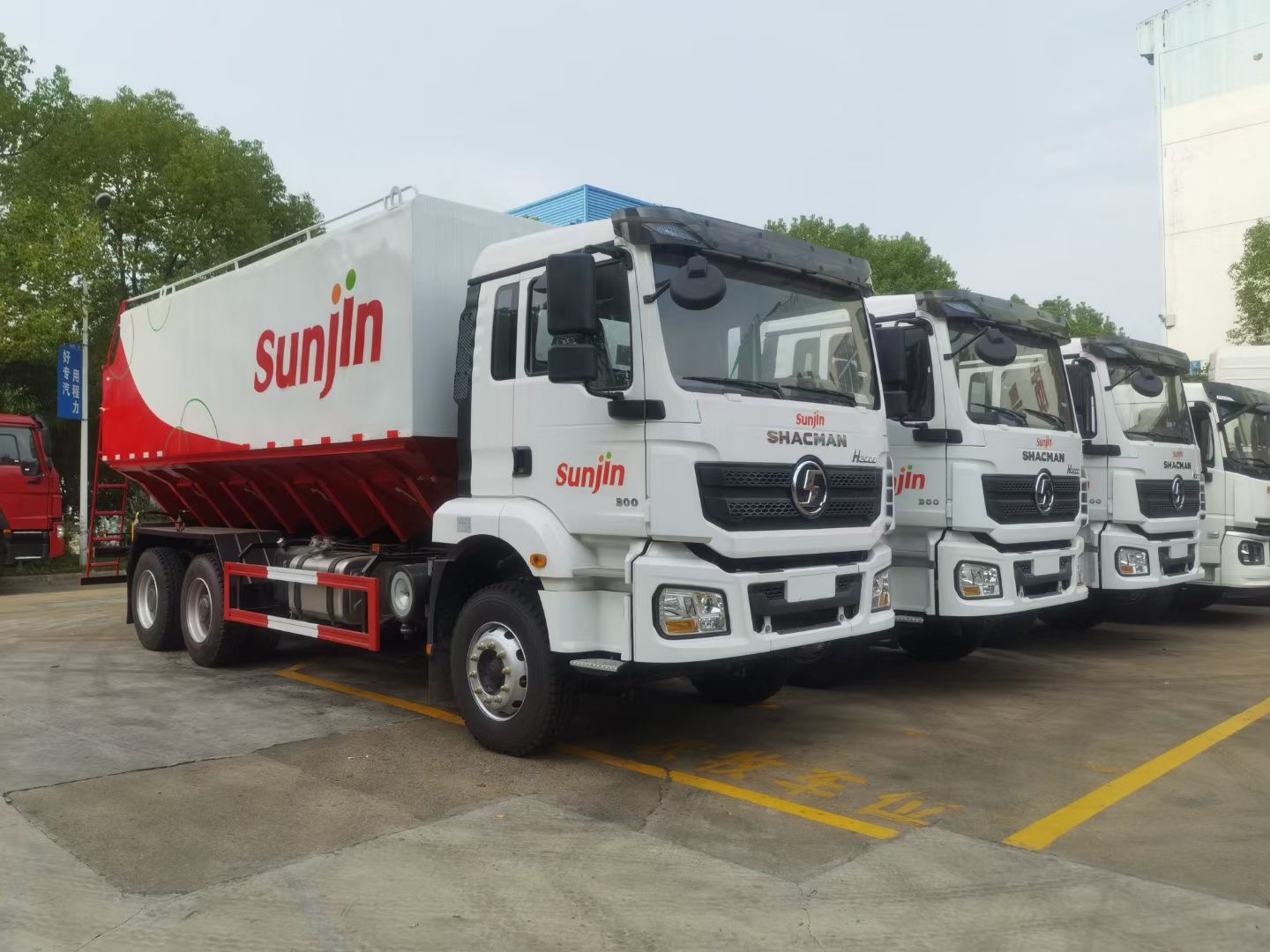

20tons bulk feed transporter for sale

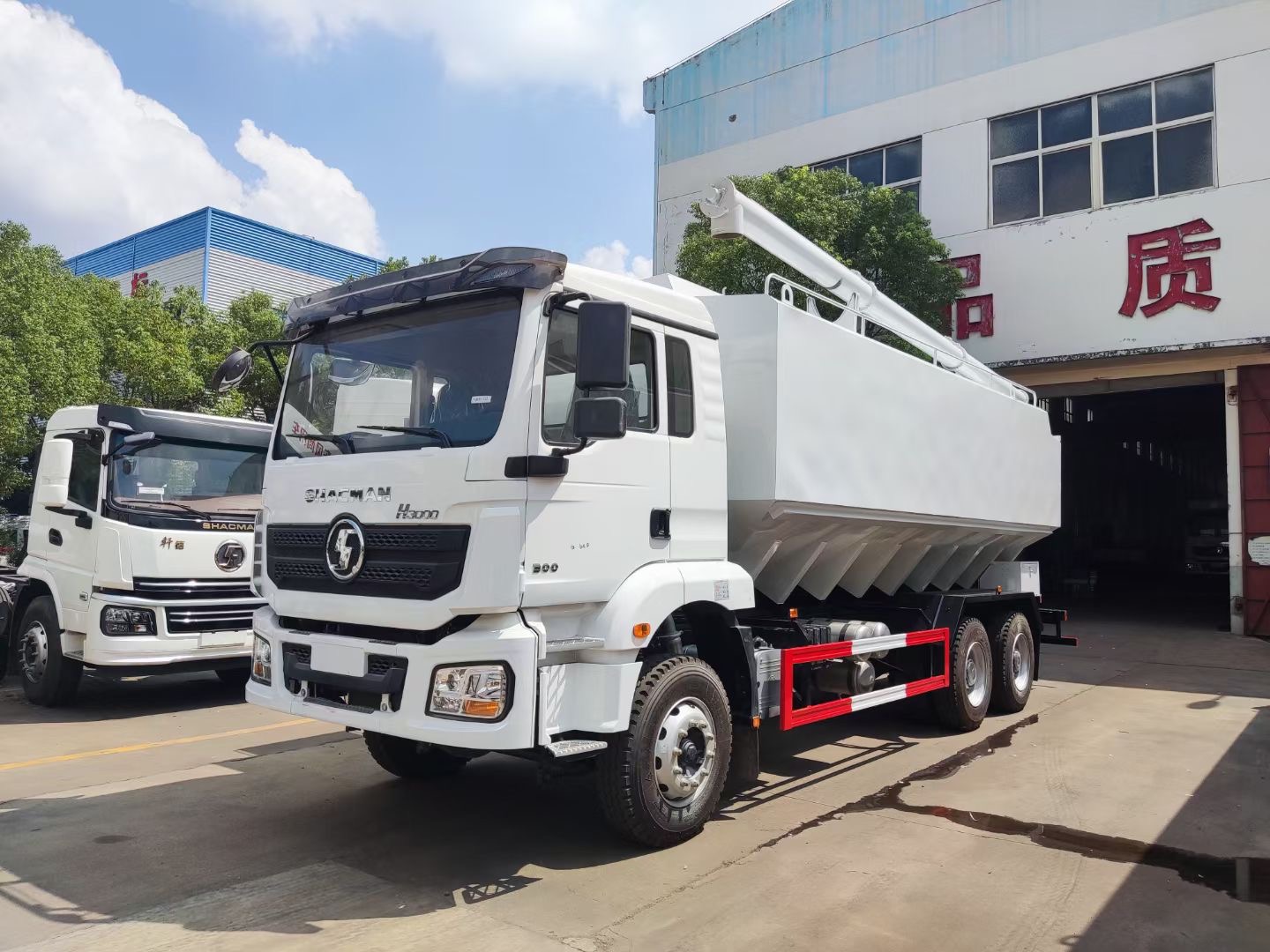

20tons feed truck for sale

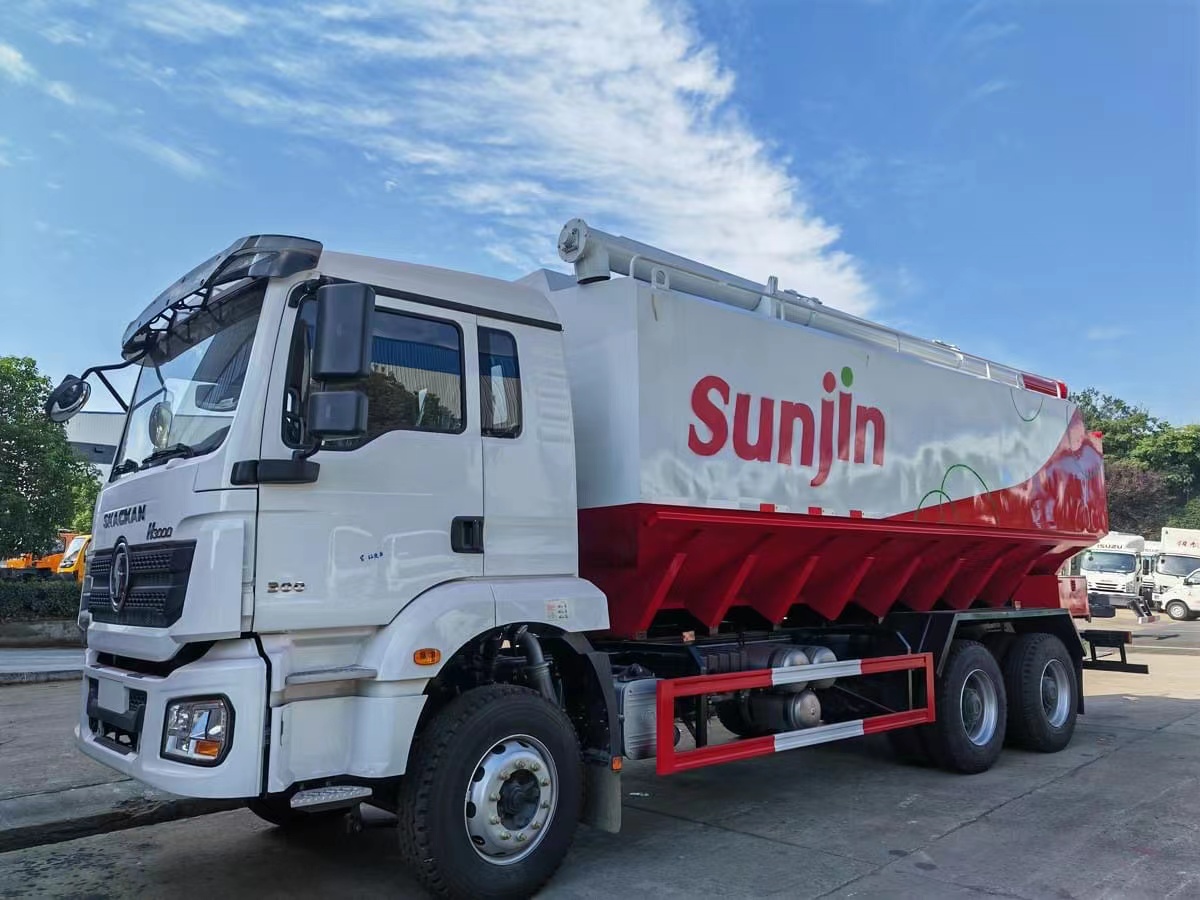

factory direct sale price 20tons feed truck for sale

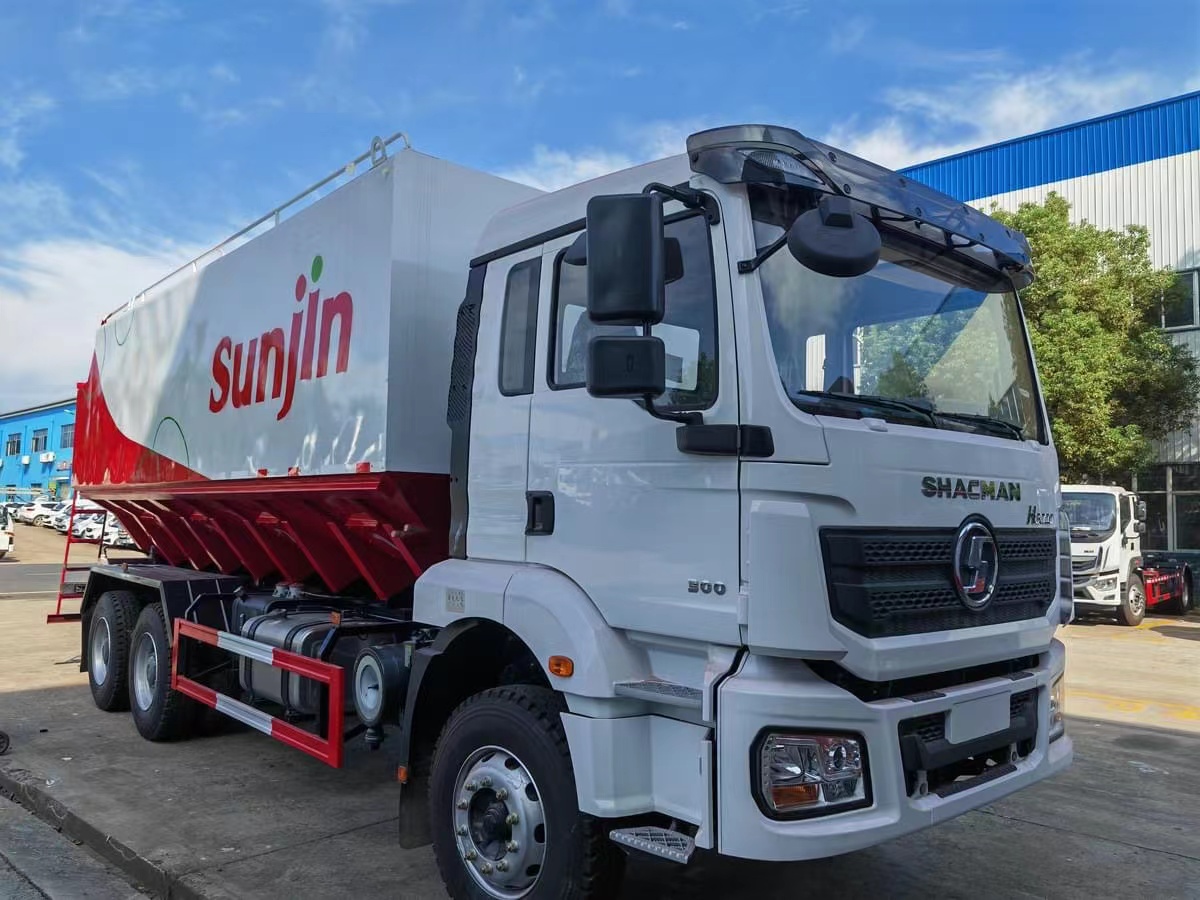

best selling bulk feed transporter for sale

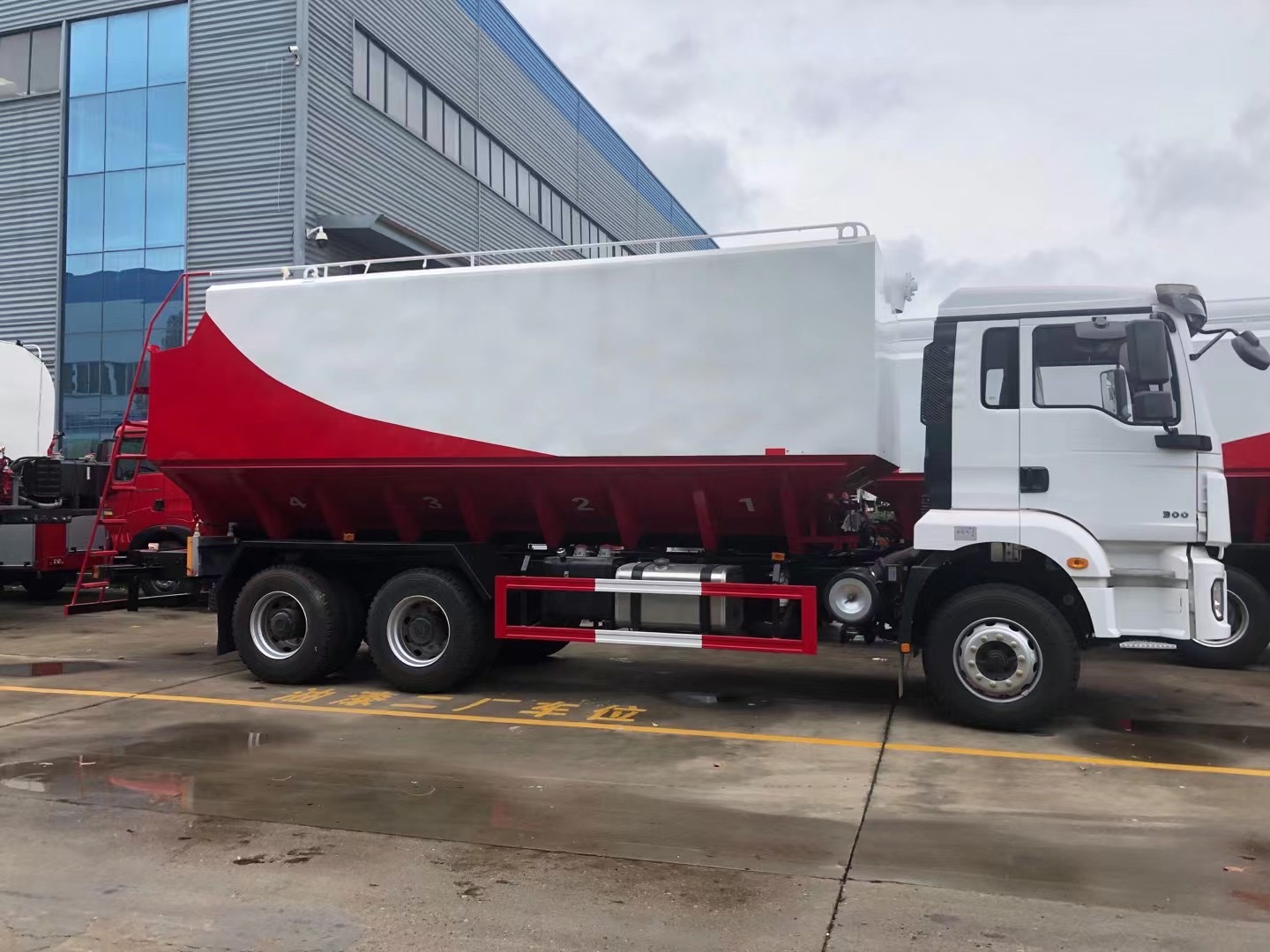

best selling feed truck for sale

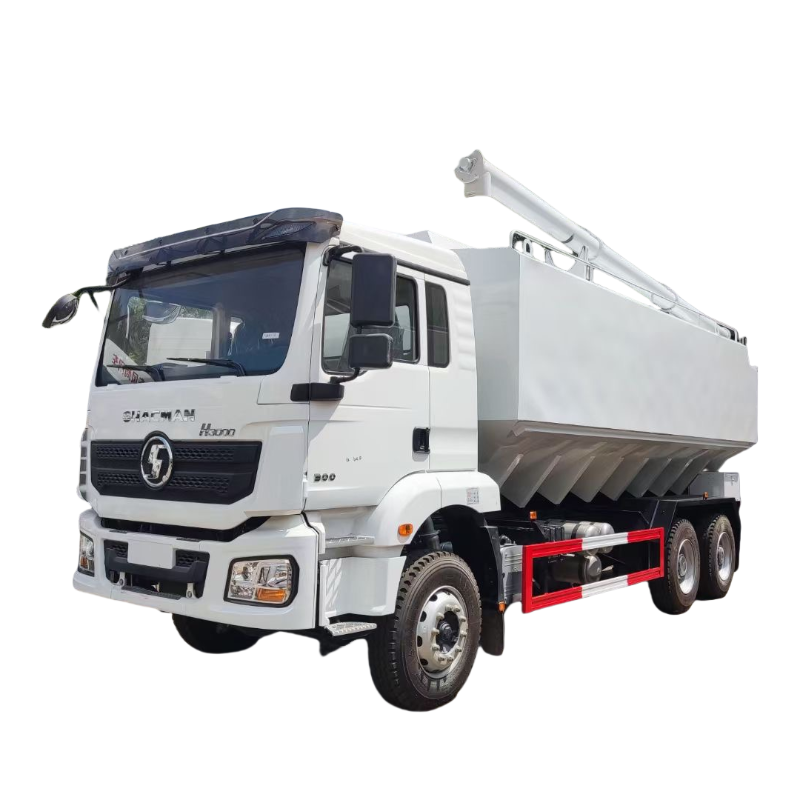

6*4 20tons feed truck for sale
