Main Configuration
the main technical parameters of heavy duty bulk feed truck is as below.
20tons feed truck | |||
| Product description | |||
| Basic parameters of vehicle | Drive form | 8×4 | |
| Total mass (kg) | 31000 | ||
| Curb weight (kg) | 13000 | ||
| Overall appearance parameters of the vehicle | Length (mm) | 11000 | |
| Width (mm) | 2550 | ||
| Height (mm) | 3995 | ||
| Wheelbase (mm) | 1850+3500+1350 | ||
| Performance parameters | Maximum speed (km/H) | 88 | |
| Maximum gradeability (°) | 30% | ||
| Chassis configuration parameters | Engine | Engine emission standards | Europe Ⅱ, Ⅲ, Ⅳ, Ⅴ, Ⅵ |
| Manufacturer | Yuchai/Weichai | ||
| Displacement (L) | 6.2-8L | ||
| Rated power (Kw) | 199-257 | ||
| Chassis configuration parameters | Cab | Type | Half-high cab with lye roof |
| Model | T280CN (2.24 m wide) | ||
| Standard configuration | Integrated reversing mirror, Bluetooth radio, manual hydraulic turnover, driver airbag seat, laminated glass, electric doors and windows, wide bumper, central locking, multi-function steering wheel | ||
| Gearbox | Gearbox type | Manual, 12th gear | |
| Double Front Axle | Type | Drum brake | |
| Loadable mass (kg) | 3600 | ||
| Double Rear Axle | Type | Drum brake | |
| Loadable mass (kg) | 10000 | ||
| Speed ratio | 5.571 | ||
| Chassis configuration parameters | Frame | Section size (mm) | 280×80×（7+4） |
| Leaf spring | Number of pieces | 9/9 front springs, 10 rear springs | |
| Tire | Type | Steel Wire Tyre | |
| Quantity | 12+1 | ||
| Model | 11R22.5-18 | ||
| Steering system | Type | Hydraulic power steering system | |
| Braking system | Brake type | Drum brake with ABS anti-lock brake system | |
| Type of service brake system | Double circuit air brake | ||
| Type of parking brake system | Spring Brake | ||
| Parking control type | Hand brake control | ||
| Electrical system | System voltage | 24V | |
| Battery | 140AH double battery | ||
| Upload configuration parameters | Cargo box | Volume (m ³) | 38 |
| Material | Q235 | ||
| Discharge speed (m ³/min) | ≥1 | ||
| Other configurations | Warning triangle, tool kit, rear spare tire at the rear of the frame, ABS, air conditioning, front lower protection, sunshade. | ||
More pictures of bulk feed transport vehicle are as below.

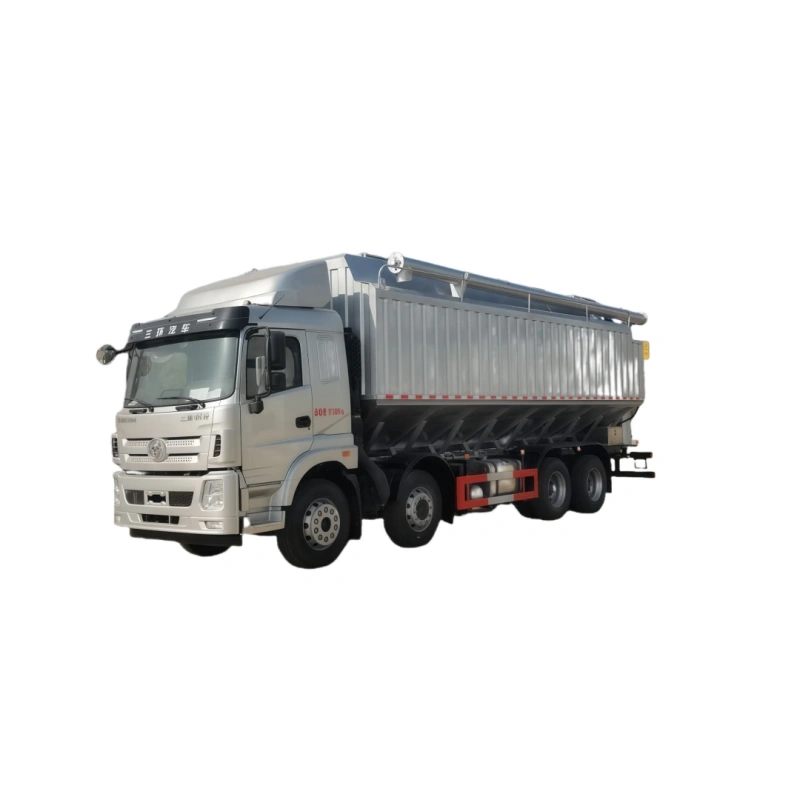

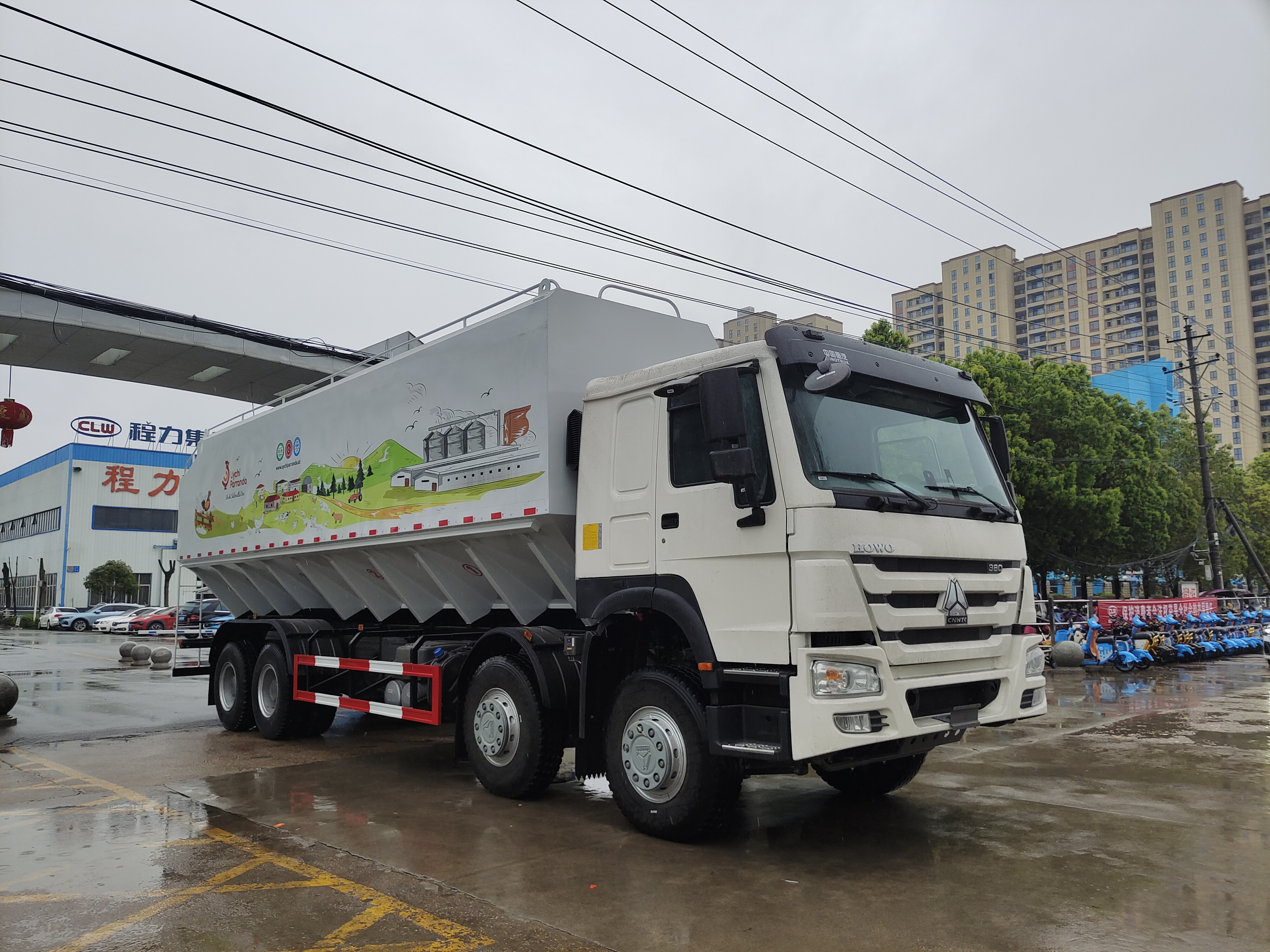

farm-oriented and livestock animal bulk feed transport vehicle

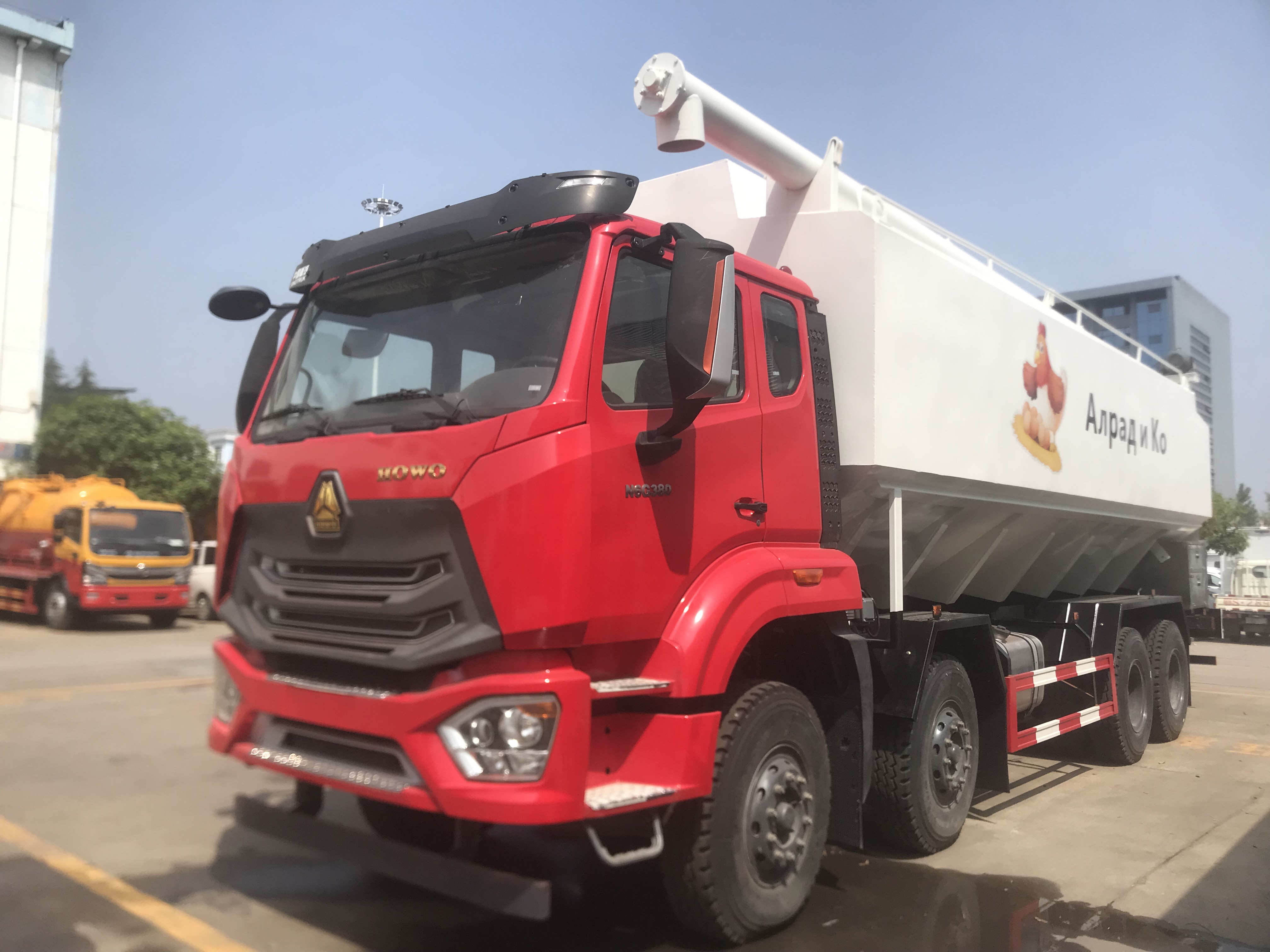

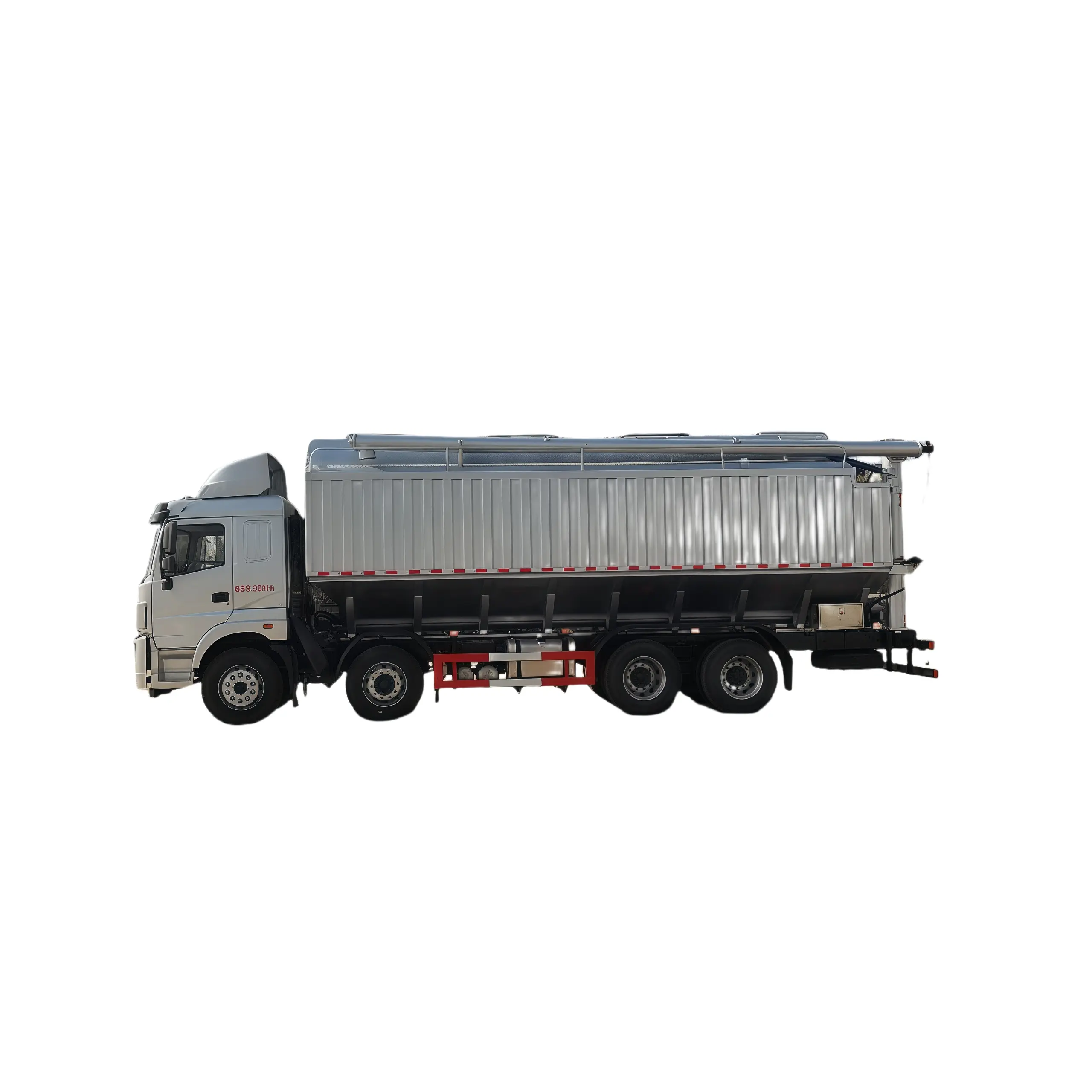

heavy duty bulk feed truck

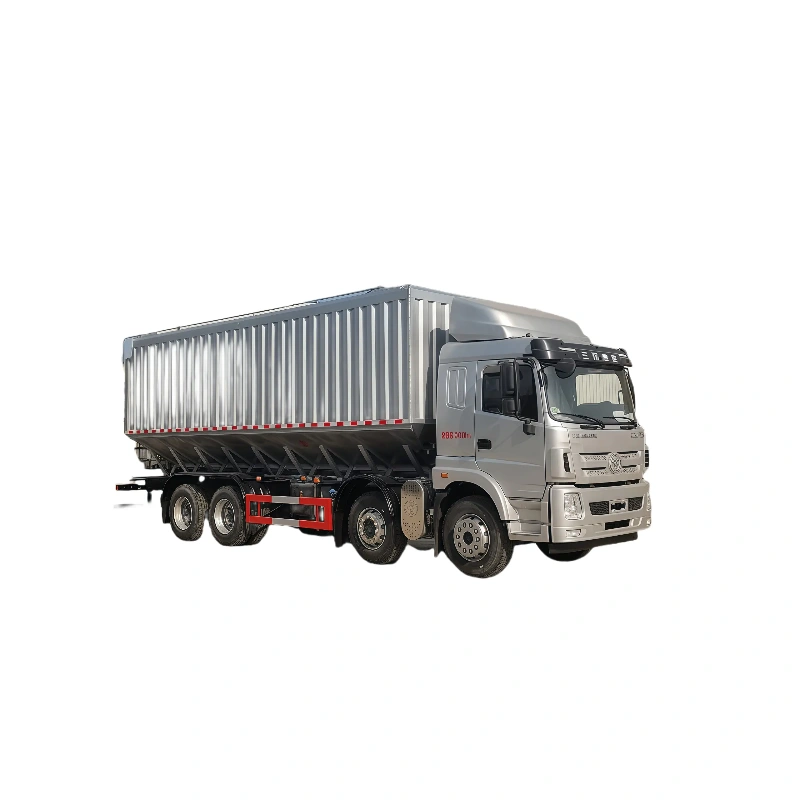

good quality bulk feed transport vehicle for sale

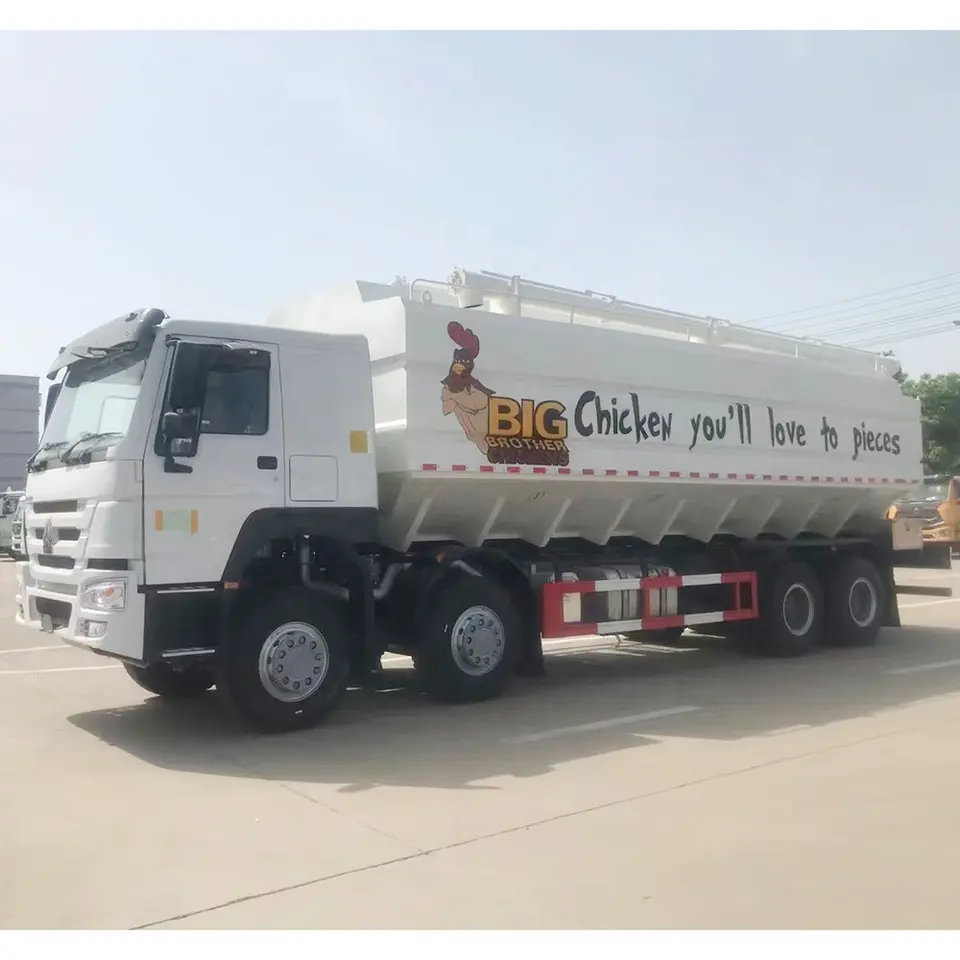

20tons feed truck

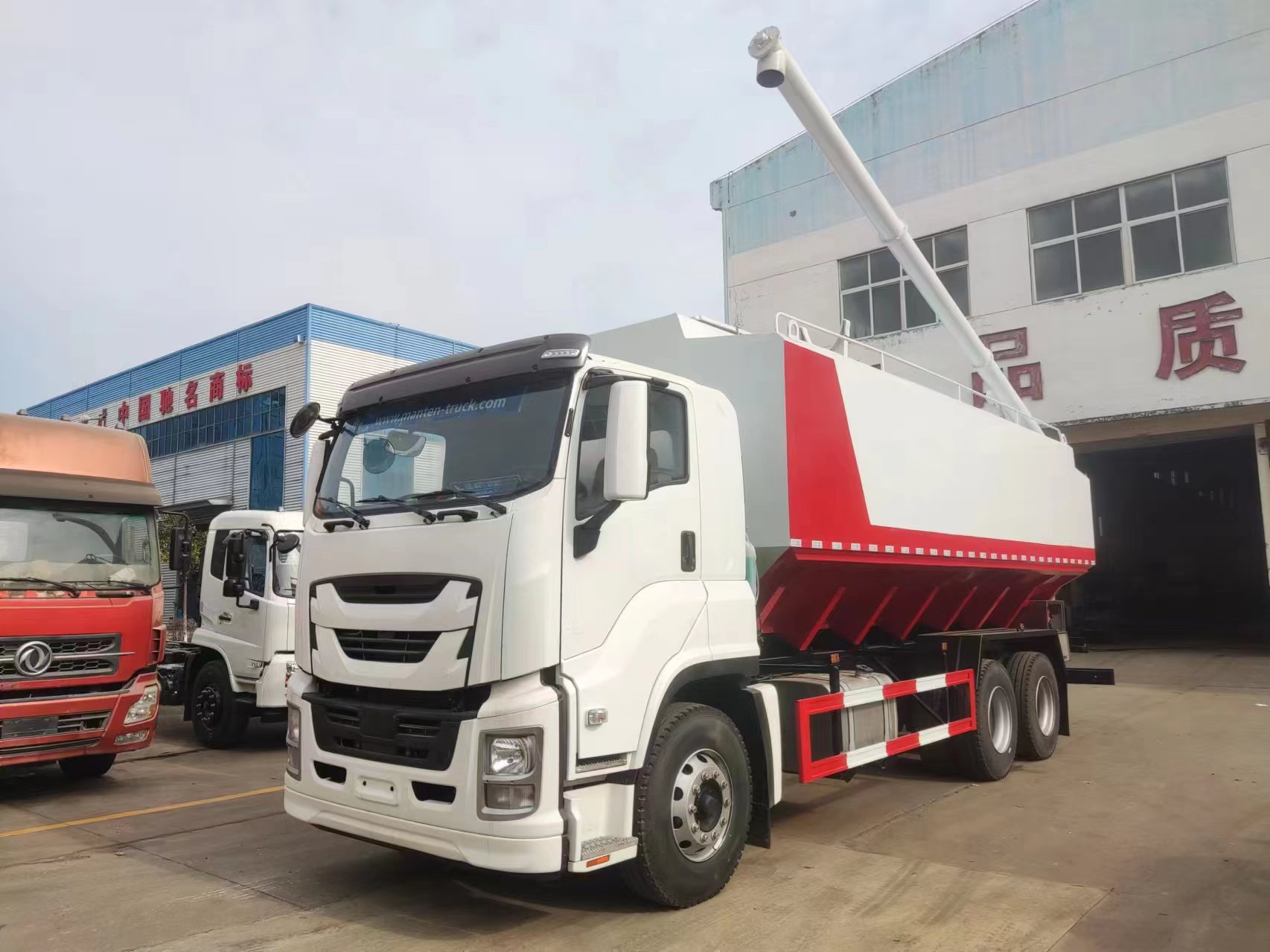

heavy duty bulk feed truck for sale

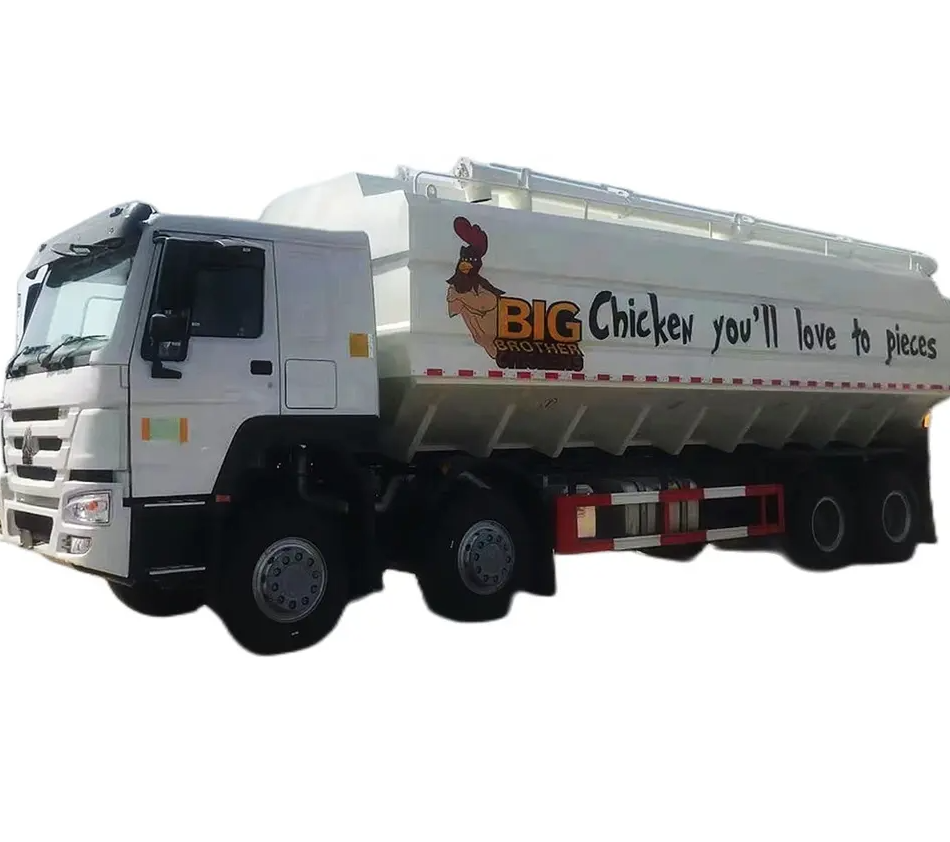

factory direct sale price 20tons feed truck
Bulk feed truck, also known as bulk feed transport vehicle, feed truck, bulk feed hauler, farm-oriented and livestock bulk feed delivery truck 20tons feed truck.
The advatnages of of bulk feed transport vehicle are as below.
Simple structure, reliable performance, large throughput, easy control, strong mobility, no pollution to the material and other characteristics, widely used in the major small and medium-sized farming enterprises of feed transportation.
the feed body of bulk feed transport vehicle are mounted on the chassis of the truck, The special facilities are composed of tank assembly, conveying system (horizontal discharge system, vertical discharge system and mobile discharge system), bulk feed truck tank hydraulic system (the three output ends of the high-pressure oil pump pipeline and the distribution valve connected to the valve are respectively Angle hydraulic motor, lifting oil cylinder and horizontal discharge, vertical discharge and mobile discharge hydraulic motor connected in series), bulk feed truck Electric system, pneumatic division mechanism, etc. A gate is arranged at the bottom of the tank, and a horizontal screw conveyor (commonly known as a horizontal mixing cage) is installed below the gate. The force extractor is driven by the output power of the automobile transmission, and then the high-pressure oil pump is driven to drive the hydraulic system. The hydraulic motor of the bulk feed truck tank drives the blade shaft and blade rotation of the horizontal screw conveyor through the transmission device. Feed is exported through a mobile conveyor system (commonly known as a mobile mixer). A movable unloading winch with flat roof can turn and lift freely, and the top spiral pipe lies flat on the top of the tank during transportation; When unloading, lift the bulk feed truck tank so that the discharge port at the end of the pipe and the feed door at the top of the storage tank in the livestock and poultry farm are connected and aligned to complete the discharge.

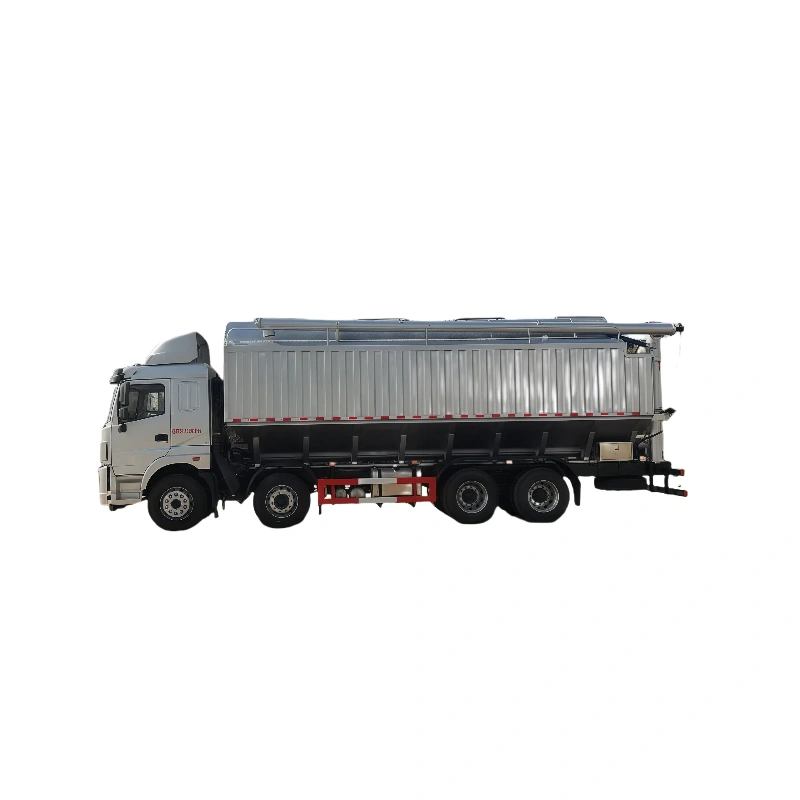

Best selling 20tons feed truck

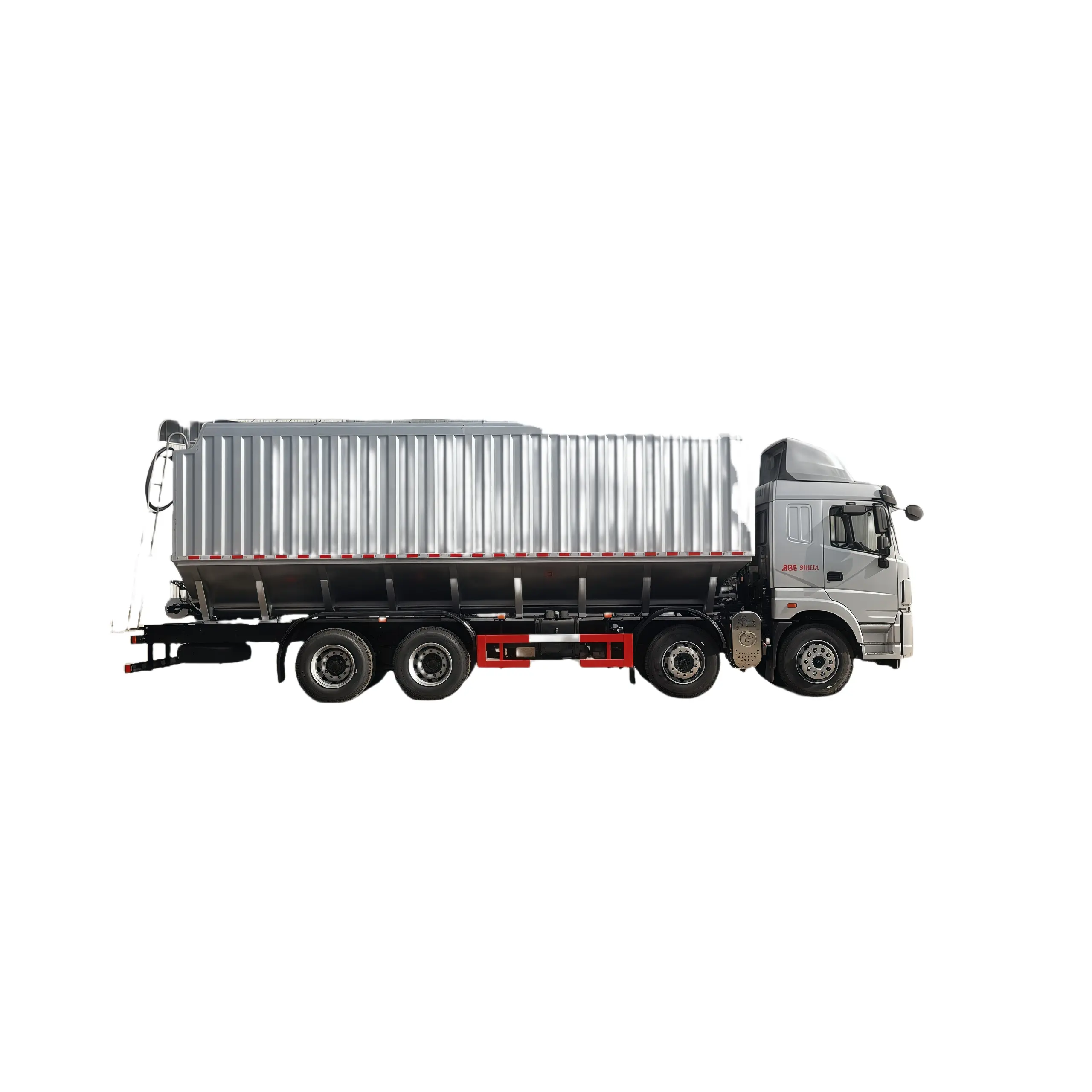

heavy duty bulk feed truck
20tons feed truck
Key words: bulk feed truck, feed truck, bulk feed transport vehicle, feed truck price, 10tons bulk feed truck, 20tons feed truck, bulk feed hauler, bulk feed truck for sale, howo feed truck, heavy duty bulk feed truck, 20tons feed truck, bulk feed transport vehicle, small bulk feed transport vehicle.
FAQ
Q1.ls your company a factory or trading company?
A: We are a leading manufacturer of special trucks, tankers, trailers, and spare parts in China Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles
Q2.What is your terms of payment?
A: T/T 30-50% as deposit, and the rest before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3.What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DAF, DDU.
Q4.How about your delivery time?
A: Generally, it will take 20 to 30 days after receiving your advance payment. The specific deliver time depends on the items and the quantity of your order.
Q5. Can you customize the product according to my requirements?
A: Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
Q6. What is the price of your product?
A: We are direct sales from the factory, so the price is very competitive. Different products have different prices. The price also depends on your special needs. To know the exact price, please contact us!
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: What service can l get from you?
A: We provide lifelong tracking service and one year free warranty for all of our products.Meanwhile we provide free training and technical support to quide you repair your product. lf you need, we will also supply original spare parts and you just need to pay the freight
Key words: bulk feed truck, feed truck, feed truck for sale, feed truck price, 10tons bulk feed truck, 20tons feed truck, bulk feed hauler, bulk feed truck for sale, howo feed truck, heavy duty bulk feed truck, 20tons feed truck.
We Chengli Special Automobile Co., Ltd is one of the leading manufacturer and supplier of bulk feed transport vehicle in China since 2004s. We can manufacture and sell heavy duty bulk feed truck, bulk feed transport vehicle, 20tons feed truck, bulk feed hauler, bulk feed semitrailer, etc.
