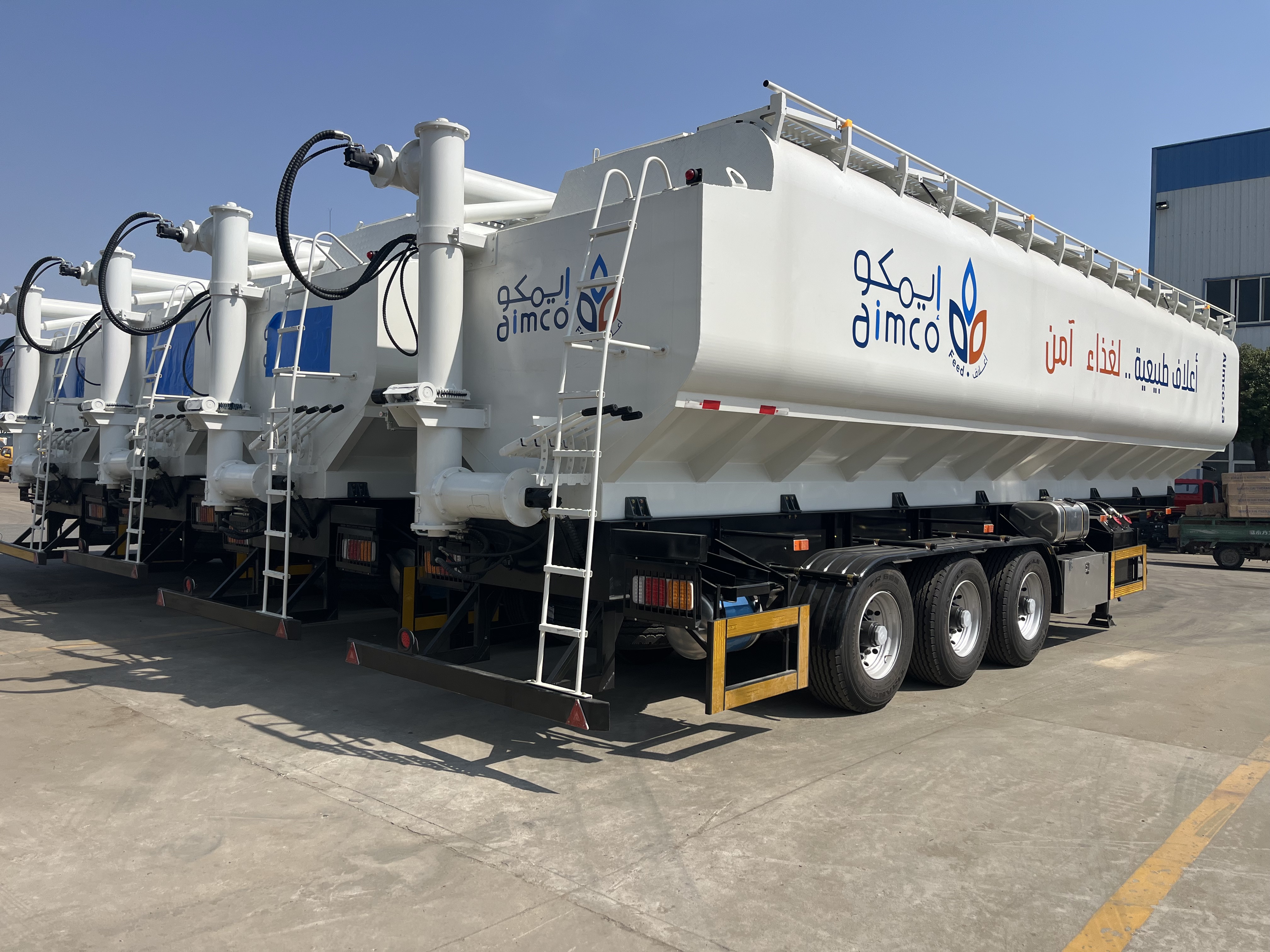

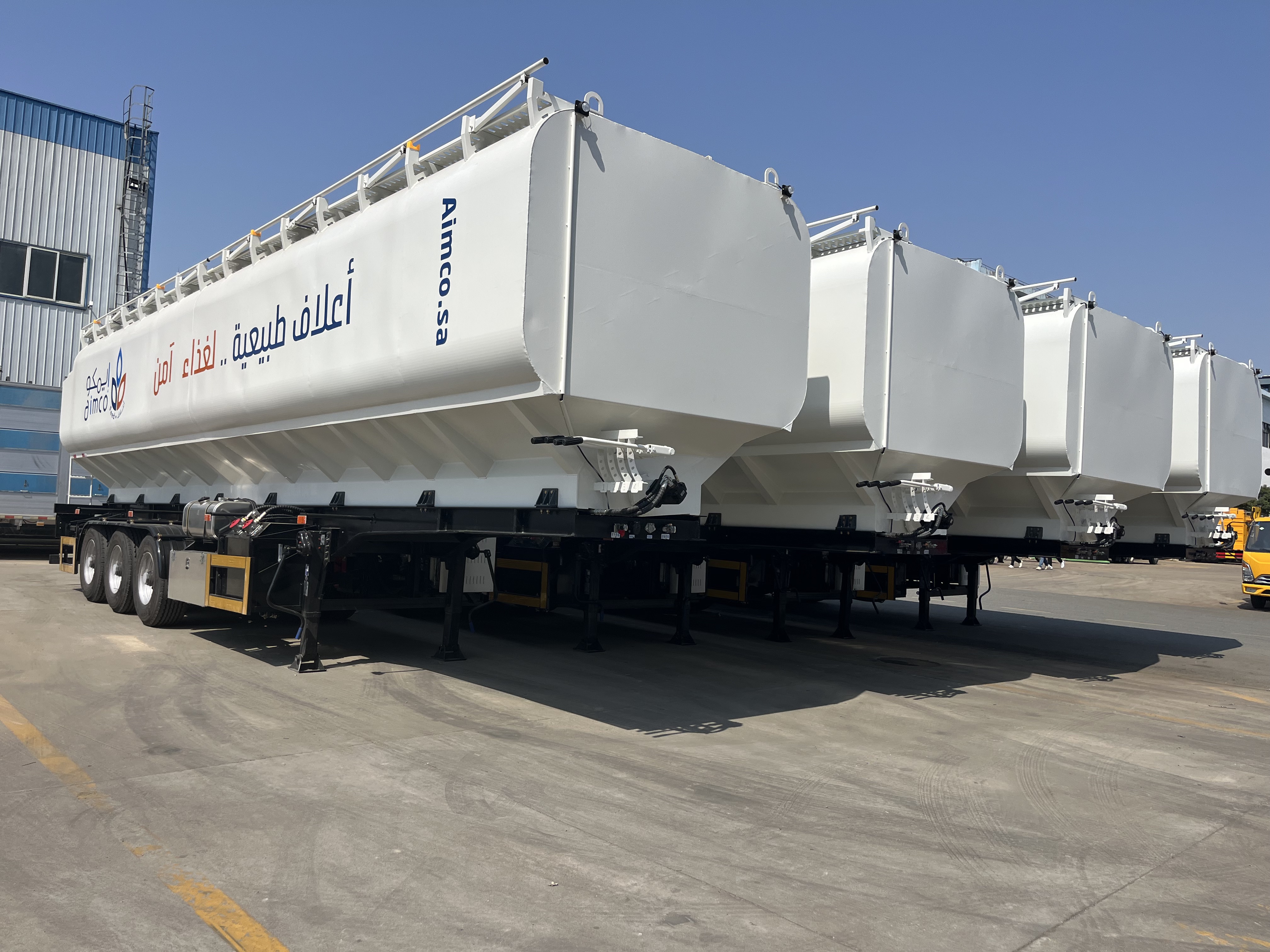

Bulk feed semitrailer is main used for delivering, loading and discharging of feed pellets of different feed factories, large-type poultry farms, and also for transporting some non-corrosive feed pellets, such as pellets from pharmaceutical factory and turnover of grain depots, etc. The bulk feed silo semi trailer f manufactured by Chengli Special Automobile Co., Ltd. can transporting various feed pellet with the different compartments, the dream transporting vehicles for poultry farms and feed factories.

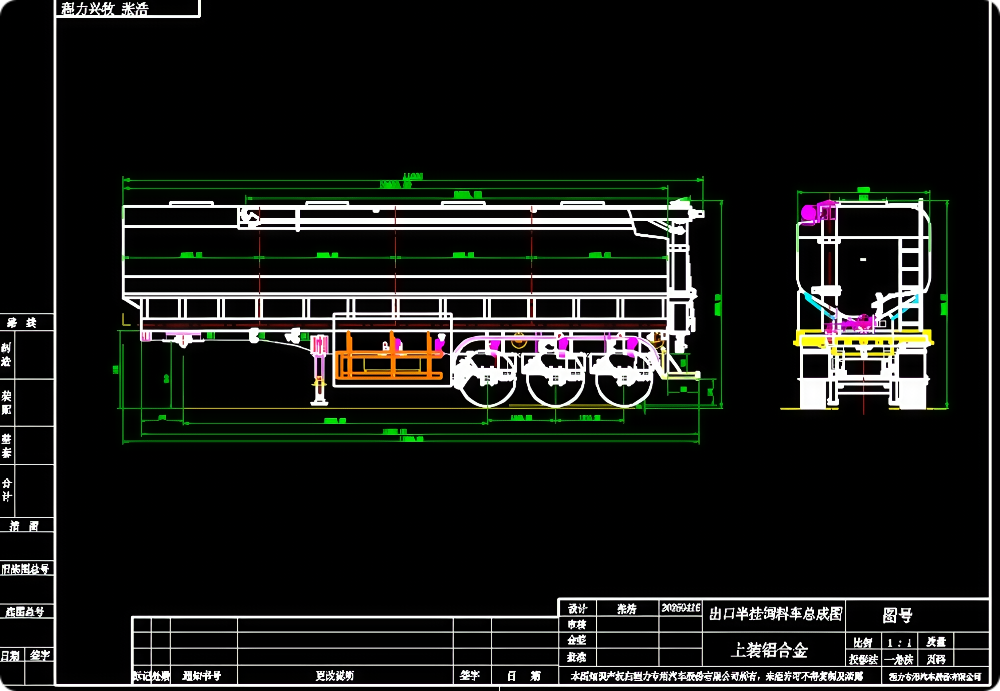

TECHNICAL PARAMETERS of bulk feed trailer for sale
GENERAL DESCRIPTION | |
Bulk feed semitrailer (please provide accurate data according to actual design) | |

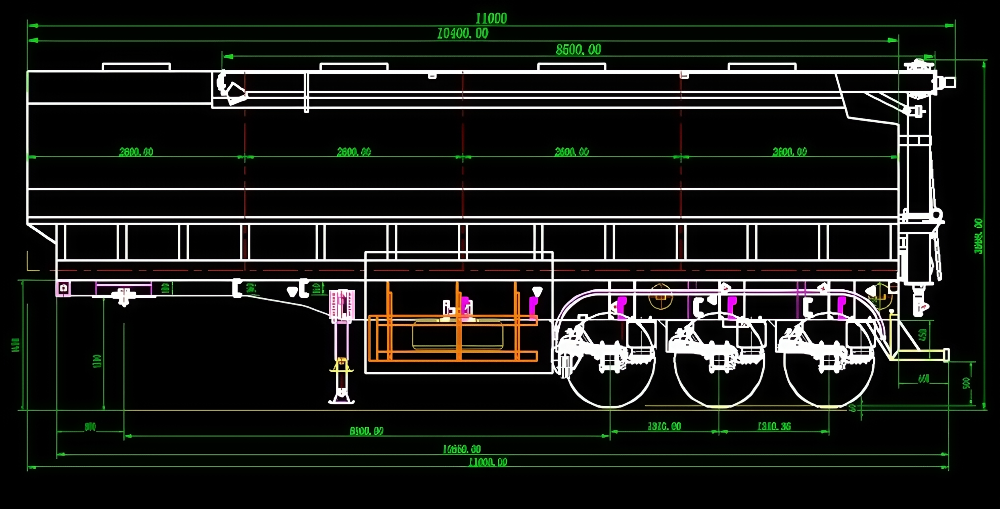

Overall dimension(L*W*H) | 12600x2550x3998mm |
Total mass | 40000 |
Wheelbase | 6000+1310+1310 |
Curb weight | ≈9.2T |
Rated weight | ≈30T |
Feed tanker parameters | Tanker volume: 58m³ |
Tanker material/thickness | Aluminum alloy material/thickness 4mm-5mm-8mm combination box |
tanker shape | Rounded tanker |
Compartments | 6 compartments |
Auger nos. | 4 |
Auxiliary engine | ISUZU |
Hydraulic system | Denison pump, Eaton motor, oil-powered multi-way valve |
Lifting auger | 219*4*8500 material : Q235 |
Horizontal auger | 219*4* 10550 material: Q235+Aluminum alloy shell |
bulk feed silo semi trailer
Vertical Auger | 273*4*2800 material: Q235 |
Compartment cover | Stainless steel manual slide |
Stainless steel manual slide | Gas shielded welding |
Tank connection method | Lock block link |
Compartments nos. | 8 |
Maintenance box | According to customer needs |
Hand washing tank | 50L carbon steel material |
Diesel tank | 150L aluminum alloy material |
Hydraulic oil | 68# |
Driving part |
|
Axles. | Yonglitai Axles |
Wheelbase | 6000+1310+1310 |
Girder material/thickness | T700 material, upper 8mm, down 10mm, middel 6mm |
Outriggers | Fuwa 28T |
Suspension | Air suspension, front axle can be raised |
Tractor pin | Fuwa 50# Assembly type |
Tire | 7 pieces ,385/65/225 |
Gas line connector | Handshake valve |
Braking system | ABS |
Axles | YONNGLITAI 14T, triple axles（The first axle mid-lift does not include ABS, the second and third axles include ABS） |
Rear guard/side guard/tool box | Steel |

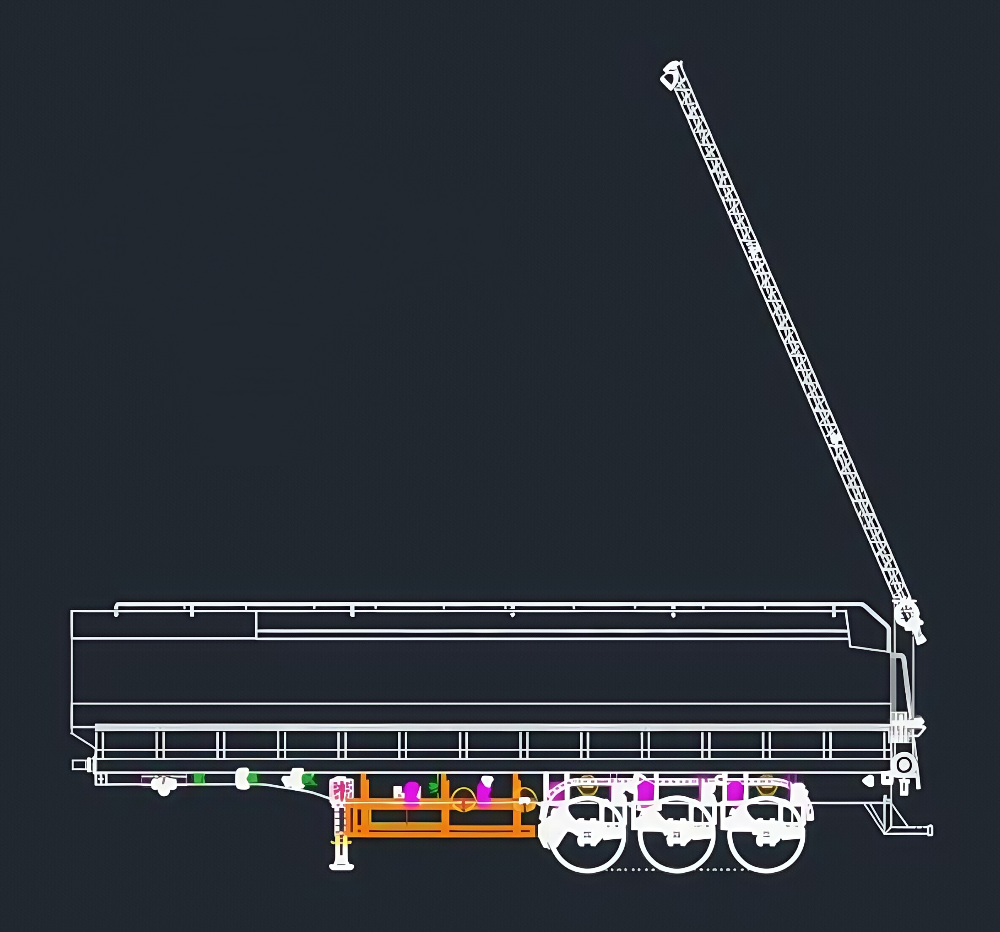

The bulk feed semitrailer volume of 56cbm-58cbm, adopts high quality aluminum alloy material , transferring feeds by electronic auger, working with putting on 380volts electronic power. The electronic motor drives the Mechanical auger screw type to discharge with high discharging speed of 0.55ton/min. The Barrel type auger at the tank top is driven by the hydraulic motor, and the electronic bottom control lifting up and down, rotation left and right, with the horizon range of 7.2m and vertical range of 8.2m. So little Residual rate, less than 0.1. And the bulk feed silo semi trailer can be continuous working, highly improving the working productiveness.
There are 5-7 compartments of the bulk feed semitrailer, separate compartment with different kinds of feeds. Every unit is with simple structure, easy and flexible operation, easy to maintenance, etc.

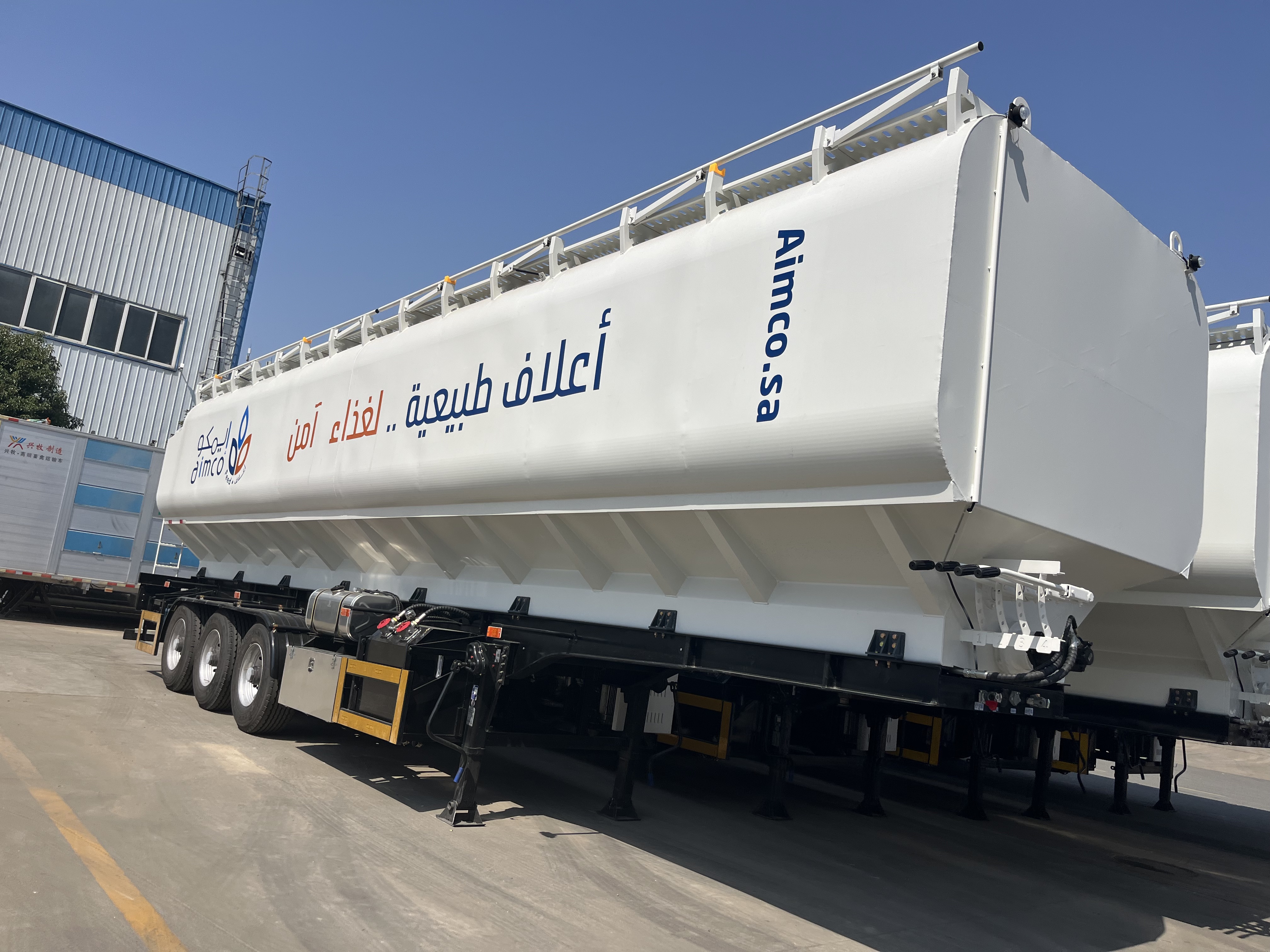

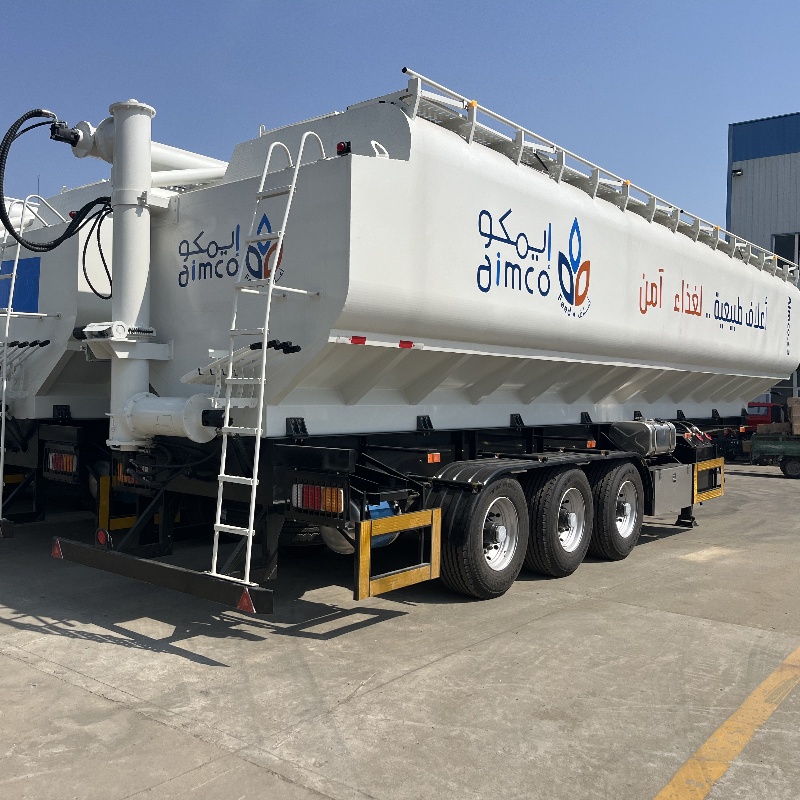

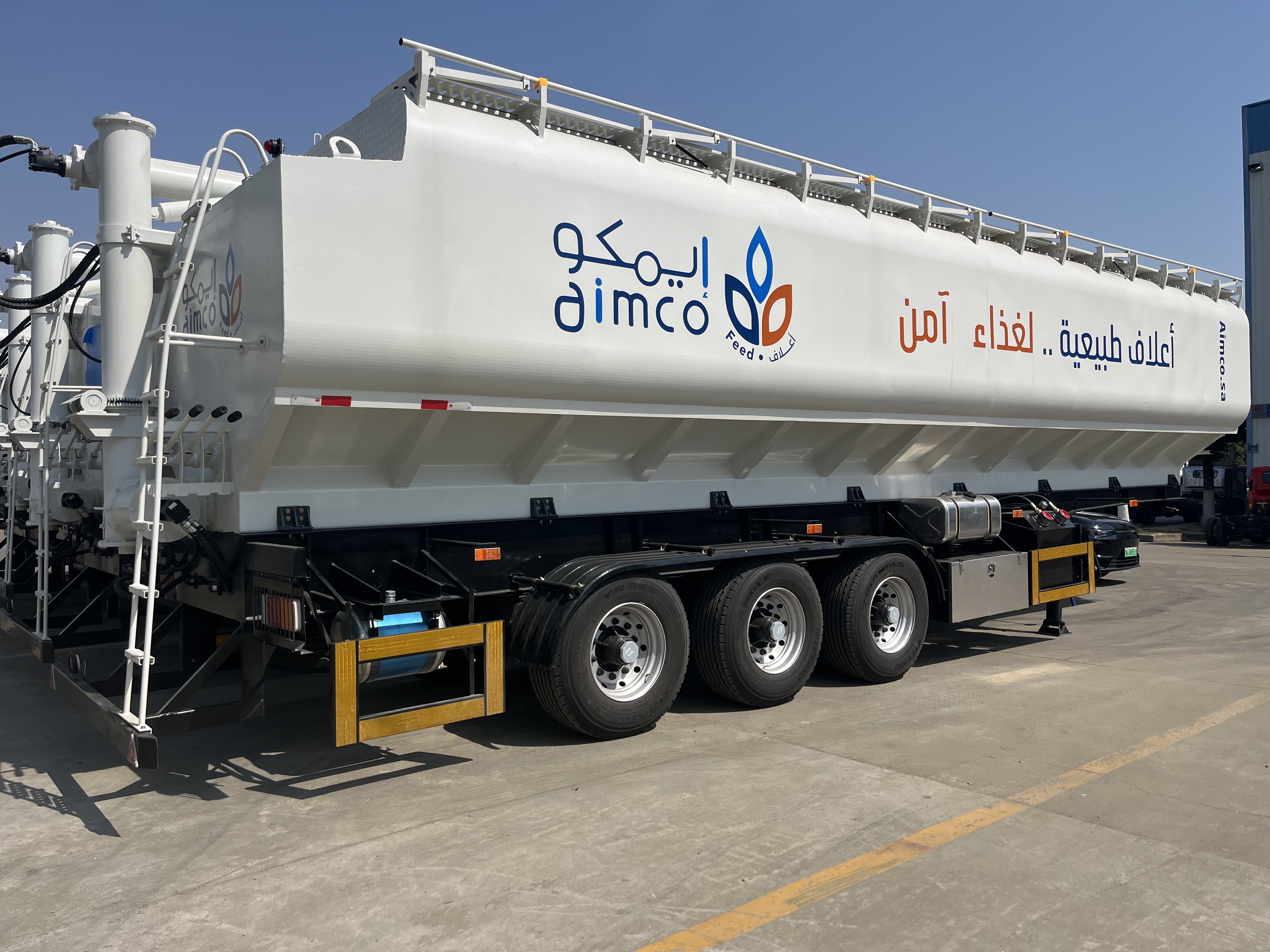

bulk feed trailer for sale
bulk feed silo semi trailer
bulk feed semitrailer
bulk feed trailer for sale
The advantages of CLW bulk feed silo semi trailer as below.
Compared to the traditional bag package delivery, using the bulk feed silo semi trailer saving manpower, reducing transporting cost, etc. However ask for the livestock and poultry farms with bulk feed silo semi trailer.
Discharging by auger, sealed delivering, reducing wastage, avoding pollution, assuring feed quality, continuous operation with high productiveness, etc.
Fully automatic hydraulic system, standard Hydraulic gear pump, easy operation and maintenance, etc.
bulk feed semitrailer

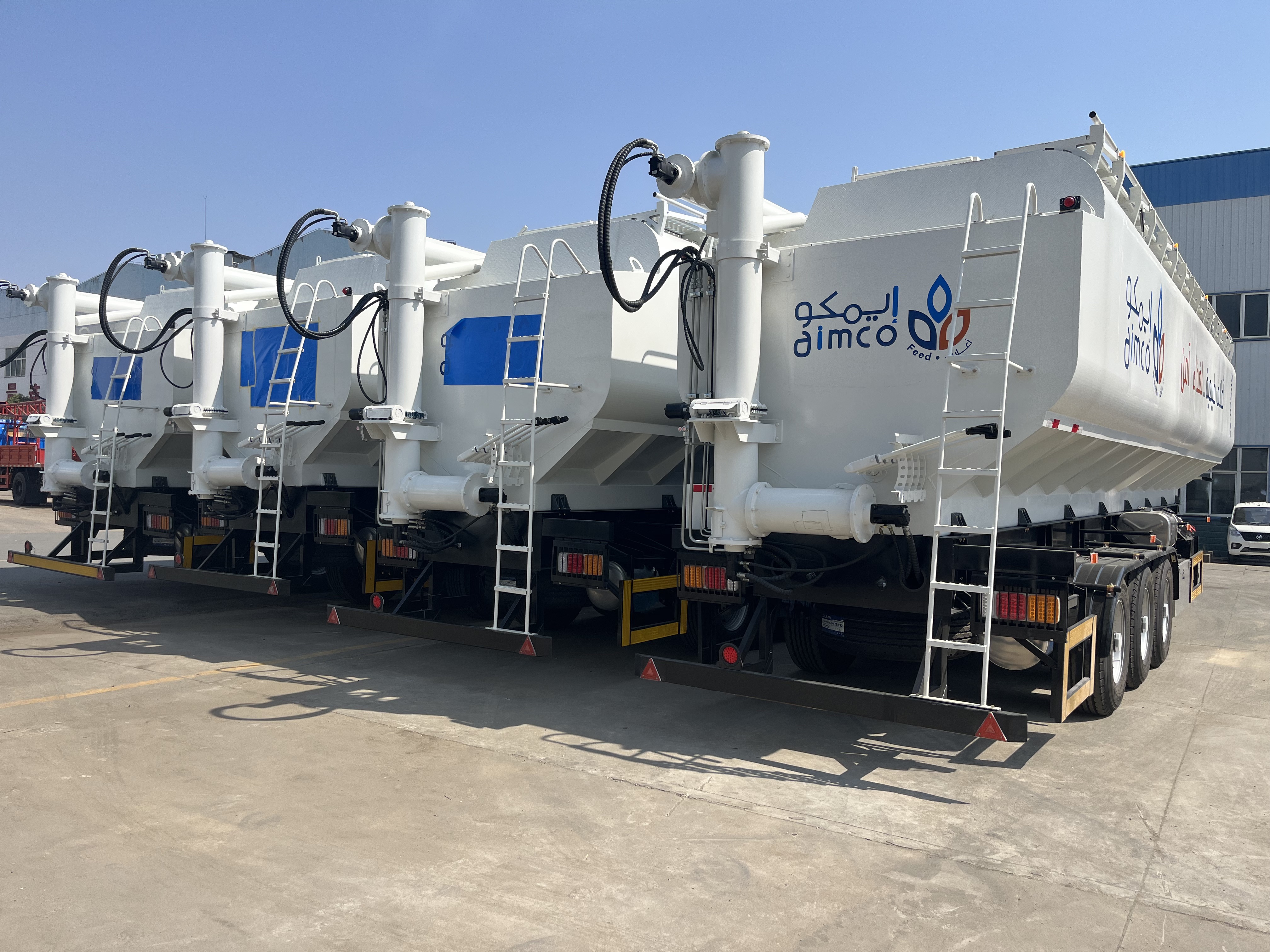

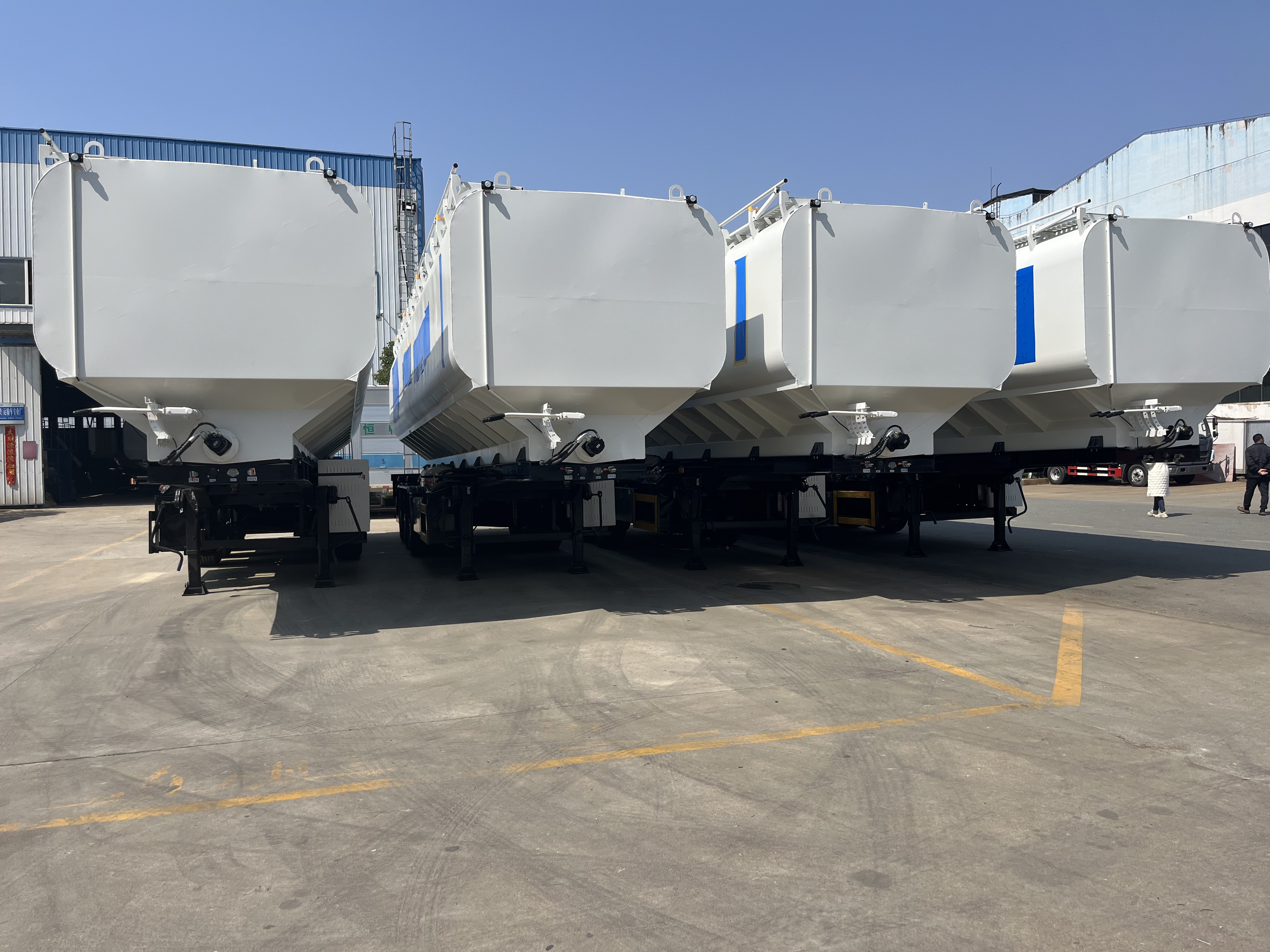

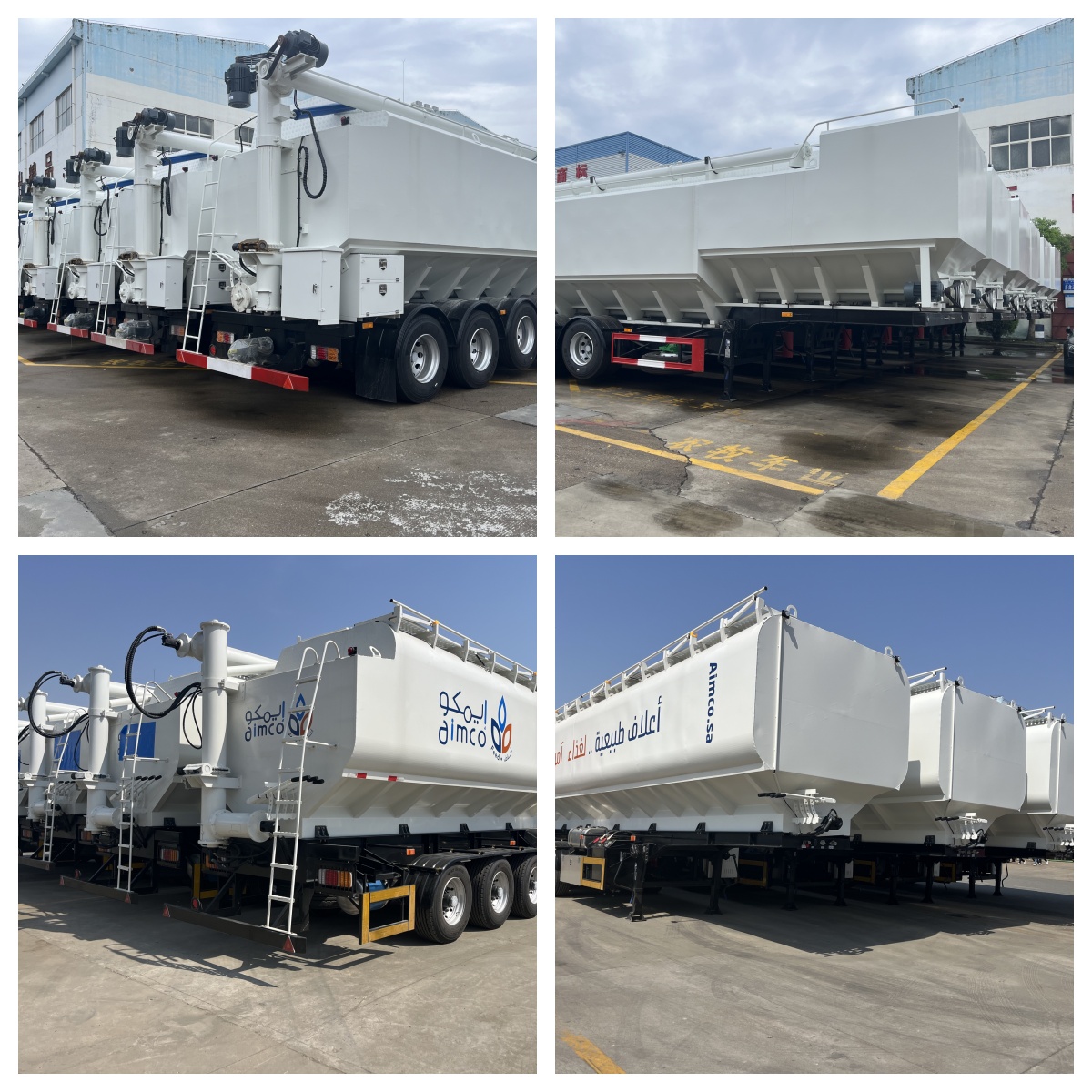

a batch of bulk feed silo semi trailer
bulk feed trailer for sale
bulk feed trailer for sale
Bulk feed trailer for sale is mainly used to transport feed products or raw grains material for animal feed production from poultry feed factories to livestock poultry farms and feed processing mills users. At the same time, bulk feed trailer can be also use for transport some non corrosive powder and granule raw materials.
We Chengli Special Automobile Co., Ltd. is one of the leading manufacturer and supplier of bulk feed trucks and bulk feed semitrailer in China since 2004s. With so many years; development, we can manufacture and sell bulk feed trucks, bulk feed semitrailer, bulk feed silo semi trailer, poultry feed trailer, 30tons bulk feed semitrailer, aluminum bulk feed silo semi trailer, etc.
Key workds: bulk feed semitrailer, bulk feed silo semi trailer, bulk feed trailer for sale, bulk feed truck.
bulk feed trailer for sale
bulk feed semitrailer
Welcome to our FAQ section, where we aim to address your most pressing questions about our feed tanker vehicles. At CHENGLI, we understand the importance of making informed decisions, especially when it involves the efficiency and reliability of your feed transportation operations. Below, you’ll find answers to common inquiries regarding our products, services, and the unique advantages we offer. Should you have any further questions or require detailed information, please don’t hesitate to contact us directly. Our team is here to provide you with the support and insights you need to ensure seamless feed handling and transportation.
Our bulk feed silo semi trailer boast an impressive unloading speed, thanks to the 273mm diameter vertical auger, significantly larger than the standard 219mm. This design enhancement ensures that a 13-meter semi-trailer can be unloaded in just 25-30 minutes, maximizing efficiency in your operations.
We've indicatively designed our augers to minimize feed breakage. Our vertical auger, with an enlarged pipe diameter and reduced rotational speed, paired with double-helix blades, significantly lowers the crushing rate. With CLW, feed breakage is reduced to just 40% of the industry average, ensuring optimal feed utilization.
Absolutely! We offer customization options, including painting the bulker with your company logo or any design you prefer. At CLW, we make sure your bulk feed trailer for sale not only performs well but also aligns with your brand identity.
Understanding the importance of ease of use, we provide detailed instructional videos for each operation step. In many countries, our local partners and service teams offer hands-on assistance. Additionally, for initial usage, we can dispatch an engineer to ensure smooth operation
We maintain a well-stocked spare parts inventory in China for rapid dispatch. Additionally, in several countries, we have local stores for even faster access, ensuring minimal downtime for your operations.
Quality is our priority. That's why we use internationally renowned brands like Schneider for our electrical components, ensuring longevity and reliability in every Gamma Tech product.
Thanks to our expansive production warehouse, we ensure swift manufacturing processes. Most of our bulk feed silo semi trailer can be prepared and ready for delivery within 30-50 days, ensuring you receive your quality product promptly.
Customer satisfaction is our priority. We offer comprehensive after-sales support including access to our expert team for maintenance advice, spare parts, and any operational assistance you might require throughout the lifespan of your bulk feed semitrailer.

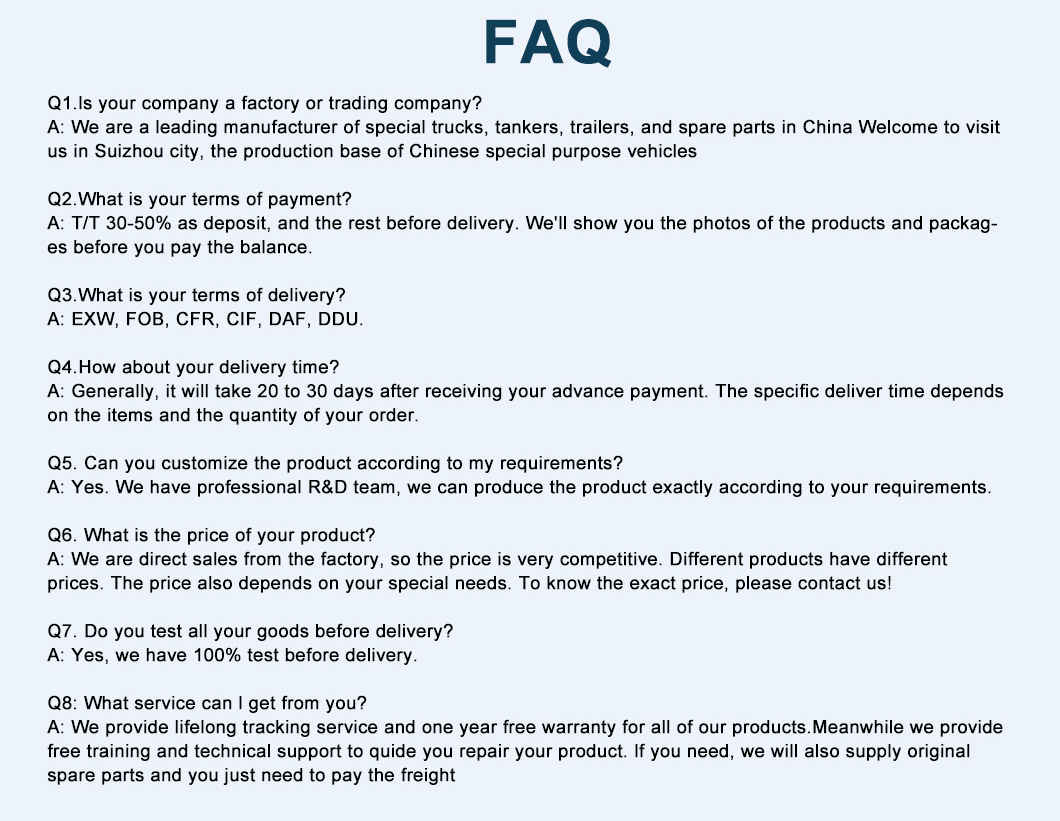

We are a leading manufacturer of special trucks, tankers, trailers, and spare parts in China Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles
T/T 30-50% as deposit, and the rest before delivery. We'll show you the photos of the products and packages before you pay the balance
EXW, FOB, CFR, CIF, DAF, DDU
Generally, it will take 20 to 30 days after receiving your advance payment. The specific deliver time depends on the items and the quantity of your order
Yes. We have professional R&D team, we can produce the product exactly according to your requirements
We are direct sales from the factory, so the price is very competitive. Different products have different prices. The price also depends on your special needs. To know the exact price, please contact us
Yes, we have 100% test before delivery
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. lf you need, we will also supply original spare parts and you just need to pay the freight
