Main technical parameters of HOWO feed truck is as below.
Item | Unit | Parameters | ||
Product name |
| bulk feed transport trucks | ||
chassis model |
| ZZ | ||
Engine model |
| WP10.340E22 weichai 340hp diesel engine | ||
Engine power | KW | 250KW/340hp | ||
Emission standard |
| Euro 2 | ||
Driver cab seated person |
| 3 | ||
Vehicle parameters | Total mass | kg | ||
Rated mass | ||||
Curb mass | ||||
Overall dimension(L*W*H) | mm | 10750×2495×3950 | ||
Tanker dimension(L*W*H) | 7300×2460×2050 | |||
Wheelbase | 4600+1350mm | |||
Approach/departure angle | ° | |||
Max speed | km/h | 95 | ||
Tire specification | 12R22.5 | |||
volume | M3 | 30 howo feed truck | ||
the specification of howo feed truck for sale
SINOTRUK HOWO HW76 one row and a half driver cab
6*4 LHD, RHD optional
4600+1350mm wheelbase
WP10.340E22 weichai 340hp diesel engine, Euro 2 emission standard
HW 10+2 gears, manual type
7.5T front axle/16T rear axle
12R22.5 tires*10+1 spare
Air conditioner, 400L oil tanker, etc.

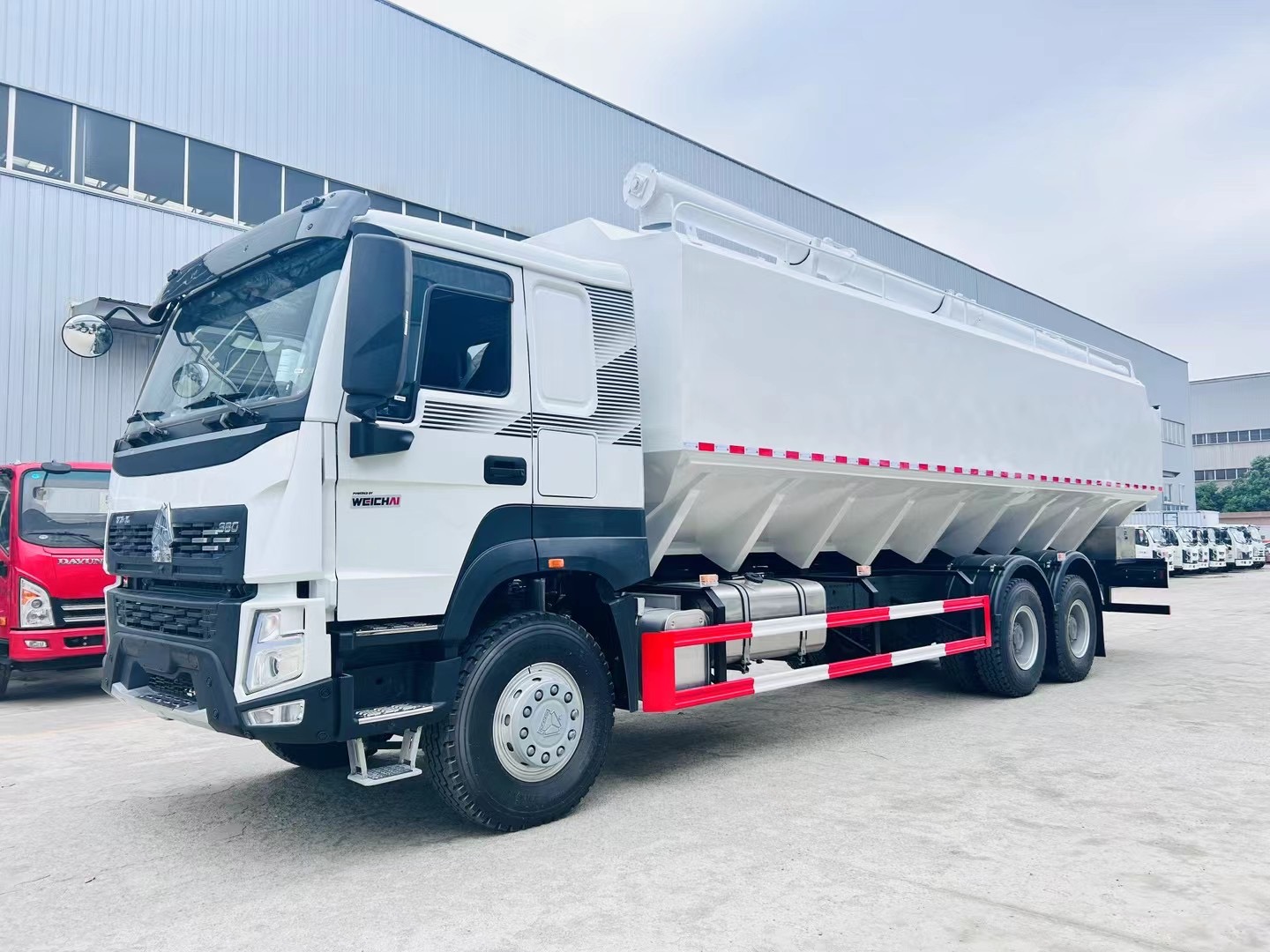

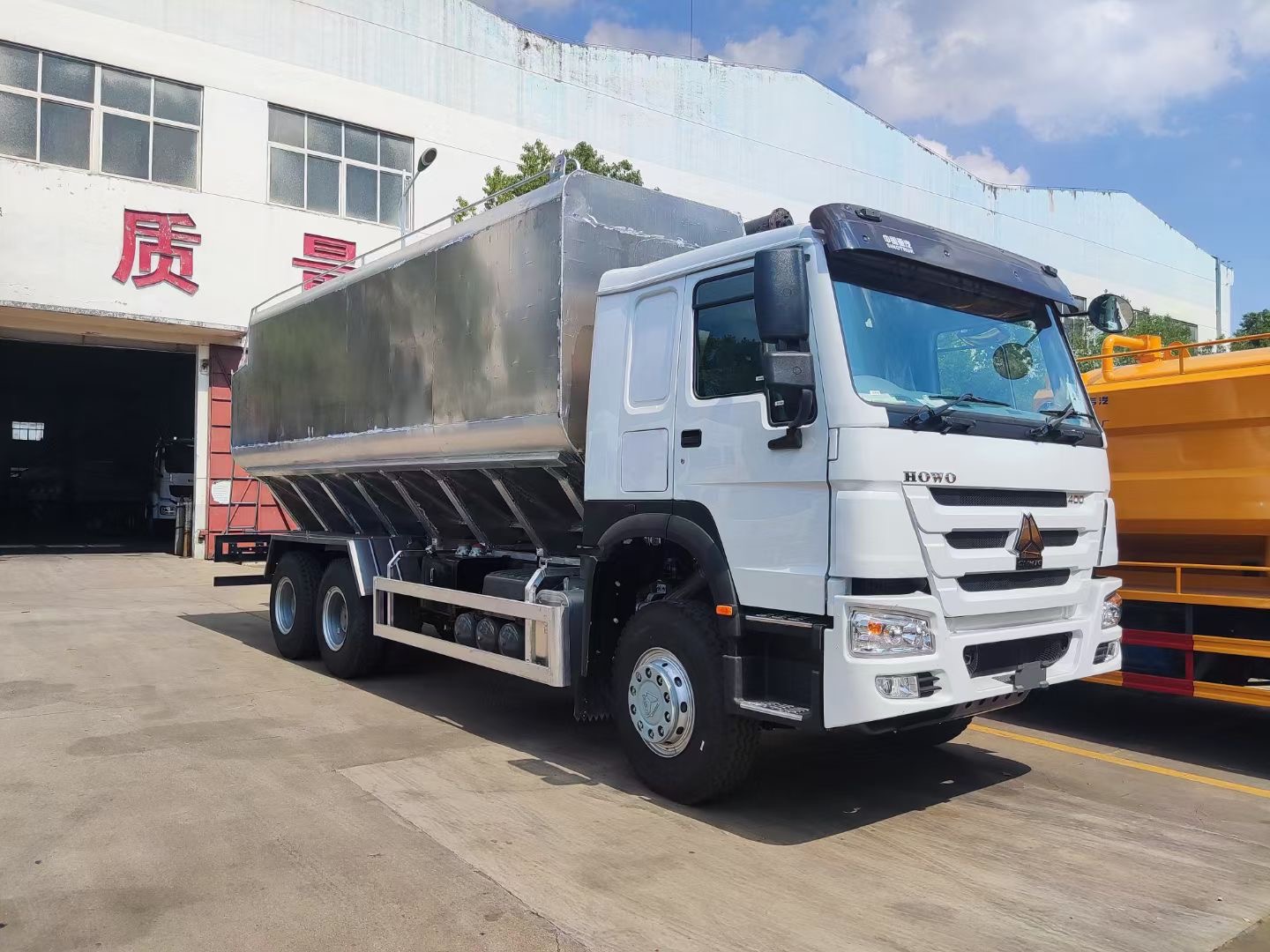

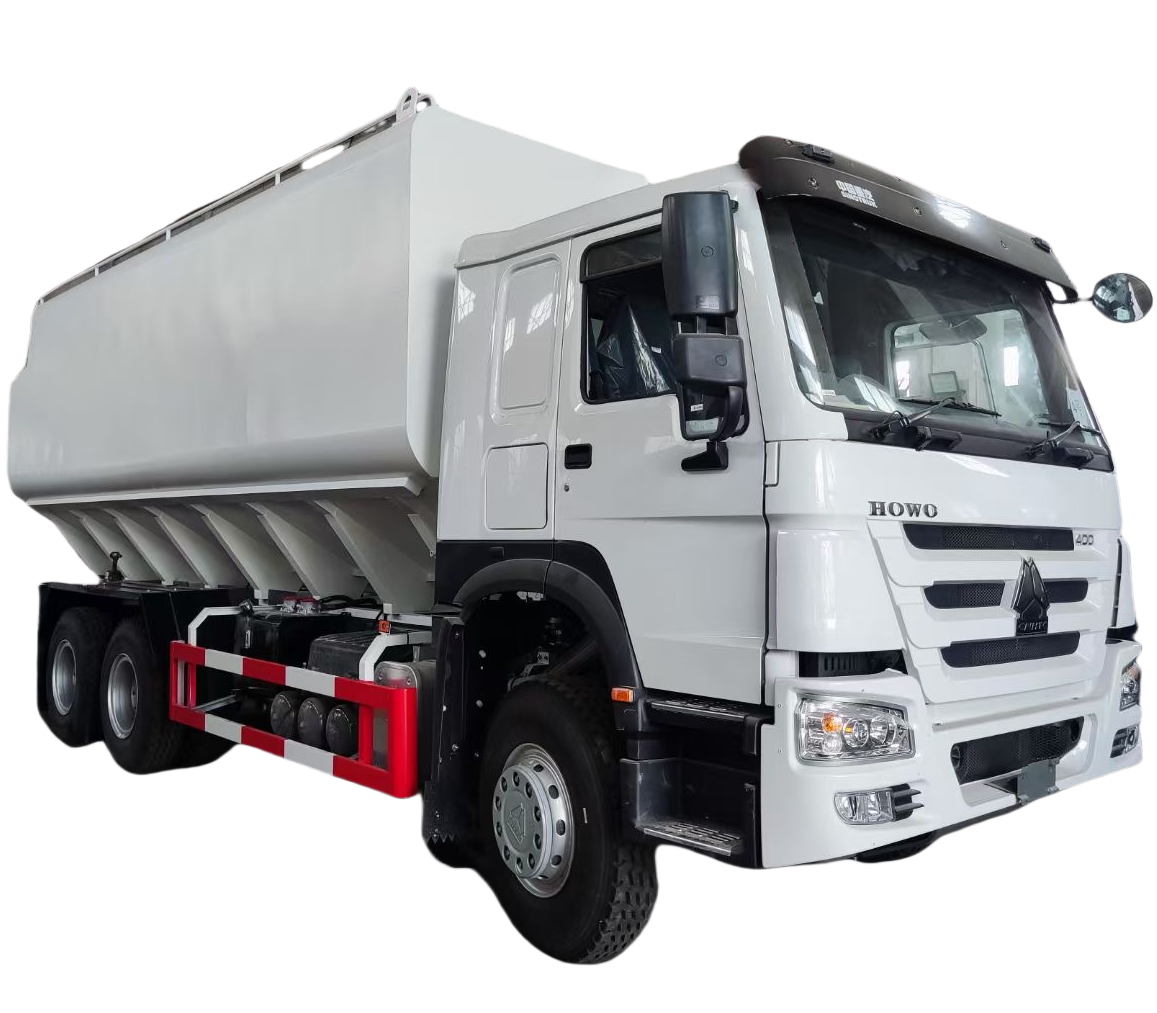

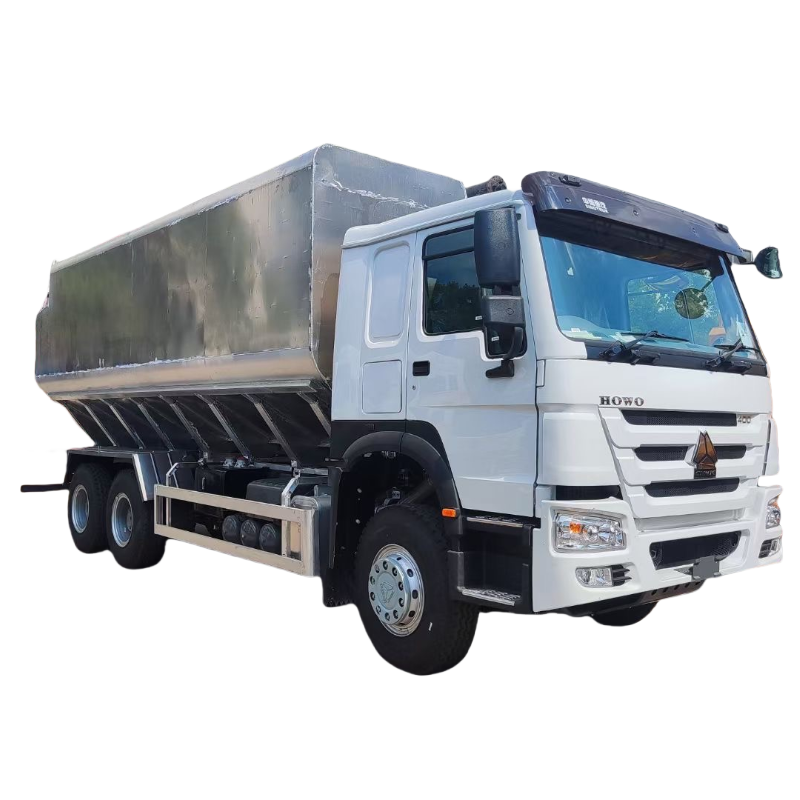

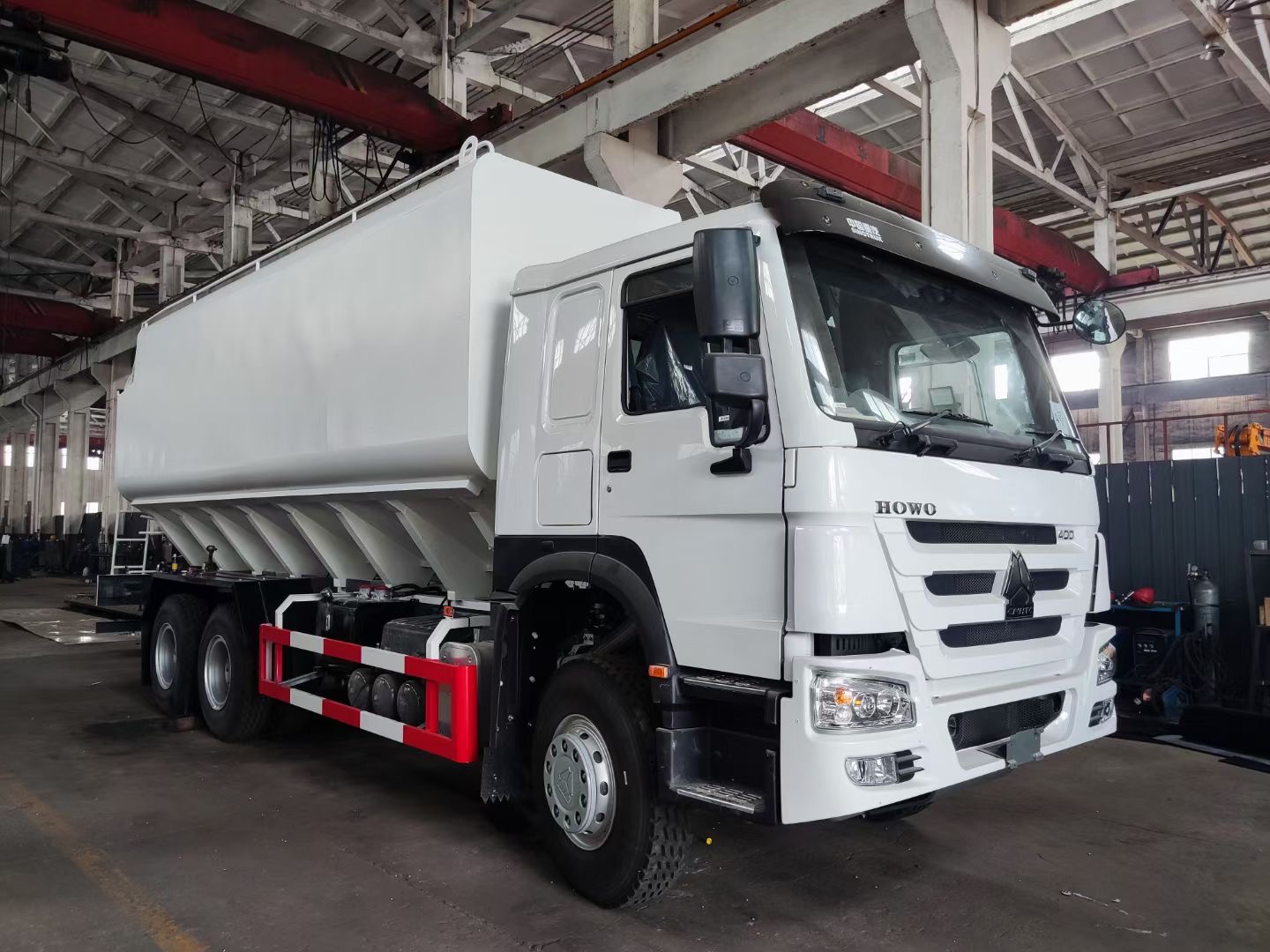

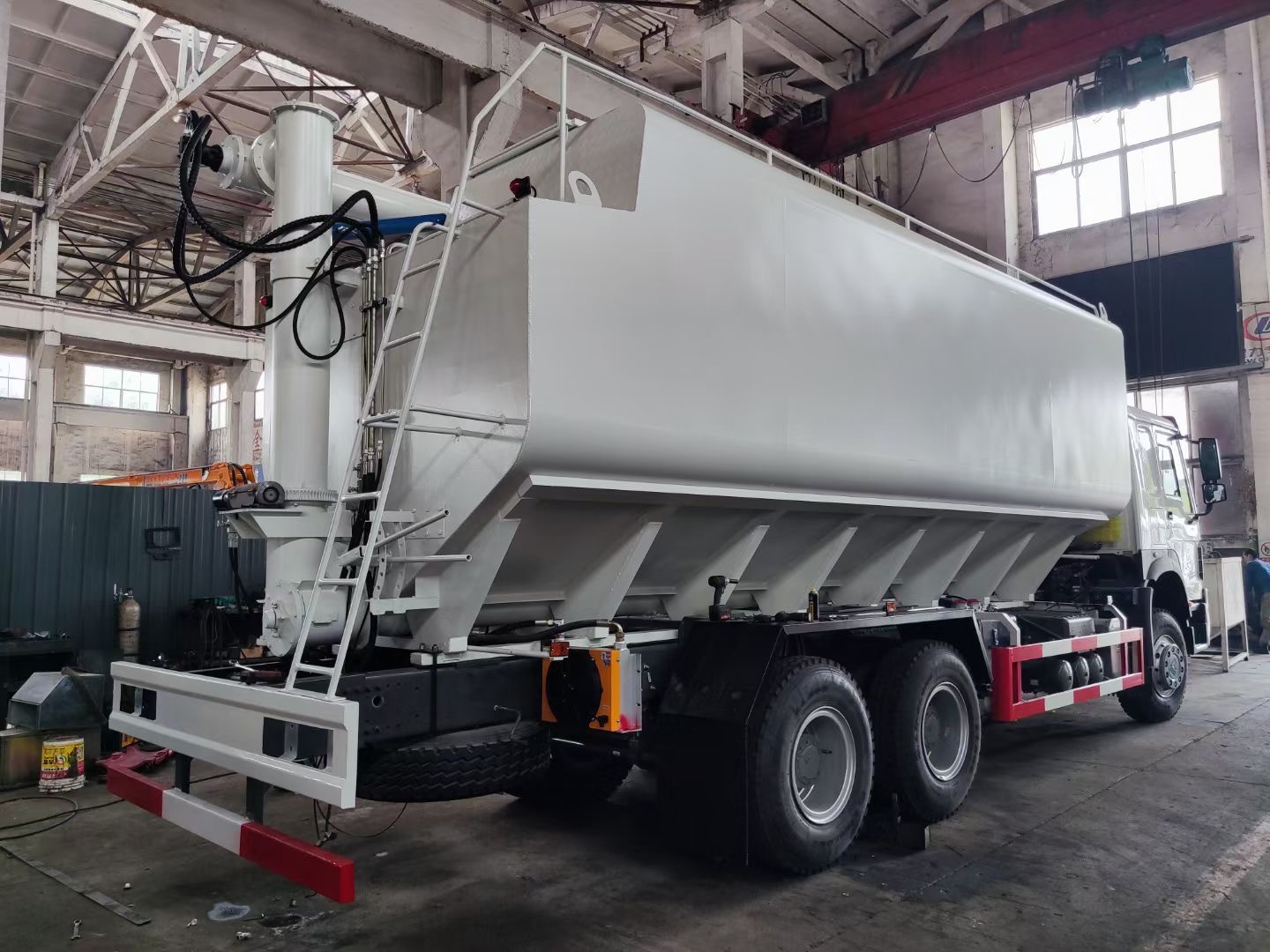

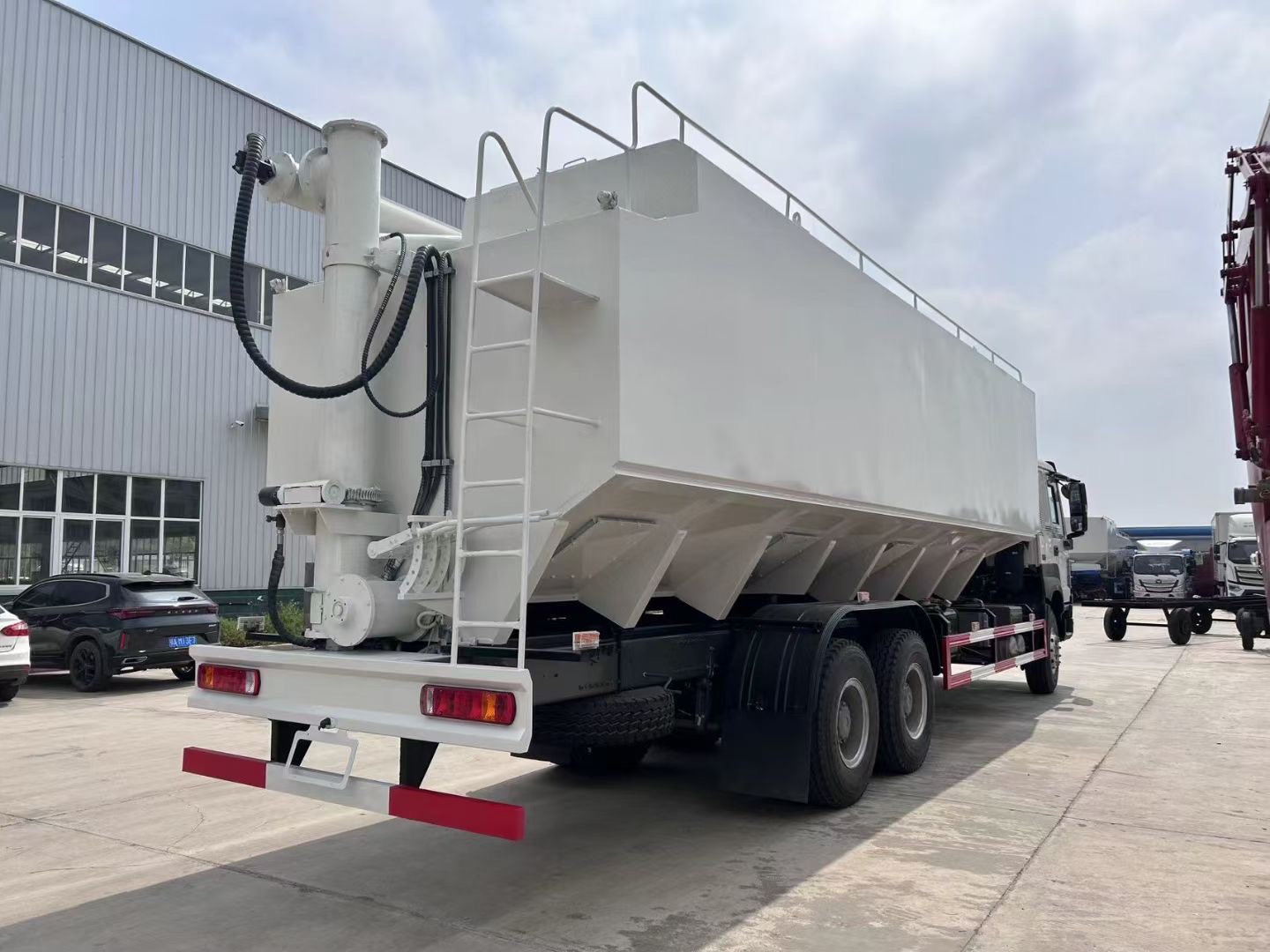

More pictures of bulk feed transport trucks are as below.
howo feed truck
bulk feed transport trucks
bulk feed truck manufacturer
15tons feed truck
bulk feed truck manufacturer

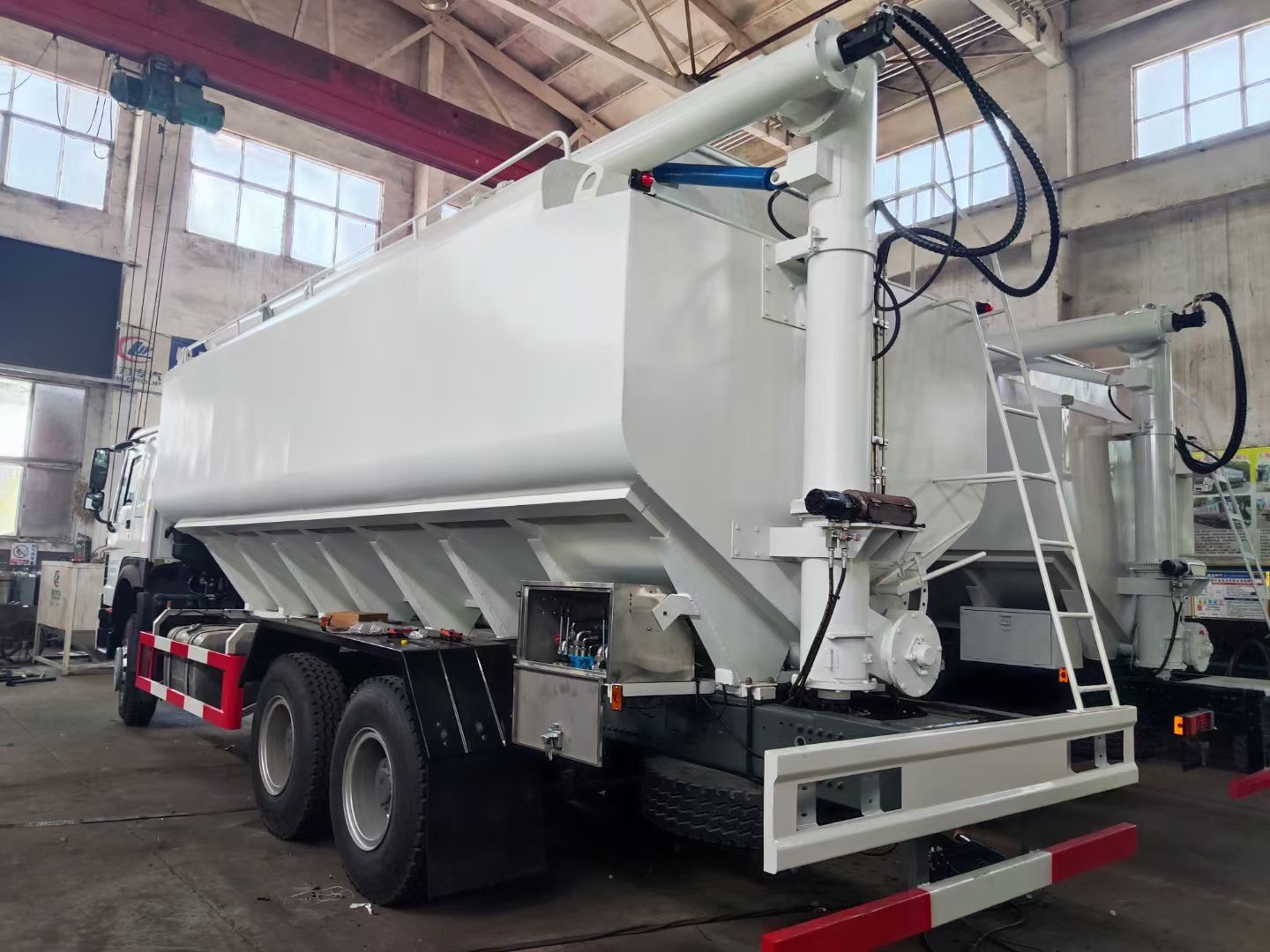

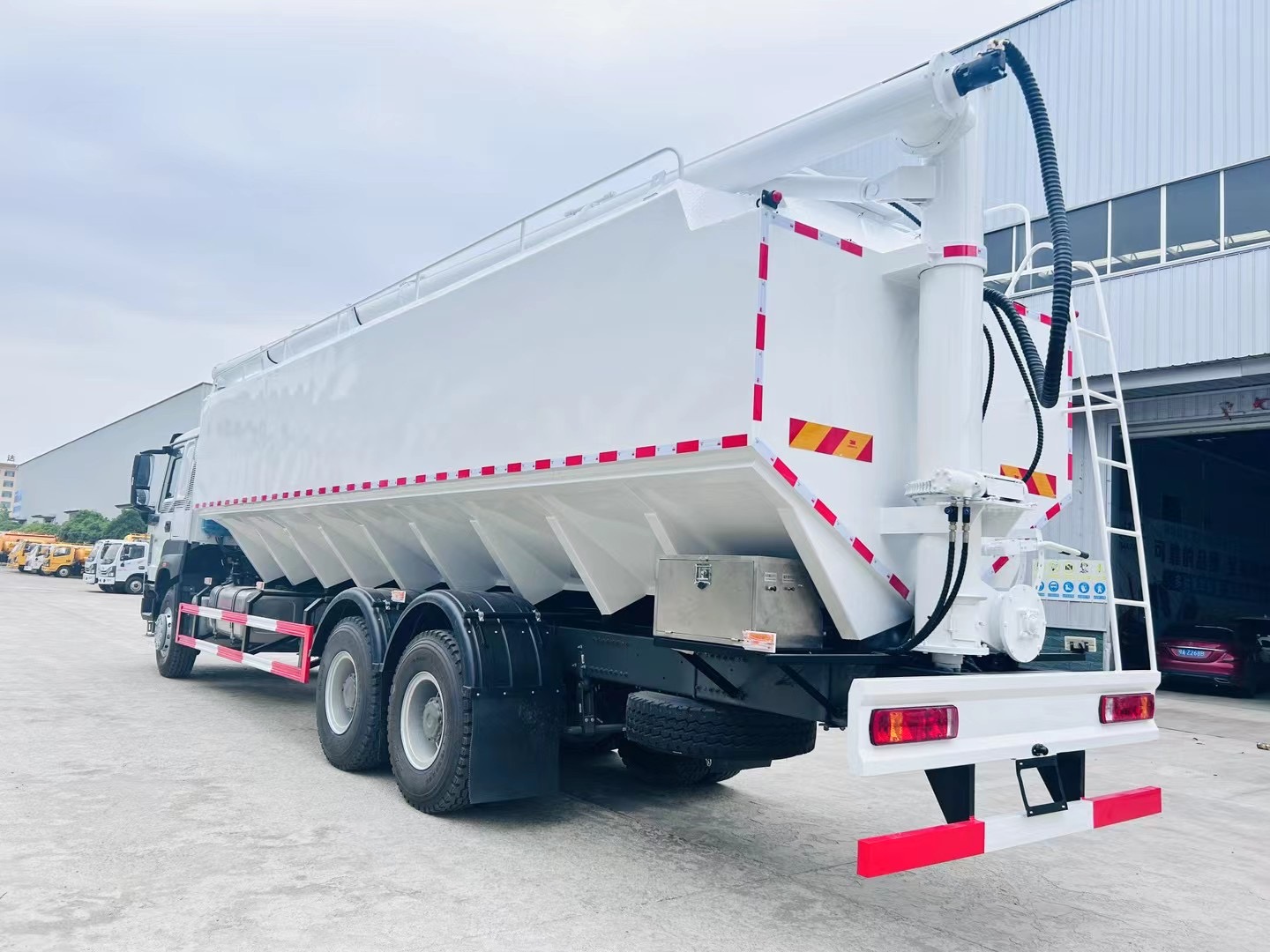

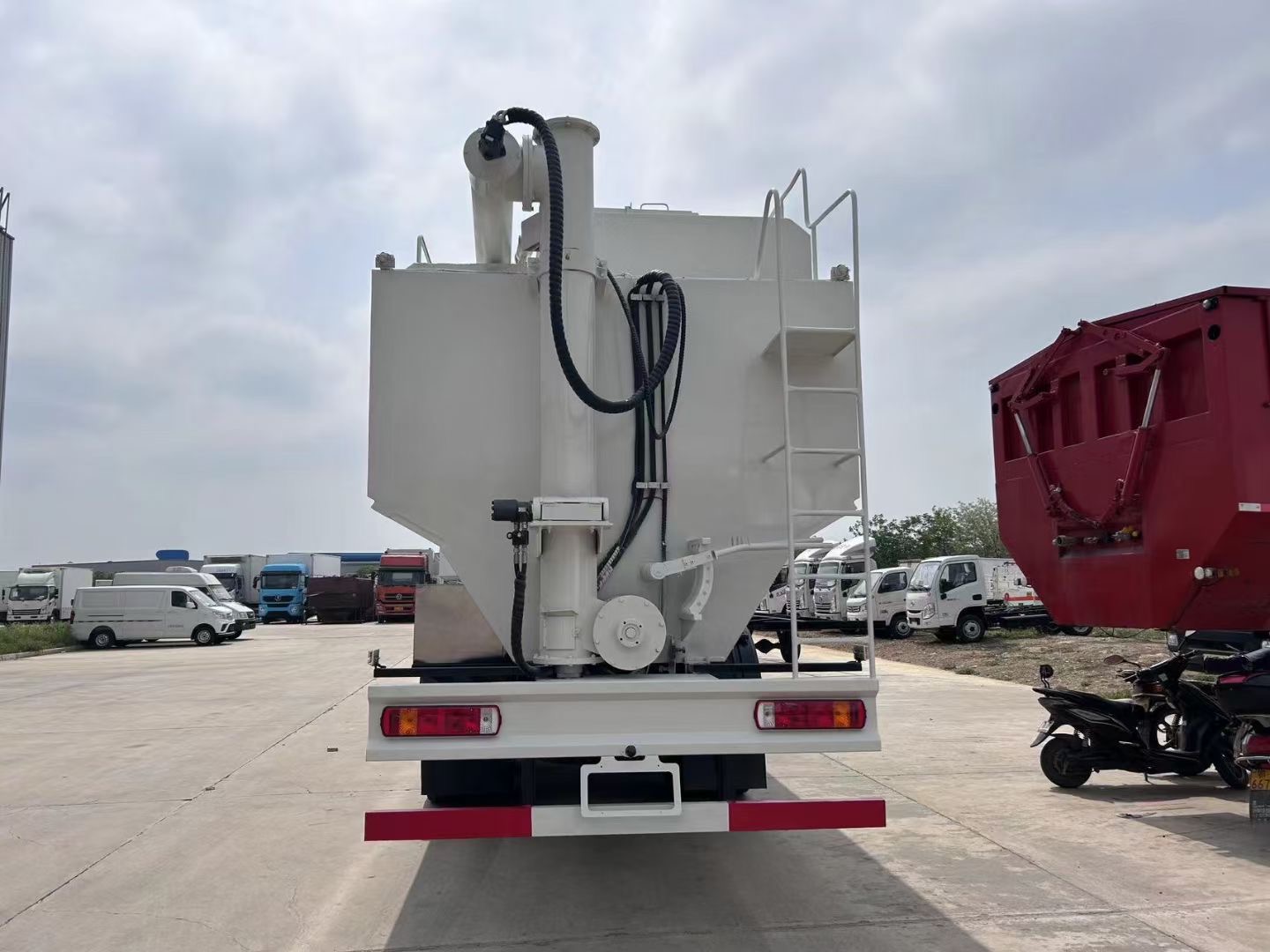

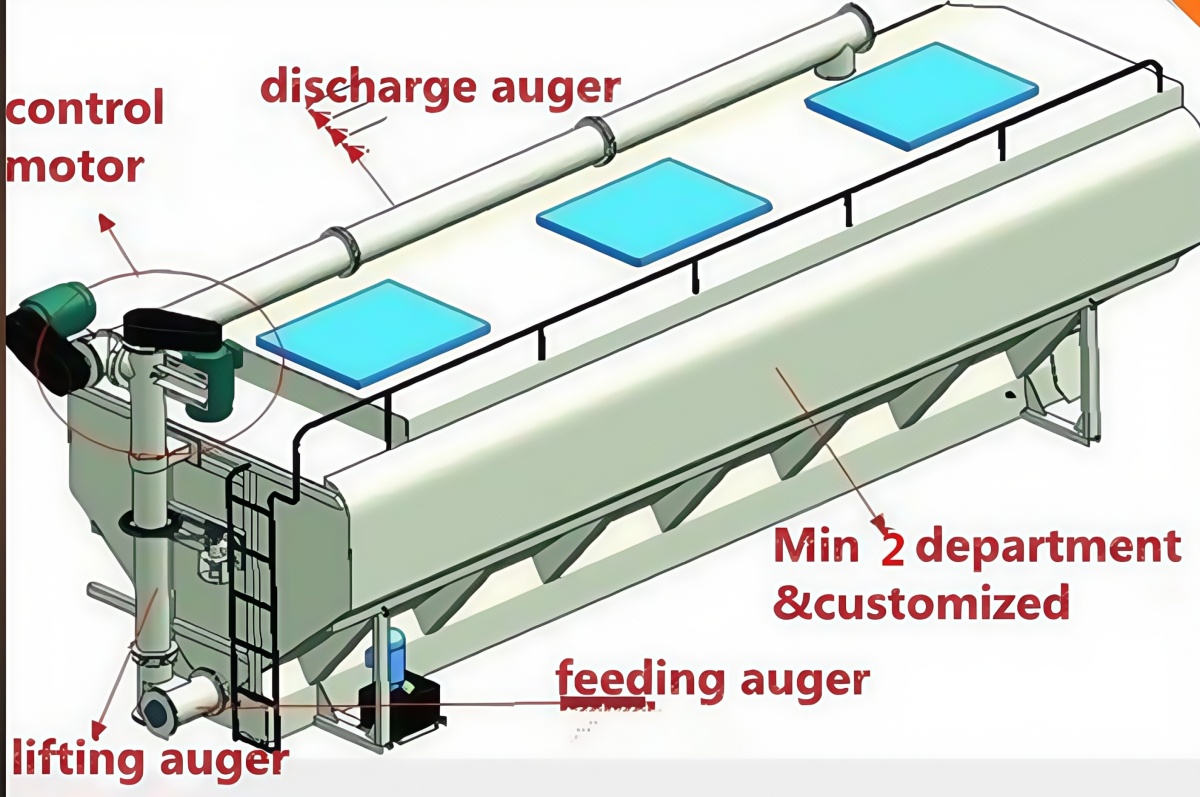

The volume of HOWO feed truck is 30cbm-32cbm, adopts high quality 4mm thickness. There are 3 sets of augers driving by 3 sets 5.5KW electronic motors of bulk feed transport trucks. The top auger hydraulically controls the up-down, left-right rotation 180°. There are three compartments for three different feed pellets, separately controlled the discharging sequences and discharging speed. The sloping angle of the sloping pipe is 60°. Vertical discharging height is 8.5m. And the full discharging time is 35minutes.
We Chengli Special Automobile Co., Ltd. is the famous bulk feed truck manufacturer of bulk feed transport trucks, howo feed truck, 15tons feed truck, bulk feed trucks, etc in China since 2004s. With so many years' development, we can manufacture and sell bulk feed transport trucks, bulk feed truck, howo feed truck, bulk feed truck manufacturer, etc.
Advantages of the feed truck before other equipment
Feed truck (Compound feed truck) is a special vehicle designed for the transportation of feed. In fact, the feed truck is a food barrel designed to transport bulk cargo with the possibility of unloading it by gravity or by special mechanisms. The feed truck is loaded by gravity through the upper loading hatches. Such hatches in the feed truck are usually several, the more the loading of the feed truck will be fuller.
Feed truck (Compound feed truck) is a special vehicle designed for the transportation of feed. In fact, the feed truck is a food barrel designed to transport bulk cargo with the possibility of unloading it by gravity or by special mechanisms. The feed truck is loaded by gravity through the upper loading hatches. Such hatches in the feed truck are usually several, the more the loading of the feed truck will be fuller.
The howo feed truck manufactured by our company is a kind of special transportation vehicle refitted on the second type chassis or the cargo trucks clients offered, then howo feed truck choosing the high quality and high strength carbon steel, welded the tank; equipped with electronic auger discharging system. Bulk feed tank is made up of chassis, loading feed pellet tank, discharging auger system and electro hydraulic operation system, etc.
bulk feed transport truck is main used for delivering, loading and discharging of feed pellets of different feed factories, large-type poultry farms, and also for transporting some non-corrosive feed pellets, such as pellets from pharmaceutical factory and turnover of grain depots, etc. the howo feed truck manufactured by Chengli Special Automobile Co., Ltd. can transporting various feed pellet with the different compartments, the dream transporting vehicles for poultry farms and feed factories.
Key words: bulk feed transport trucks, howo feed truck, bulk feed truck manufacturer, 15tons feed truck, bulk feed truck for sale, feed truck price.
