HOWO bulk feed body is installed on the truck chassis; there is one mouth for loading at the tank top. And the helical delivering discharging pipe (also called discharging auger) on the tank top can rotate and upraise freely with the upraise angle of 60 degree. When transporting, the helical pipe lay on the tank top; when discharging, upraise. Connected the discharging feed outlet with the top inlet of feed storage tank controlled by the operation device at the driver cab or the tank rear part.
At present, there are 4tons feed truck, 6ton bulk feed truck, 8ton poultry feeds delivery truck, dongfeng Tianjin 10ton-11ton bulk grain truck, HOWO bulk feed truck, bulk feed truck for sale, and bulk feed delivery semitrailers of big volumes.
main technical parameters of HOWO bulk feed truck is as below.
Main technical parameters | |
Product name | SINO TRUK HOWO 8*4 LHD 40cbm bulk feed truck for sale |
Overall dimension(L*W*H) (mm) | 12000×2520×3995 |
Total mass(Kg) | 31000 |
Max speed | 89km/h |
Transmission | HW19710 10 speed gearbox, manual |
Tyre nos. | 295/80R22.5*12+1 |
Axles | 7tons front axle/16tons rear double axles |
Driver cab | HOWO HW76 one row and a half driver cab |
Engine model | WD615.47 |
Engine emission standard | Euro 2 |
Engine power | 273KW/371hp diesel engine |
Engine displacement(ml) | 9726ml |
Feed tank | |
Volume | 40cbm |
Feed container dimension(L*W*H)(mm) | 9050×2520×2360 |
Loading capacity | 20tons-22tons(According to the proportion( feed proportion is from 0.45tons/m3 to 0.55tons/m3) |
Discharging way | Hydraulic system discharging or 3 phases 380 volts electric system discharging |
Compartments | 3 compartments with 3 different kinds of feed pellet |
Discharging auger length | 6.85m |
Average discharging speed（kg/min） | 500-600 kg/min or 1m3/min |
Full discharging time (minutes) | 14 to 16 |
Rotation angle of auger when discharging | ±180 degree |
max elevation angle of auger when discharging | 60 degree |
Residual rate | No more than 0.10 |
More pictures of SINOTRUK HOWO Bulk feed truck are as below.

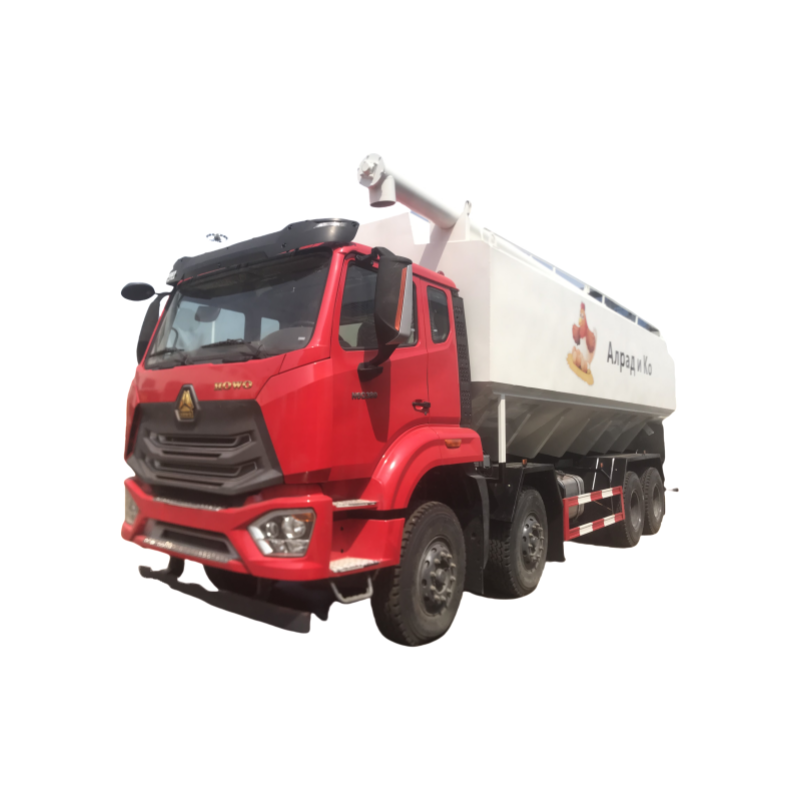

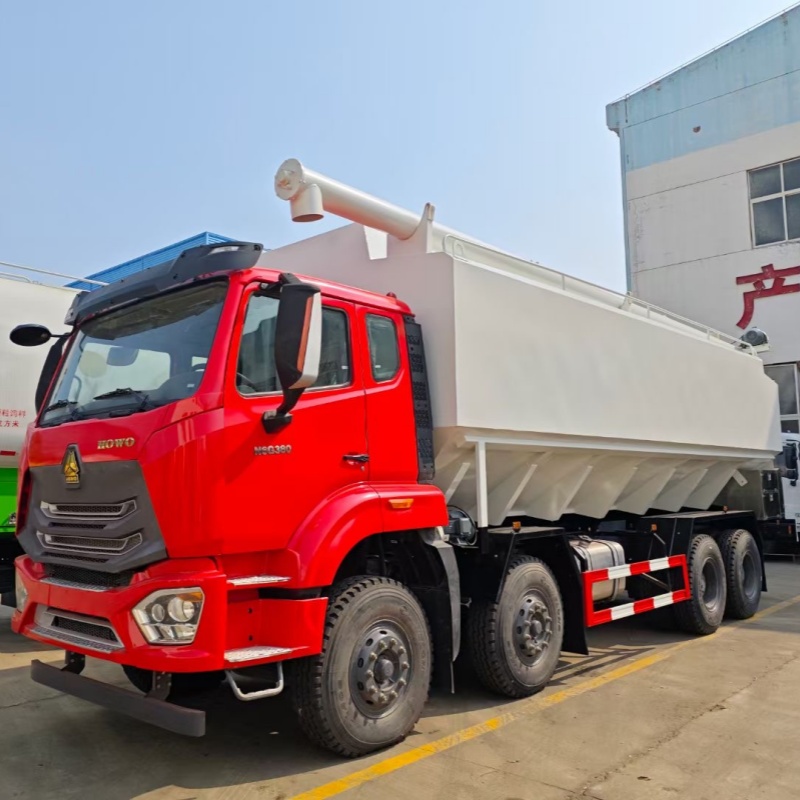

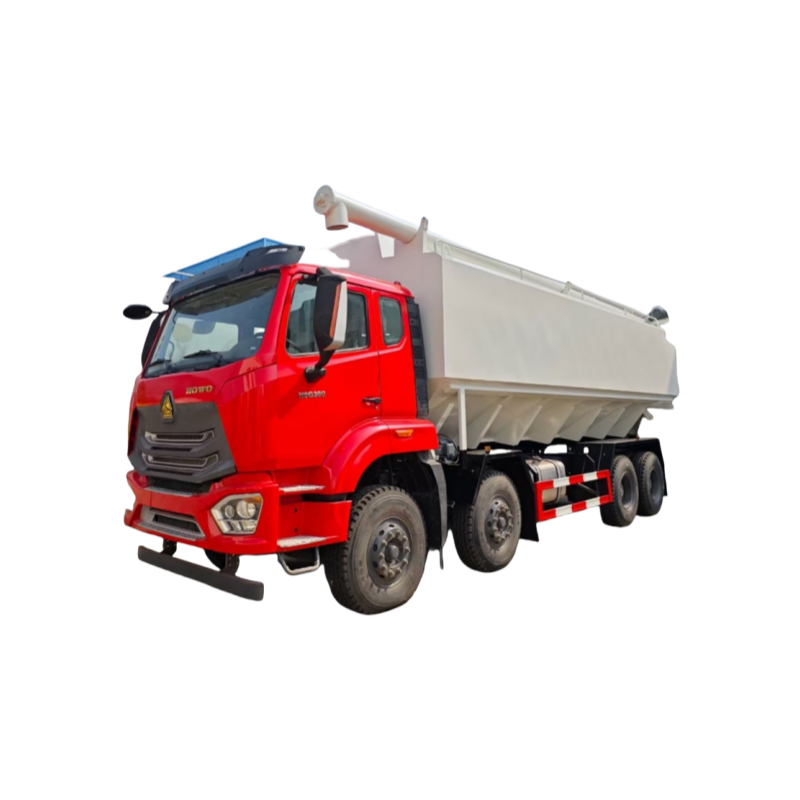

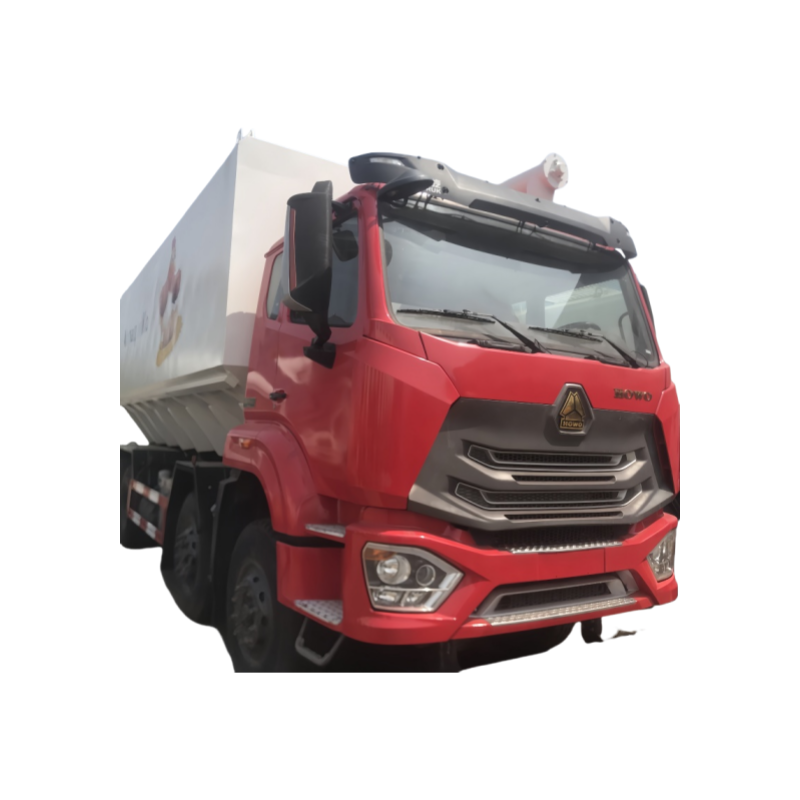

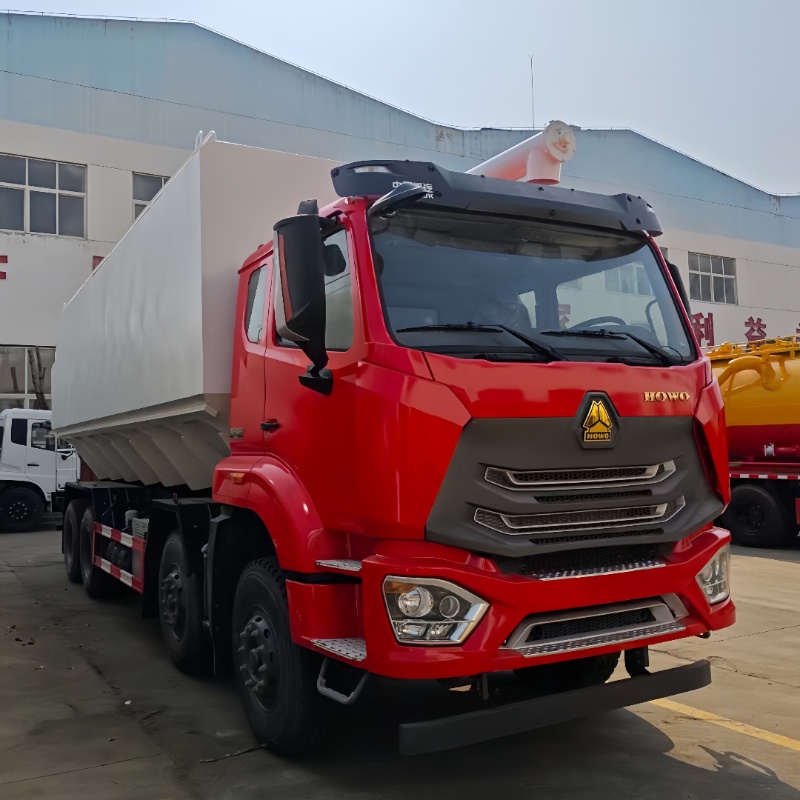

Reliable HOWO 8*4 20tons bulk feed truck for sale

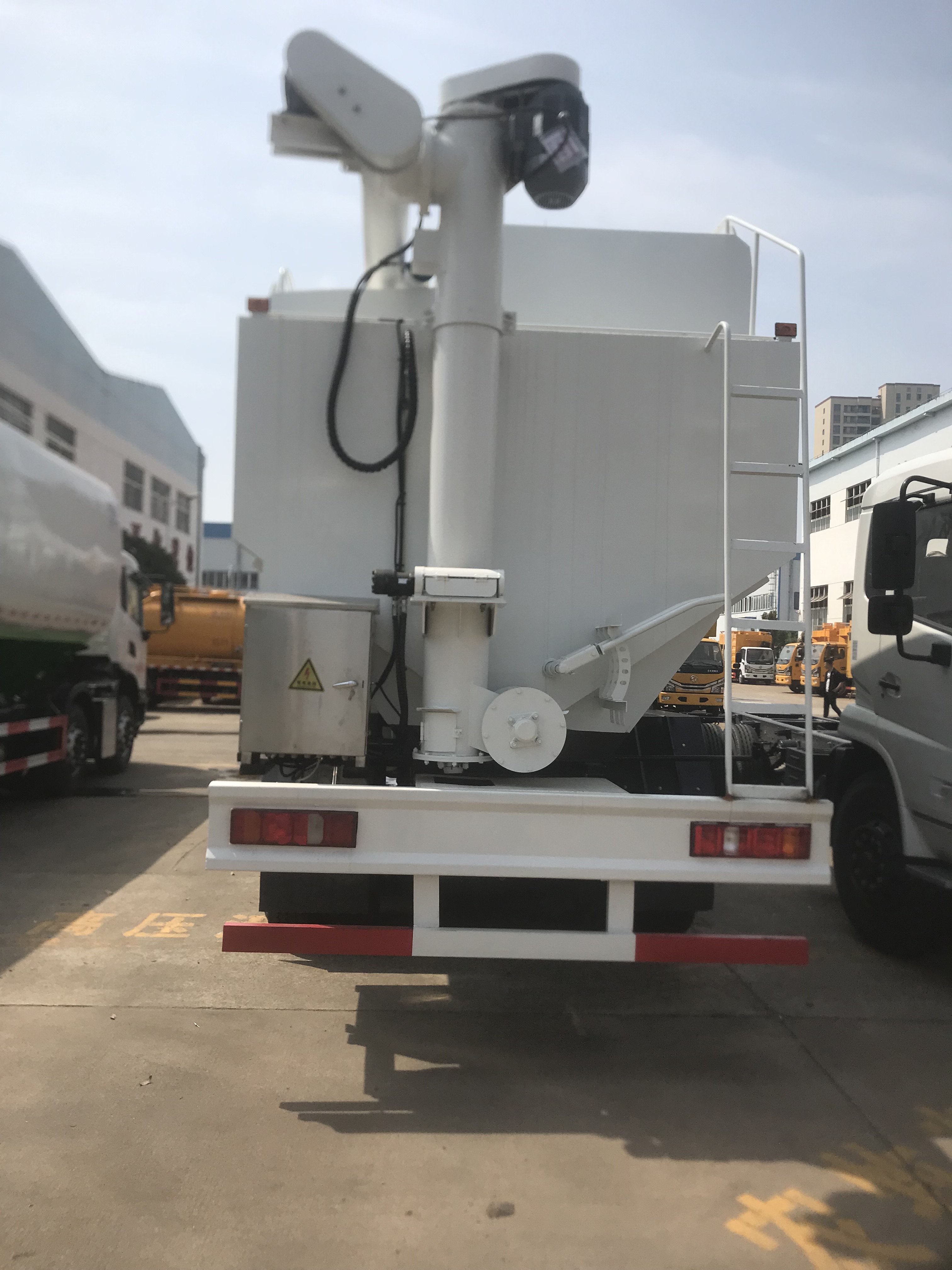

45cbm bulk feed truck for sale

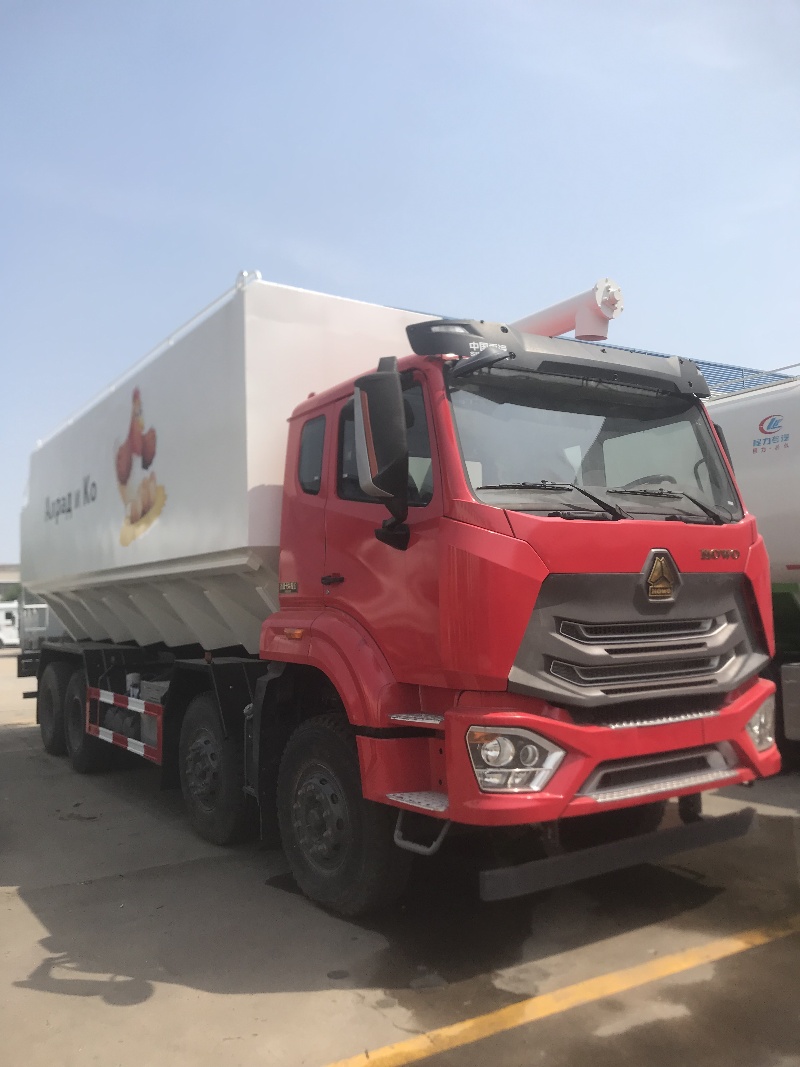

Bulk feed truck for sale

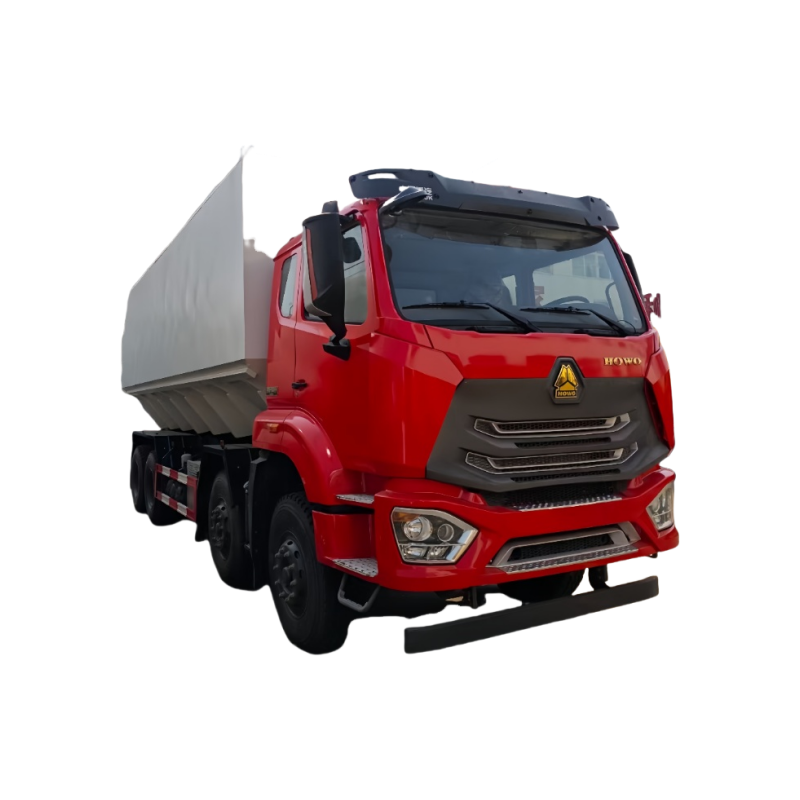

Best selling bulk feed truck for sale

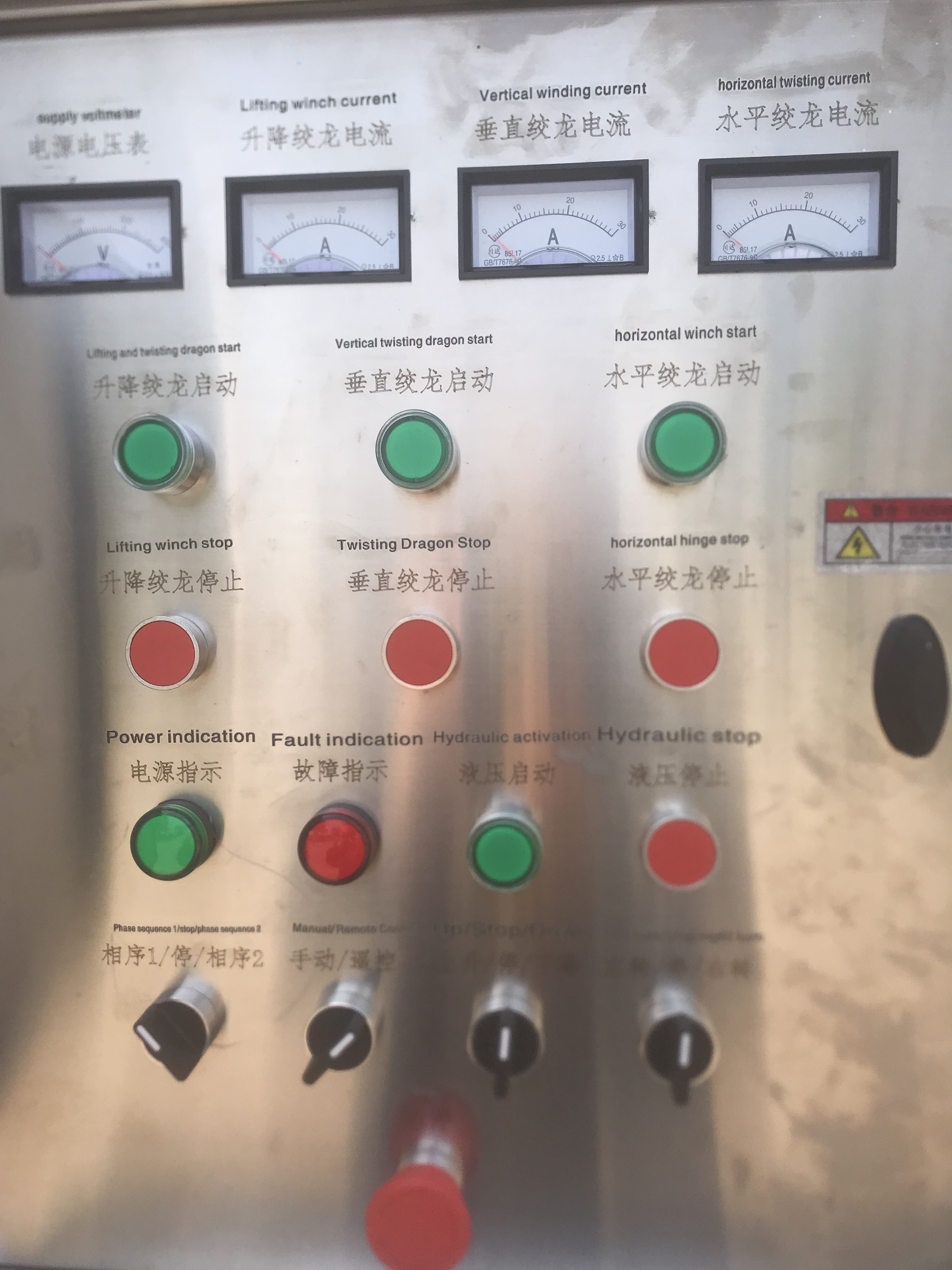

English version of operation box for bulk feed truck for sale

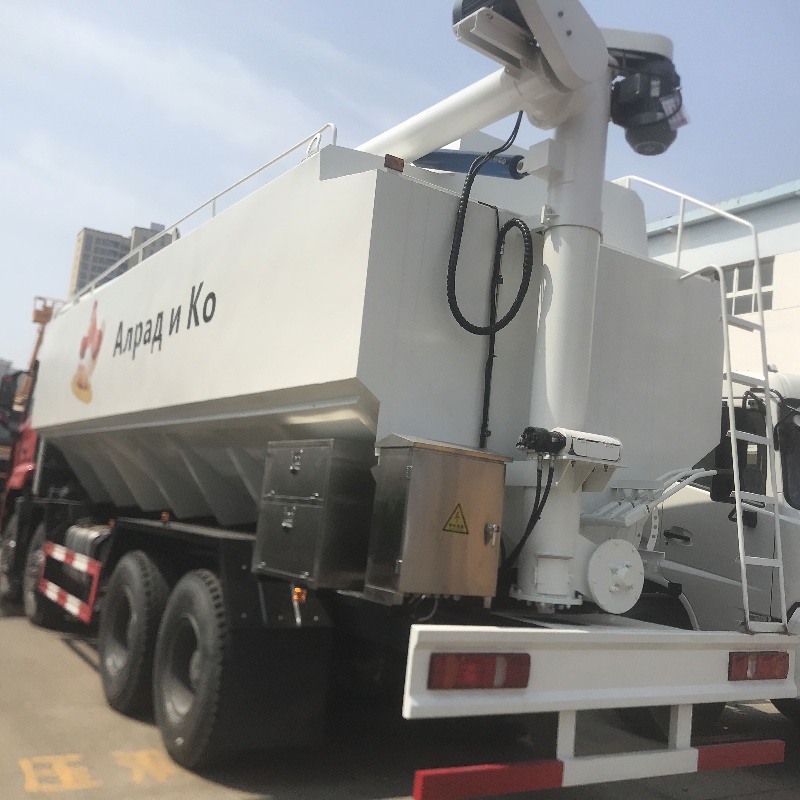

electric system of HOWO Bulk feed truck for sale
The bulk feed truck for sale volume is 40bm(can be loaded 20n feeds according to the density of the bulk feeds), adopting electronic auger type transferring feeds, putting on 380 Volt three mutually alternate current, then working. Discharging is by electronic motor driven the screw mechanism with high speed, continuous working, highly improving the working productiveness.
The feed tank is usually with 3 compartments, loading and discharging with three different kinds feeds. Simple unit structures. electric cabinet unity is at the rear part of the tank. Easy and flexible to operate and maintenance.
The farm-oriented feed truck manufactured by our company is a kind of special transportation vehicle refitted on the second type chassis or the cargo trucks clients offered, then choosing the high quality and high strength carbon steel, welded the tank; equipped with electronic auger discharging system. Bulk feed tank is made up of chassis, loading feed pellet tank, discharging auger system and electro hydraulic operation system, etc.
Bulk feed truck for sale is main used for delivering, loading and discharging of feed pellets of different feed factories, large-type poultry farms, and also for transporting some non-corrosive feed pellets, such as pellets from pharmaceutical factory and turnover of grain depots, etc. the feed truck manufactured by Chengli Special Automobile Co., Ltd. can transporting various feed pellet with the different compartments, the dream transporting vehicles for poultry farms and feed factories.
