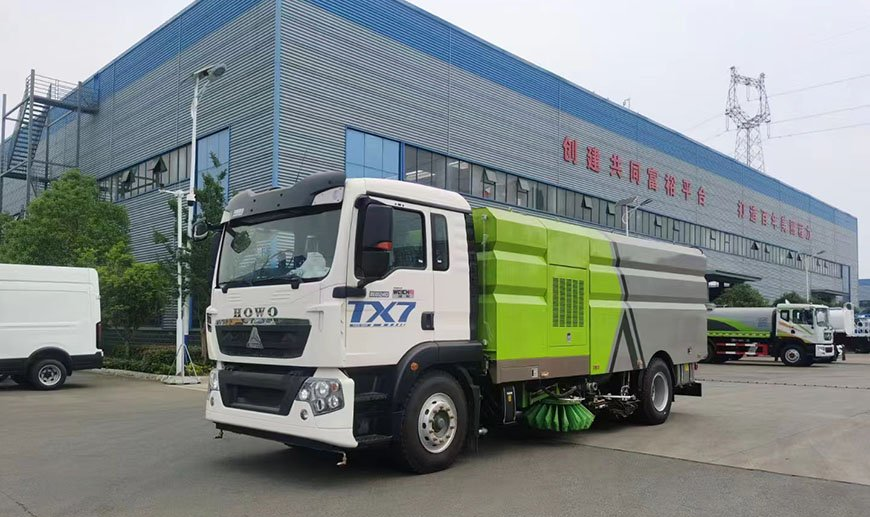

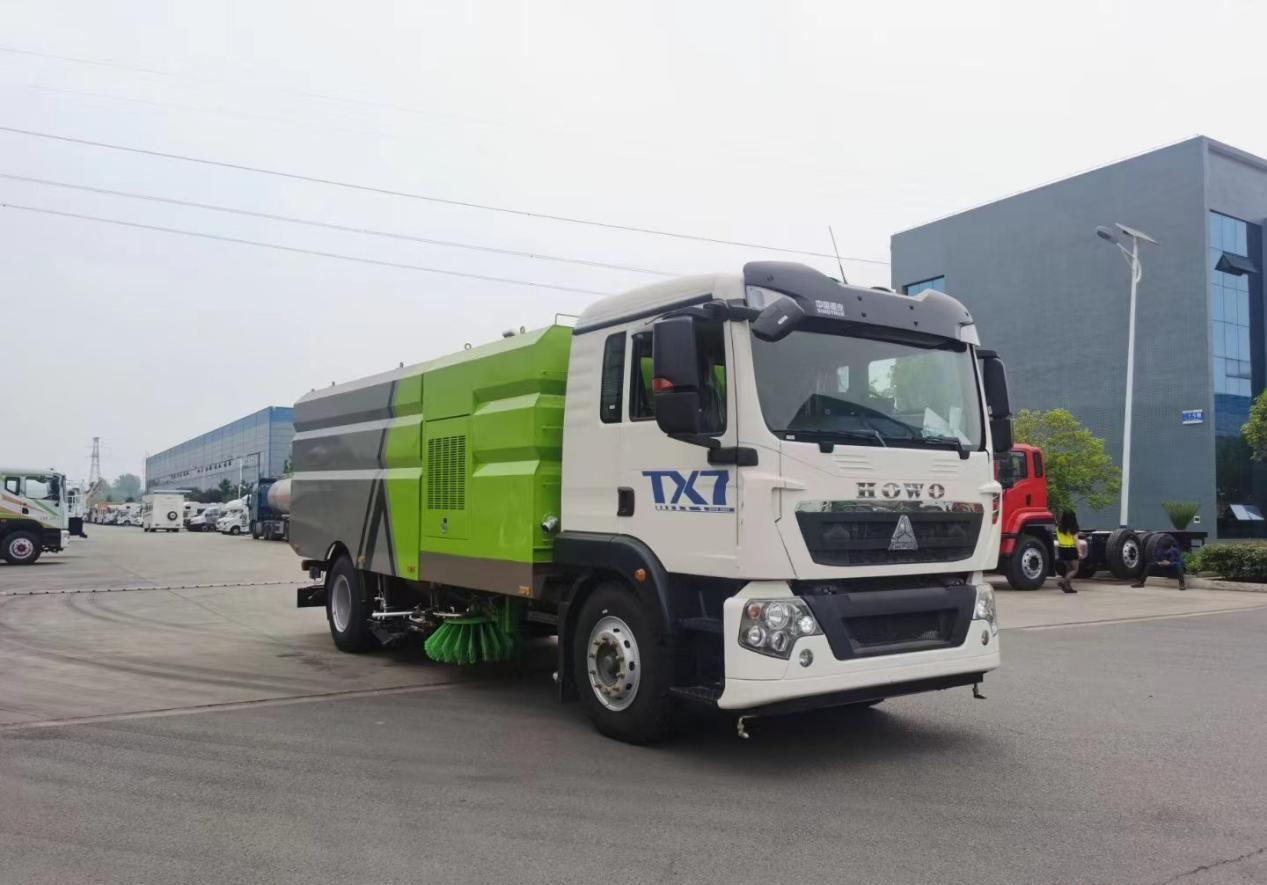

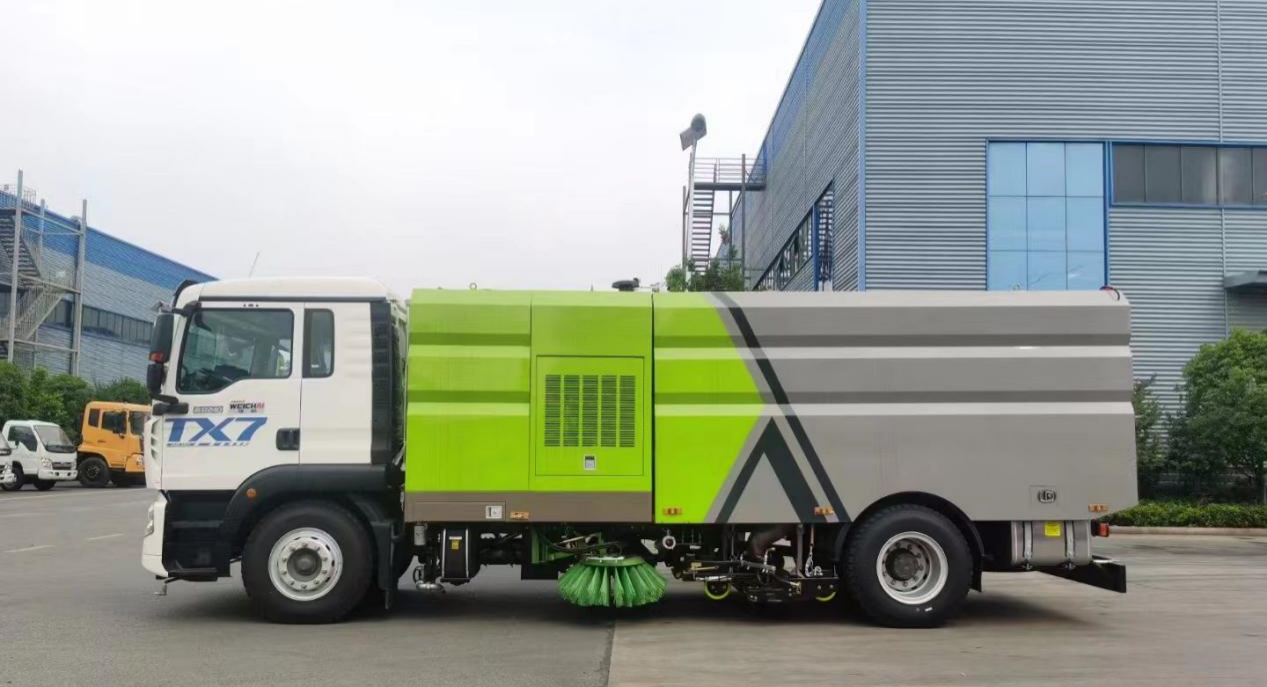

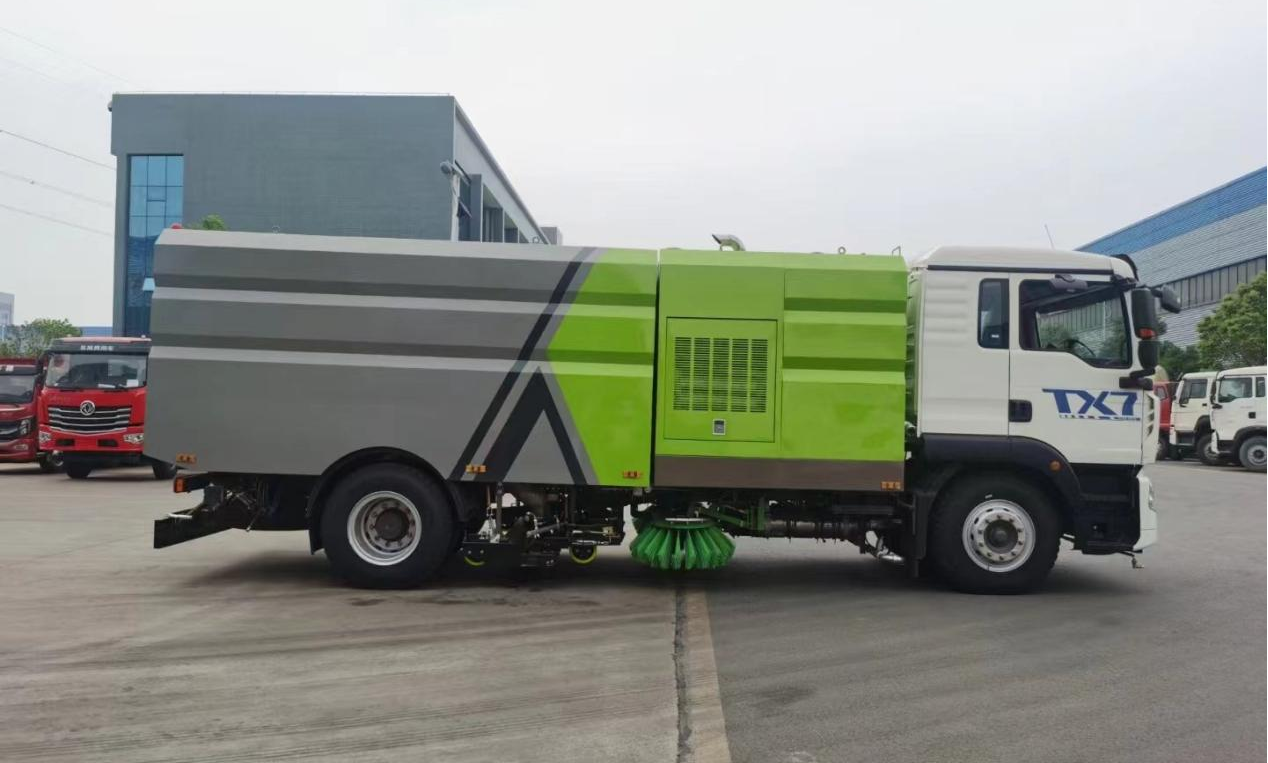

Chengli Special Vehicle Sinotruk Howo 18-ton Street Sweeper and Washer
Main Vehicle Configuration | |||
Product Trademark | Chengli Brand | Announcement Batch | 383 (Expanded) |
Product Name | Street Sweeper and Washer | Product Model | CL5182TXS6QZ |
Total Mass (Kg) | 18000 | Tank Volume (m³) | - |
Rated Loading Mass (Kg) | 6430, 6365 | Overall Dimensions (mm) | 8550×2480×3110 |
Curb Weight (Kg) | 11440 | Cargo Box Dimensions (mm) | ×× |
Rated Passenger Capacity (Person) | - | Permitted Towing Mass (Kg) | - |
Cab Seating Capacity (Person) | 2, 3 | Maximum Fifth Wheel Load (Kg) | - |
Approach Angle/Departure Angle (°) | 19/11 | Front Overhang/Rear Overhang (mm) | 1430/2120 |
Axle Load (Kg) | 6500/11500 | Maximum Speed (Km/h) | 89 |
Chassis Technical Parameters | |||
Chassis Model | ZZ1187K501GF1 | Chassis Name | Truck Chassis |
Trademark Name | Howo Brand | Manufacturer | Sinotruk Jinan Truck Co., Ltd. |
Number of Axles | 2 | Number of Tires | 6 |
Wheelbase (mm) | 3800, 4200, 4500, 4700, 5000, 5200 | 3800, 4200, 4500, 4700, 5000, 5200 | 3800, 4200, 4500, 4700, 5000, 5200 |
Tire Specification | 295/80R22.5 18PR, 12R22.5 18PR, 11.00R20 18PR, 10.00R20 18PR | 295/80R22.5 18PR, 12R22.5 18PR, 11.00R20 18PR, 10.00R20 18PR | 295/80R22.5 18PR, 12R22.5 18PR, 11.00R20 18PR, 10.00R20 18PR |
Number of Leaf Springs | 11/9+8, 3/9+8, 3/3+2, 2/3+2, 3/-, 2/-, 2/3, 7/7+6 | Front Track (mm) | 1950, 2035, 1910, 1930, 2060 |
Fuel Type | Diesel | Rear Track (mm) | 1848, 1860 |
Emission Standard | GB17691-2018 National VI | GB17691-2018 National VI | GB17691-2018 National VI |
Main Vehicle Configuration | |
Chassis Configuration | Main engine TX7 Howo with 5000mm wheelbase, Weichai 240-horsepower engine, Howo 8-speed synchronized transmission, flange-type power take-off, double-layer frame, domestic steering gear; standard exhaust system; ABS. Mid-mounted bumper, 10.00R20 steel-belted tires, 200L aluminum fuel tank. |
Upper Mount Configuration | Auxiliary engine Cummins 170-horsepower, Xiamen Nanchao maintenance-free automatic clutch, maintenance-free fan, Haideruiwo solenoid valve group, German-imported high-pressure pump, universal high-pressure curb cleaning, wear-resistant hydraulic cylinder, Siemens electrical control switch, left/right/rear spray dust suppression system, stainless steel garbage bin and carbon steel water tank with electrophoresis rust prevention treatment. Water tank volume is about 9 m³, garbage bin volume is about 7 m³, maximum cleaning width is 3.5 meters. Front-mounted two sweeping discs, mid-mounted suction cup, manual pump emergency system, various voice alarms and rear arrow lights. Equipped with low-pressure flushing (front and rear sprinkling) and high-pressure flushing functions (front curb flushing/middle flushing/20m high-pressure flushing reel/rear spray/garbage bin self-cleaning) and rear arrow operation lights. |
