In the realm of urban maintenance, the cleaning vehicle has become an essential tool for keeping our cities clean and presentable. Among the various types of cleaning vehicles, the FAW Broom Sweeper stands out for its reliability and efficiency. These sweepers are designed to tackle a wide range of cleaning tasks, from collecting debris on busy streets to sweeping up dust in large open areas.
| Item | Description | Specifications |
| Chassis parameters | Drive type | 4×2 |
| Color | Customized according to demand | |
| Steering wheel | Left hand drive | |
| Wheelbase (mm) | 5100 | |
| Dimensions (mm) | 8750*2530*3150 | |
| Total mass (Kg) | 18000 | |
| Curb mass (Kg) | 11620 | |
| Rated load (Kg) | 6250 | |
| Gearbox | 8-speed manual transmission | |
| Tire specifications | 10.00R20 tire | |
| Number of tires | 6 | |
| Number of passengers | 3-Feb | |
| Maximum speed (Km/h) | 80-110 | |
| Air conditioning | Cooling/heating | |
| Engine parameters | Brand/model | Dachai |
| Power (KW) | 165 | |
| Horsepower (HP) | 220 | |
| Displacement (ml) | 5700 | |
| Fuel type | Diesel | |
| Emission standard | Euro 2, Euro 3, Euro 4, Euro 5 | |
| Upper structure parameters | Fresh water tank capacity (L) | 9000 |
| Sewage tank capacity (L) | 7000 | |
| Cleaning width (mm) | 3200 | |
| Cleaning capacity (㎡/h) | 56000 | |
| Cleaning speed (km/h) | 5-20 | |
| Auxiliary engine | Cummins 170HP | |
| Control system | CNC bus | |
| Control method | Automatic & manual |
The FAW Broom Sweeper, whether in its standard form or as the specialized 4×2 model, represents the pinnacle of cleaning vehicle technology. As sanitation washing and sweeping vehicles, they are equipped with advanced systems that can handle large volumes of waste and water. For road maintenance teams, these road washing and sweeping vehicles are not just machines; they are essential partners in the ongoing battle to keep our roads clean and safe. In conclusion, the FAW Broom Sweeper and its variants, as versatile cleaning vehicles, continue to prove their worth in urban sanitation, providing a comprehensive solution for maintaining the cleanliness of our cities.

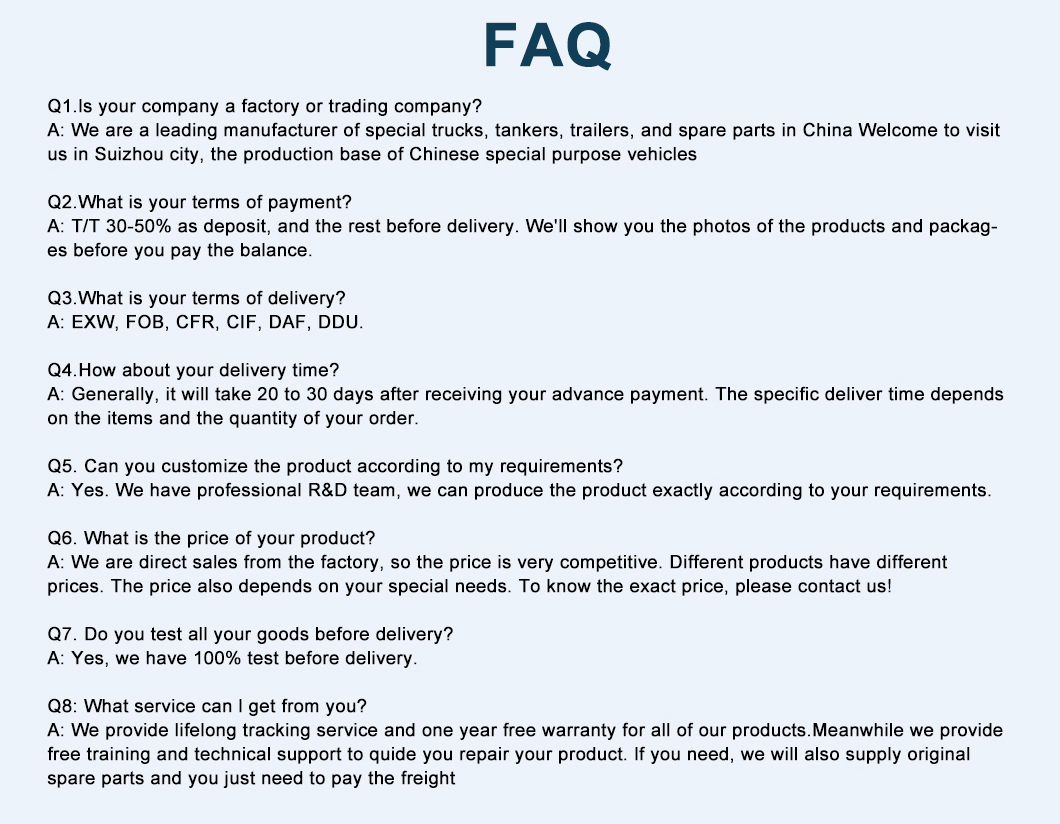

We are a leading manufacturer of special trucks, tankers, trailers, and spare parts in China Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles
T/T 30-50% as deposit, and the rest before delivery. We'll show you the photos of the products and packages before you pay the balance
EXW, FOB, CFR, CIF, DAF, DDU
Generally, it will take 20 to 30 days after receiving your advance payment. The specific deliver time depends on the items and the quantity of your order
Yes. We have professional R&D team, we can produce the product exactly according to your requirements
We are direct sales from the factory, so the price is very competitive. Different products have different prices. The price also depends on your special needs. To know the exact price, please contact us
Yes, we have 100% test before delivery
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. lf you need, we will also supply original spare parts and you just need to pay the freight
