Water Sprinkler truck, also known as sprinkler truck,water truck, water delivery truck, multifunctional sprinkler truck, landscaping sprinkler truck, water tank truck, or water transport truck.
water Sprinkler truck is suitable for various road surface cleaning, tree, green belt, lawn greening, road, factory and mining enterprise construction, and high-altitude building cleaning. Water truck has functions such as watering, dust suppression, high and low level spraying, pesticide spraying, guardrail flushing, as well as water transportation, drainage, emergency firefighting, etc.
main technical parameters of water truck is as below
| Main Configuration | |||
| Shacman 4x2 water sprinkler truck | |||
| Drive Configuration | 4X2 | ||
| Gross Vehicle Weight (kg) | 18000 | ||
| Curb Weight (kg) | 6900 | ||
| Rated Load Capacity (kg) | 10905 / 10970 | ||
| Engine Power | YCS04200-68 | ||
| Wheelbase (mm) | 4500 | ||
| Vehicle Dimensions (mm) | 8500/9120/9000X2530X3350 | ||
| Superstructure Configuration and Parameters | Effective Water Tank Volume (m³) | 15 | |
| Water Gun Range (m) | 25 | ||
| Flushing Width (m) | ≥30 | ||
| Sprinkling Width (m) | ≥16 | ||
| water tanker | Tank Material and Thickness | 4mm WISCO carbon steel plate | |
| Head Material and Thickness | Q235B carbon steel, 5mm | ||
| Baffle Thickness / Number | 3mm / 2 | ||
| Inspection Manhole | Q235B carbon steel, 1 | ||
| Water Pump | Model | 60/90 | |
| Flow Rate | 60 | ||
| Head (m) | 90 | ||
| Self-Priming Height (m) | 9 | ||
| Water System | Piping | Galvanized steel pipe, painted | |
| Front Flush | Aluminum alloy, conical nozzle, 2 | ||
| Rear Sprinkler | Aluminum alloy, 2 | ||
| High-Pressure Cannon | Aluminum alloy, 1 | ||
| Side Spray | Aluminum alloy, shower nozzle, 2 | ||
| Ball Valve | Alloy steel, manual ball valve | ||
| Water Inlet | Chinese internal snap fire hydrant interface, aluminum alloy | ||
| Power Take-Off, Drive Shaft | Matched with transmission and water pump | ||
| Work Platform | Q195 carbon steel, perforated, 2mm | ||
| Pipe Box | 2, PVC pipe; one on each side of the tank; length equal to the tank, circular cross-section | ||
When it comes to water tanker delivery, it plays a crucial role in getting water to various locations. Whether it's providing water to remote areas that lack a direct water supply or refilling the 12 cubic meter water tank greening sprayers, water tanker delivery services are highly reliable. Many companies offer these services, ensuring that water is transported safely and efficiently. Some water tanker delivery services focus on supplying water for industrial use, while others specialize in delivering potable water for residential or commercial needs. water sprinkler truck, water delivery truck, water truck, shacman water truck, water truck.
For those looking for a cost - effective solution, shacman water truck for sale present an attractive option. These water sprinkler truck can be converted into 12 cubic meter water tank greening sprayers with some modifications. Buying a shacman water truck for sale allows businesses and individuals to enter the water - related service industry without a hefty initial investment. There are various platforms, both online and offline, where one can find used water trucks for sale. These trucks, despite being pre - owned, can still perform well if properly maintained and are a great alternative for those on a budget who need a vehicle for water transportation and spraying tasks. shacman water truck

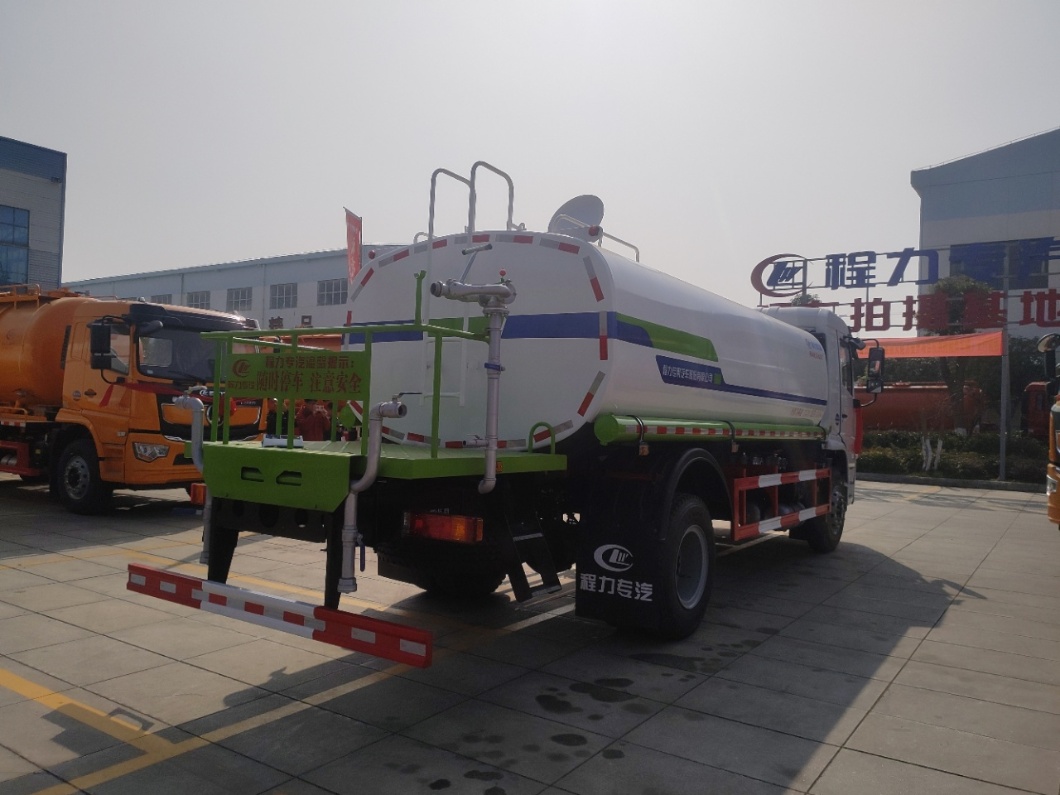

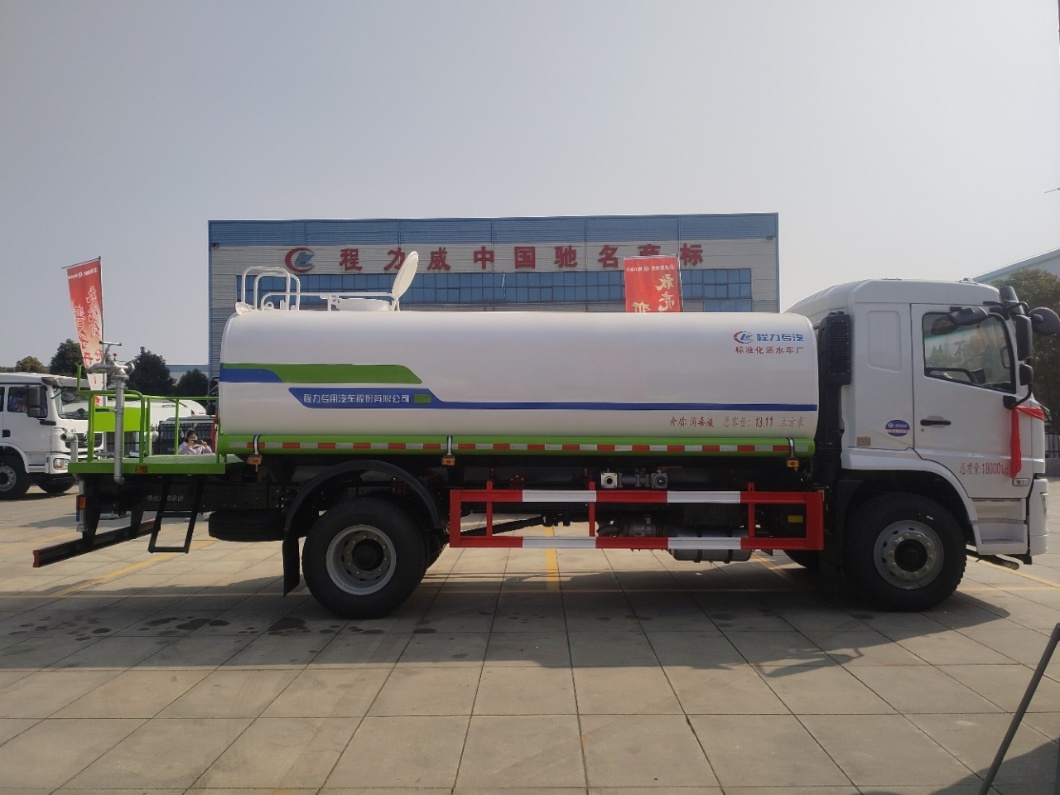

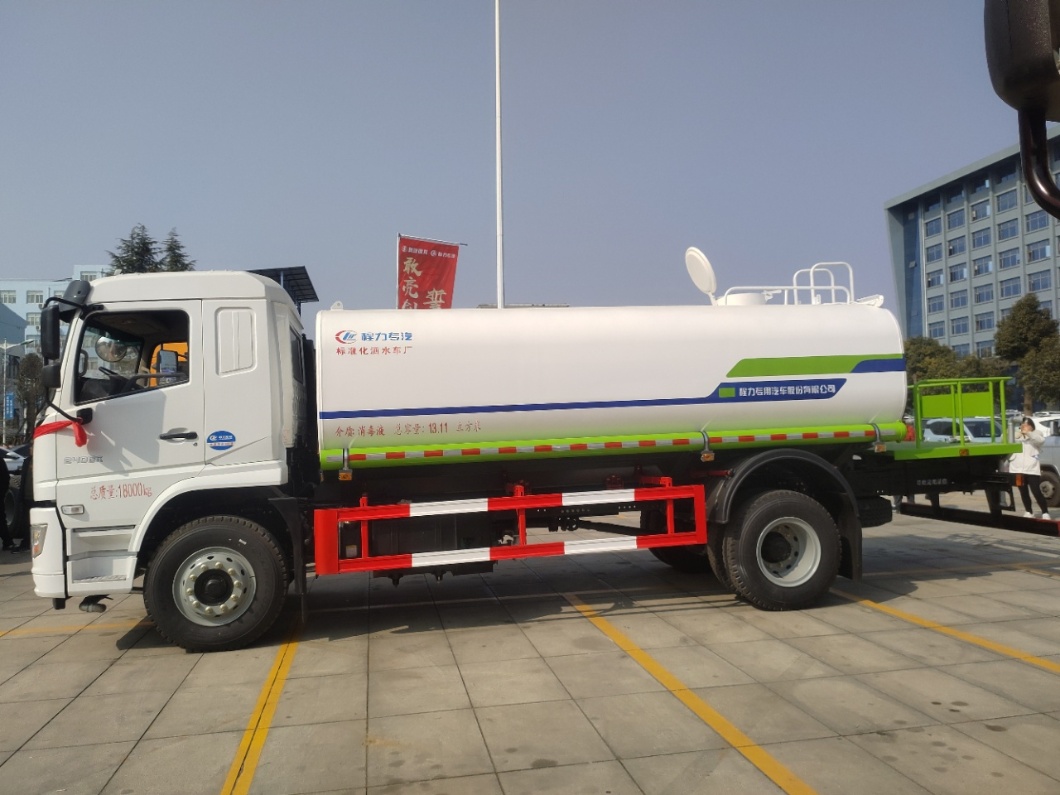

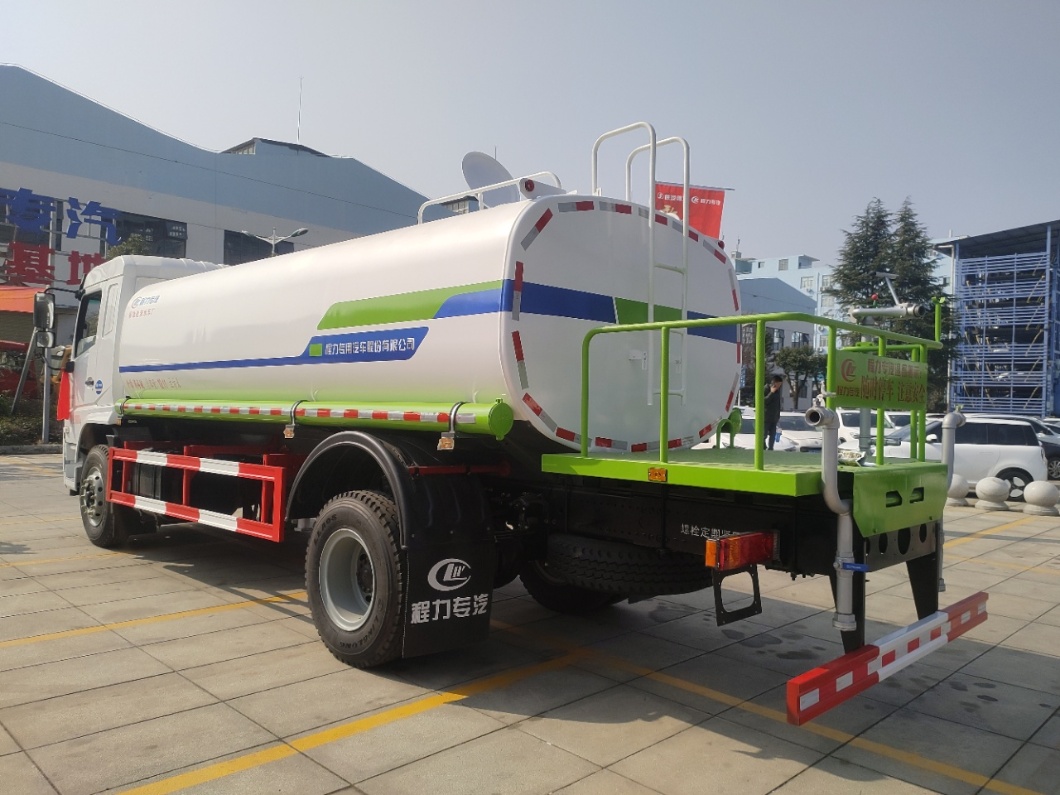

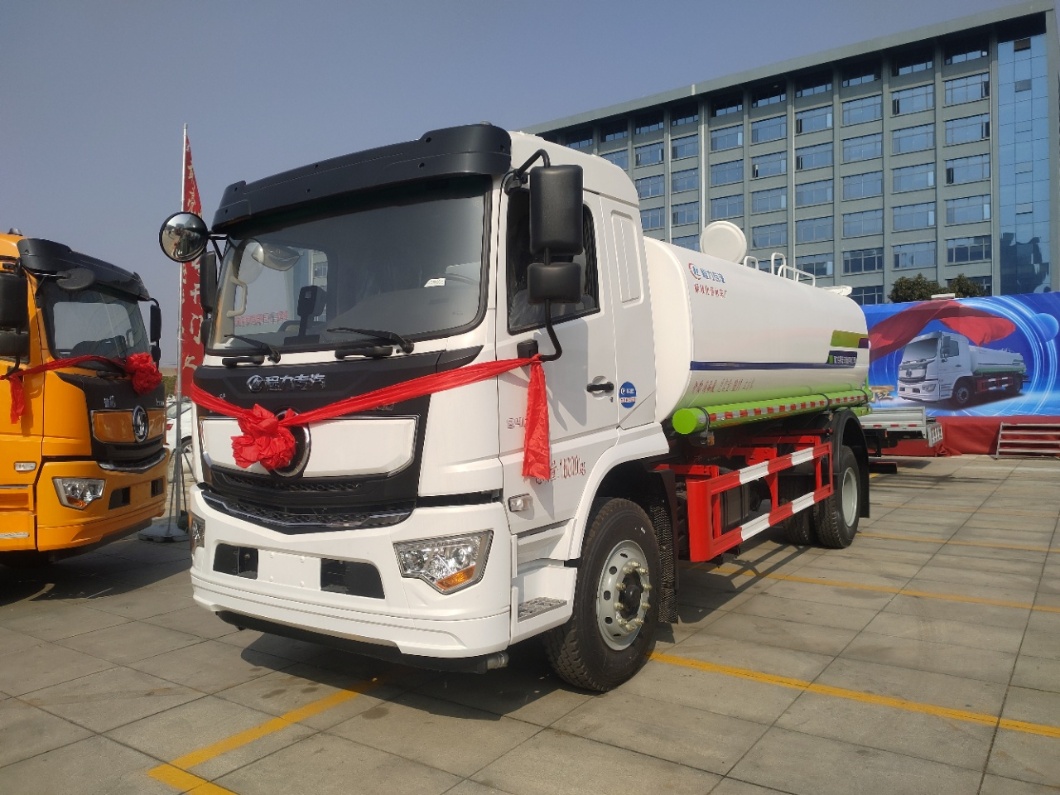

more pictures of SHACMAN water truck are as below.
shacman water truck for sale
The water truck is also name d water sprinkler truck, Pesticide spraying Truck, water fire truck, Multifunction water truck, water spray vehicle, water delivery truck.
The water sprinkler truck is suit to spray wash all kinds of road, trees, Lawn green, Building construction, high speed road.
The water truck With multifunction, spray, anti-dust, high-low level spray, Pesticide spraying, Fire Water, Guardrail Cleaning, etc.
The Water truck also can transport water, drinking water, discharge water and emergency fire function.
» The Main Character of The Water Truck
The water truck Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.

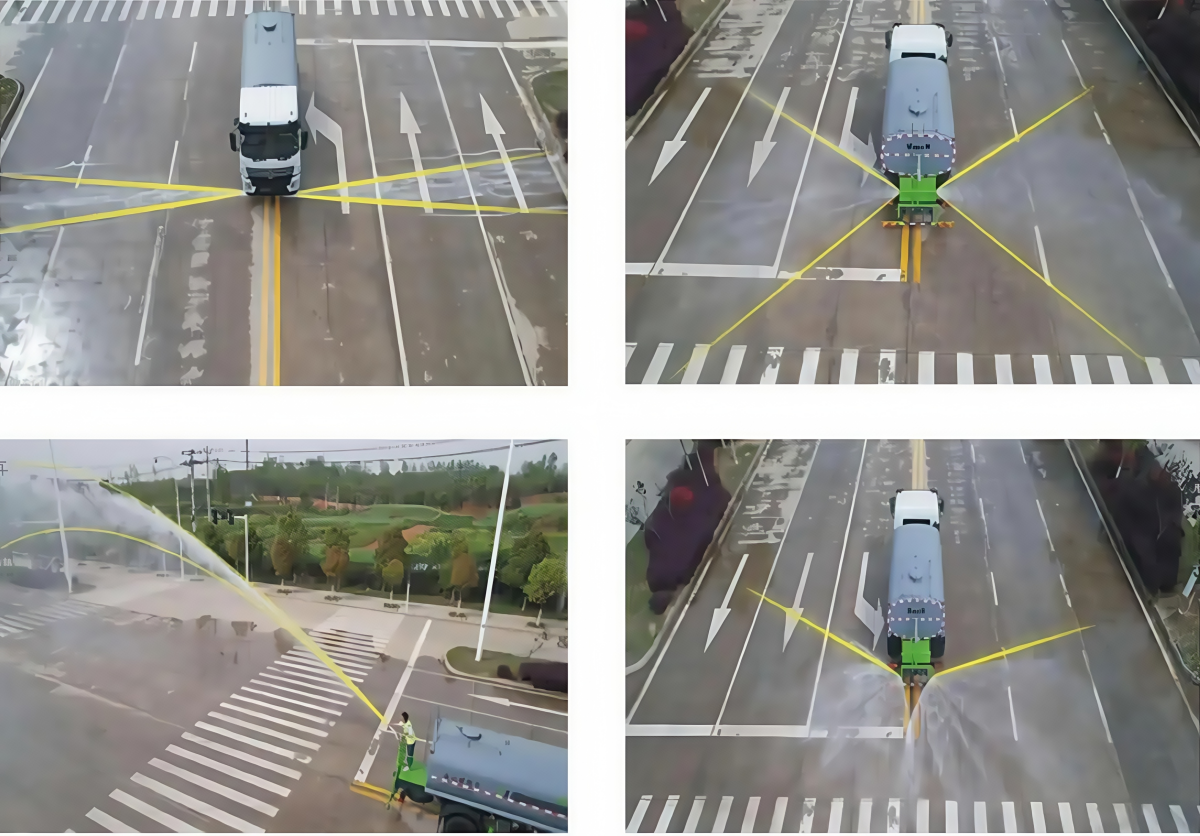

Water sprinkler truck Equipped with front, rear and side sprinklers and high sition sprinkler, and rear working platform.The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M.
water sprinkler truck Equipped with fire coupling, flow valves, filter screen and water level gauge.
According to customers' request, the crane, high working platform and spraying machine also can be equipped.
Water sprinkler truck, water truck, shacman water truck, water delivery truck, water tanker truck!
Water sprinkler truck, water truck, shacman water truck, water delivery truck, water tanker truck!
Water sprinkler truck, water truck, shacman water truck, water delivery truck, water tanker truck!
water truck for sale

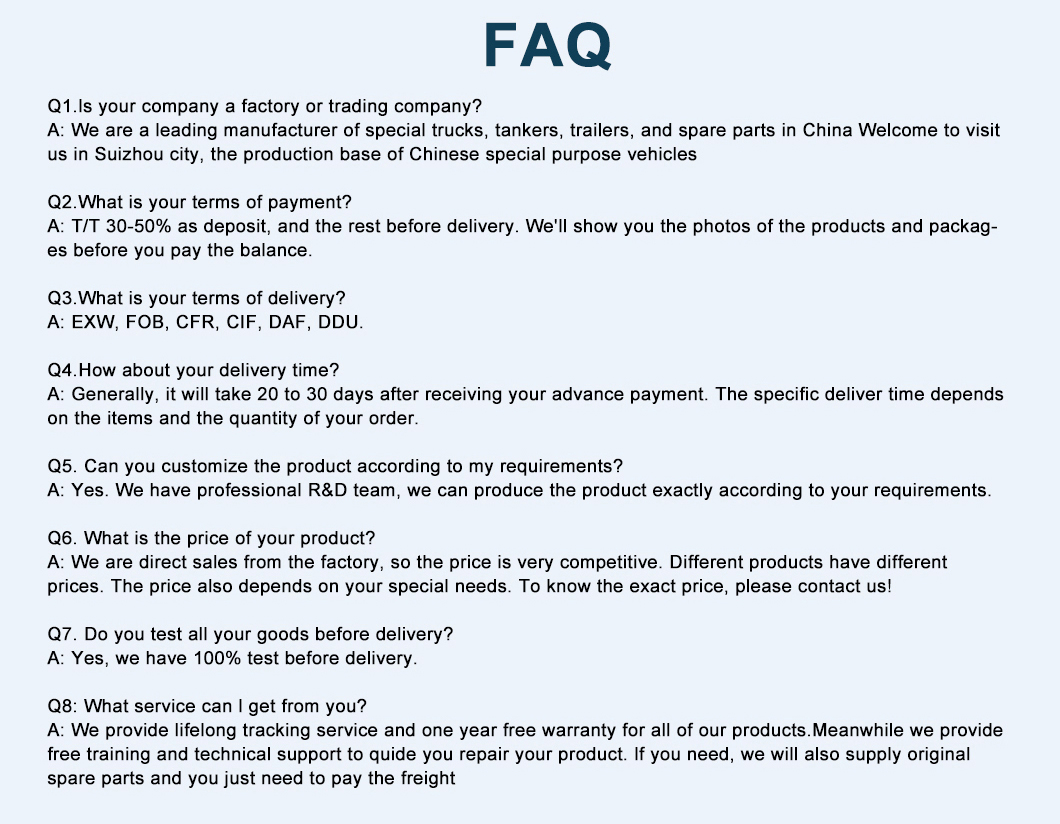

We are a leading manufacturer of special trucks, tankers, trailers, and spare parts in China Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles
T/T 30-50% as deposit, and the rest before delivery. We'll show you the photos of the products and packages before you pay the balance
EXW, FOB, CFR, CIF, DAF, DDU
Generally, it will take 20 to 30 days after receiving your advance payment. The specific deliver time depends on the items and the quantity of your order
Yes. We have professional R&D team, we can produce the product exactly according to your requirements
We are direct sales from the factory, so the price is very competitive. Different products have different prices. The price also depends on your special needs. To know the exact price, please contact us
Yes, we have 100% test before delivery
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. lf you need, we will also supply original spare parts and you just need to pay the freight
