| Main Configuration howo water truck | |||
| HOWO 4x2 dust suppression water truck howo water truck | |||
| Drive Configuration | 4X2 | ||
| Gross Vehicle Weight (kg) | 4495 | ||
| Curb Weight (kg) | 3800 | ||
| Rated Load Capacity (kg) | 565 | ||
| Engine Power | WP2.3Q140E62 | ||
| Wheelbase (mm) | 3280 | ||
| Chassis Other Configurations | This vehicle meets the China VI emission standard and features a 1880 cab with a 3280 mm wheelbase. It is powered by a Weichai 130 HP engine paired with a Wanliyang 6-speed gearbox. The axle configuration includes a 2.0T front axle and a 5T rear axle, complemented by 7.00R16 steel wire tires. The interior is equipped with a central control panel, power windows, factory-installed air conditioning, genuine leather seats, an air horn, and a fully wrapped design. Additional convenience features include remote-controlled windows, power steering, a multifunctional steering wheel, and cruise control. Exterior highlights include dual top-mounted storage racks, three charging ports, and a 120-liter aluminum alloy fuel tank. Safety is ensured by an air brake system, making this vehicle a versatile and reliable choice for various applications. | ||
| Vehicle Dimensions (mm) | 5995*2250*3000 | ||
| Superstructure Configuration and Parameters | Effective Water Tank Volume (m³) | 7 | |
| Water Gun Range (m) | 25 | ||
| Flushing Width (m) | ≥30 | ||
| Sprinkling Width (m) | ≥16 | ||
| water tanker | Tank Material and Thickness | 4mm WISCO carbon steel plate | |
| Head Material and Thickness | Q235B carbon steel, 5mm | ||
| Baffle Thickness / Number | 3mm / 2 | ||
| Inspection Manhole | Q235B carbon steel, 1 | ||
| Water Pump | Model | 40/50 | |
| Flow Rate | 40 | ||
| Head (m) | 50 | ||
| Self-Priming Height (m) | 7 | ||
| Water System | Piping | Galvanized steel pipe, painted | |
| Front Flush | Aluminum alloy, conical nozzle, 2 | ||
| Rear Sprinkler | Aluminum alloy, 2 | ||

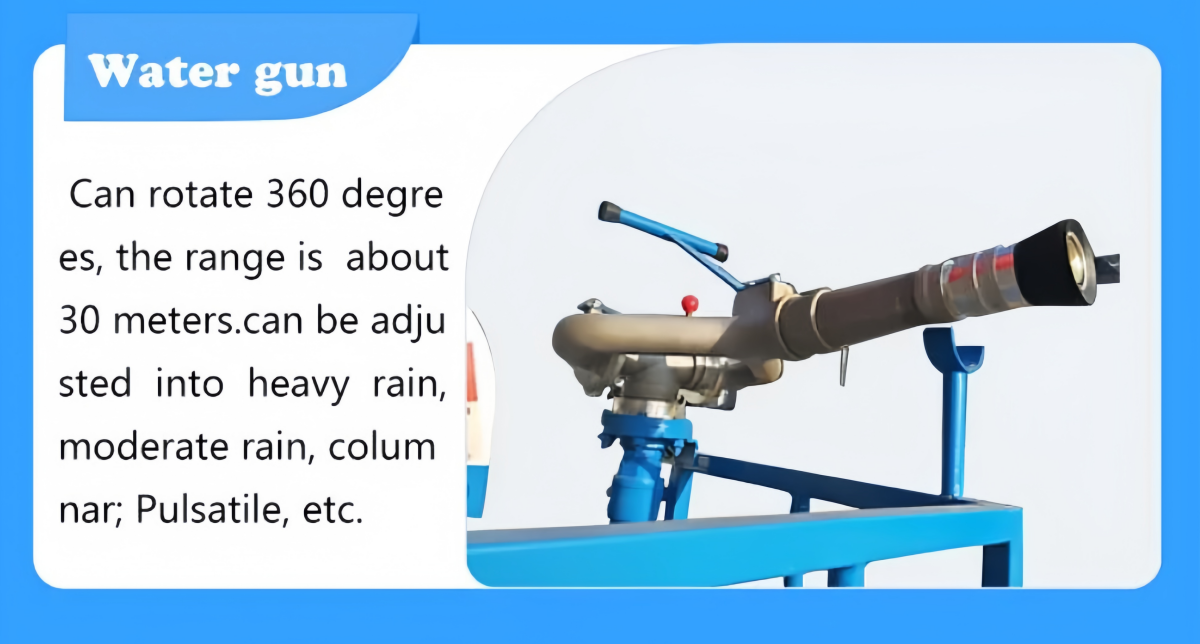

| High-Pressure Cannon | Aluminum alloy, 1 | ||
| Side Spray | Aluminum alloy, shower nozzle, 2 | ||
| Ball Valve | Alloy steel, manual ball valve | ||
| Water Inlet | Chinese internal snap fire hydrant interface, aluminum alloy | ||
| Power Take-Off, Drive Shaft | Matched with transmission and water pump | ||
| Work Platform | Q195 carbon steel, perforated, 2mm | ||
| Optional Spray Unit | Optional water-cooled generator-powered spray unit with a 30-meter spraying range, suitable for dust suppression, dust control, air purification, and other applications. | ||
Hot sale! water tanker truck for sale
Dust suppression water truck that can effectively reduce the content of particulate matter in the air:
Efficient dust suppression: the dust suppression water truck sprays water mist to a greater distance and height through its spray system, which can effectively cover a large area of dust sources. The sprayed mist particles are small and can form a moist mist like body with floating dust, quickly suppressing dust settling and achieving a mist settling rate of over 95%.
Versatility: The water tanker truck not only has the function of dust suppression, but also has multiple functions such as spray, watering and road washing. For example, liquid mist dust reduction can be carried out in specific areas when the air quality is poor, to decompose and dilute the particle concentration in the air, and to treat and purify the air.
In addition, dust suppression water truck can also be used for greening maintenance, garden spraying, sterilization and disinfection.
Environmental performance: the water truck can significantly reduce the concentration of PM2.5 and PM10 in the air during operation, effectively alleviating the incidence rate of respiratory diseases. For example, in Xinjiang, the multi-function dust suppression vehicle can reduce the PM2.5 concentration in the operation area by 40% -60% through the 360 ° high-pressure fog gun system, directly alleviating the incidence rate of respiratory diseases.
Intelligent operation: Modern water truck is usually equipped with intelligent control systems that can achieve precise dust suppression. For example, the customized dust suppression vehicle in Xinjiang is equipped with the Beidou positioning system and dust monitoring module, which achieves precise suppression in key areas through big data analysis.
Economic and social benefits: The application of water tanker truck can bring significant economic and social benefits. In Xinjiang, intelligent dust suppression vehicles have increased the visibility of open-pit coal mine working faces by 70%, reduced equipment failure rates by 45%, and saved an average of 12 million yuan in downtime losses per year for a single mine.
In addition, the application of dust suppression water truck can also drive the development of related industries, create employment opportunities, and promote economic transformation and upgrading.
dust suppression water truck, water tanker truck, howo water truck, new water truck!
dust suppression water truck, water tanker truck, howo water truck, new water truck!
dust suppression water truck, water tanker truck, howo water truck, new water truck!
howo water truck for sale
A water tanker truck is an essential vehicle designed for the transportation and delivery of water to various locations. This versatile water tanker truck comes in different configurations to suit specific needs, with drive types including 4*2, 6*4, and 8*4, providing flexibility and efficiency in different environments. howo water truck
One of the key features of this howo water truck its Wheel Base of 4600+1350mm, which ensures stability and maneuverability on different terrains. Whether navigating urban streets or rural roads, this water tanker truck offers reliability and ease of operation.
Equipped with a Sprinkling Area of 50-100m, this howo water truck is capable of efficiently spreading water over a wide area, making it ideal for various applications such as dust suppression, landscaping, and agricultural irrigation. The versatility of the sprinkling system ensures effective water distribution in diverse settings.
Under the hood, the water tanker truck boasts an Engine Capacity ranging from 4 to 6 liters, providing ample power and fuel efficiency for long-distance water transportation. The robust engine ensures reliable performance and durability, allowing the howo water truck to handle demanding tasks with ease.
When howo water truck comes to safety and control, the water tanker truck features a Front Axle with HF7 Drum Brake, offering responsive braking and stability during operation. This critical component enhances the overall safety of the vehicle, providing peace of mind to drivers and operators alike.
In conclusion, the water tanker truck is a versatile and reliable solution for water transportation needs. Whether used for municipal services, construction projects, or agricultural purposes, this howo water truck offers efficiency, durability, and performance in a compact and efficient package. With its various drive types, Wheel Base, Sprinkling Area, Engine Capacity, and Front Axle specifications, the howo water truck is a valuable asset for any operation requiring efficient water transportation.

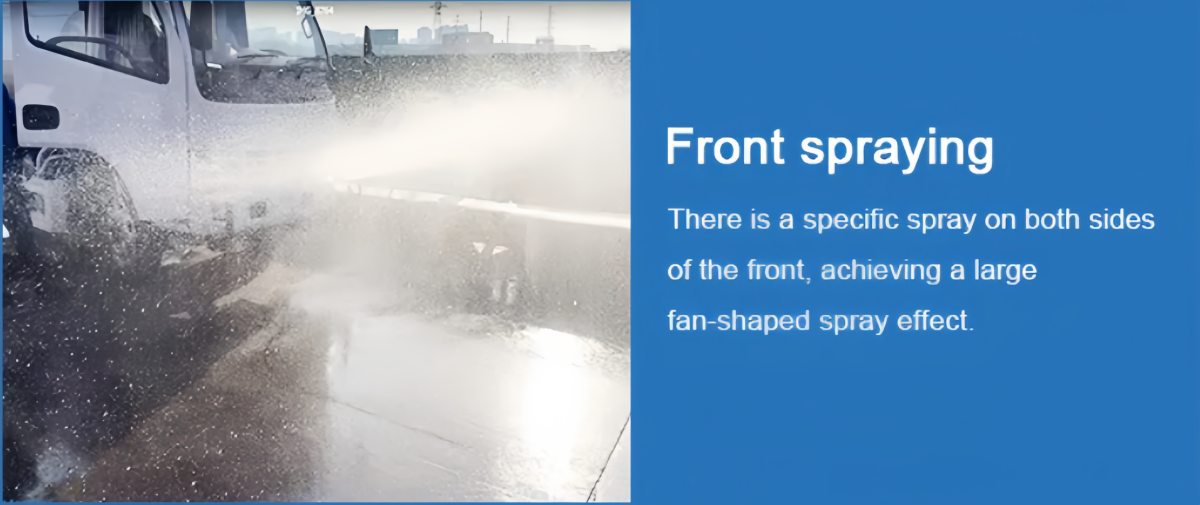

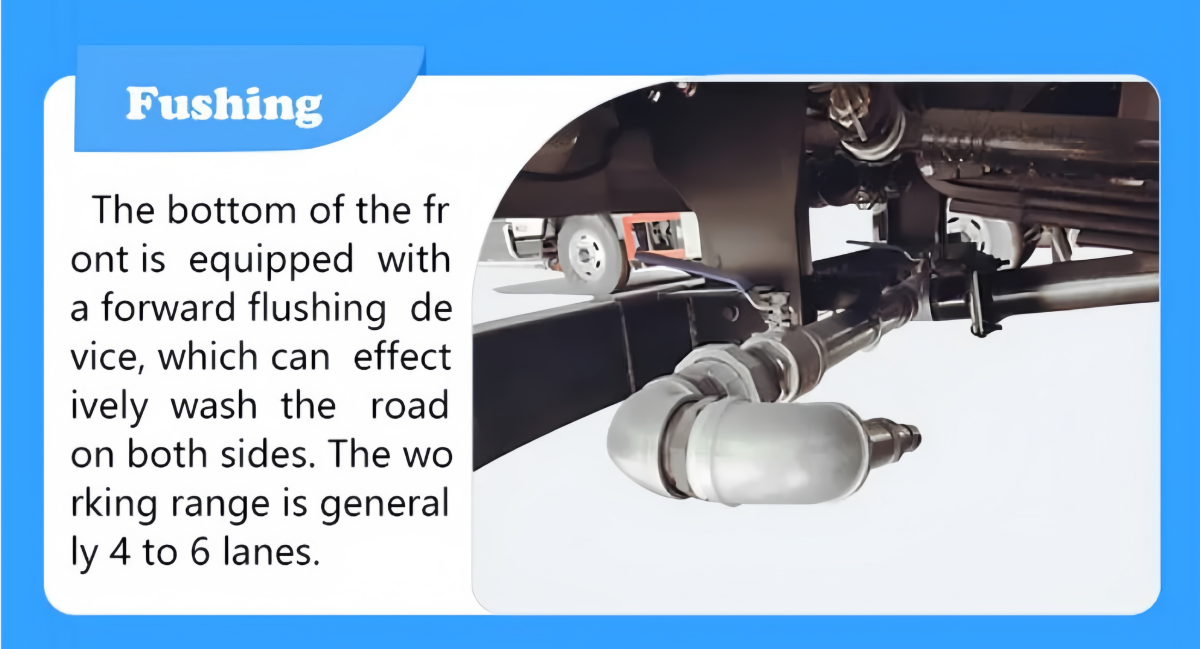

front spraying for water tanker truck

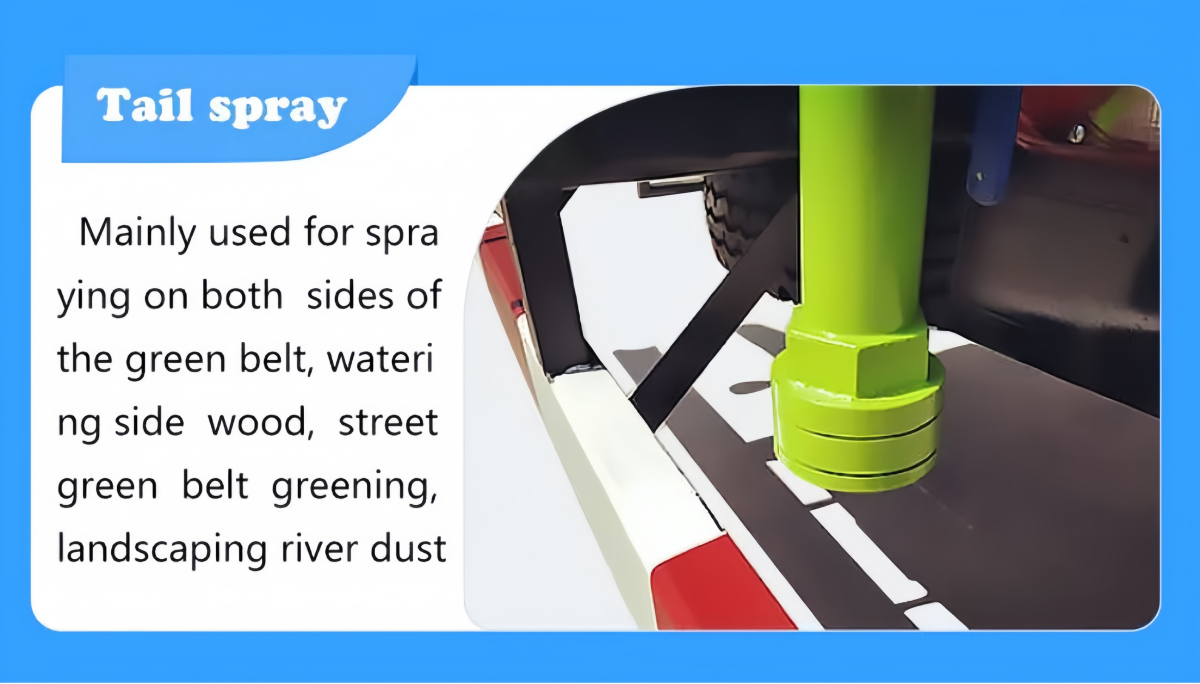

tail spraying for dust suppression water truck

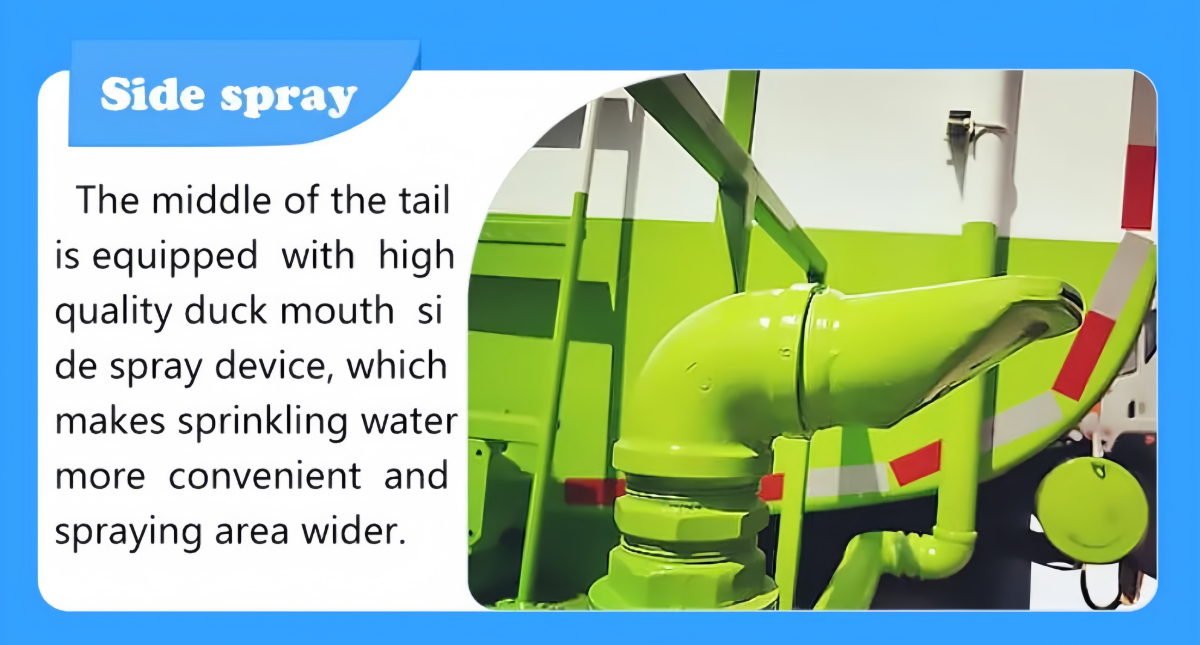

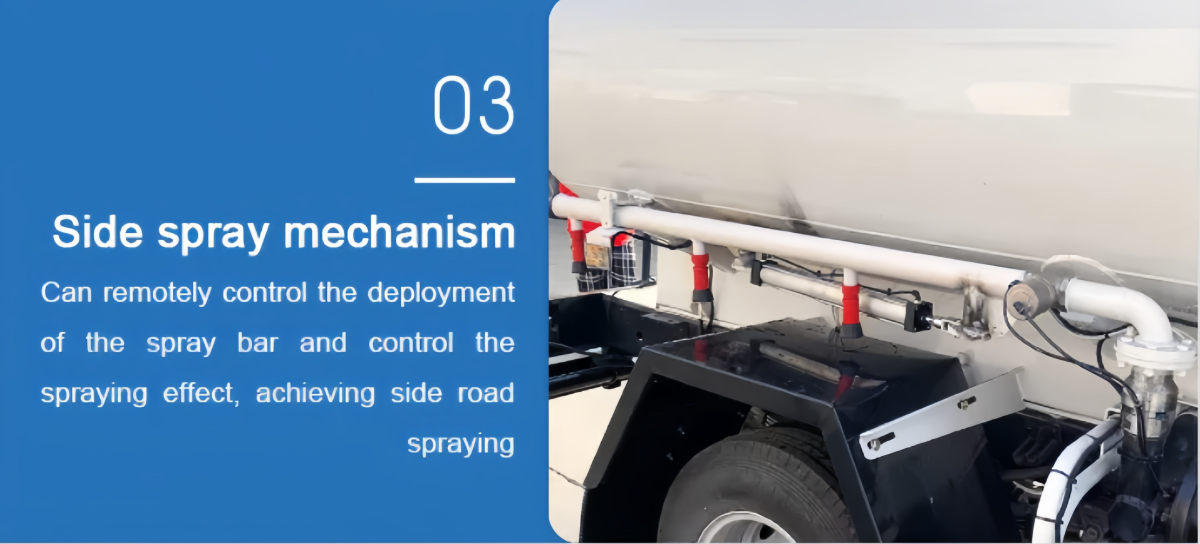

side spraying for howo water truck

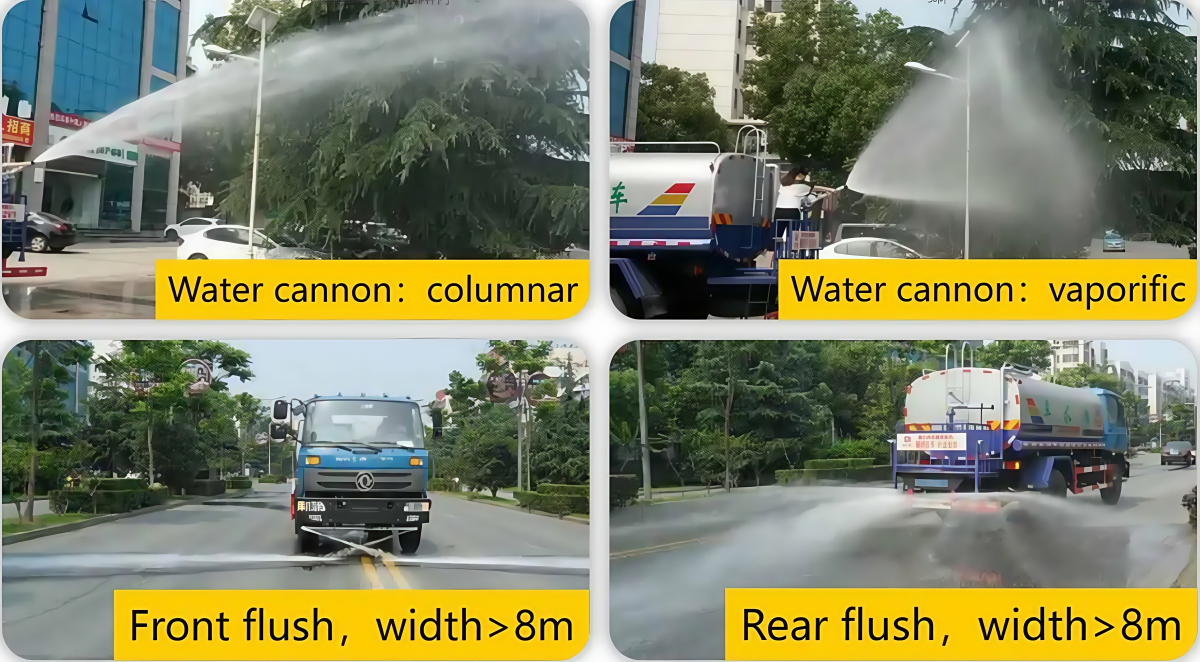

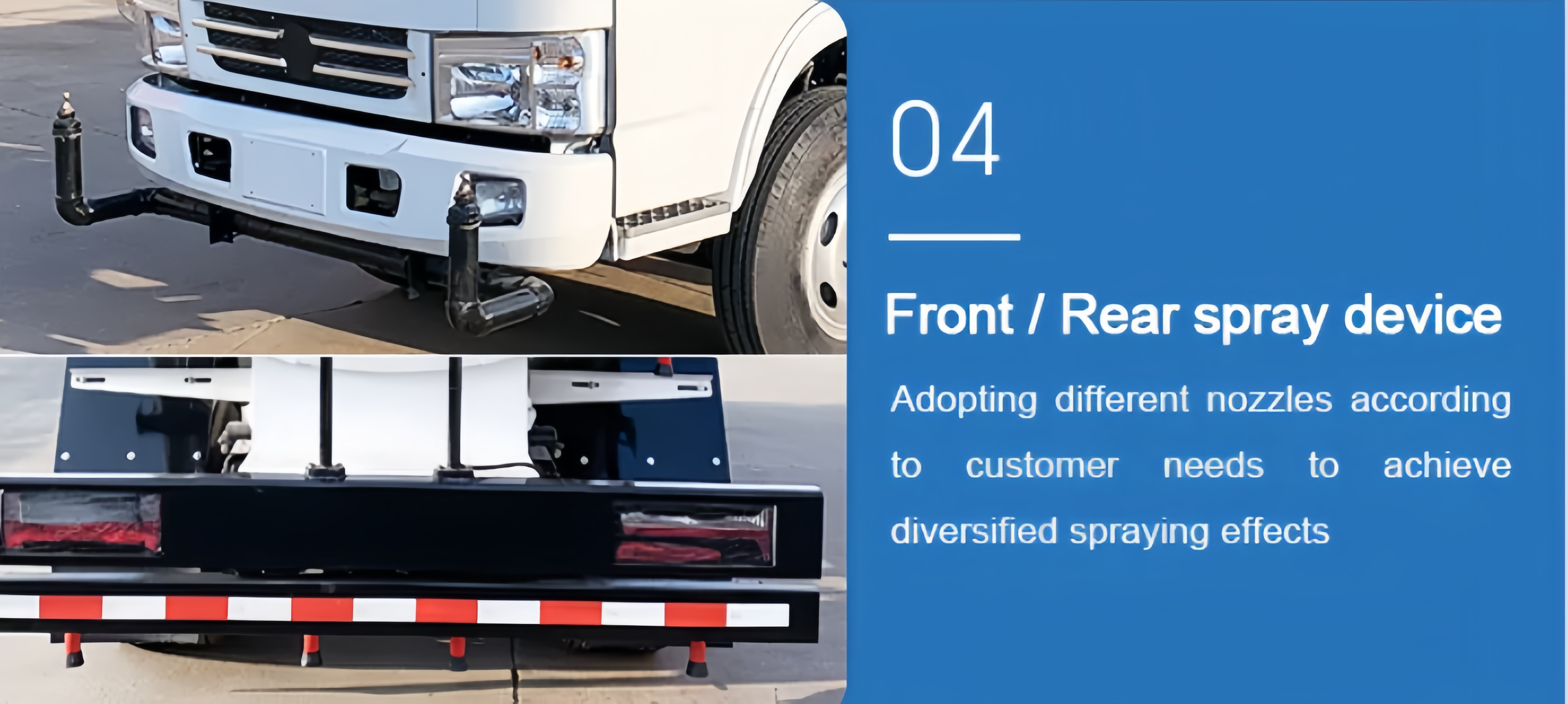

front/rear spraying water tanker truck

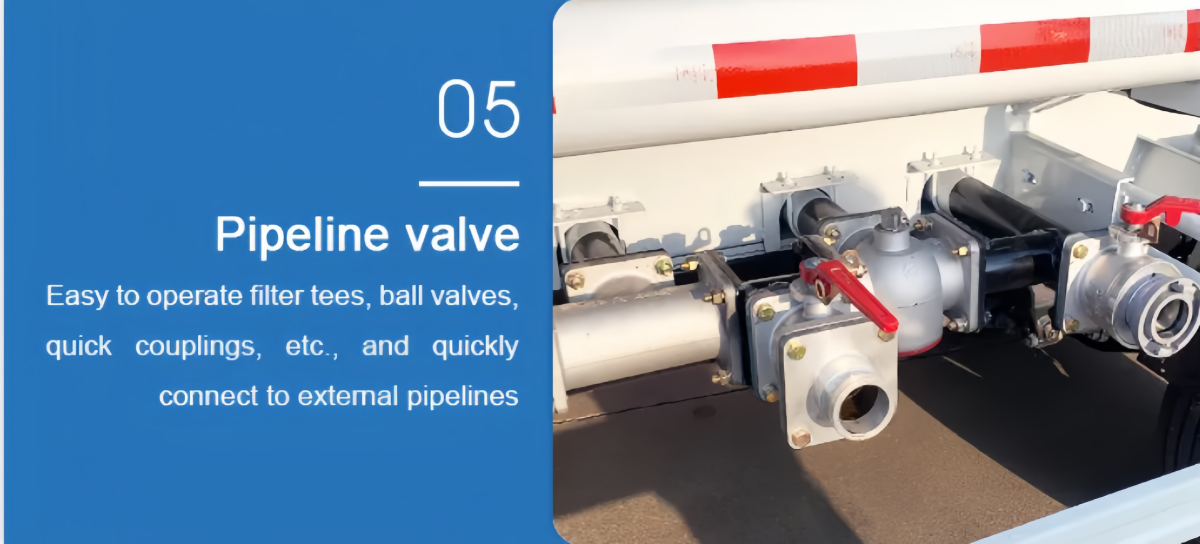

pipeline valve for howo water truck

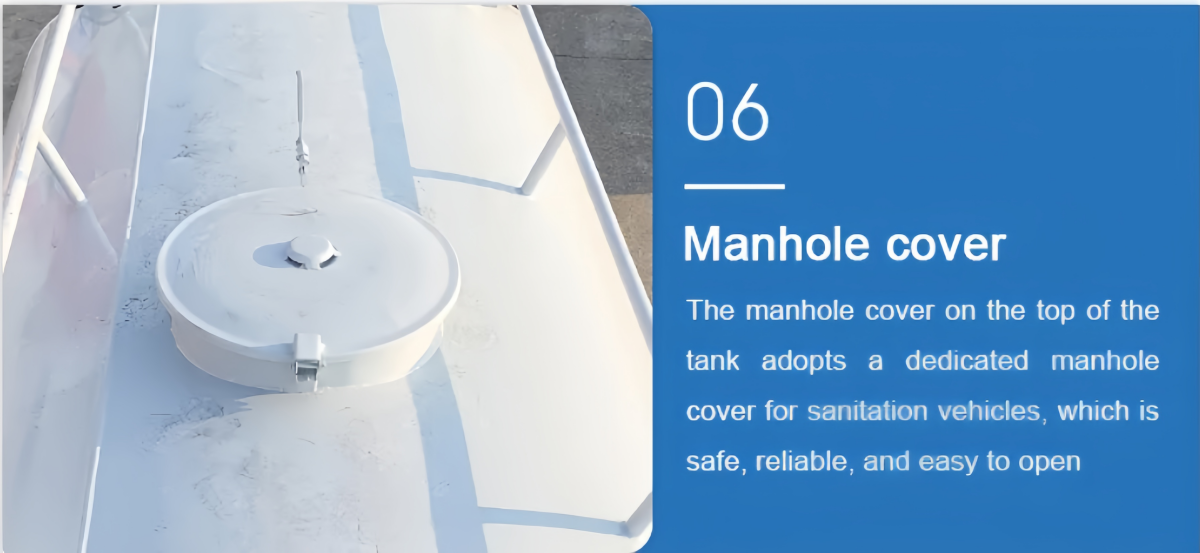

manhole cover for howo water truck

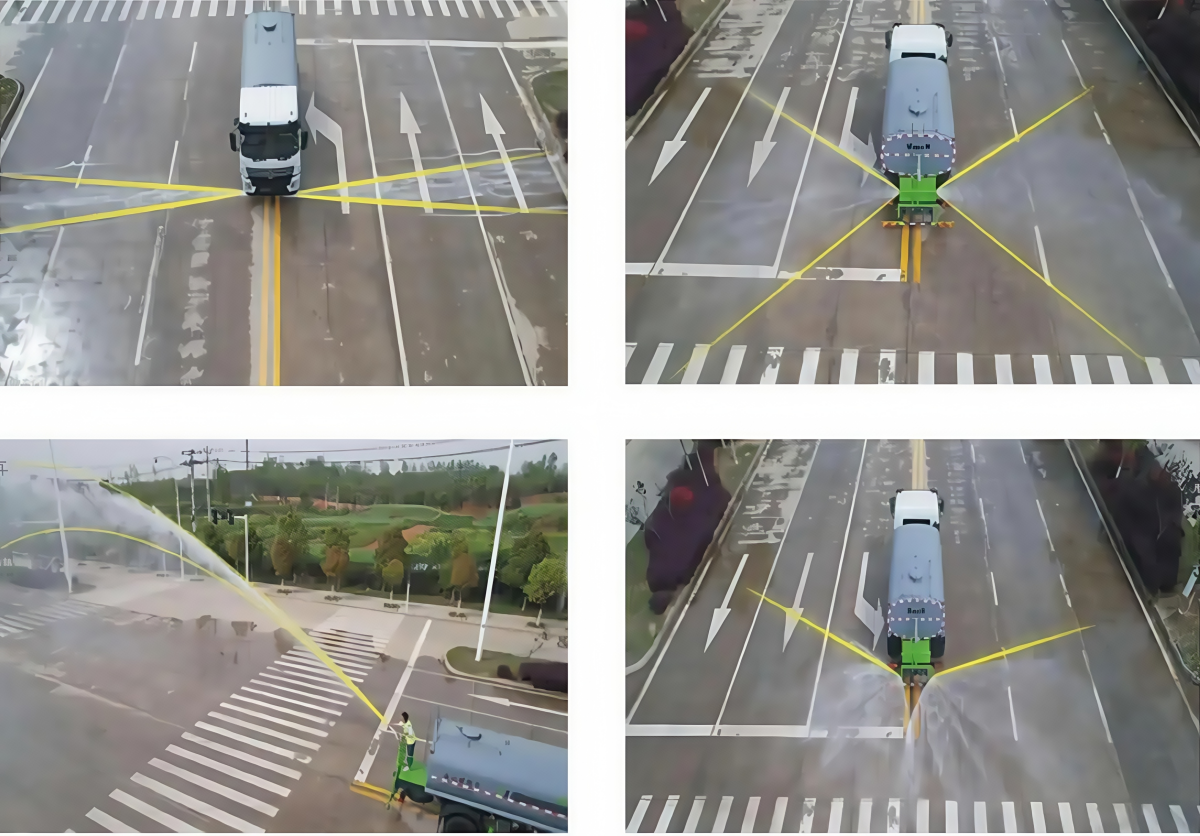

working function for water tanker truck
howo water truck

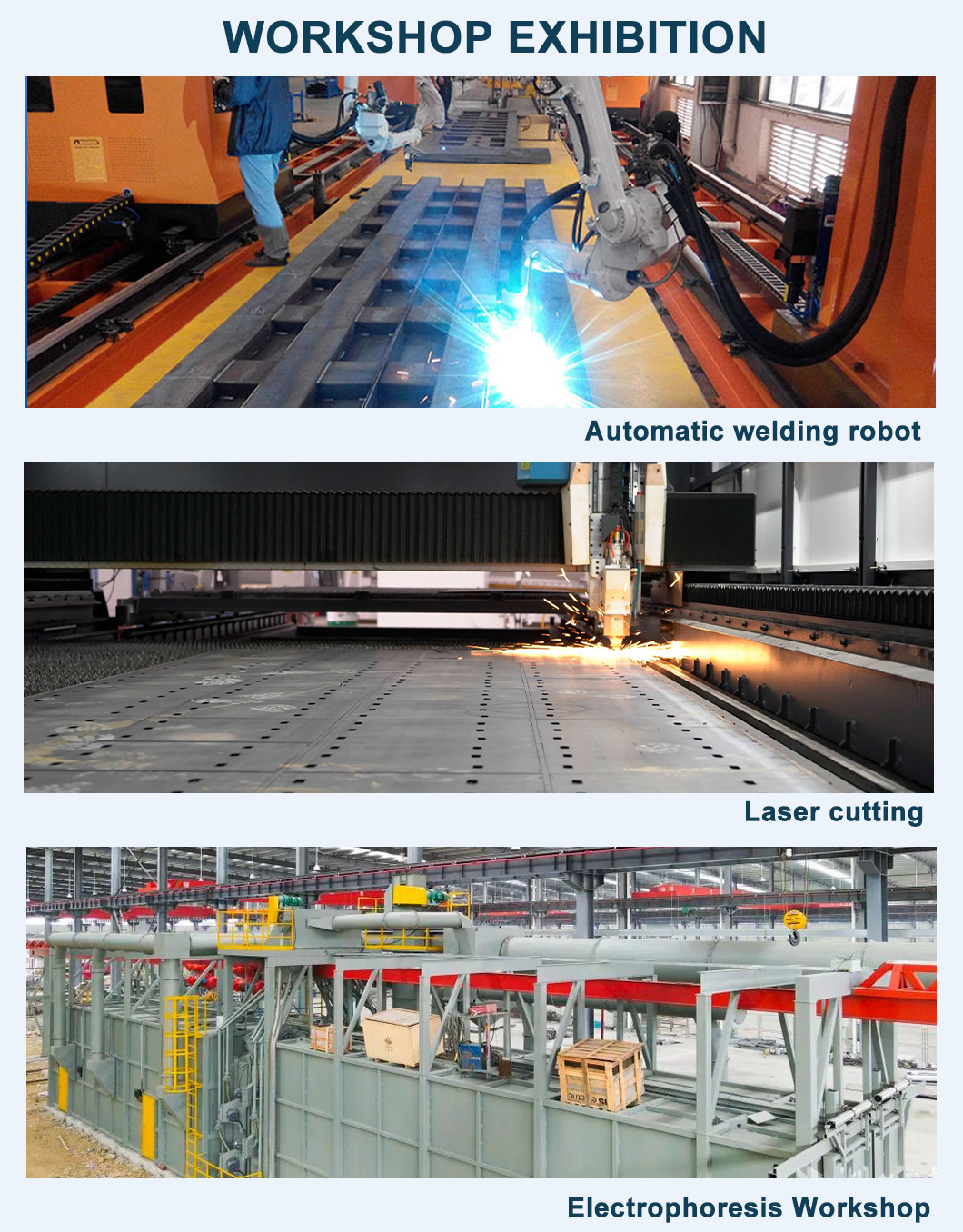

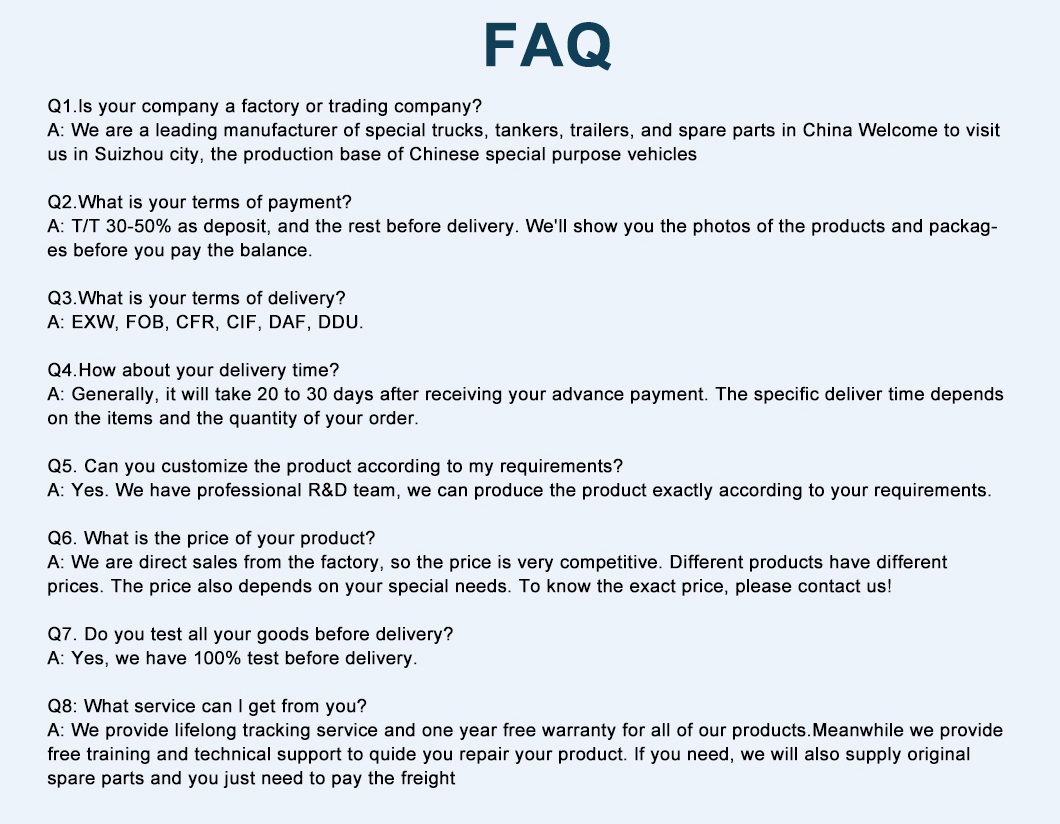

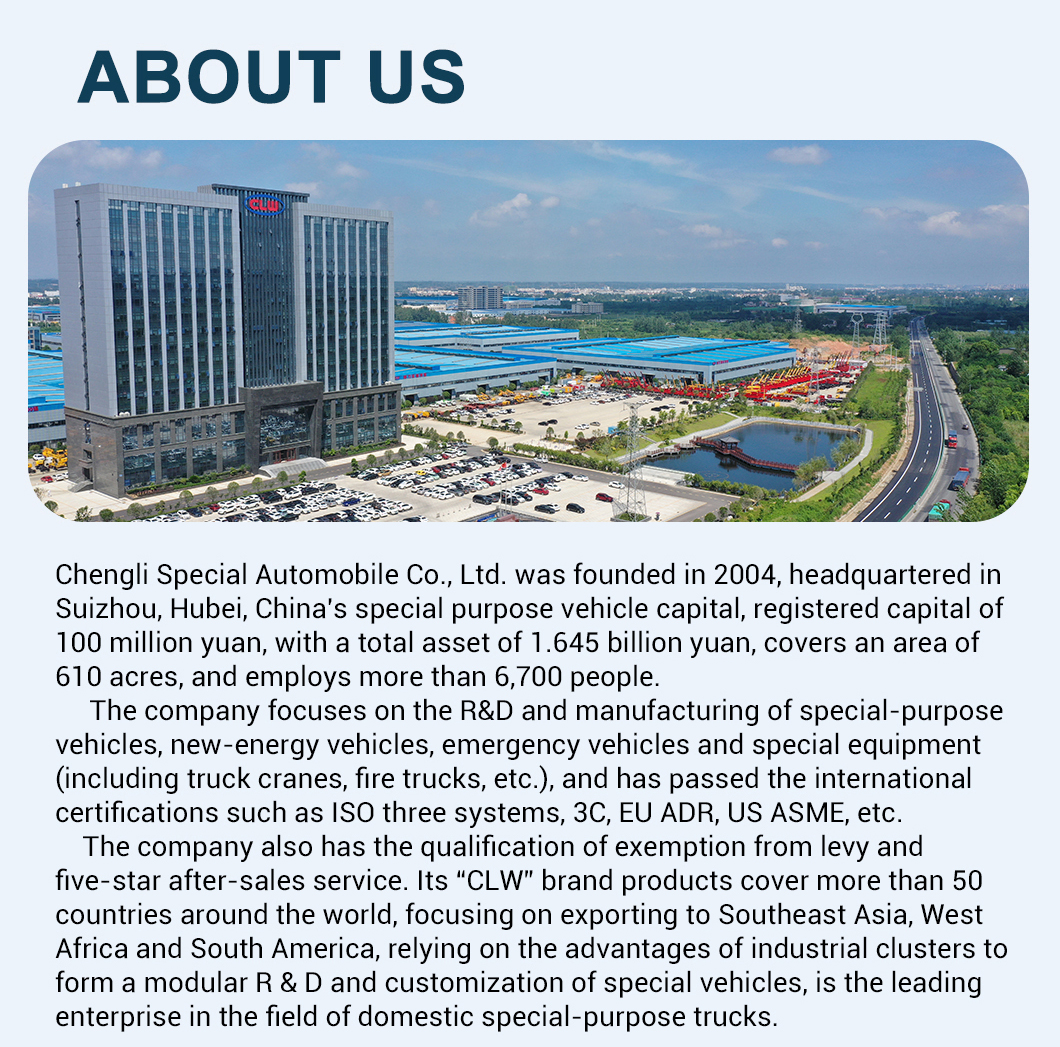

We are a leading manufacturer of special trucks, tankers, trailers, and spare parts in China Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles
T/T 30-50% as deposit, and the rest before delivery. We'll show you the photos of the products and packages before you pay the balance
EXW, FOB, CFR, CIF, DAF, DDU
Generally, it will take 20 to 30 days after receiving your advance payment. The specific deliver time depends on the items and the quantity of your order
Yes. We have professional R&D team, we can produce the product exactly according to your requirements
We are direct sales from the factory, so the price is very competitive. Different products have different prices. The price also depends on your special needs. To know the exact price, please contact us
Yes, we have 100% test before delivery
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. lf you need, we will also supply original spare parts and you just need to pay the freight
