| Main Configuration | |||
| HOWO 4x2 NX dust suppression truck | |||
| Drive Configuration | 4X2 | ||
| Gross Vehicle Weight (kg) | 18000 | ||
| Curb Weight (kg) | 10380 | ||
| Rated Load Capacity (kg) | 7490 | ||
| Engine Power | WP4.6NQ220E62 | ||
| Wheelbase (mm) | 4700 | ||
| Chassis Other Configurations | The new model HOWO wide-body and wide-sleeper truck boasts a 4700mm wheelbase and is powered by a robust Weichai engine delivering 220 horsepower. It comes with a complete environmental tax exemption and features a four-point suspended cab for enhanced comfort. With a vehicle width of 2.35 meters, it is equipped with a HOWO 8-speed gearbox with synchronizer and a durable German MAN 11-ton rear axle. The truck's chassis is reinforced with a 250 straight-through double-layer beam and rides on 10.00R20 steel wire tires. Inside, the driver enjoys the luxury of automatic air conditioning and an air-suspension seat. Practical features include a power take-off (PTO), a double-layer frame, and safety essentials such as an Anti-lock Braking System (ABS) and a tachograph. Convenience is further enhanced with a central locking system and electric window remote control, making this truck a comprehensive solution for heavy-duty transportation needs. | ||
| Vehicle Dimensions (mm) | 8650*2550*3700 | ||
| Superstructure Configuration and Parameters | Effective Water Tank Volume (m³) | 13 | |
| Water Gun Range (m) | 25 | ||
| Flushing Width (m) | ≥30 | ||
| Sprinkling Width (m) | ≥16 | ||
| water tanker | Tank Material and Thickness | 4mm WISCO carbon steel plate | |
| Head Material and Thickness | Q235B carbon steel, 5mm | ||
| Baffle Thickness / Number | 3mm / 2 | ||
| Inspection Manhole | Q235B carbon steel, 1 | ||
| Water Pump | Model | 60/90 | |
| Flow Rate | 60 | ||
| Head (m) | 90 | ||
| Self-Priming Height (m) | 7 | ||
| Water System | Piping | Galvanized steel pipe, painted | |
| Front Flush | Aluminum alloy, conical nozzle, 2 | ||
| Rear Sprinkler | Aluminum alloy, 2 | ||
| High-Pressure Cannon | Aluminum alloy, 1 | ||
| Side Spray | Aluminum alloy, shower nozzle, 2 | ||
| Ball Valve | Alloy steel, manual ball valve | ||
| Water Inlet | Chinese internal snap fire hydrant interface, aluminum alloy | ||
| Power Take-Off, Drive Shaft | Matched with transmission and water pump | ||
| Work Platform | Q195 carbon steel, perforated, 2mm | ||
| Optional Spray Unit | Optional water-cooled generator-powered spray unit with a 30-meter spraying range, suitable for dust suppression, dust control, air purification, and other applications. | ||
In busy construction zones, the dust suppression truck, HOWO dust suppression truckparticularly the HOWO 4x2 NX dust suppression truck, stands as a reliable sentinel against dust pollution. Its ability to perform spray dust suppression effectively, coupled with its design Dedicated to construction sites, makes it a key player in maintaining a clean and healthy environment. Whether it’s a high - rise development in the city center or a road - building project on the outskirts, the HOWO dust suppression truck is a trusted solution for keeping dust under control and ensuring that construction activities can proceed smoothly.Dedicated to construction sites.
dust suppression truck! HOWO dust suppression truck! Dedicated to construction sites!
dust suppression truck! HOWO dust suppression truck! Dedicated to construction sites!
dust suppression truck! HOWO dust suppression truck! Dedicated to construction sites!

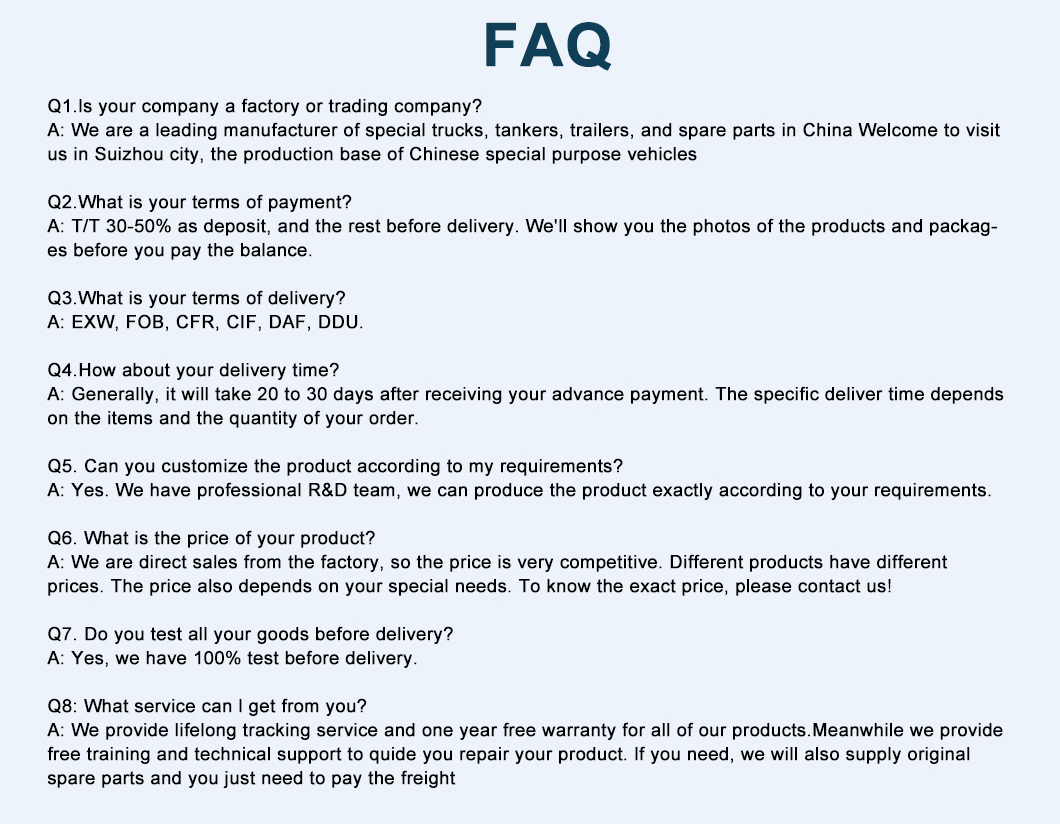

We are a leading manufacturer of special trucks, tankers, trailers, and spare parts in China Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles
