Multi - functional dust suppression vehicle Dust suppression vehicle In modern environmental management, dust suppression vehicles play a pivotal role in maintaining clean and healthy environments. One of the most common types is the multi - functional dust suppression vehicle. These vehicles are engineered to perform a wide range of tasks related to dust control. They can be seen at construction sites, where they use their advanced spraying systems to reduce dust particles that are generated during building activities. The multi - functional dust suppression vehicle often comes equipped with features that allow it to adjust the water spray intensity and pattern according to the specific needs of the site, making it a highly adaptable option for different scenarios.
Main Configuration | |||
DONGFENG 6x4 dust suppression truck | |||
Drive Configuration | 6X4 | ||
Gross Vehicle Weight (kg) | 25000 | ||
Curb Weight (kg) | 17380 | ||
Rated Load Capacity (kg) | 7550 | ||
Engine Power | YCS06270-60 | ||
Wheelbase (mm) | 4750+1350 | ||
Chassis Other Configurations | New Model TianJin Cab High-End Chassis, equipped with a Guangxi Yuchai 270 HP National VI Diesel Engine and a Fast 9-Speed Transmission. The wheelbase is 4750+1350 mm, fitted with 11.00 steel wire tires. It includes power steering, factory-installed clutch assist, and factory-installed air conditioning. The vehicle is also equipped with an ABS Anti-Lock Braking System. The overall design is aesthetically pleasing and elegant, offering a comfortable driving and riding experience. | ||
Vehicle Dimensions (mm) | 10100X2550X3850 | ||
Superstructure Configuration and Parameters | Effective Water Tank Volume (m³) | 15 | |
Water Gun Range (m) | 25 | ||
Flushing Width (m) | ≥30 | ||
Sprinkling Width (m) | ≥16 | ||
water tanker | Tank Material and Thickness | 4mm WISCO carbon steel plate | |
Head Material and Thickness | Q235B carbon steel, 5mm | ||
Baffle Thickness / Number | 3mm / 2 | ||
Inspection Manhole | Q235B carbon steel, 1 | ||
Water Pump | Model | 50/110 | |
Flow Rate | 50 | ||
Head (m) | 110 | ||
Self-Priming Height (m) | 7 | ||

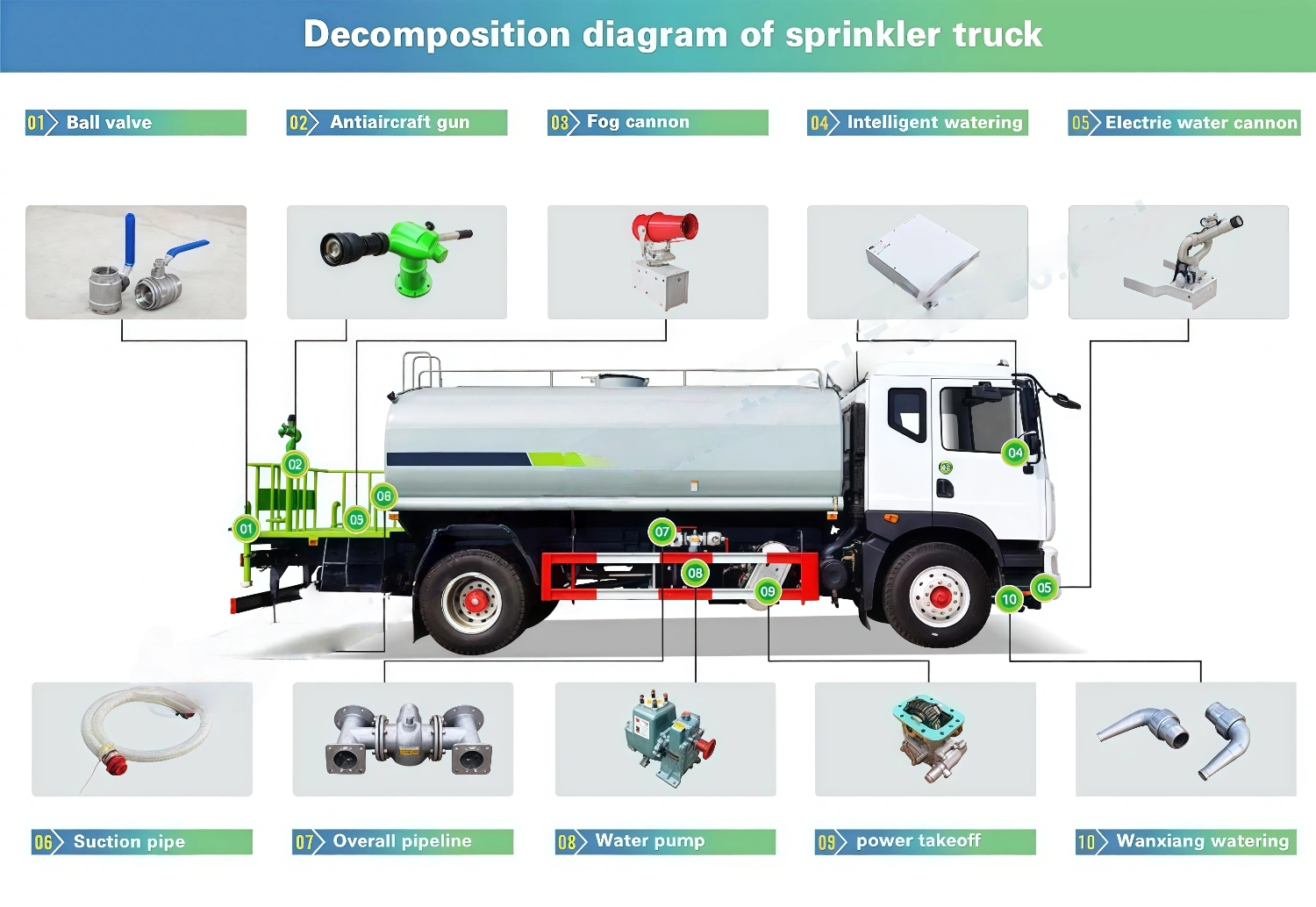

Water System | Piping | Galvanized steel pipe, painted | |
Front Flush | Aluminum alloy, conical nozzle, 2 | ||
Rear Sprinkler | Aluminum alloy, 2 | ||
High-Pressure Cannon | Aluminum alloy, 1 | ||
Side Spray | Aluminum alloy, shower nozzle, 2 | ||
Ball Valve | Alloy steel, manual ball valve | ||
Water Inlet | Chinese internal snap fire hydrant interface, aluminum alloy | ||
Power Take-Off, Drive Shaft | Matched with transmission and water pump | ||
Work Platform | Q195 carbon steel, perforated, 2mm | ||
Optional Spray Unit | Optional water-cooled generator-powered spray unit with a 80-meter spraying range, suitable for dust suppression, dust control, air purification, and other applications. |
Pure electric dust suppression truck Another well - known type is the mist cannon truck, which has gained popularity due to its effectiveness in dispersing fine water droplets into the air. Mist cannon trucks are frequently deployed in large - scale industrial areas such as mines and quarries. Their long - range cannons can project a cloud of fine mist over a significant distance. This mist then traps dust particles, causing them to fall to the ground, thereby reducing the amount of airborne dust. The mist cannon truck's design is optimized for maximum coverage, ensuring that large areas can be effectively treated with minimal water usage.Dust suppression vehicle,Multi - functional dust suppression vehicle。
Multi - functional dust suppression vehicleFor the unique requirements of the railway industry, the Railway multi - functional dust suppression spraying vehicle has been developed.Dust suppression vehicle These vehicles are specifically tailored to work along railway tracks. They are used to control dust from railway ballast, coal - carrying trains, and other sources of dust in the railway environment. The Railway multi - functional dust suppression spraying vehicle can move along the tracks, spraying water or special dust - suppressing agents at regular intervals. This helps in preventing dust - related problems like reduced visibility for train drivers and damage to railway infrastructure due to dust accumulation.Pure electric dust suppression truck。
With the growing emphasis on environmental sustainability, the Pure electric dust suppression truck has emerged as an eco - friendly alternative. These trucks are powered by electricity, which means they produce zero tailpipe emissions during operation. Pure electric dust suppression trucks are suitable for urban areas where air quality is a major concern. Pure electric dust suppression truck They can operate quietly, minimizing noise pollution while still effectively suppressing dust. In addition, their electric motors often provide smooth and efficient power delivery, making them reliable for continuous use in various dust - control operations.
Overall, the dust suppression vehicle, in all its forms including the multi - functional dust suppression vehicle, mist cannon truck, Railway multi - functional dust suppression spraying vehicle, and Pure electric dust suppression truck, is an essential part of our efforts to combat dust pollution. Whether it's a bustling construction zone, a busy industrial site, a railway network, or a city street, these vehicles are constantly at work, helping to keep our air clean and our environments healthy. Their widespread use not only improves air quality but also contributes to a more pleasant and safe living and working environment for everyone.

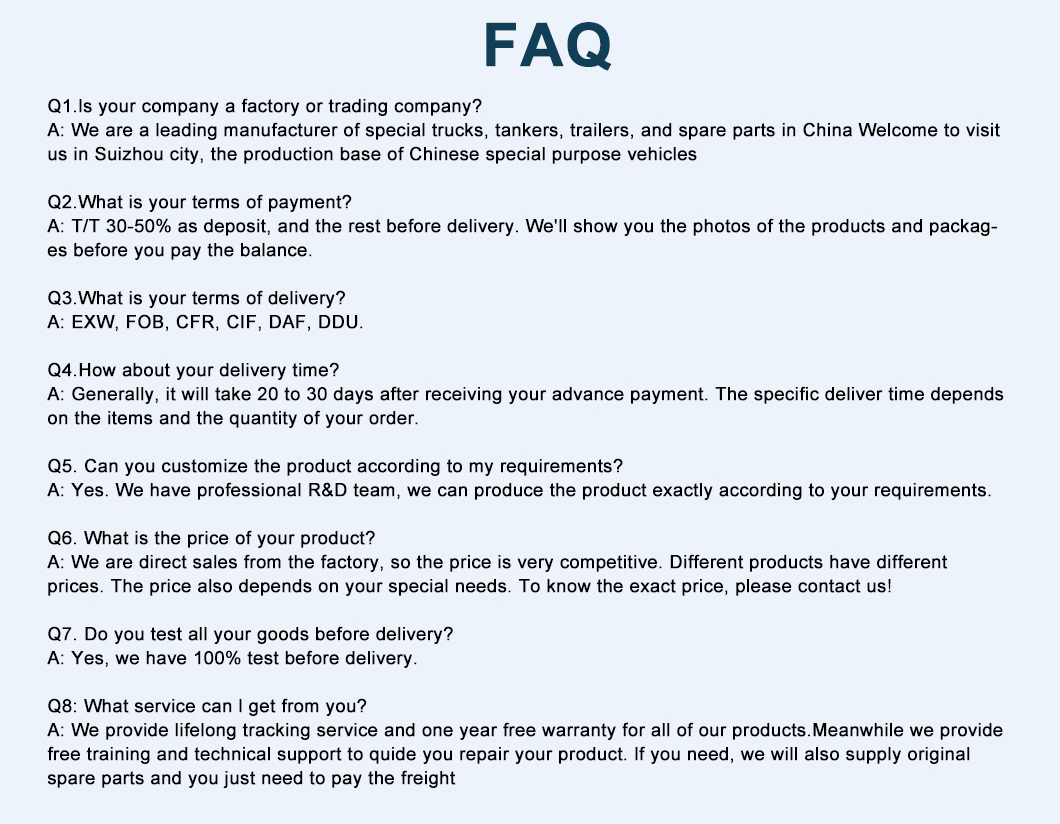

We are a leading manufacturer of special trucks, tankers, trailers, and spare parts in China Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles
T/T 30-50% as deposit, and the rest before delivery. We'll show you the photos of the products and packages before you pay the balance
EXW, FOB, CFR, CIF, DAF, DDU
Generally, it will take 20 to 30 days after receiving your advance payment. The specific deliver time depends on the items and the quantity of your order
Yes. We have professional R&D team, we can produce the product exactly according to your requirements
We are direct sales from the factory, so the price is very competitive. Different products have different prices. The price also depends on your special needs. To know the exact price, please contact us
Yes, we have 100% test before delivery
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. lf you need, we will also supply original spare parts and you just need to pay the freight
