Main Vehicle Configuration | |||
Product Trademark | CLW | Announcement Batch | 368 (Expanded) |

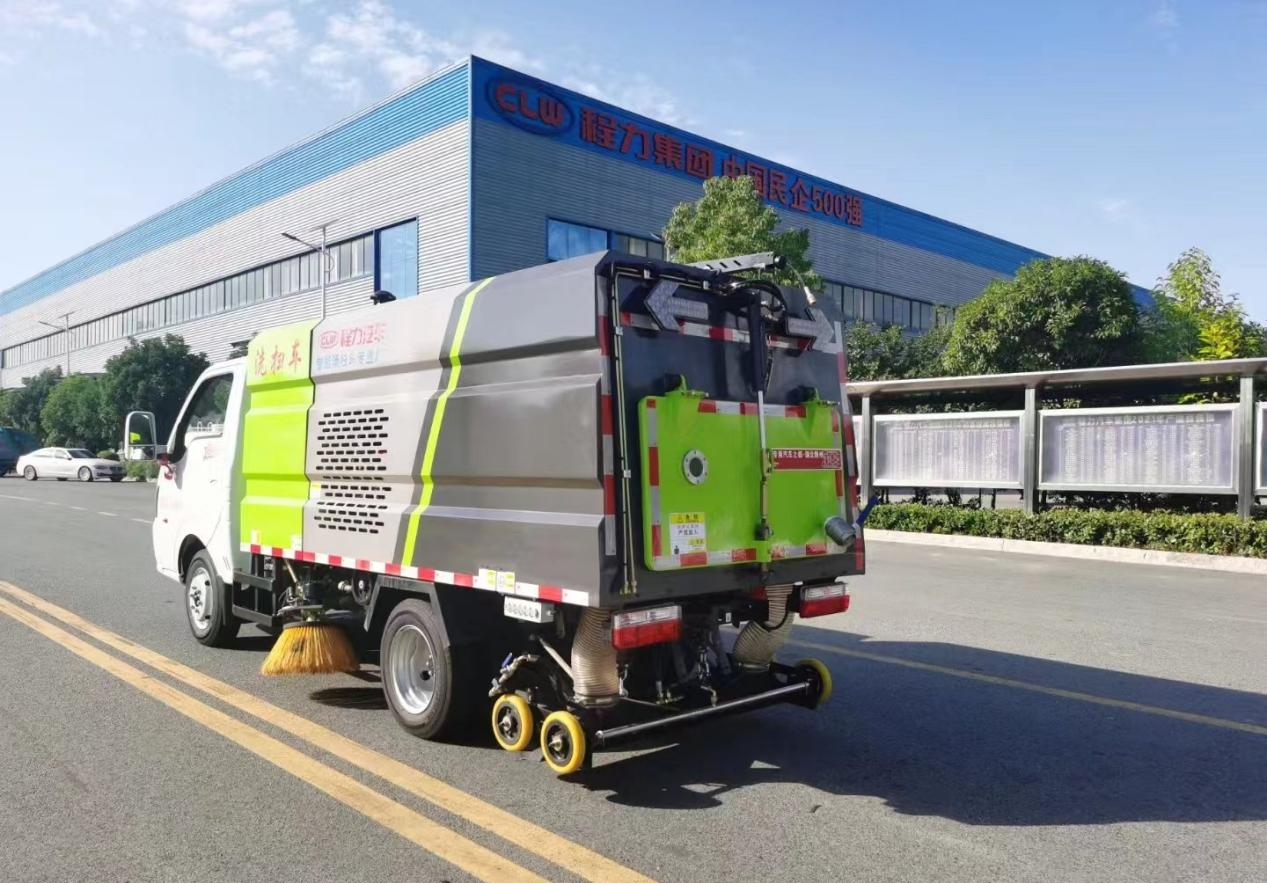

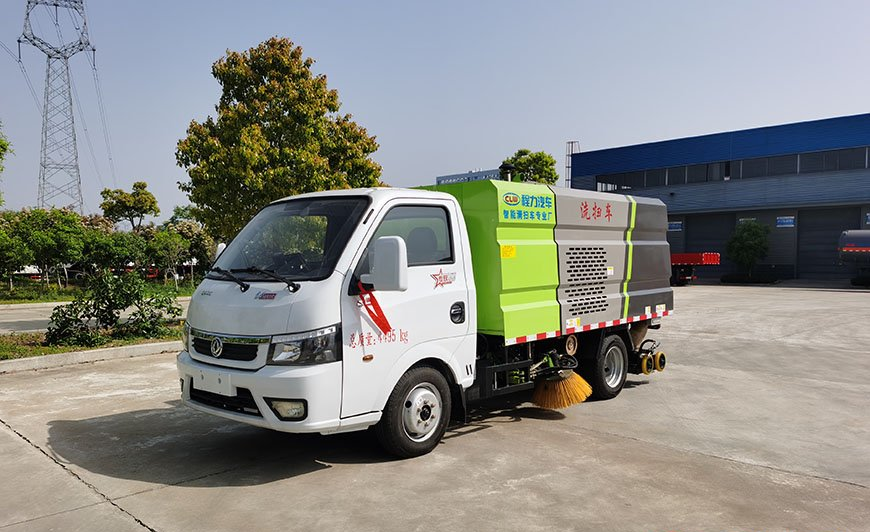

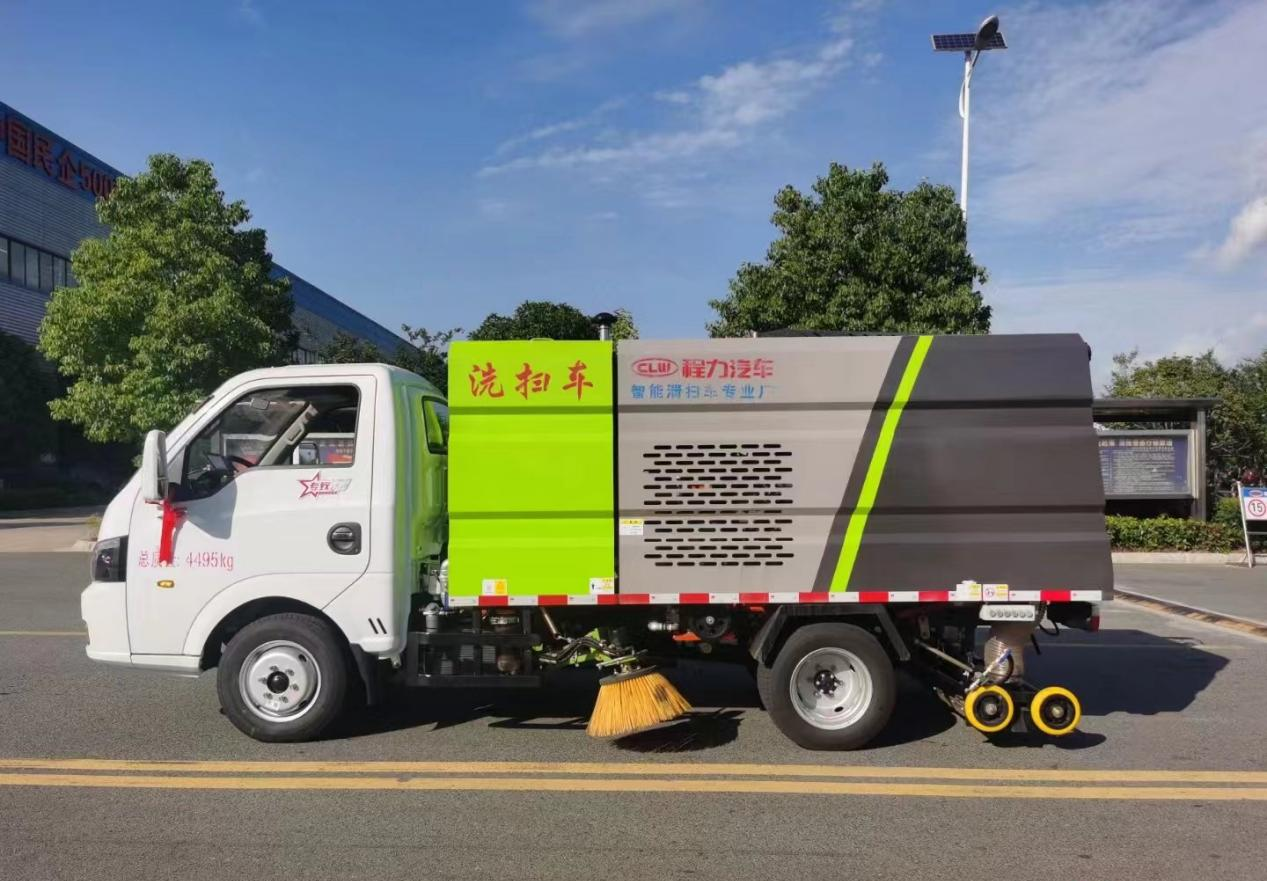

Product Name | Street Sweeper and Washer | Product Model | CL5040TXS6QZ |
Total Mass (Kg) | 4495 | Tank Volume (m³) | - |
Rated Loading Mass (Kg) | 915 | Overall Dimensions (mm) | 5620×1750×2300 |
Curb Weight (Kg) | 3450 | Cargo Box Dimensions (mm) | ×× |
Cab Seating Capacity (Person) | 2 | Maximum Fifth Wheel Load (Kg) | - |
Approach Angle/Departure Angle (°) | 21/14 | Front Overhang/Rear Overhang (mm) | 1190/1630 |
Axle Load (Kg) | 1650/2845 | Maximum Speed (Km/h) | 80, 110 |
Chassis Technical Parameters | |||
Chassis Model | EQ1045SJ16DC | Chassis Name | Truck Chassis |
Trademark Name | Dongfeng Brand | Manufacturer | Dongfeng Motor Co., Ltd. |
Number of Axles | 2 | Number of Tires | 6 |
Wheelbase (mm) | 2800, 3000, 3200, 3400 |
|
|
Tire Specification | 185R15LT 8PR, 6.00R15 10PR, 6.00R15LT 10PR |
|
|
Number of Leaf Springs | 3/5 | Front Track (mm) | 1369, 1387 |
Fuel Type | Diesel | Rear Track (mm) | 1242, 1342 |
Emission Standard | GB17691-2018 National VI | GB17691-2018 National VI | GB17691-2018 National VI |
Main Vehicle Configuration | |
Chassis Configuration | The total vehicle length is less than 6 meters, width 1.7 meters, height 2.3 meters. Meanwhile, it has a light curb weight and small turning radius, capable of traveling on internal curved and narrow roads. It can operate in most areas accessible to passenger cars. The vehicle can also be registered with a blue plate, and drivers with a C license can operate it. |
Upper Mount Configuration | Adopts Yunnan Internal Combustion Engine 57-horsepower auxiliary engine, 5.0 high-pressure centrifugal fan, 50L high-pressure pump, Xiamen Nanchao automatic clutch, 1.5 m³ clean water tank, 1.8 m³ stainless steel garbage bin. Mid-mounted left and right vertical sweeping brushes, rear-mounted suction cup, and high-pressure gun rotating swing arm installed on the top of the box. Both the garbage bin and water tank of the entire vehicle are welded with stainless steel plates. The clean water tank has a volume of 1.5 m³, and the garbage bin has a volume of 1.8 m³. The clean water tank is equipped with a low water level alarm system, and the garbage bin is equipped with a sewage tank overflow system. The maximum continuous operation time at full load after a single water filling can reach 35 to 45 minutes. |
We are a leading manufacturer of special trucks, tankers, trailers, and spare parts in China Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles
T/T 30-50% as deposit, and the rest before delivery. We'll show you the photos of the products and packages before you pay the balance
EXW, FOB, CFR, CIF, DAF, DDU
Generally, it will take 20 to 30 days after receiving your advance payment. The specific deliver time depends on the items and the quantity of your order
Yes. We have professional R&D team, we can produce the product exactly according to your requirements
We are direct sales from the factory, so the price is very competitive. Different products have different prices. The price also depends on your special needs. To know the exact price, please contact us
Yes, we have 100% test before delivery
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. lf you need, we will also supply original spare parts and you just need to pay the freight
