DONGFENG National III 4x4 spraying truck

  • DONGFENG
  • 4x4
  • 190HP
  • 8600X2500X3200
  • 10900
The National III Blue Head Water Sprinkler Truck is an efficient and environmentally friendly sanitation vehicle widely used for urban road cleaning, green space irrigation, and dust suppression. Equipped with a National III emission-compliant engine, it features low exhaust emissions, meeting environmental standards. The vehicle is fitted with a large-capacity water tank and a high-pressure water pump, enabling rapid and extensive water sprinkling operations that effectively suppress dust and improve air quality. Its adjustable water pressure and flow rate system allows it to adapt to various scenarios, such as road flushing and green belt irrigation. The blue head design not only enhances the vehicle's visibility but also improves operational safety.

construction water truck In the dynamic landscape of construction and urban maintenance, the DONGFENG spraying truck has become a familiar and essential sight. Among its diverse lineup, the DONGFENG 12m³ exit spraying truck stands out, especially in scenarios where efficient water distribution is crucial.

Main Configuration
DONGFENG National III 4x4 spraying truck
Drive Configuration4X4
Gross Vehicle Weight (kg)16000
Curb Weight (kg)6935
Rated Load Capacity (kg)8935
Engine PowerD4.0NS6B190
Wheelbase (mm)3950
Chassis Other Configurations153 Export Model 15 Cubic Meter Water Sprinkler Truck
153 half-row cab;
Front 5-ton axle, rear 10-ton axle;
10.00 nylon tires;
280mm double-layer frame;
Vehicle Dimensions (mm)8600X2500X3200

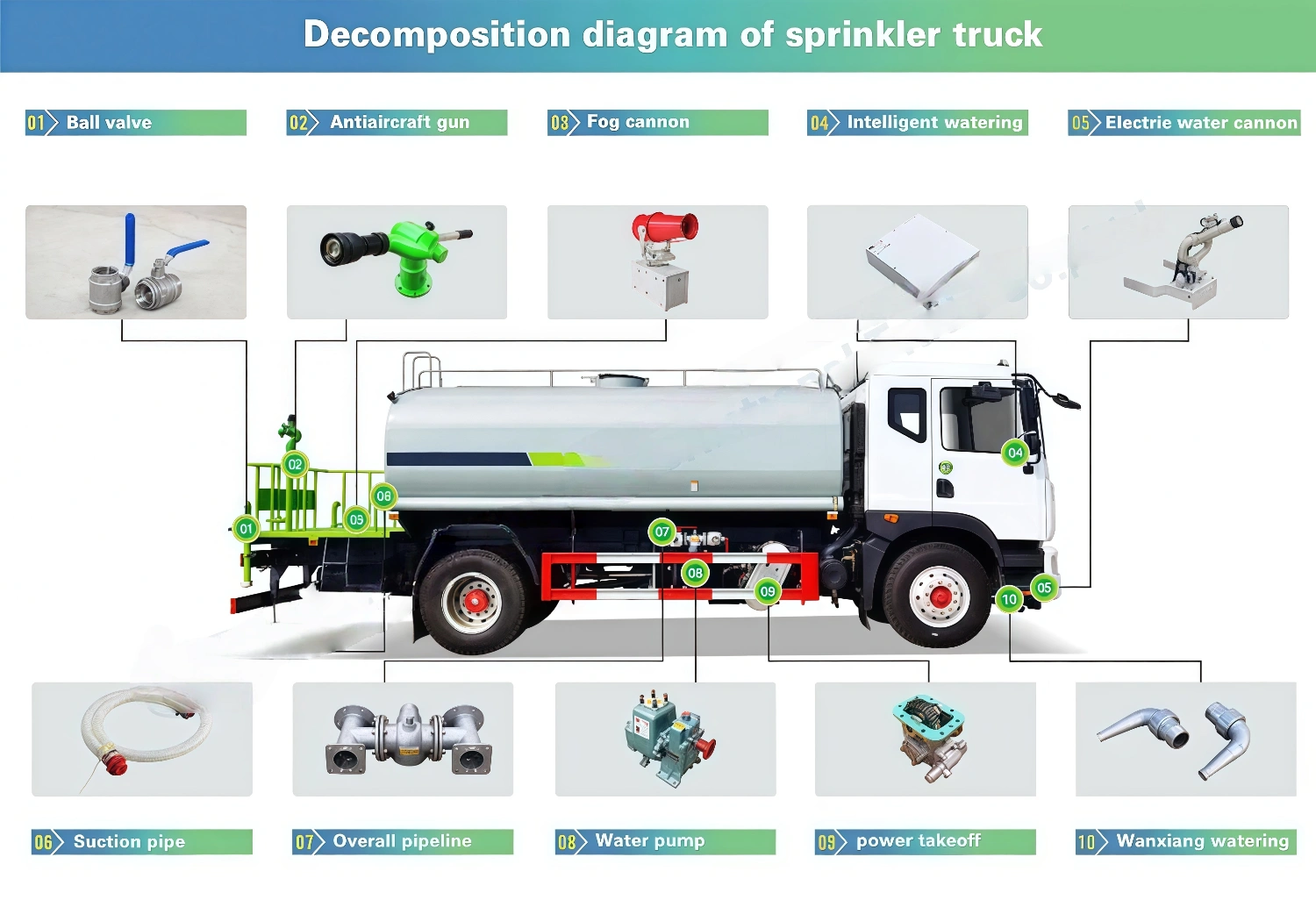

Superstructure Configuration and ParametersEffective Water Tank Volume (m³)12
Water Gun Range (m)25

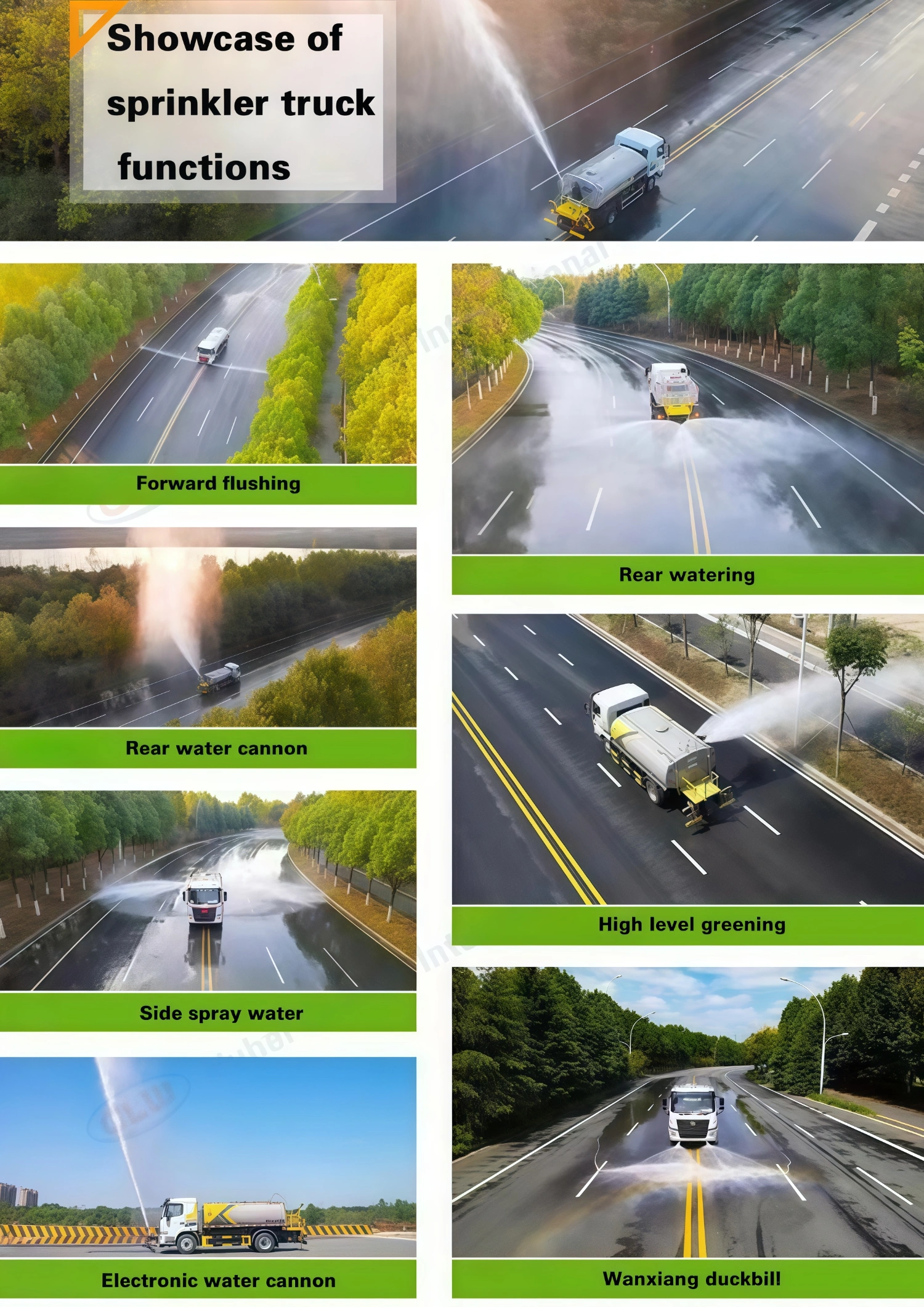

Flushing Width (m)≥30
Sprinkling Width (m)≥16
water tankerTank Material and Thickness4mm WISCO carbon steel plate
Head Material and ThicknessQ235B carbon steel, 5mm
Baffle Thickness / Number3mm / 2
Inspection ManholeQ235B carbon steel, 1
Water PumpModel60/90
Flow Rate60
Head (m)90
Self-Priming Height (m)9
Water SystemPipingGalvanized steel pipe, painted
Front FlushAluminum alloy, conical nozzle, 2
Side SprayAluminum alloy, shower nozzle, 2
Ball ValveAlloy steel, manual ball valve
Water InletChinese internal snap fire hydrant interface, aluminum alloy

DONGFENG exit spraying truck

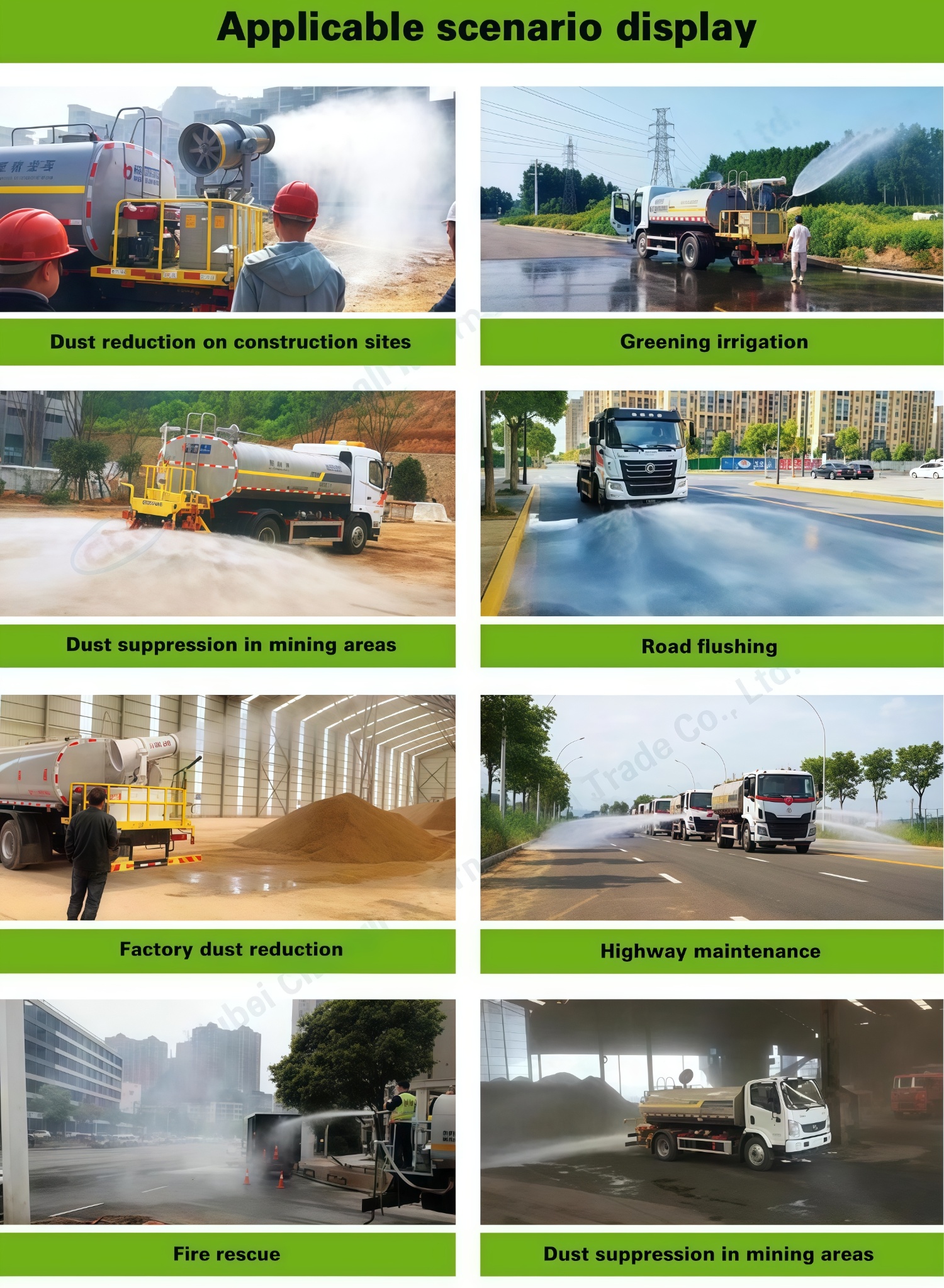

The DONGFENG 12m³ exit spraying truck is often deployed as a construction water truck at bustling building sites. These areas generate a significant amount of dust due to various activities like excavation, material handling, and concrete work. The 12 - cubic - meter capacity of this truck allows it to carry a substantial volume of water, enabling it to operate for extended periods without constant refills. By regularly spraying water around the construction zone, it effectively suppresses dust, creating a cleaner and safer environment for workers. Construction water trucks such as the DONGFENG 12m³ exit spraying truck play a vital role in maintaining air quality on - site, which is not only beneficial for the health of those working there but also helps in complying with environmental regulations.construction water truck

DONGFENG 12m³ exit spraying truck

In urban settings, the DONGFENG 12m³ exit spraying truck Street Sprinkler variant takes on a different yet equally important role. It is responsible for keeping city streets clean and dust - free. With its specialized spraying mechanisms, it can evenly distribute water across the road surface, washing away dirt, debris, and accumulated dust.construction water truck This not only enhances the aesthetic appeal of the streets but also contributes to better air quality in the urban environment. The street - sprinkling function of this truck is especially crucial in areas with high traffic or near sensitive environments like schools and hospitals.

DONGFENG 12m³ exit spraying truck Street Sprinkler

DONGFENG exit spraying truck

When considering the acquisition of such a vehicle, the water truck price is a key factor. The price of the DONGFENG spraying trucks, including the 12m³ models, can vary depending on several aspects. These include the specific features, additional accessories,construction water truck and the overall market demand. For instance, a DONGFENG 12m³ exit spraying truck equipped with advanced water - saving technologies or a more durable water tank might command a higher price. However, in the long run, investing in a high - quality truck like this can prove cost - effective due to its reliability and long - term performance. Dealerships and manufacturers often offer a range of options for potential buyers, allowing them to choose a truck that fits both their functional requirements and budget constraints.DONGFENG 12m³ exit spraying truck Street Sprinkler。

DONGFENG 12m³ exit spraying truck

DONGFENG 12m³ exit spraying truck Street Sprinkler In summary, whether it's the construction water truck version of the DONGFENG 12m³ exit spraying truck on a busy building site or the DONGFENG 12m³ exit spraying truck Street Sprinkler keeping our city streets clean, these vehicles are integral to various operations. And with the consideration of water truck price, businesses and municipalities can make informed decisions to ensure they get the most suitable DONGFENG spraying truck for their needs. The versatility and importance of the DONGFENG spraying trucks,construction water truck with their 12 - cubic - meter capacity and different applications, make them a staple in the industries that rely on efficient water - spraying solutions.

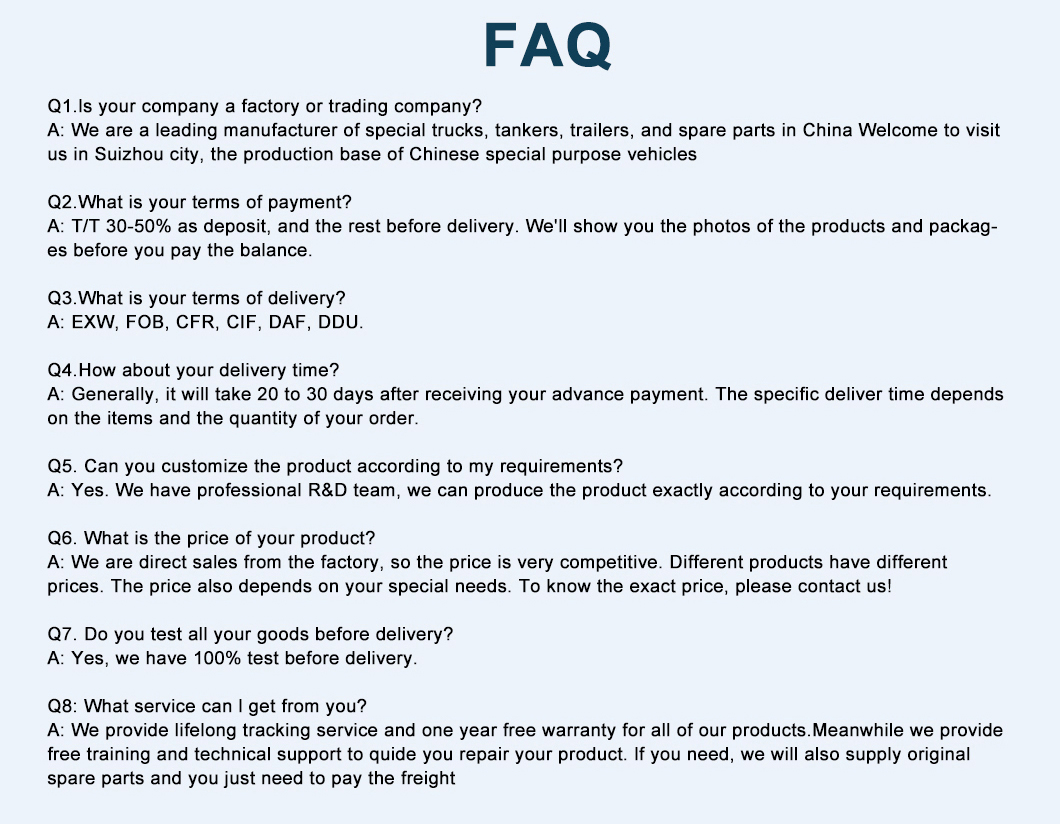

  • ls your company a factory or trading company?

    We are a leading manufacturer of special trucks, tankers, trailers, and spare parts in China Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles

  • What is your terms of payment?

    T/T 30-50% as deposit, and the rest before delivery. We'll show you the photos of the products and packages before you pay the balance

  • What is your terms of delivery?

    EXW, FOB, CFR, CIF, DAF, DDU

  • How about your delivery time?

    Generally, it will take 20 to 30 days after receiving your advance payment. The specific deliver time depends on the items and the quantity of your order

  • Can you customize the product according to my requirements?

    Yes. We have professional R&D team, we can produce the product exactly according to your requirements

  • What is the price of your product?

    We are direct sales from the factory, so the price is very competitive. Different products have different prices. The price also depends on your special needs. To know the exact price, please contact us

  • Do you test all your goods before delivery?

    Yes, we have 100% test before delivery

  • What service can l get from you?

    We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. lf you need, we will also supply original spare parts and you just need to pay the freight
