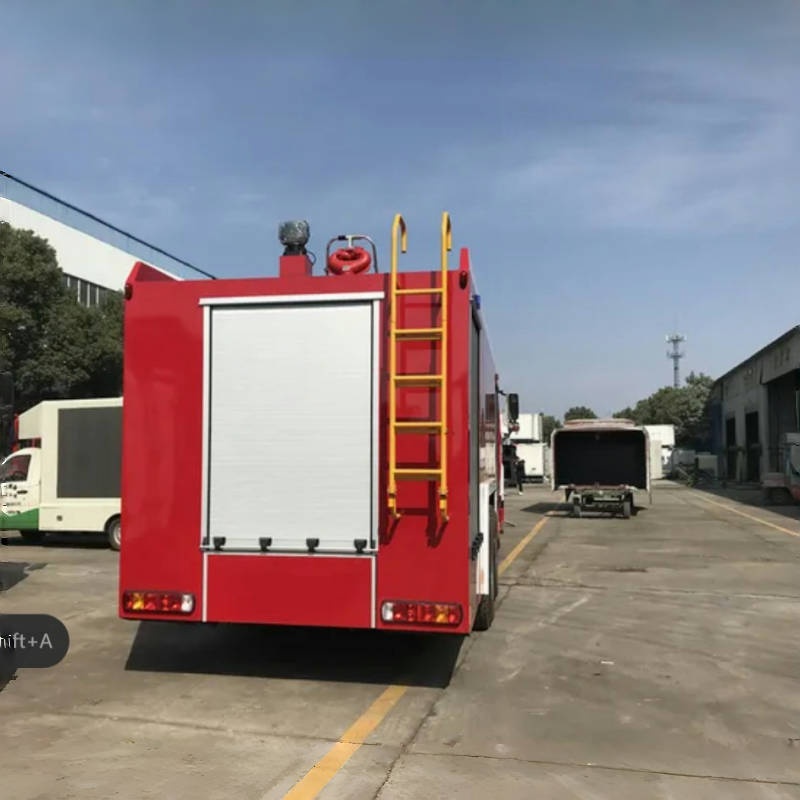

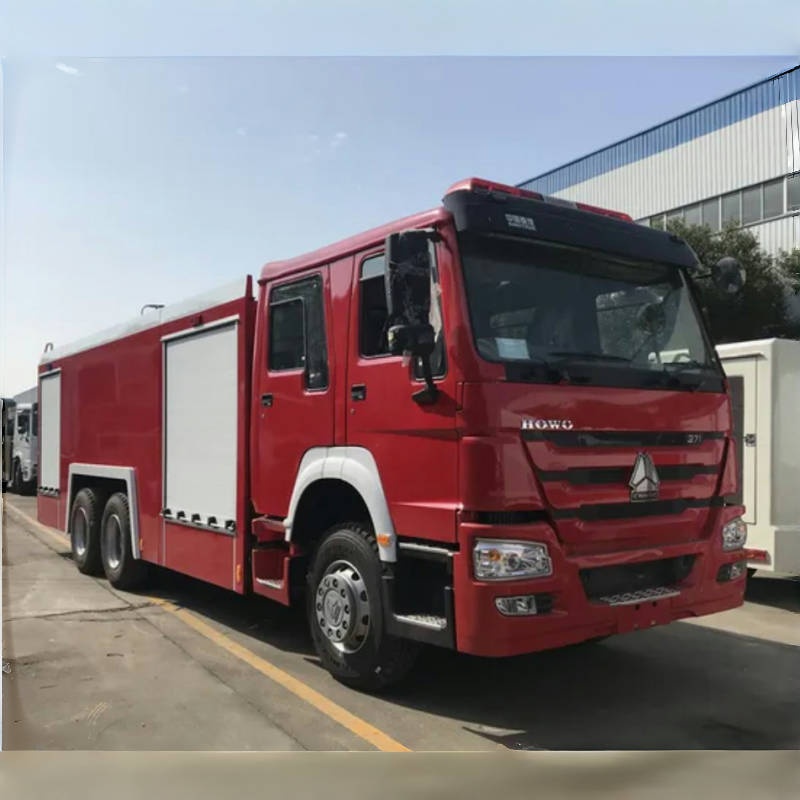

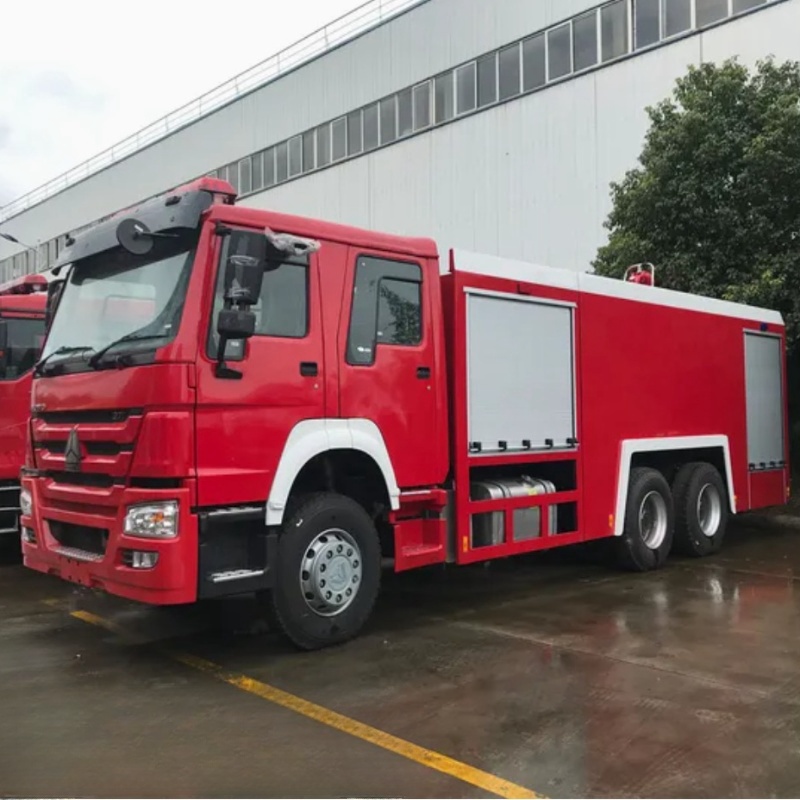

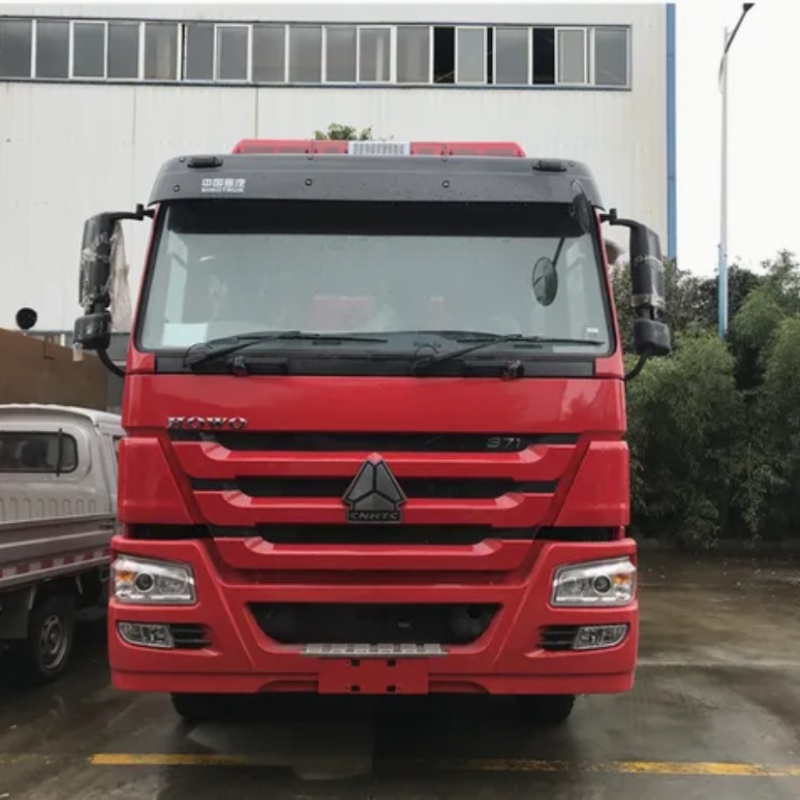

Sinotruk HOWO 6X4 2000L Foam Fire Fighting Truck

The HOWO V5-X 8cbm Foam Pumper Fire Fighting Truck is a specialized fire-fighting vehicle built on the Sinotruk HOWO V5-X chassis. It is designed to rapidly transport a fire crew, water, and foam concentrate to an emergency scene and then deliver high-pressure foam or water for fire suppression.

While specific "V5-X" details can vary by the final body builder (like Chengli Special Automobile Co., Ltd.), here is a general breakdown of its key features based on typical specifications for an 8 cubic meter (cbm) HOWO foam pumper:

Chassis Base: Sinotruk (China National Heavy Duty Truck Group) HOWO V5-X series.

Drive Type: Often configured as 4×2 or 4×4 (for better off-road capability, though a 4×2 is common for this tank size). The 4×4 configuration is explicitly mentioned in some product listings for V5-X/8cbm variants.

Engine: Typically a powerful, reliable diesel engine from Sinotruk or a major supplier like Weichai, meeting a modern emission standard (e.g., Euro V or Euro VI). Horsepower is usually in the range of 266 HP to 400 HP depending on the exact model.

Cabin: Features a double-row (or crew) cab designed to carry a full firefighting crew (e.g., 2+4 or 2+6 persons), often with dedicated brackets for Self-Contained Breathing Apparatus (SCBA) seats.

The "8cbm" refers to the total liquid capacity, which is split between water and foam concentrate.

Total Capacity: 8,000 Liters (8 cbm).

Water Tank Capacity: Typically around 6,000L to 7,000L (Carbon steel or stainless steel).

Foam Tank Capacity: Typically around 1,000L to 2,000L (Usually Stainless Steel 304).

Fire Pump: A powerful centrifugal fire pump (e.g., CB10/60 or similar models with a flow rate of 60 L/s or higher at 1.0 MPa pressure).

Foam Proportioning System: Includes a proportioning device (e.g., automatic or manual mixing system) to mix the foam concentrate with water at the correct ratio.

Fire Monitor (Cannon): Mounted on the roof, it allows for long-range discharge of water or foam (e.g., PS50/PS60 model).

Water Jet Range: Often ≥60 meters.

Foam Jet Range: Often ≥55 meters.

Pump Room: Located at the rear of the vehicle, housing the fire pump, control panel, and various inlet/outlet valves.

Equipment Compartments: Storage boxes (often with aluminum alloy rolling shutter doors) on the sides for fire hoses, tools, rescue equipment, and accessories.

Warning Systems: Equipped with an emergency siren, roof-mounted long LED flashing lightbar, and other warning lights.

Sinotruck howo Fire Fighting Truck (also called 17.4CBM Fire fighting trucks, sinotruck howo City fire rescue vehicle, 12 wheels Water-foam Fire truck, 8x4 Industrial fire fighting trucks, sinotruck howo fire trucks) is apply for fire brigade of large and medium city, petrochemical enterprises, airports and harbors and so on, to put our large area fire of oil and other substance.

We can supply water fire truck, foam fire truck, Foam and powder fire vehicle, Emergency fire truck, Fire pumper, Industrial fire vehicle, CAFS fire trucks and so on.

All our fire trucks with huge fire equipment and you can put fire-fighting immediately.

• Sinotruck howo chassis, perfect performance

• Sinotruck howo engine & gearbox, super powerful, no overhaul within 100,000 km.

• Water tank and Foam tank capacity can be optional.

• Easy operation and easy maintenance.

• Various types of fire equipment are available.

Based on common configurations for the SINOTRUK HOWO 8cbm Foam Pumper Fire Fighting Truck, here is a technical data summary. Please note that specifications can vary slightly between manufacturers and specific model variants (like "V5-X" if it refers to a particular chassis generation or cab style).
