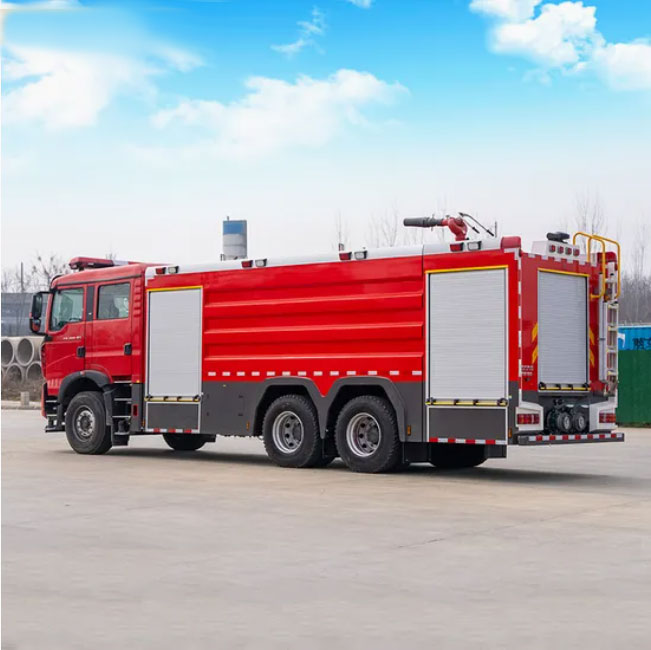

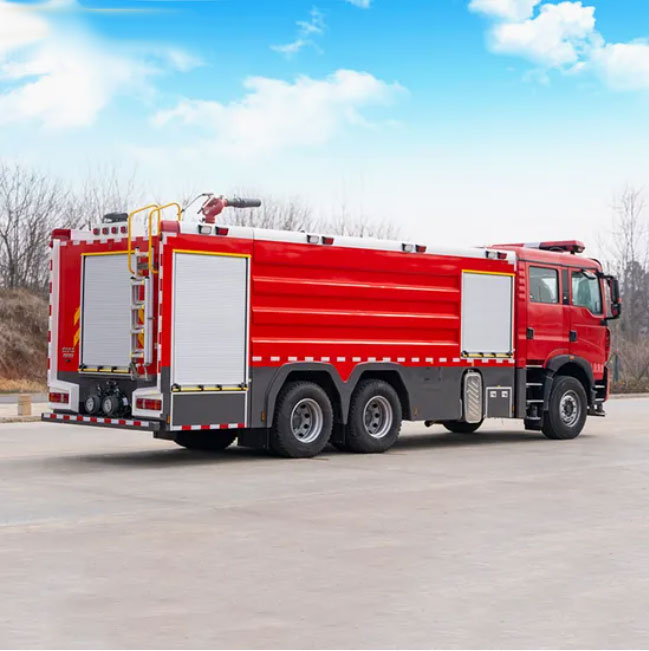

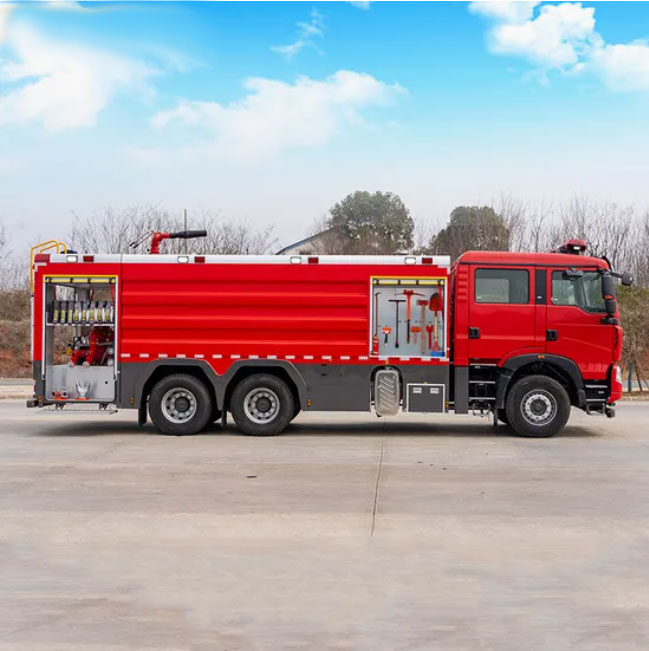

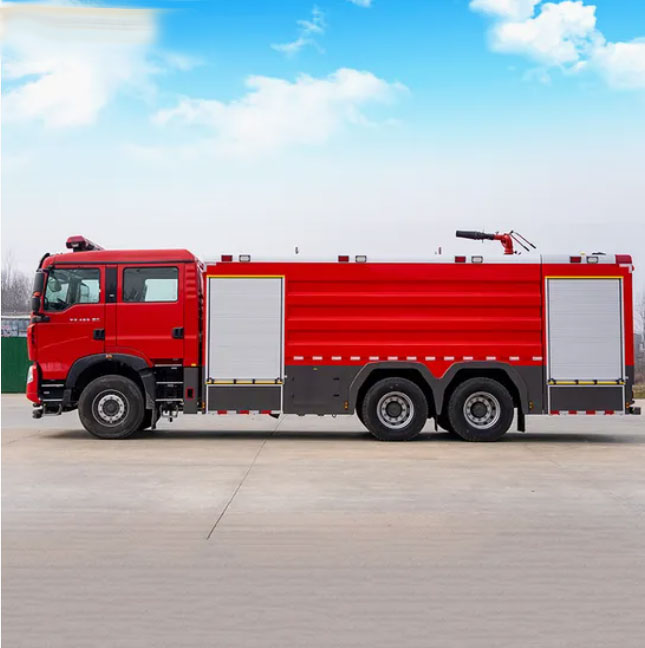

Sinotruk HOWO 6X4 18ton 20ton Foam Water Tank Fire Fighting Truck Fire Rescue Truck

BrandSinotruk HOWO
Driving mode6X4
HP＞450hp
SUD10100 x 2540 x 3660mm

The foam fire truck is hung with a special number plate. The dedicated part consists of a liquid tank, pump room, equipment box, power output and transmission system, pipeline system, electrical system, etc. This vehicle is suitable for urban public security fire brigades, petrochemicals, factories and mines, forests, ports, docks and other departments.

Basic Info.

Type

Rescue

Certification

ISO9000, CCC, TS16949, EPA, EEC, CE

Volume

＞10000L

Emission Standard

Euro 4

Transmission Type

Manual

Payload

20T

Fuel

Diesel

Drive Wheel

6×4

Horsepower

＞450hp

Condition

New

Wheelbase

4600mm+1400mm

Water Tank Volume

15cbm

Foam Tank Volume

3cbm

Fire Pump Mdel

CB10/80

Fire Monitor

Pl8/64

Fire Monitor Range

Water≥75m, Foam≥70m

Engine Brand

Man

Engine Horsepower

460HP

Emission Standards

Euro 2,3,4,5

Transport Package

Nude

Specification

10100 x 2540 x 3660mm

Trademark

KLF

Origin

China

Production Capacity

10000PCS/Year

Product Description

Sinotruk HOWO 6x4 18ton 20ton Foam Water Tank Fire Fighting Truck Fire Rescue Truck

Fire truck, also known as fire engine truck, fire fighter truck, fire ladder truck, fire pump truck,custom fire truck and water tank fire truck, are specialized vehicles manufactured by professional Chinese fire truck makers. The types of fire trucks sold include water tankers, foam fire trucks, and emergency rescue fire trucks.

Brands such as Dongfeng fire truck, HOWO fire truck, and JAC fire truck maintain the original capabilities of the chassis to the greatest extent, featuring advanced technology, reliable performance, and easy operation. Fire trucks are the perfect equipment for special fire brigades.

The fire trucks we sell consist of a truck chassis, water tank, fire pump, fire monitor, piping system, sandwich power take-off device,fire apparatus, storage box, electrical system, etc. We offer both small and heavy-duty fire trucks.

KLF type Custom HOWO 18Ton 6X4 Foam Fire Rescue Engine Truck is modified from the chassis of heavy truck ZZ5357TXFV464MF5. The vehicle is composed of two parts of the firefighter crew room and the body, the crew room is a double row, can take 2+4 people, the front of the body for the equipment box, the middle for the water tank, the rear for the pump room.

Liquid carrying tank body is high quality carbon steel, equipped with low pressure fire pump, special fire cannon. The vehicle has compact structure, complete configuration and strong mobility, which can timely respond to the fire situation of enterprises, communities or key fire units, and can form a small combat effectiveness for the initial fire fighting and personnel evacuation. It can be widely used in fire rescue station, government full-time fire brigade, enterprise full-time fire brigade and so on.

---- Available in various sizes, robust enough for all road conditions.
---- Powerful engine; reliable performance with no major repairs needed within 100,000 kilometers.
---- Attractive appearance, with a well-designed structure.
---- High-quality fire pump.
---- Large in size, durable, and long-lasting in service life.

Vehicle Description
Overall dimensions	10100 x 2540 x 3660mm
GVW	33900kg
Curb weight	18000kg
Chassis brand	Sinotruk HOWO
Traction type	6X4

Tanker Description
Tanker capacity	Water tanker	15cbm, carbon steel
	Foam tanker	3cbm, carbon steel
Configuration	1 set manhole with quick lock and open device; 1 set overflow device; 1 set fluid level gauge; 1 set drain outlet with manual controlled.
Fire pump	Model	CB10/80
	Flow	80L/S
	Pressure	1.0Mpa
Fire monitor	Model	PL8/64
	Flow	64L/S
	Pressure	1.0Mpa
	Range	Water	≥75m
		Foam	≥70m
	Rotation angle	360°
Other configuration	Equipped with sandwich PTO, pipeline system; Equipped with equipment box and pump box; Equipped with flip pedals and electrical system. Other equipment.

Chassis Description
Chassis model	ZZ5357TXFV464MF5
Cab	Sleeper cab, front control style, low roof, new model mask, all-steel welded tilt type cab, mechanical cab flip, rear mechanical suspension, adjustable driver's seat, air conditioning system, electric windows, central lock.
Wheelbase	4600mm+1400mm
Tire specification	12.00R20
Tire quantity	10+1 units
Engine	Engine model	MAN 460hp
	Emission standard	Euro 2,3,4,5
	Horsepower	460hp
Brake system	Full air brake system, divided air circuit; parking spring brake acting on the rear axle; exhaust brake.

18ton Foam Water Tank Fire Fighting Truck 20ton Foam Water Tank Fire Fighting Truck
