Poultry day old chicks truck is also called baby chicks van truck, young chicks transported truck, poultry chicks truck, day old birds truck. There are several electronic ventilator fans on the top, and the left-right sides with several slidable windows to keep air ventilated for the poultry day old chicks truck. There is cooling reefer, adjusted the temperature freely, suitable for transporting farm poultry, etc. The baby chicks van truck is mainly for professional transporting day old chicks, day old ducks, baby goose, flowers, seedlings, etc. a good tools to improve efficiency and reduce transporting cost. The advantages of poultry chicks truck are rainproof, dustproof, theft-proof, environmental protection, high efficiency, ventilating, insulation, large loading capacity, etc.
The baby chick van truck manufactured by Chengli Special Automobile Co., Ltd. adopts high quality Fiberglass Reinforced Plastic (FRP) for exterior and interior layer, and the middle insulation layer with 80mm PU foam sheets.
And we can customized the poultry day old chick trucks, installed with cooling system, heating system, Ventilation system, windows and fans, etc. More information, please feel free to contact with Ms. Anita.

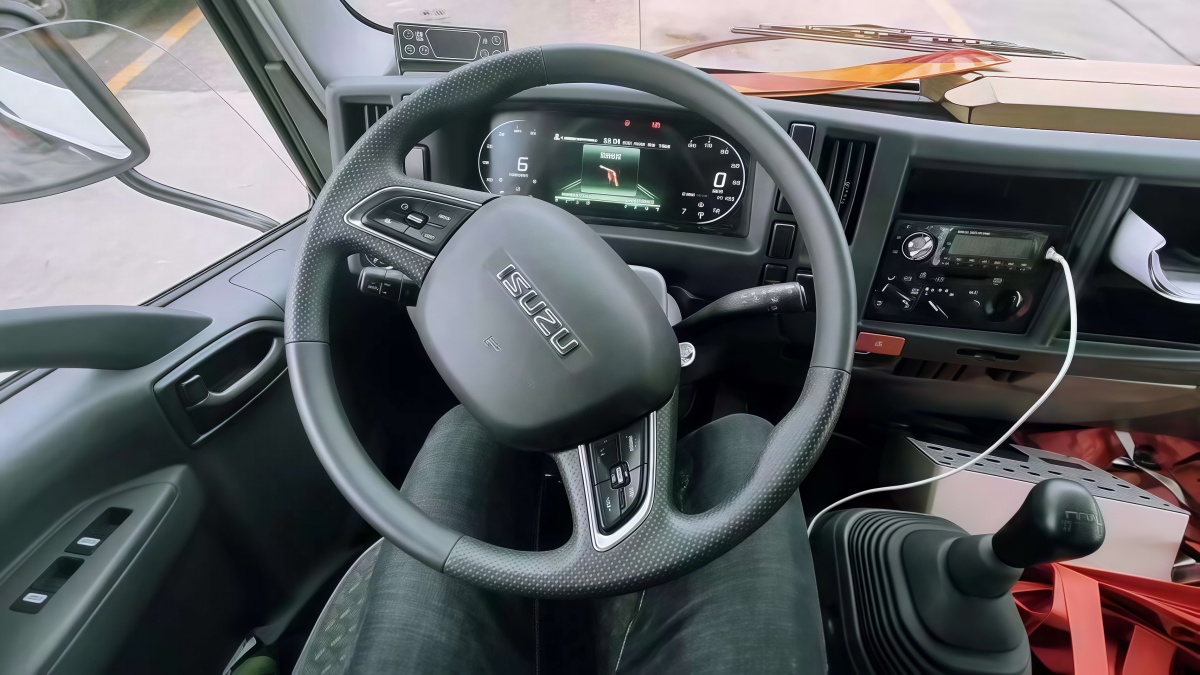

Customized ISUZU brand 190hp diesel poultry day old chicks truck, adopts ISUZU 700P 4*2 LHD single row driver cab, ISUZU MLD 6 speed manual gearbox, 4tons front axle/7tons rear axle, 35/75R17.5 rail tires, original air conditioner and power steering, air cut braking, etc.
The dimension(L*W*H) of ISUZU 700P 190hp Euro 5 diesel baby chicks van truck is 5200×2200×2100(mm), while the overall dimension(L*W*H) of ISUZU 700P poultry chicks truck is 7480*2380*3370(mm). Client choose to install USA CARRIER/THERMO KING refrigerated reefer unit (the lowest temperature is up to -15 degree.)
Details of ISUZU 700P poultry day old chicks truck is as below.

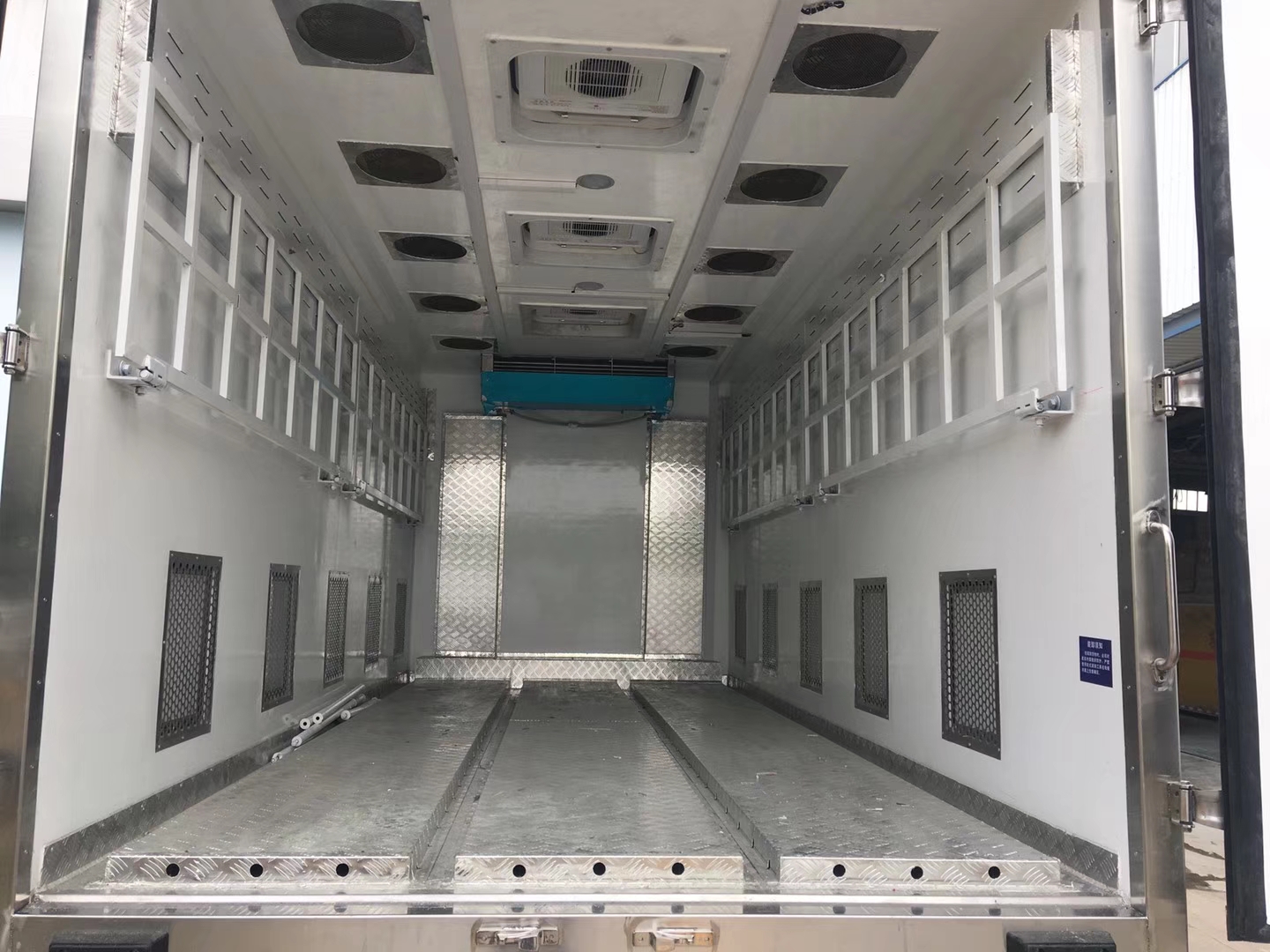

1, high quality FRP(Fiber Glass-Reinforced Plastics) for the interior and exterior layer of the insulation body van box; and the middle insulation material with 80mm thickness high-density PU Foam.
2, the door locks and door frame with stainless steel material; the covered edge with aluminum alloy material; the truck floor with anti-slip diamond aluminum plate.
3,5 sets of blind windows with sliding doors for the left and right van sides
4, each 2 sets of electronic ventilator fans for the front and rear plate; each 4 sets of electronic ventilator fans for the van top
5, Top mounted sky window* 4 sets
6, two line of air duct installed on the floor air flow
7, China made high quality USA CARRIER/THERMO KING vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -15 degree, adjusted at the driver cab)
8, two line of cold air ducts on both van body.
More pictures of ISUZU poultry chicks truck are as below.

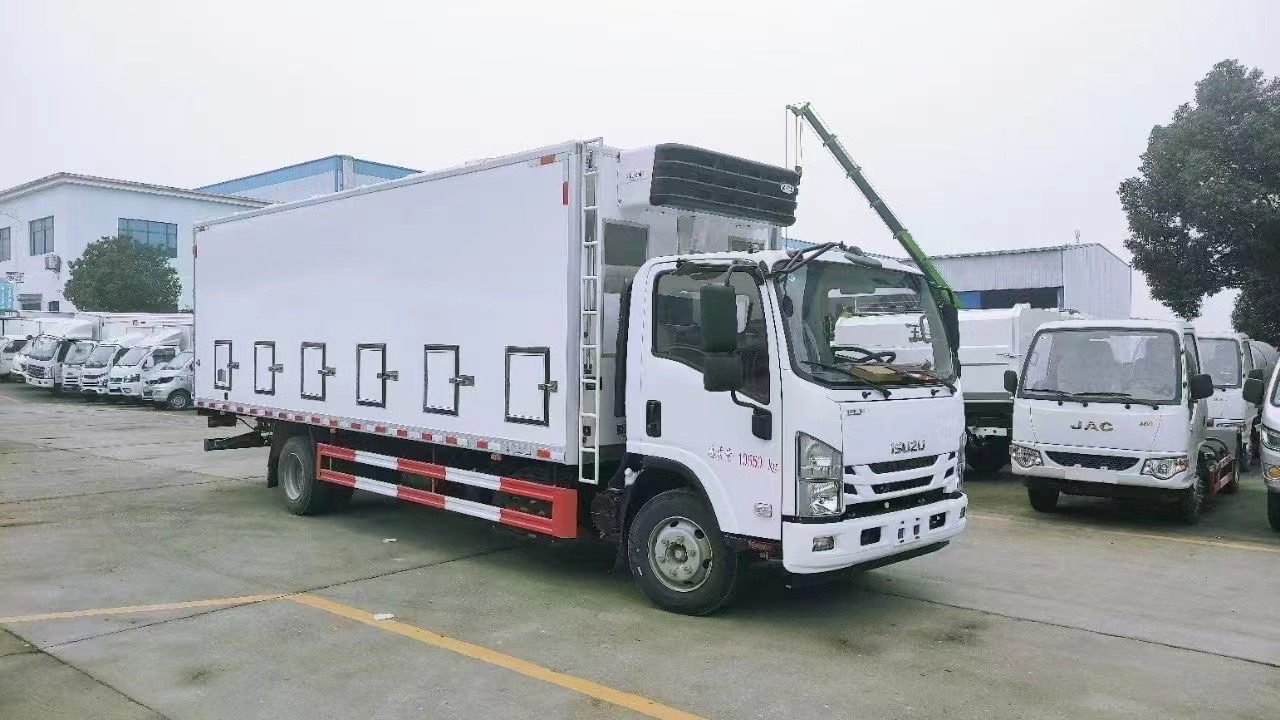

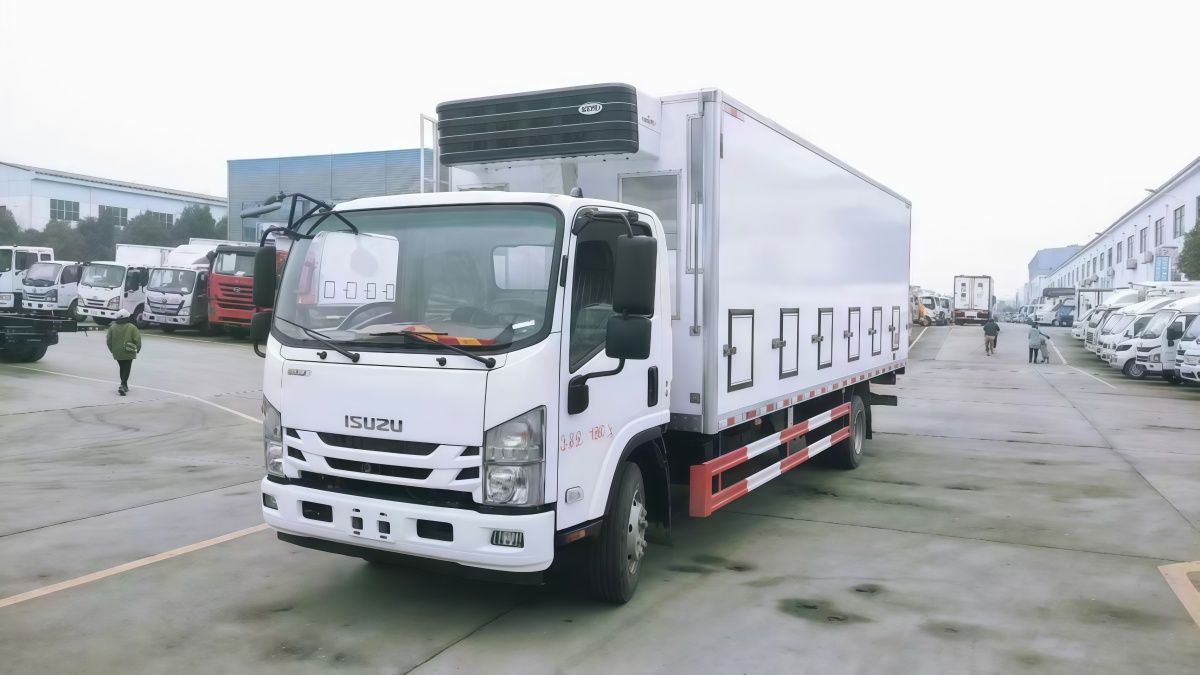

ISUZU poultry chicks truck for sale

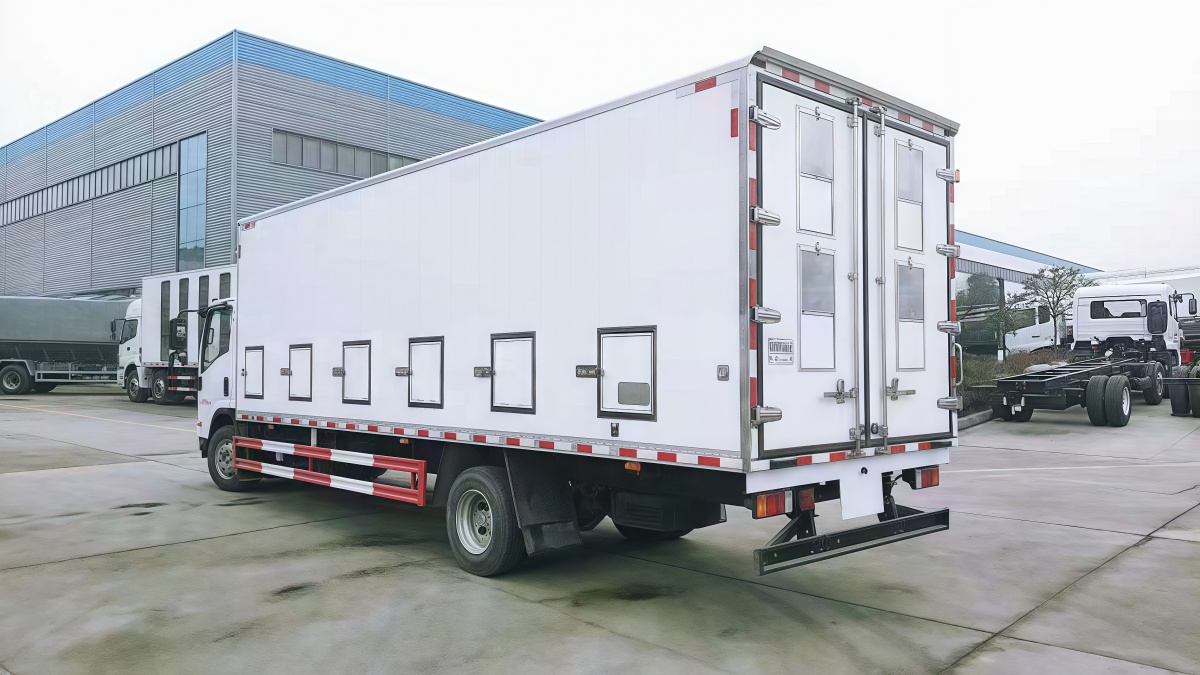

ISUZU day old birds truck

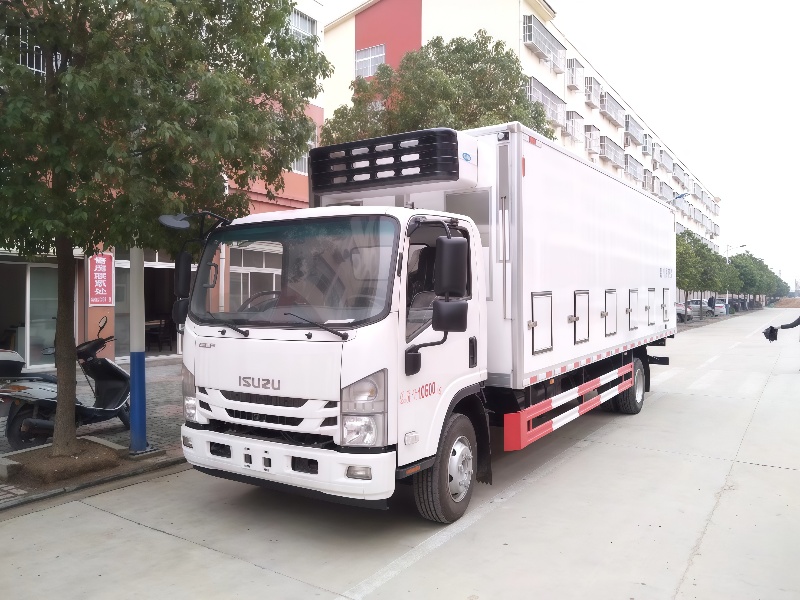

poultry chicks truck for sale

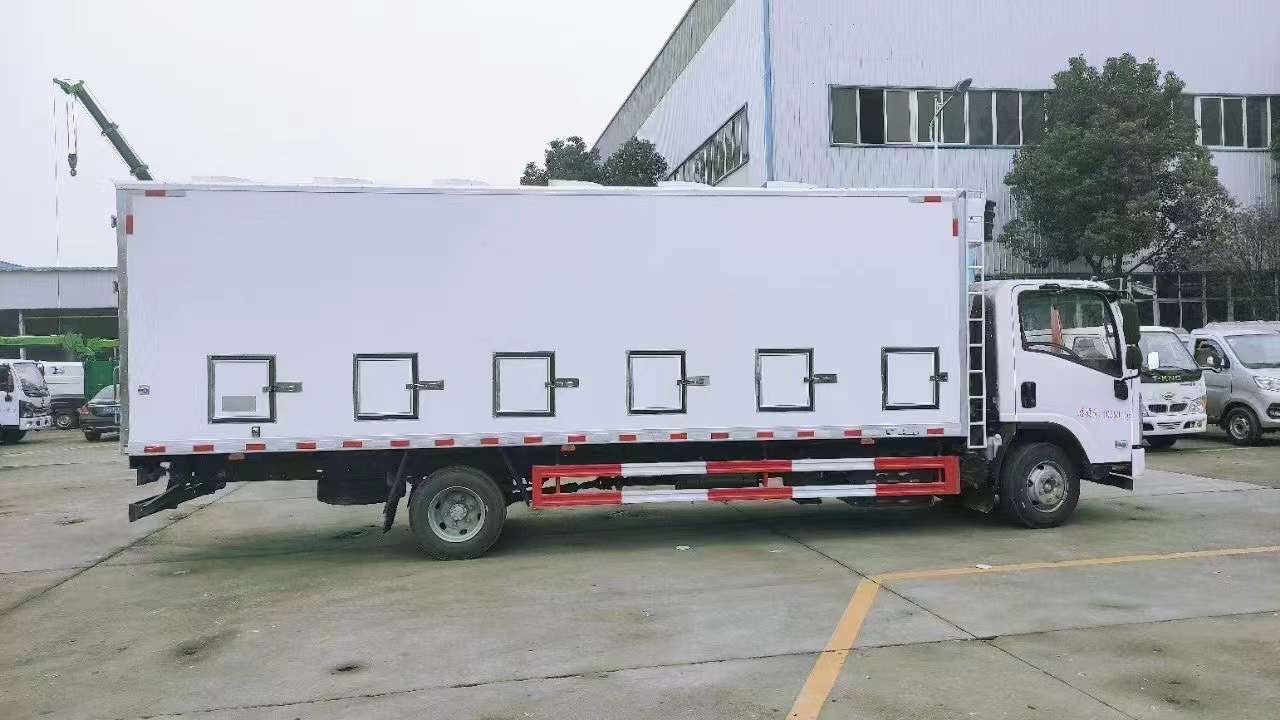

poultry chicks truck for sale

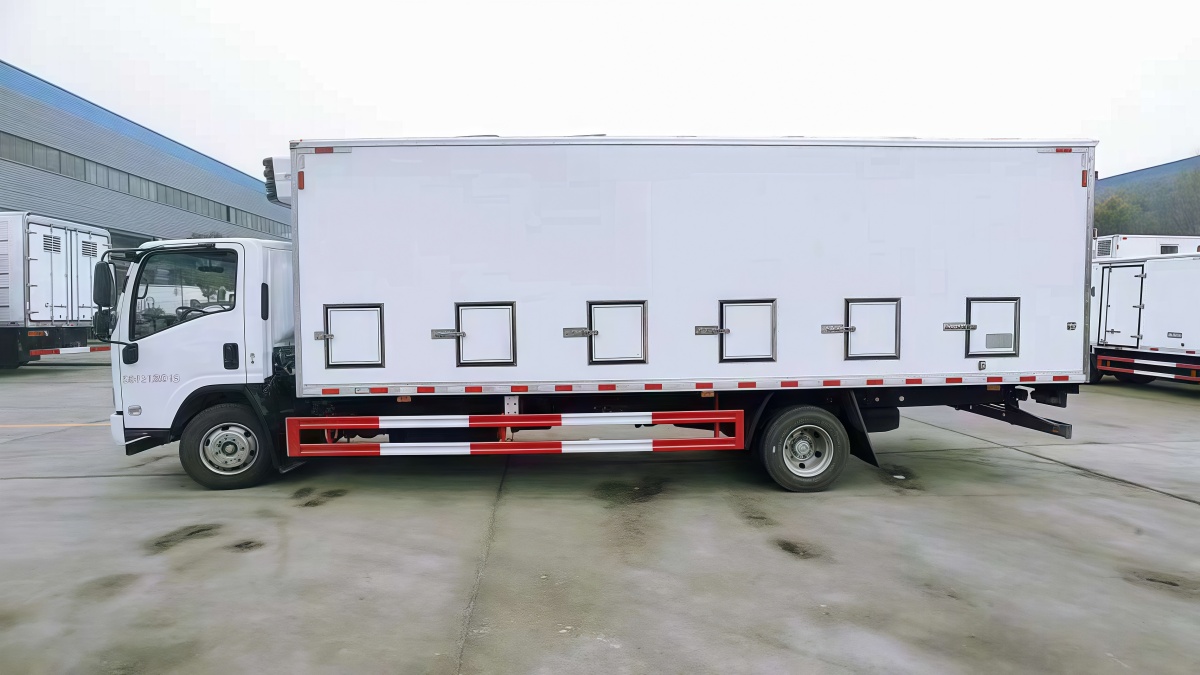

poultry chicks truck

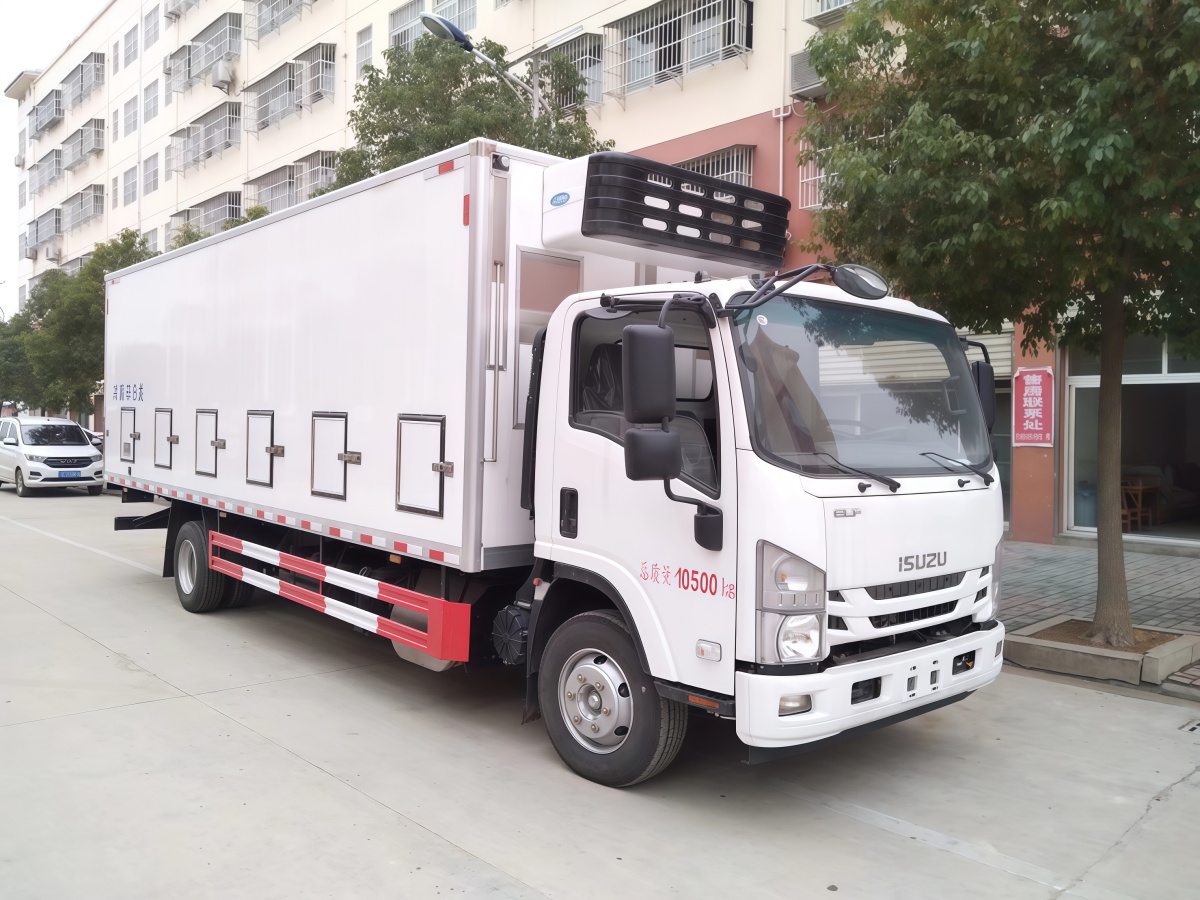

baby chicks van truck for sale
poultry day old chicks truck
Main technical parameters of ISUZU Brand 700P baby chicks van truck is as below.
| Overview | |
| Product name | Isuzu Brand 4*2 LHD poultry chicks truck (7tons) |
| Dimension(L*W*H)(mm) | 7480*2380*3370 |
| Total mass(kgs) | 10000 |
| Rated payload(kgs) | 4605 |
| Kerb weight(kgs) | 5200 |
| Driver cab seats | 3(driver included) |
| Approach/departure angle(°) | 17/13 |
| The parameters of chassis | |
| Truck chassis manufacturer | ISUZU |
| Driving type | 4*2 LHD(Left hand drive) |
| Wheelbase(mm) | 4175 |
| Gearbox | ISUZU MLD 6speed manual gearbox |
| Front/rear track(mm) | 1680/1650 |
| Tyre specification | 235/75R17.5 |
| Front/rear suspension(mm) | 1110/2195 |
| Leaf Spring number | 8/10+6 |
| Driver cab A/C | Equipped |
| The parameters of engine | |
| Engine manufactuer/model | ISUZU 4HK1-TC51 |
| Engine rated power | 141hp/96KW |
| Fuel type | Diesel/oil |
| Displacement/capacity(ml) | 5193 |
| Emission standard | Euro 5 |
| Cylinders | 4 cylinder in line, high-pressure common rail |
| Max .torque | 5100N.m |
| Velocity | 1600rpm |
| The parameters of van body | |
| Van box body dimension(L*W*H)(mm) | 5200×2200×2100 |
| Material | 2.2mm external fiberglass, internal 2mm stainless steel, sandwish 80mm XPS |
| Rubber sealing | Equipped |
| Van body skeleton rim | Aluminum |
| Doorframe and locks | Stainless steel material |
| Lighting | LED lights |
| Cooling system | CARRIER reefer unit(model: C-500) |
| Ventilations | Both van body sides total with 5 windows(4*2), ceiling 4 sky windows, ceiling ventilations fans 8 pcs(4*2), rear door ventilations 4pcs, upper sides ventilation vent, floor ventilation vents |
| Shelves | Two sides and tiltable |
The poultry day old chicks truck will be well packaged with a sturdy cardboard box to ensure safe transportation. The baby chicks van truck will also be wrapped in bubble wrap to further protect against bumps and jostles during transit. The box of the poultry chicks truck will be labeled with the product name and other pertinent information. The package will also include instructions for use.
The baby chicks van truck will be shipped via a reliable shipping method and carrier. All shipments will be tracked to ensure the package is delivered safely and on time.
