Main Configuration

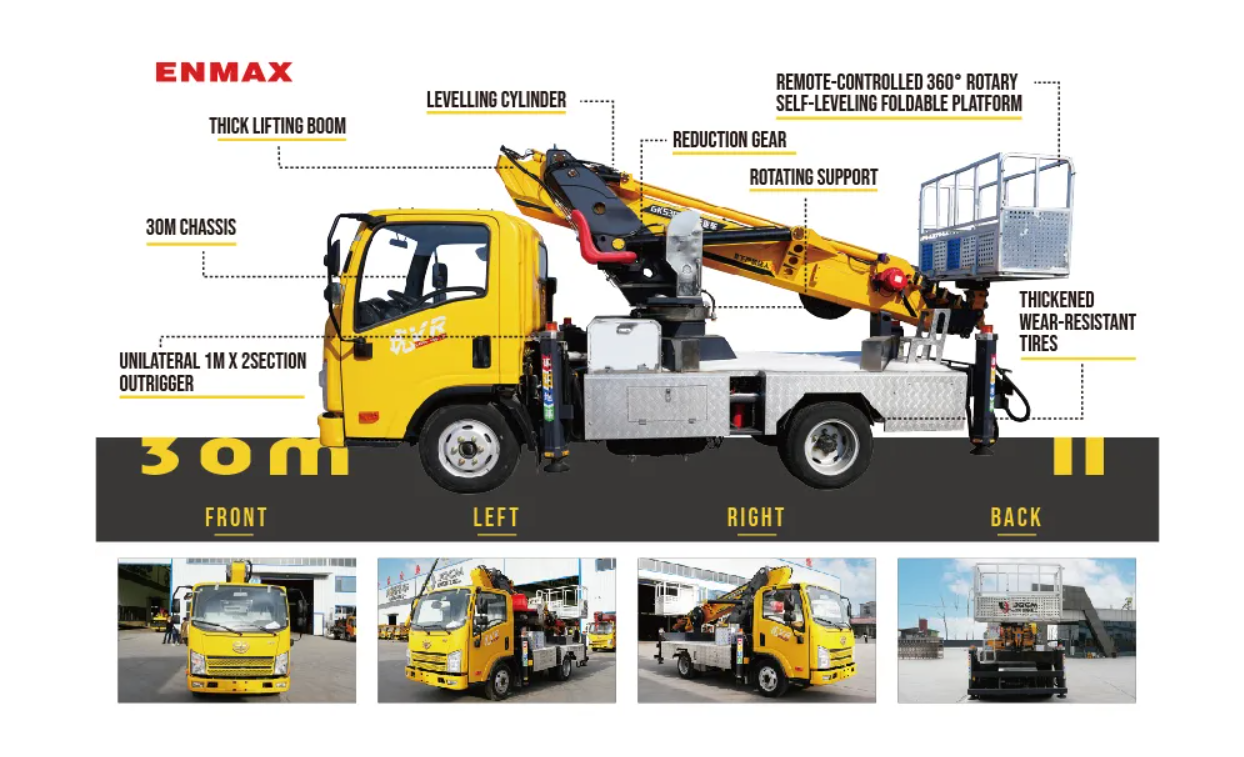

ISUZU 36m Aerial Platform Truck | ||
project | Data | |
Total length | 8280mm | |
Total width | 2300mm | |
Total height | 3500mm | |
Number of passengers (including driver) | 3 | |
Total mass | 9495kg | |
Rated load of working platform | 200kg | |
Maximum working height | 36m | |
Working range at maximum working height | 4m | |
Maximum working range | 25m | |
Working height at maximum working range | 19m | |
Outrigger span | Horizontal | 5900mm |
Vertical | 6200mm | |
Working platform rotation | 360° | |
Boom lengthening time | 70<t<90s | |
Boom extension time | 80<t<100s | |
Boom rotation speed | 130<t<150s/r | |
Outrigger retraction time | 60<t<70s | |
Front overhang | 1110mm | |
Rear overhang | 2475mm | |
Forward reach | / | |
Rear reach | / | |
Wheelbase | 3815mm | |
Maximum driving speed | 95km/h | |
Minimum ground clearance | 420mm | |
Approach angle | 20° | |
Departure angle | 10° | |
Chassis | Isuzu QL1110ANKAY Class II chassis | |
Engine | 4HK1-TCG61 190 HP engine, National VI emission standard | |
Gearbox | Isuzu MLD six-speed | |
Cab configuration | 700P chassis with Isuzu 3X-level wide-body cab, with air conditioning, power steering, central locking, electric glass, multi-function steering wheel, ABS, air brake, and flip-over cab | |
Fence and walkway | Stainless steel fence, aluminum alloy anti-skid walkway | |
Power take-off system | Pneumatic power take-off | |
Working platform | 1600 700 1000mm (basket size can be customized according to customer requirements) | |
Boom type | Seven-section octagonal synchronous telescopic arm | |
Slewing device | 360. Continuous rotation | |
Outrigger | Front V and rear V-shaped double-section outriggers, individually adjustable, synchronously retractable | |
Operation | Turntable fixed operation, wireless remote control box operation, disembarkation hydraulic handle operation, equipped with electric emergency pump, the whole vehicle can achieve full hydraulic electric emergency operation. | |
Control system | self-developed aerial vehicle control system, strong stability | |
Leveling system | Hydraulic automatic leveling | |
Chain force balance | The balance mechanism is set for the extension rope to ensure that the left and right wire ropes are balanced |

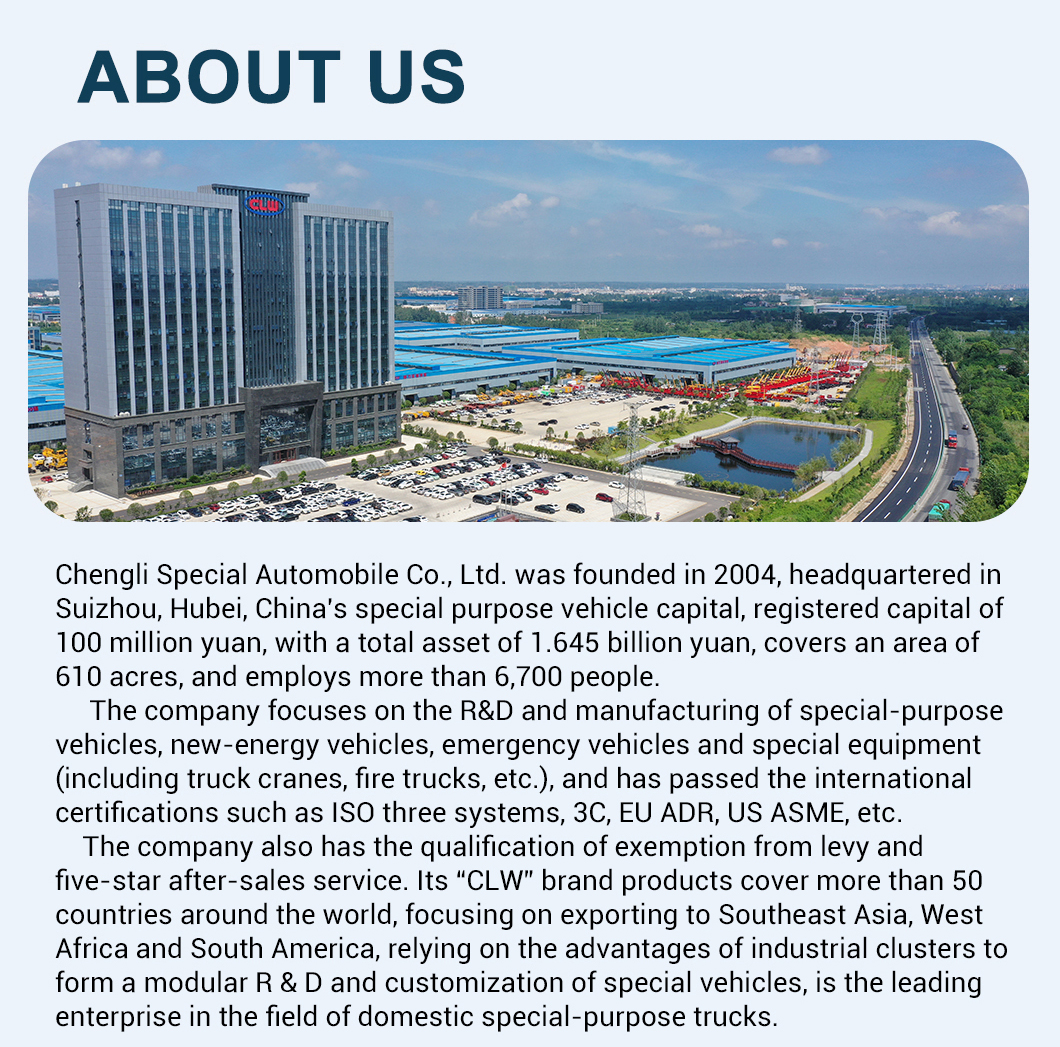

About Us
The aerial work platform truck for sale market offers diverse solutions for elevated work requirements, with each aerial work platform truck for sale designed to meet specific height and capacity needs.
Among specialized options, the telescopic boom lift truck stands out for its impressive reach, making the telescopic boom lift truck ideal for construction and maintenance tasks requiring vertical access. For budget-conscious buyers, used aerial platform trucks present a cost-effective alternative, though inspecting used aerial platform trucks thoroughly is essential to ensure safety and reliability. When evaluating investments, the high-altitude work truck price varies significantly based on specifications, so comparing the high-altitude work truck price across models helps secure the best value. For urban projects and frequent use, a commercial aerial lift truck delivers optimal performance, as the commercial aerial lift truck combines durability with features suited for daily operations.
The versatility of an aerial work platform truck for sale makes it indispensable across industries, from telecom maintenance to warehouse inventory management. The extendable arm of a telescopic boom lift truck provides unmatched flexibility, allowing the telescopic boom lift truck to access difficult-to-reach areas with precision. Well-maintained used aerial platform trucks can offer substantial savings, but buyers should verify service records for any used aerial platform trucks before purchasing. The high-altitude work truck price reflects advanced safety systems and load capacities, meaning the high-altitude work truck price often correlates with long-term productivity gains. Designed for rigorous use, the commercial aerial lift truck typically includes features like non-marking tires and quiet operation, making the commercial aerial lift truck suitable for both indoor and outdoor applications.
When selecting an aerial work platform truck for sale, consider factors like maximum working height and platform capacity to match project requirements. The robust construction of a telescopic boom lift truck ensures stability at full extension, which is why the telescopic boom lift truck remains popular for bridge inspections and façade work. The market for used aerial platform trucks includes both dealer-refurbished units and private sales, with certified used aerial platform trucks often coming with limited warranties. While the initial high-altitude work truck price may seem steep, financing options can make the high-altitude work truck price more manageable for growing businesses. Many cities mandate specific safety standards for a commercial aerial lift truck, ensuring that the commercial aerial lift truck meets regulations for public works and construction zones.
Technological advancements have enhanced the aerial work platform truck for sale sector, with modern models featuring intuitive controls and energy-efficient systems. The precision engineering of a telescopic boom lift truck allows operators to position the telescopic boom lift truck accurately, even in confined spaces. Buyers exploring used aerial platform trucks should prioritize units with low hours and documented maintenance, as neglected used aerial platform trucks may require costly repairs. The high-altitude work truck price for electric models is generally higher, but the high-altitude work truck price difference may be offset by lower operating costs over time. For rental companies and contractors, investing in a reliable commercial aerial lift truck ensures consistent performance, as the commercial aerial lift truck can withstand frequent use across multiple job sites.
From film production sets to industrial plant maintenance, the aerial work platform truck for sale serves countless applications, proving its adaptability. The impressive reach of a telescopic boom lift truck enables workers to safely perform tasks at extreme heights, where the telescopic boom lift truck outperforms traditional scaffolding. While used aerial platform trucks may show some wear, many used aerial platform trucks retain years of productive service life with proper care. Understanding the high-altitude work truck price structure—including potential tax benefits for equipment purchases—helps businesses budget effectively. Finally, the commercial aerial lift truck represents a smart long-term investment, as the commercial aerial lift truck enhances efficiency while reducing labor costs for elevated tasks.

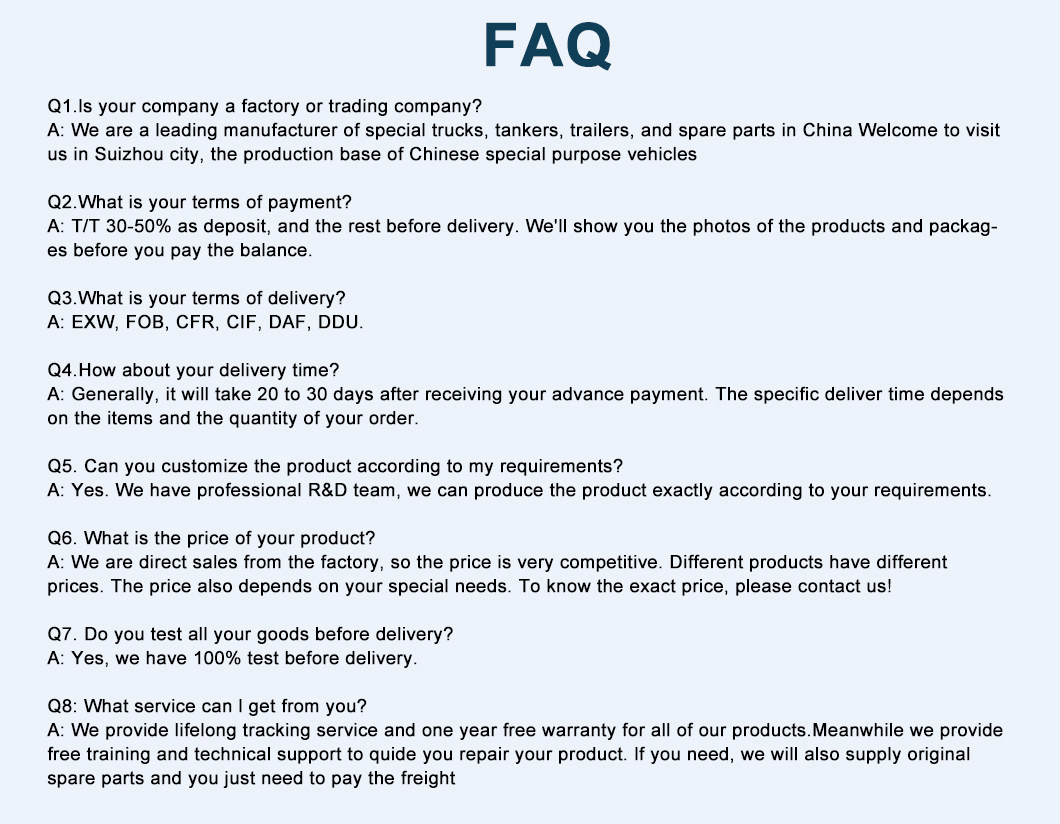

We are a leading manufacturer of special trucks, tankers, trailers, and spare parts in China Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles
T/T 30-50% as deposit, and the rest before delivery. We'll show you the photos of the products and packages before you pay the balance
EXW, FOB, CFR, CIF, DAF, DDU
Generally, it will take 20 to 30 days after receiving your advance payment. The specific deliver time depends on the items and the quantity of your order
Yes. We have professional R&D team, we can produce the product exactly according to your requirements
We are direct sales from the factory, so the price is very competitive. Different products have different prices. The price also depends on your special needs. To know the exact price, please contact us
Yes, we have 100% test before delivery
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. lf you need, we will also supply original spare parts and you just need to pay the freight
