SINOTRUK HOWO 4*2 RHD reefer truck for sale
YC4E160-33 YUCHAI 160hp diesel engine
Overall dimension of HOWO REEFER TRUCK(L*W*H):8445×2550×3720 (mm)(mm)
Refrigerated van dimension of howo Refrigerated trucks (L*W*H): 6100×2200×2300mm Curb mass: 5300kgs
The loading capacity is about 10000kgs.
Refrigerator truck 10tons van body:
Exterior and interior with FRP(Fiber Reinforced Plastic), and the middle with PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. Baseboard adopts anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. double rear door opened. Choose high quality China-made frozen refrigerating reefer , the lowest temperature is up to -18℃ . And the reefer can be adjusted at the driver cab.
A reefer truck, short for refrigerated truck, ice cream truck howo refrigerated trucks, is a specialized vehicles designed to transport temperature-sensitive goods. These trucks are equipped with refrigeration units to maintain specific temperature ranges, ensuring that perishable items like food, beverages, and pharmaceuticals are transported safely and maintain their quality.
main technical parameters of Refrigerator truck 10tons
General | Truck Name | New howo refrigerated trucks |
Drive Type | 4*2 RHD | |
Real loading capacity (kg) | 12,000 | |
Seating person | 3 | |
GVW (kg) | 15795 | |
Curb Weight (kg) | 5760 | |
Overall Dimensions (L*W*H) (mm) | 8445×2550×3720 (mm) | |
Insulation van dimension(L*W*H)(mm) | 5800×2200×2300 | |
Cold room volume | 29CBM | |
Driver cab | SINO TRUK HOWO L3W 2080mm width one row a half driver cab | |
Engine | Engine Model | YC4E160-33 |
Engine Brand | YUCHAI | |
Fuel Type | Diesel | |
Max output (hp/rpm) | 160hp/118KW | |
Emission Standard | Euro Ⅲ | |
Capacity (cc) | 4257 | |
Engine type | 4 cylinders in line, inter-cooling diesel engine | |
Chassis | Chassis Brand | SINO TRUK HOWO |
Tire Specification | 10.00R20 | |
Wheelbase (mm) | 4700 | |
Axle No. | 2 | |
Front/Rear axle | 3.6ton front driving axle/8ton rear driving axle | |
Steering Wheel | Right Hand Drive | |
Gear Box | 6 speed gearbox, manual (7 speed lever with six speed forward and one reverse, manual) | |
Brake | Air brake | |
Air-conditioner | No, it is selective | |
Power steering | Yes | |
Box Side | Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer. | |
Box Floor | Baseboard adopts aluminum alloy anti-skipping diamond board | |
Doors | double rear doors | |
Reefer | Dependent reefer | Famous USA CARRIER/THERMO KING vehicle-powered refrigerated reefer, the lowest temperature up to -10℃. |

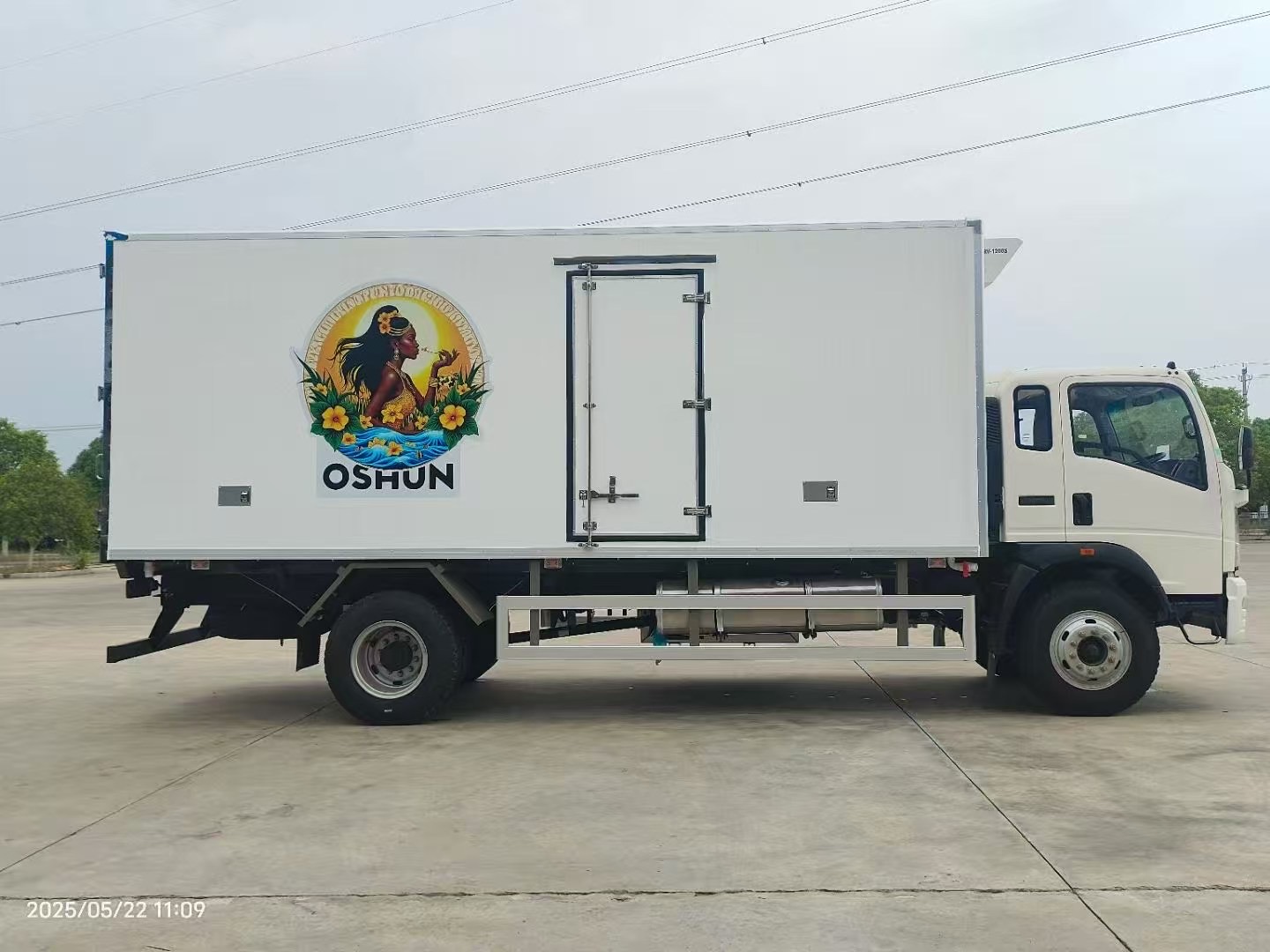

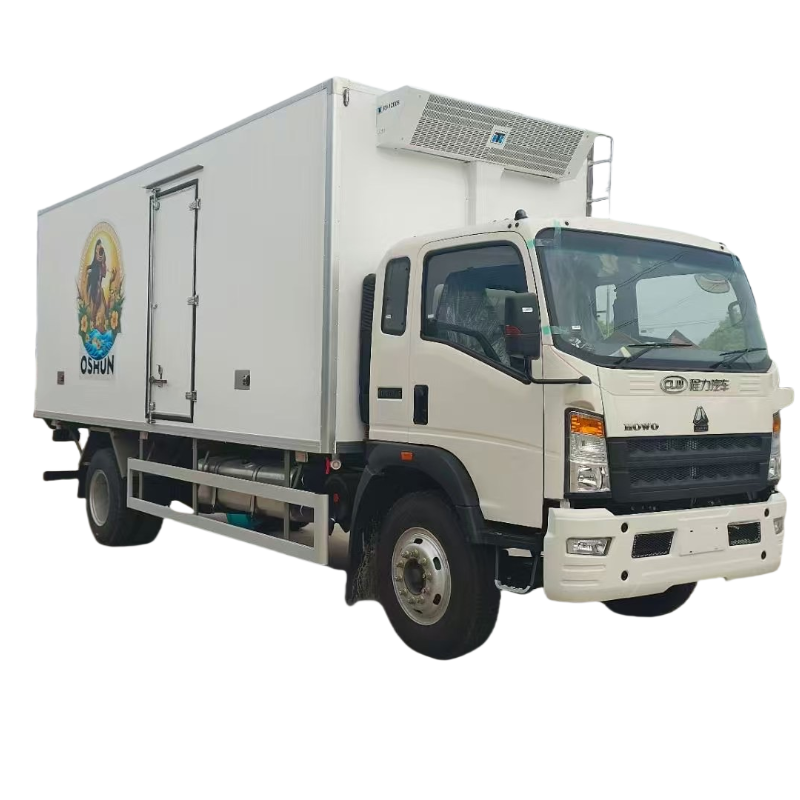

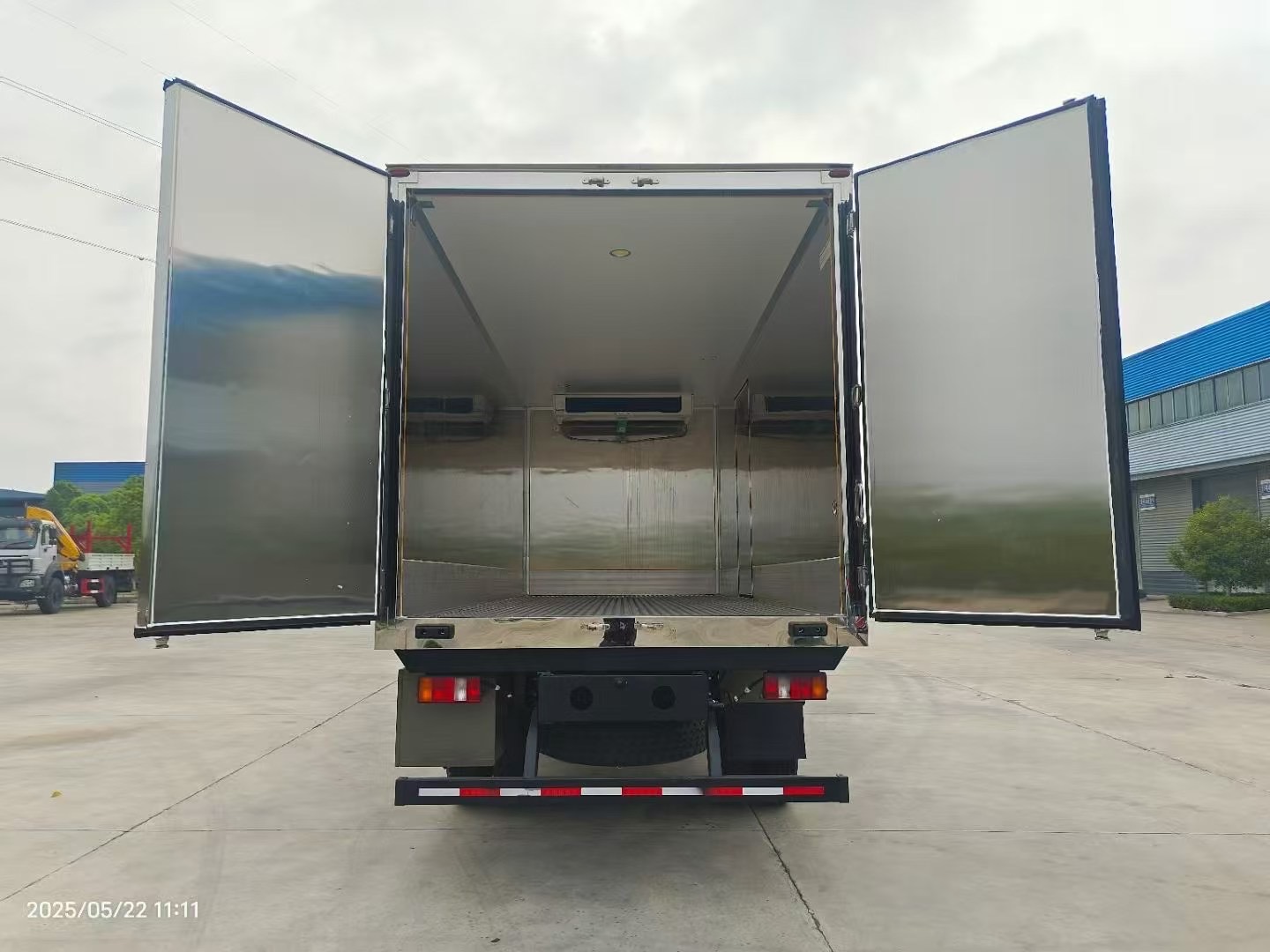

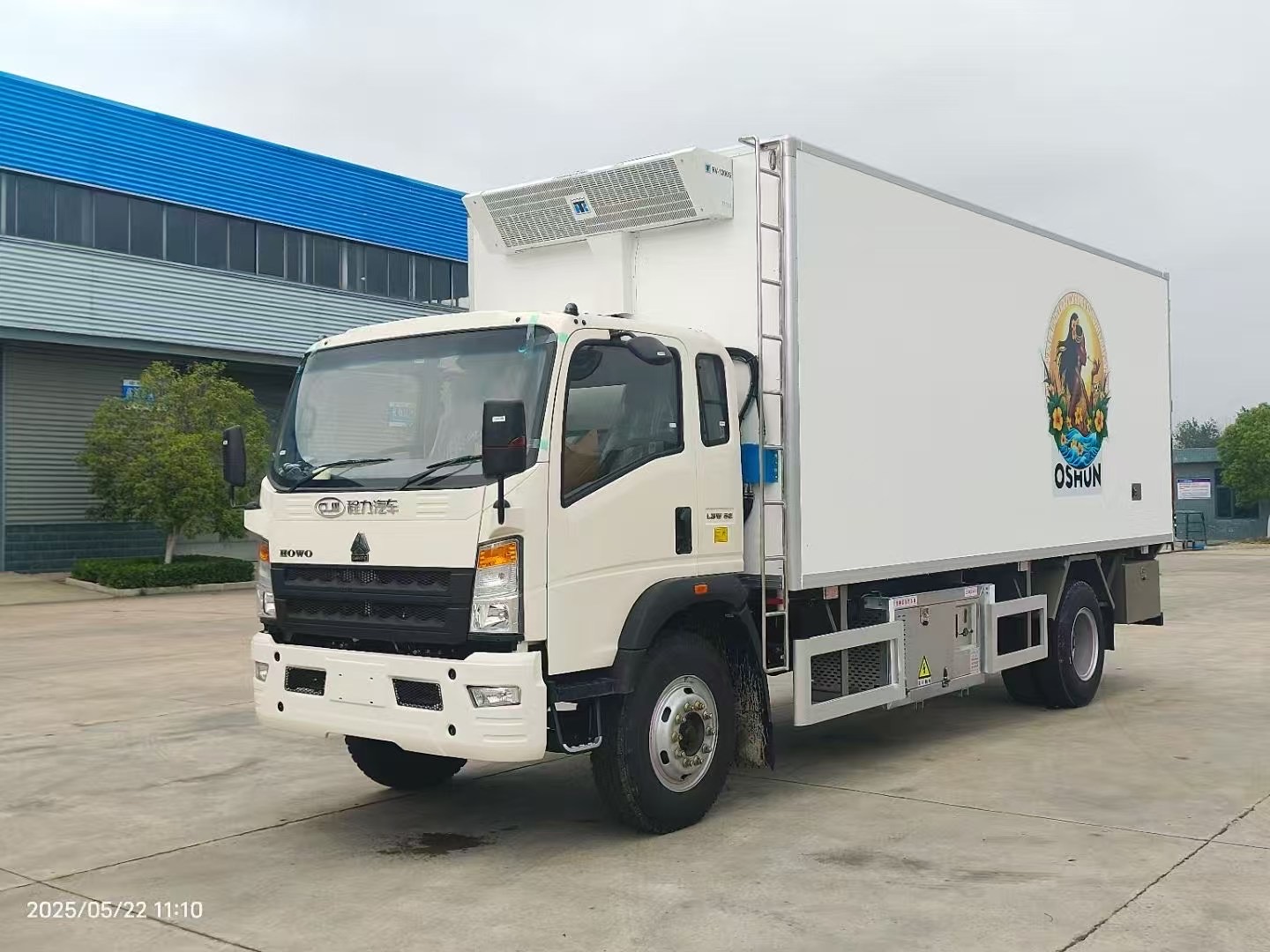

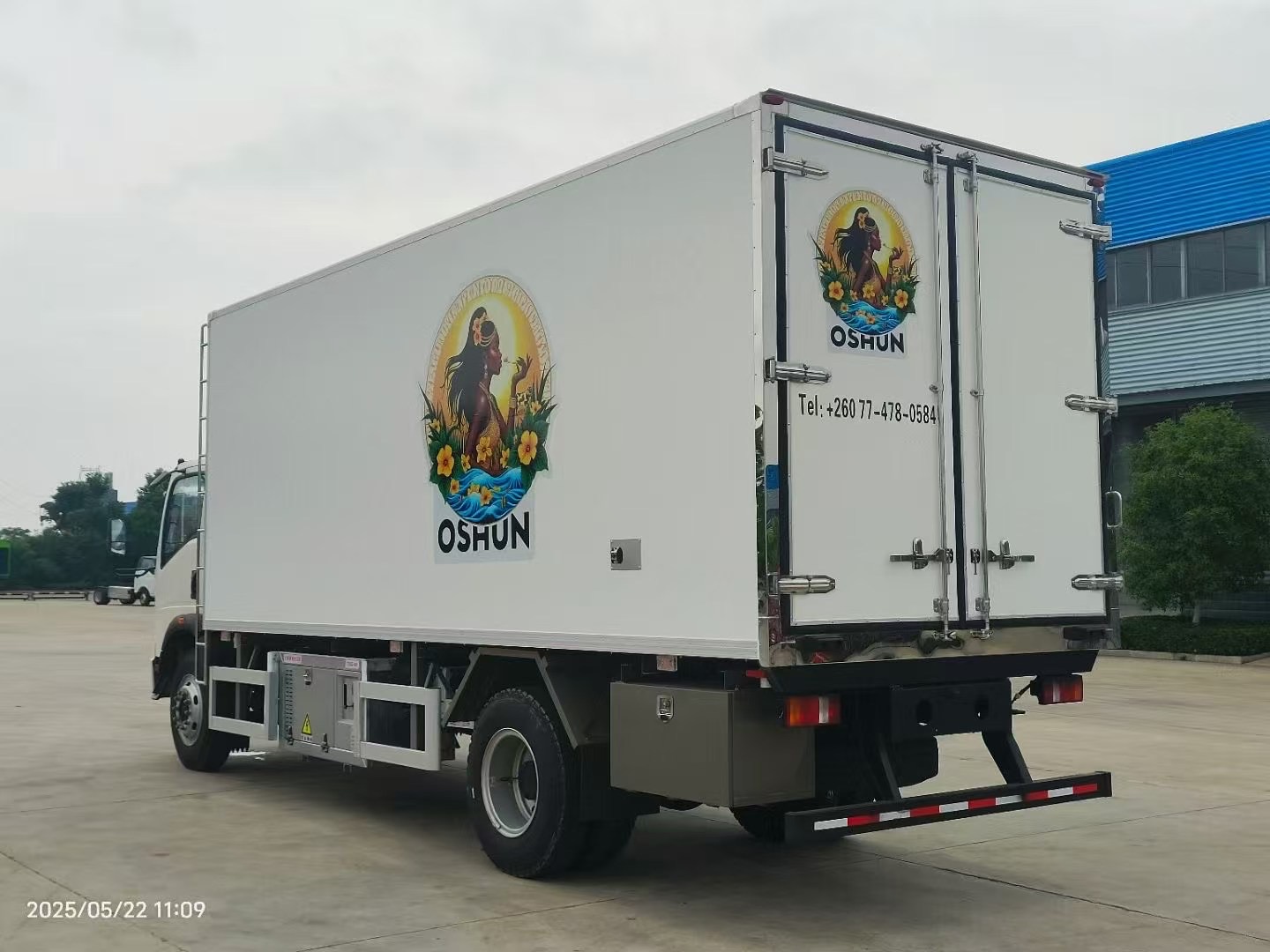

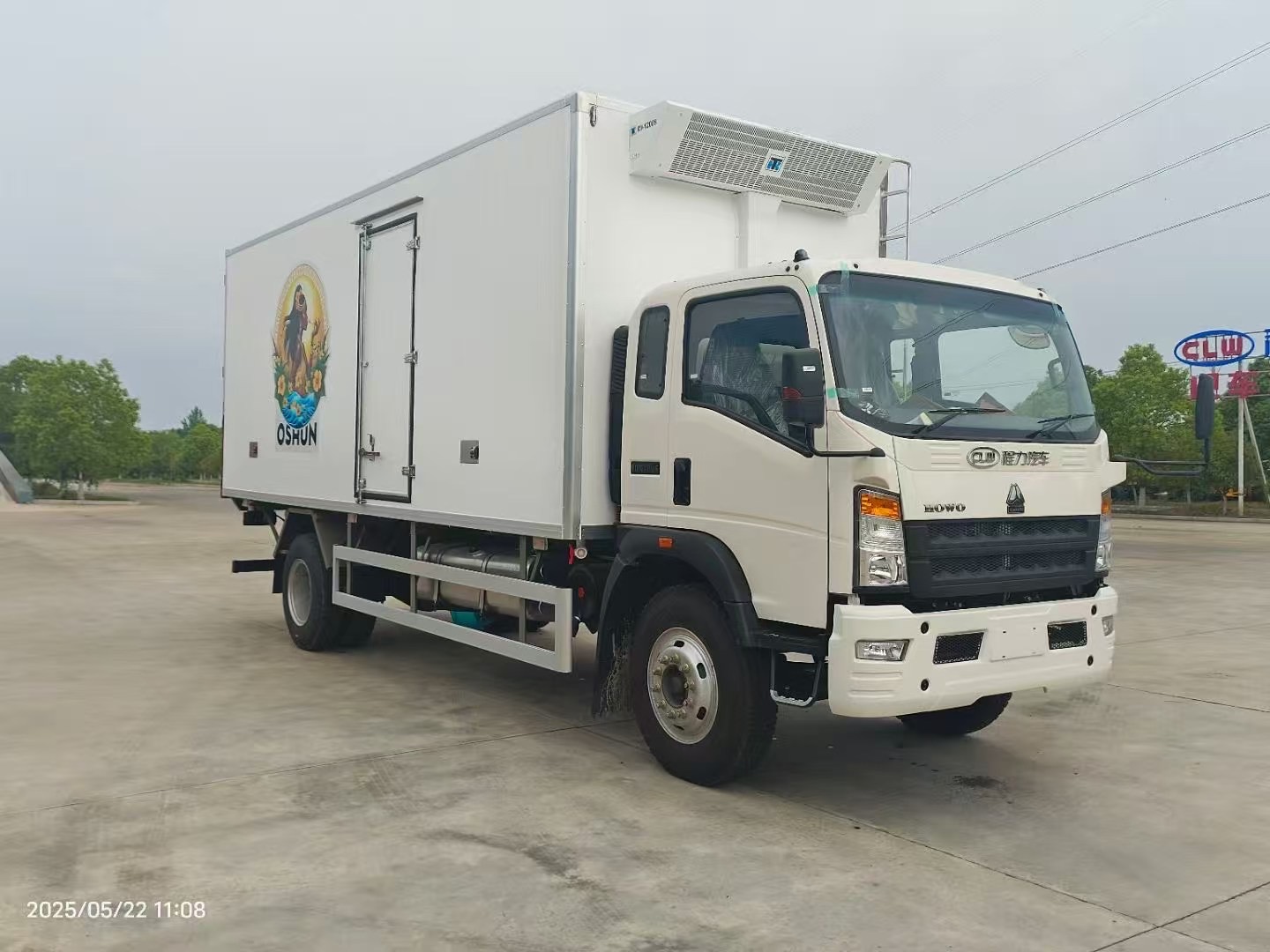

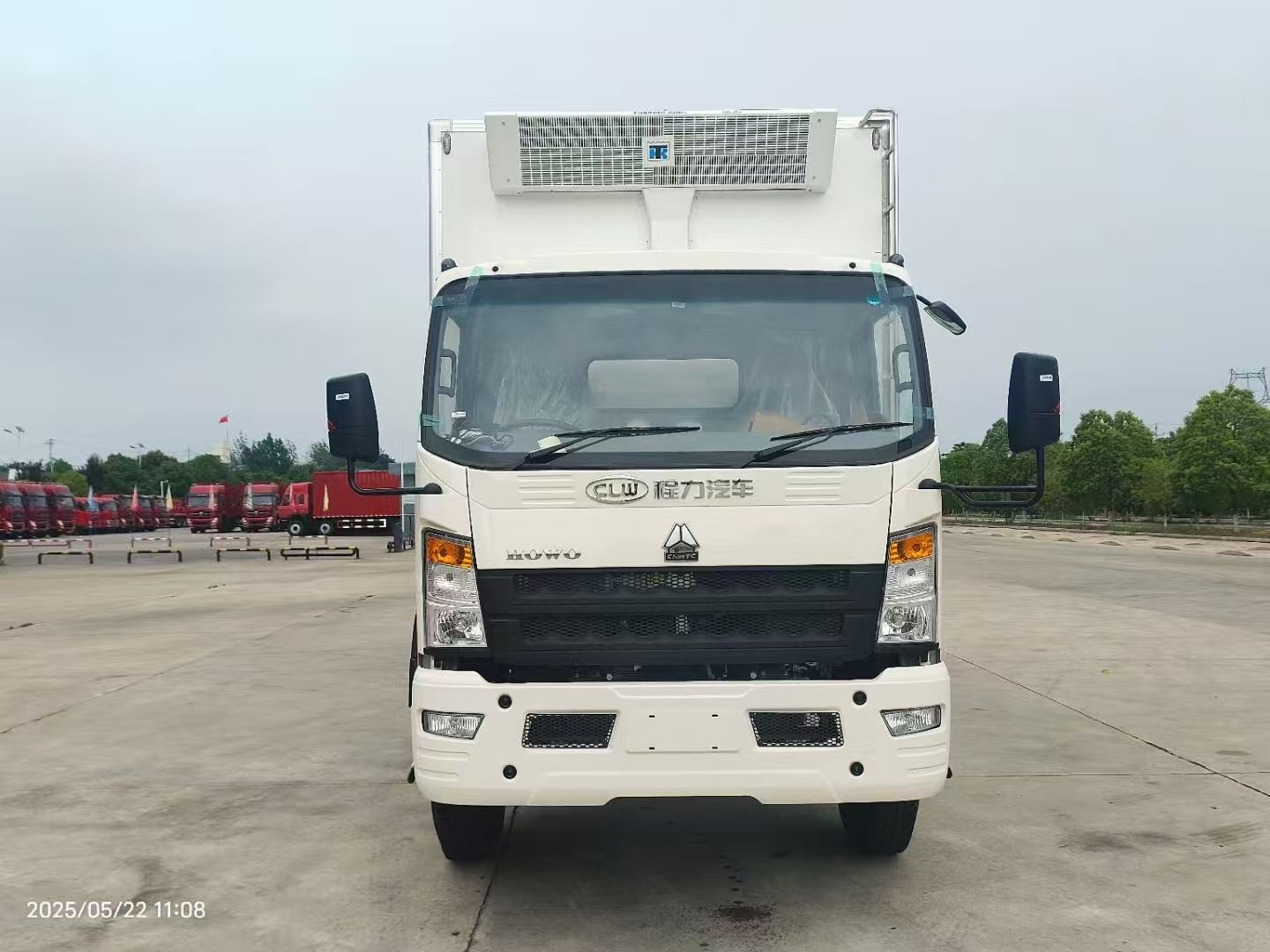

More pictures of howo refrigerated trucks are as below.
howo refrigerated trucks
Refrigerator truck 10tons
Refrigerator truck 10tons
ice cream truck
Key words: reefer truck! Refrigerator truck 10tons! howo refrigerated trucks! ice cream truck!
Key words: reefer truck! Refrigerator truck 10tons! howo refrigerated trucks! ice cream truck!
Key words: reefer truck! Refrigerator truck 10tons! howo refrigerated trucks! ice cream truck!
Refrigerated trucks have significantly impacted the global economy by enabling the long-distance transport of perishable goods.
·
Refrigerator truck 10tons is a van or a truck designed to carry perishable freight at specific temperatures. New Product
Refrigerator truck 10tons - Buy reefer truck, Refrigerator Truck, Refrigerated Truck, mini refrigerators freezers, mini cool truck, buy china cheap small refrigerator car, ice cream truck, Like refrigerator cars, refrigerated trucks differ from simple insulated and ventilated vans (commonly used for transporting fruit), neither of which are fitted with cooling apparatus. Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration system powered by small displacement diesel engine, or utilize carbon dioxide (either as dry ice or in liquid form) as a cooling agent.
1.We have different truck brand for refrigerator / refrigerated truck, Sinotruk howo refrigerated trucks , JAC, FOTON, DONGFENG, Japanese truck.
2. We have different loading capacity from 2tons to 40 tons refrigerator / reefer truck
Most of the long-distance refrigerated transport by truck is done in articulated trucks pulling refrigerated semi-trailers. Research is done on fuel cell auxiliary power units.
Reefer units of the reefer truck maintain temperatures between -20°F and 70°F, accommodating frozen products and items requiring ambient conditions.
Reefer fuel powers the refrigeration unit on trailers. Though similar to regular diesel, it’s specifically for cooling systems and cannot be used in the truck’s main tank.
In trucking, “reefer” is the industry shorthand for “refrigerated trailer,” referring to temperature-controlled trailers designed for transporting perishable goods.
Reefer truck have insulation, refrigeration units, and channeled floors for temperature control, while dry vans are standard enclosed trailers without climate capabilities.
We're one of reefer truck manufacturer in China. And the reefer truck we manufactured are from 3cubic meters to 100cubic meters.
Reefer truck typically carry 500kgs to 40000kgs and bigger volume refrigerated van semitrailers, slightly less than dry vans due to the additional weight of the refrigeration equipment and insulation.
Reefer truck presents both unique challenges and opportunities for carriers. With higher operational costs but better-paying freight, success in refrigerated transport requires both specialized knowledge and reliable financial support. OTR Solutions offers a fuel card and dedicated factoring services for reefer carriers, ensuring steady cashflow while you manage the complexities of temperature-controlled shipping.
Key words: reefer truck! Refrigerator truck 10tons! howo refrigerated trucks! ice cream truck!
