good price FOTON diesel 2Tons refrigerated truck for sale
the specification of foton diesel 2tons refrigerated trucks
Truck chassis of small refrigerated van for sale
Driver cab: Foton M1 single row driver cab driving type: 4*2 RHD(right hand drive)
engine: QC485q 35KW diesel engine, Euro 1 emission standard wheelbase: 2750mm wheelbase
tire: 175R14LT tires*6+1 spare
transmission: MG70 5+1 gears, manual type
Overall dimension(L*W*H): 5100*1720*2490(mm)
fridge truck van body dimension(L*W*H): 3200*1560*1560(mm),
Total mass: 3495kgs
Curb mass: 1750kgs
Rated mass: 1615kgs
refrige truck van body of small refrigerated van for sale:

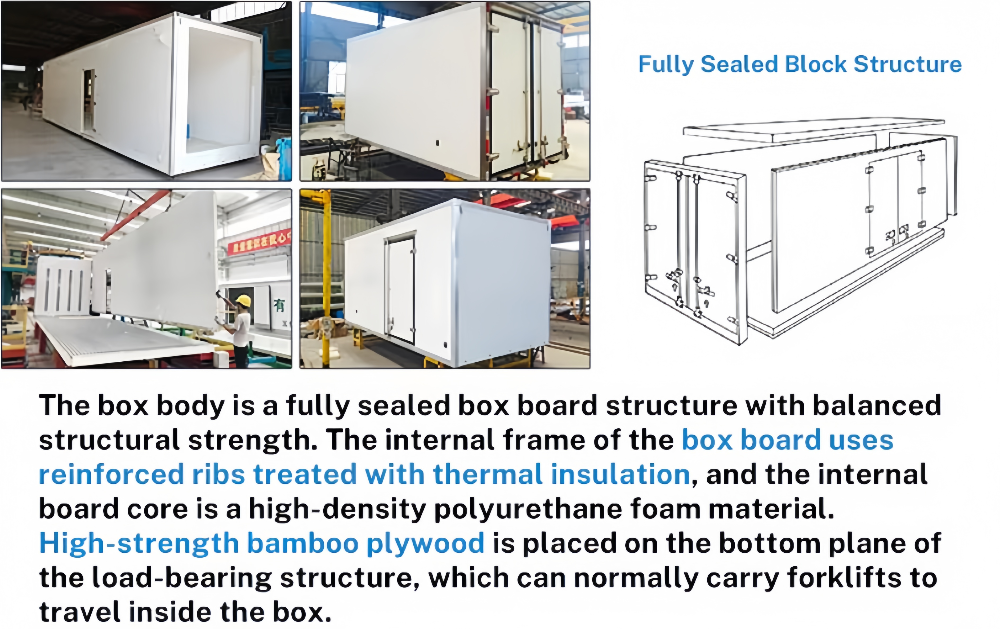

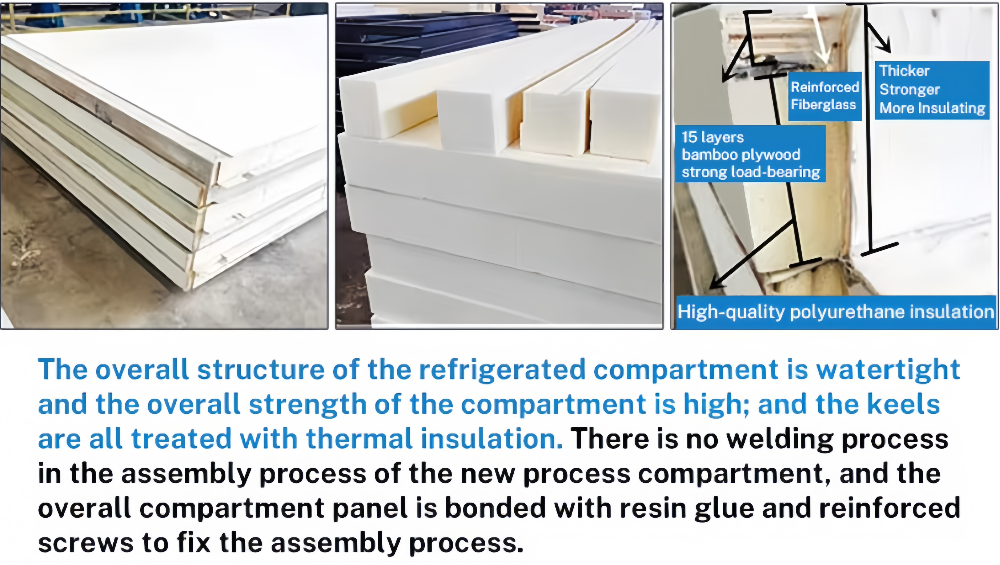

Box side of small refrigerated van for sale: Exterior and interior with FRP( fiber reinforced plastic), and the middle with PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure.
Box floor of fridge truck: Baseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard.

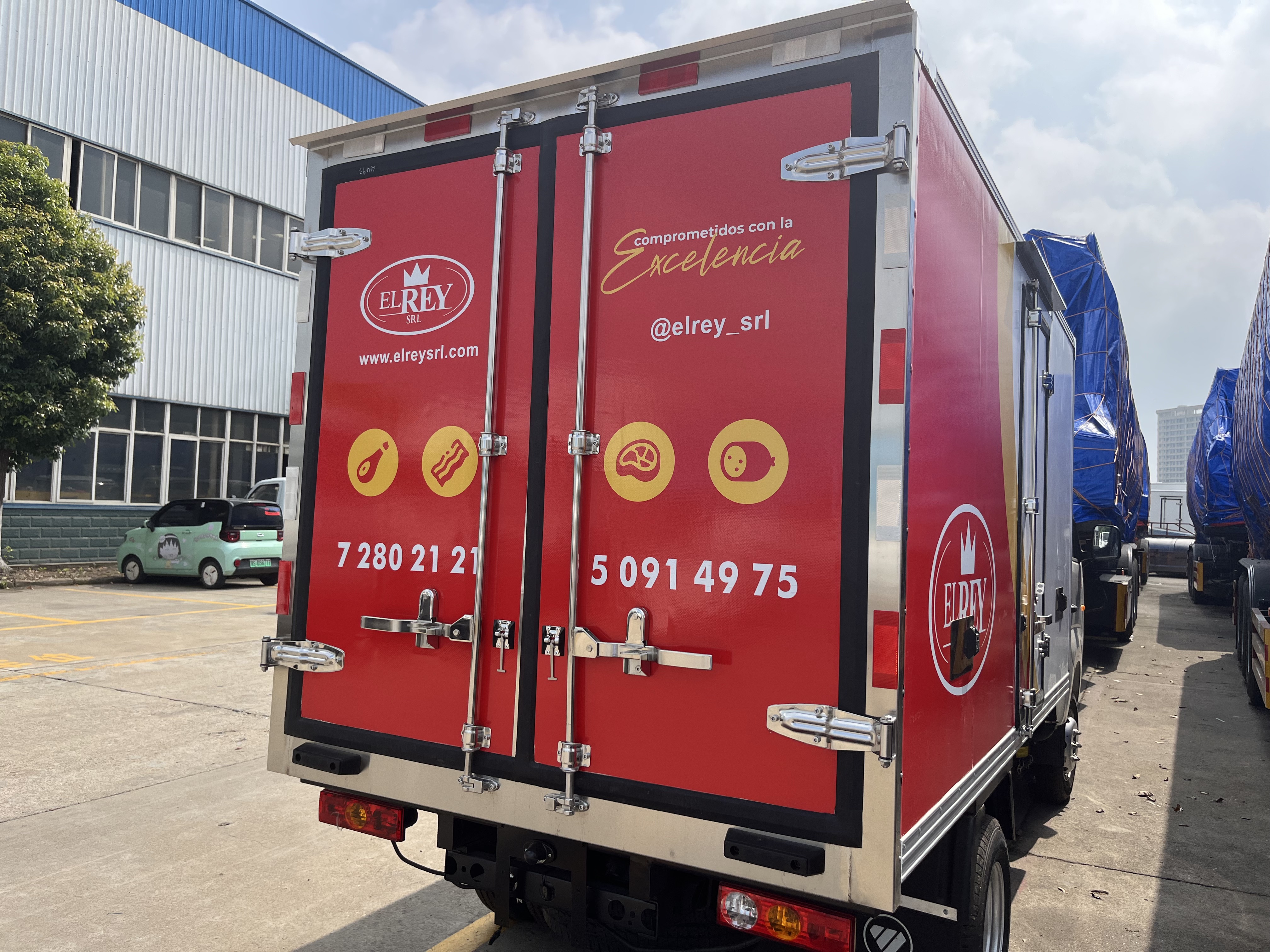

Doors of 2Tons refrigerated truck for sale : Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc.
The door edgings frames of 2Tons refrigerated truck for sale are sealed with the imported high quality epdm rubber, making sure the van insulation stability.
Door edgings, door locks and accessories of fridge truck use stainless steel materials.
Refrigerated reefer unit of small refrigerated van for sale: Choose high quality China-made self-powered frozen refrigerating reefer, the lowest temperature is up to -5℃ to 15℃. And the reefer can be adjusted at the driver cab.
the main parameters of 2Tons refrigerated truck for sale is as below.
Items | Descriptions | Specifications and Types |
General | Truck Name | 2Tons refrigerated truck for sale |
Drive Type | 4*2 RHD, LHD optional | |
Payload (kg) | 2000kgs | |
Seating person | 2 | |
Curb Weight (kg) | 2530 | |
Overall Dimensions (L*W*H) (mm) | 5070×1900×2730 | |
Insulation van dimension(L*W*H)(mm) | 3200*1700*1750 | |
Driver cab | FOTON M1 single row driver cab | |
Engine | Engine Model | 4A2-88C53 88hp diesel engine, Euro 2 emission standard
|
Engine Brand | Quanchai | |
Fuel Type | Diesel | |
Max output (hp/rpm) | 65KW88hp | |
Emission Standard | Euro2 | |
Capacity (cc) | 2156 | |
Chassis | Chassis Brand | FOTON |
Tire Specification | 185R14LT 8PR*6 | |
Wheelbase (mm) | 2850 | |
Axle No. | 2 | |
Steering Wheel | Left hand drive, | |
Gear Box | 5 speed gearbox, manual | |
Brake | Air brake | |
Air-conditioner | No, can be installed | |
Cold Room | Box inner dimension(mm) | 3200*1700*1750 |
Box Side | Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. | |
Box Floor | Baseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. | |
Doors | Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials. | |

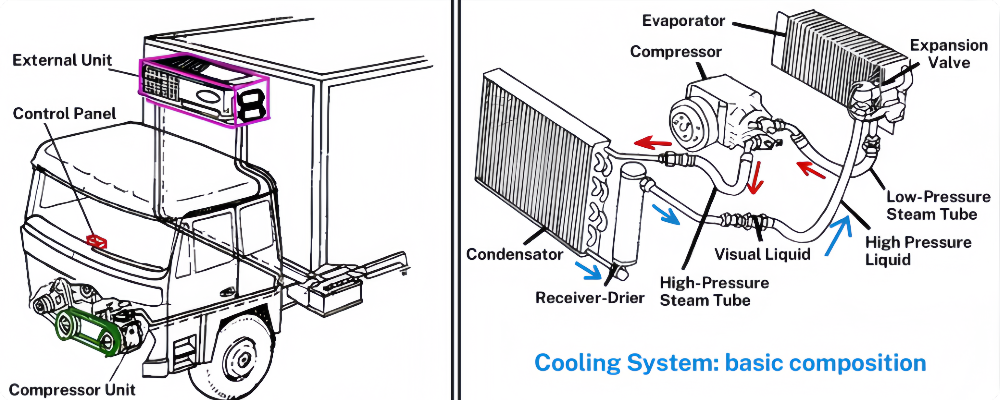

Refrigeration unit | Choose high quality China-made self-powered frozen refrigerating reefer, the lowest temperature is up to -5℃ to 15℃. And the reefer can be adjusted at the driver cab.
| |
Remark | The fridge truck can choose to hydraulic tail plate | |
More pictures of fridge truck foton 4*2 RHD LHD diesel engine are as below.

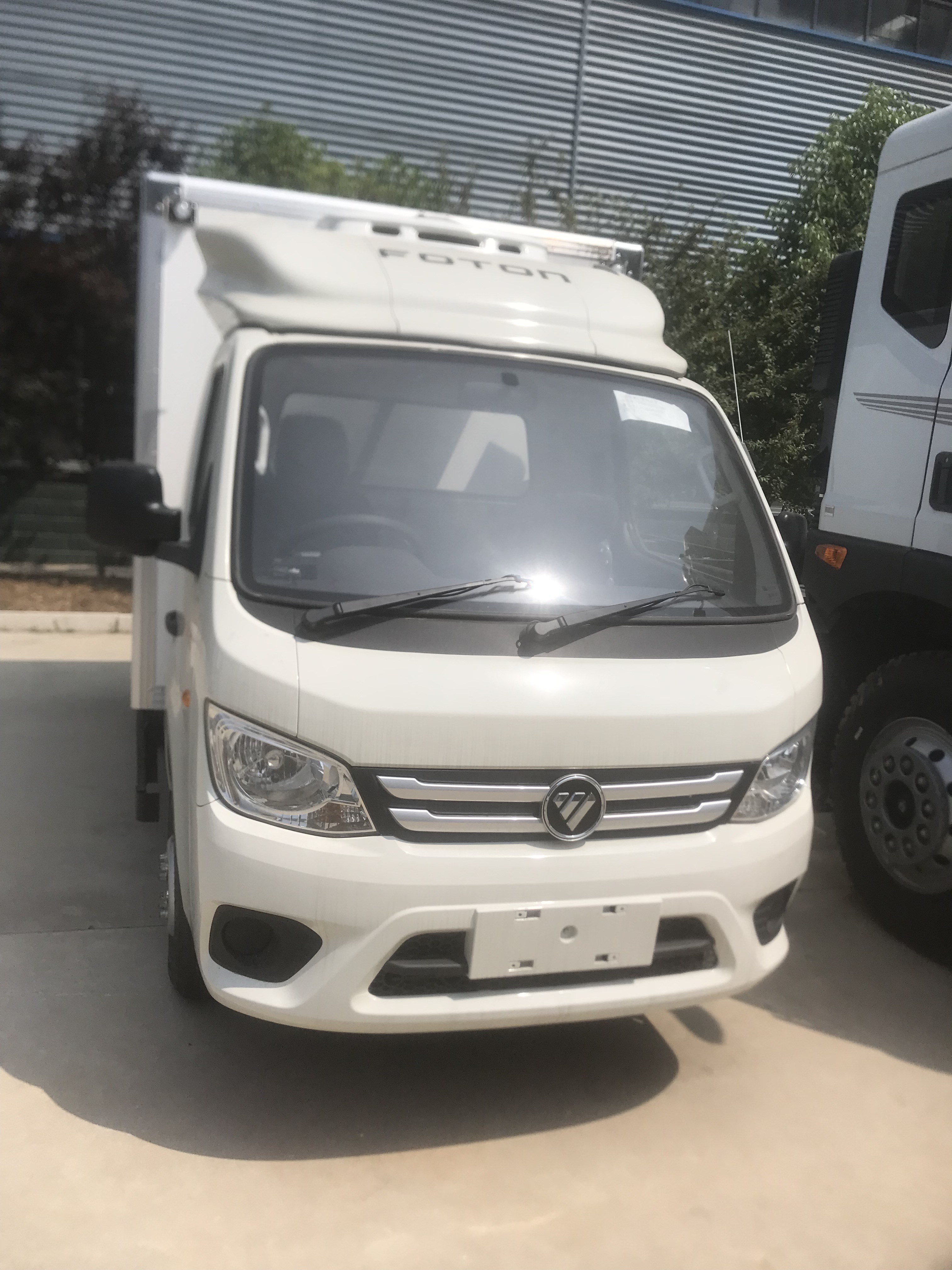

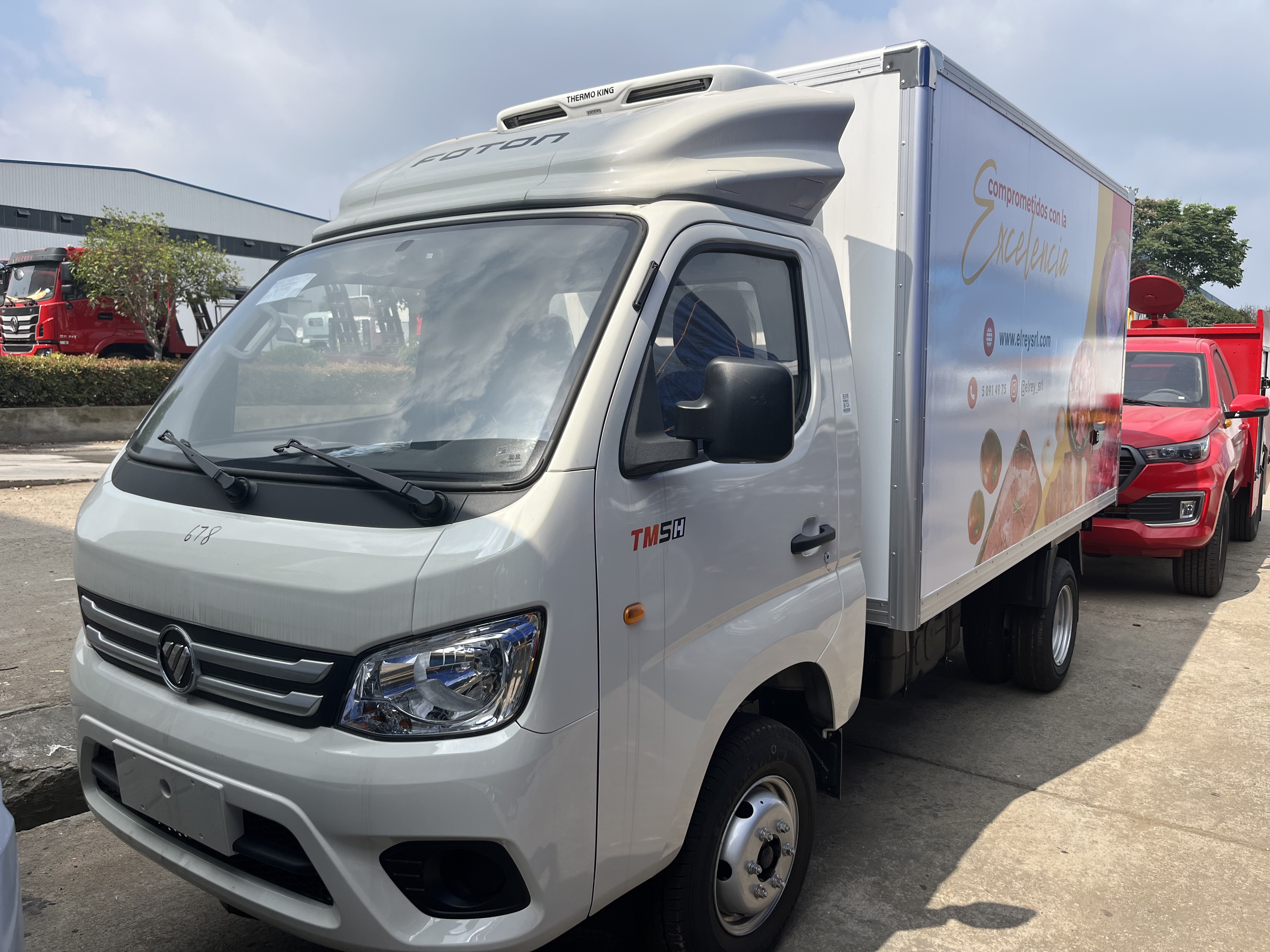

2Tons refrigerated truck for sale

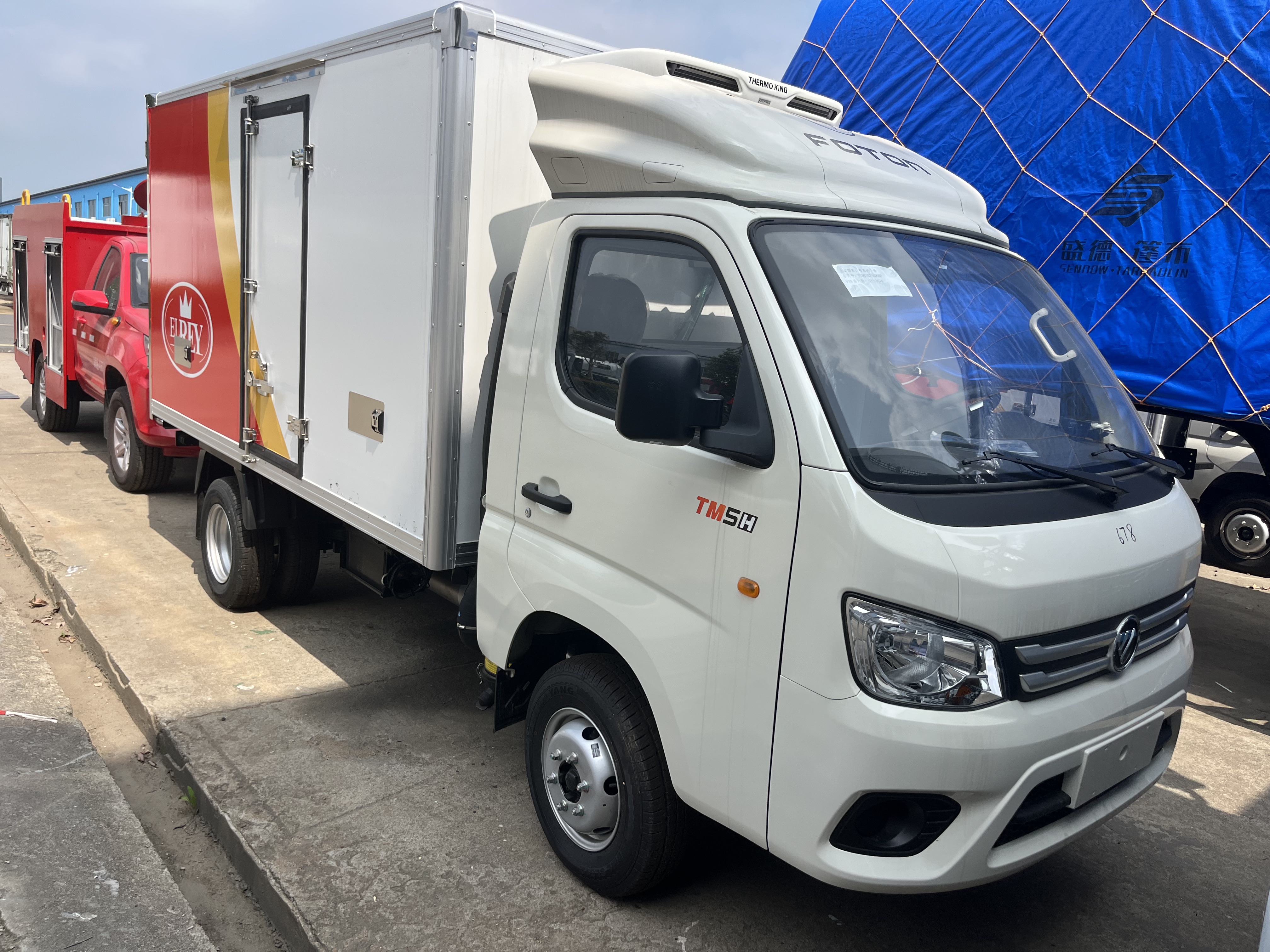

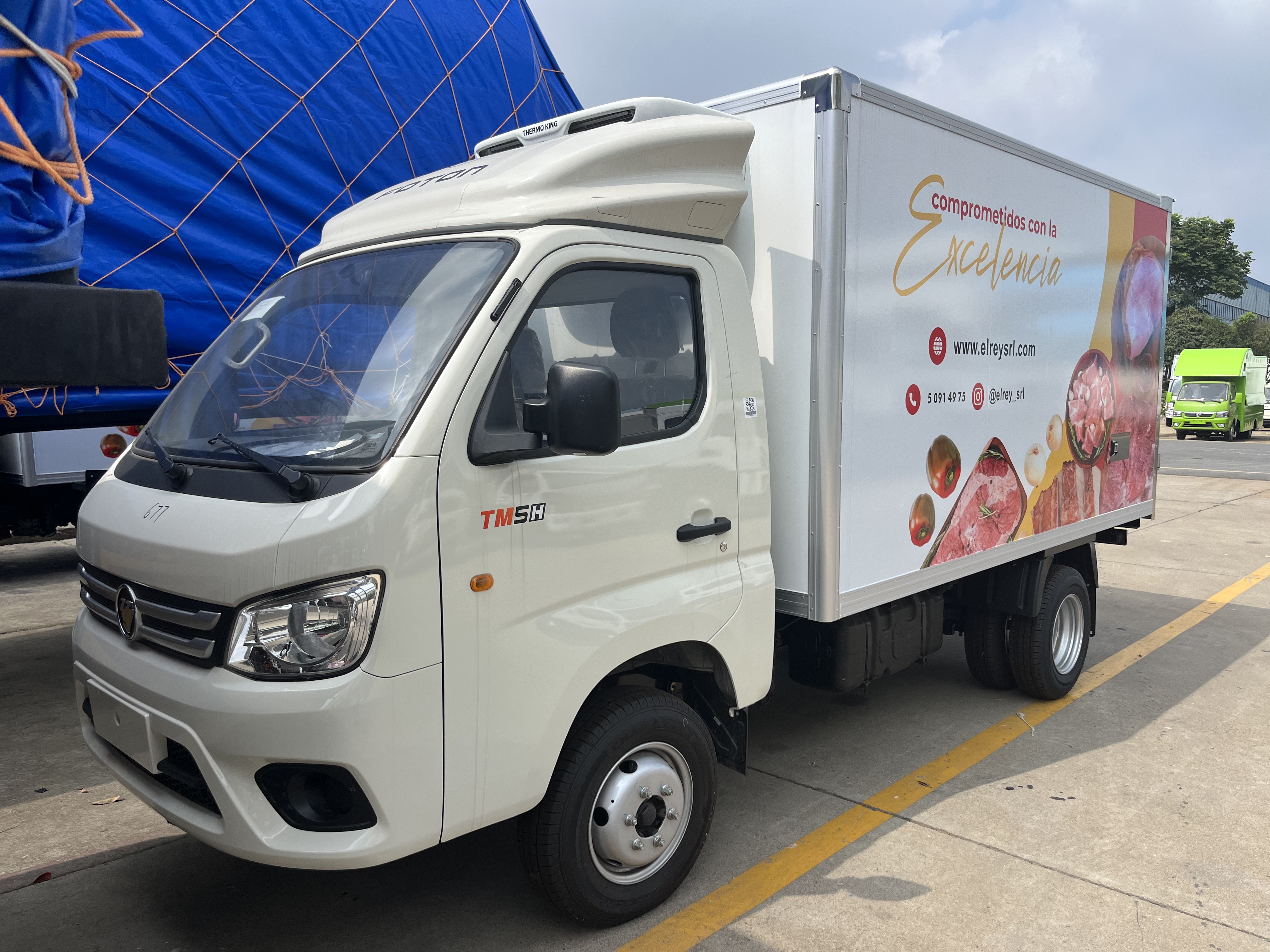

small refrigerated van for sale

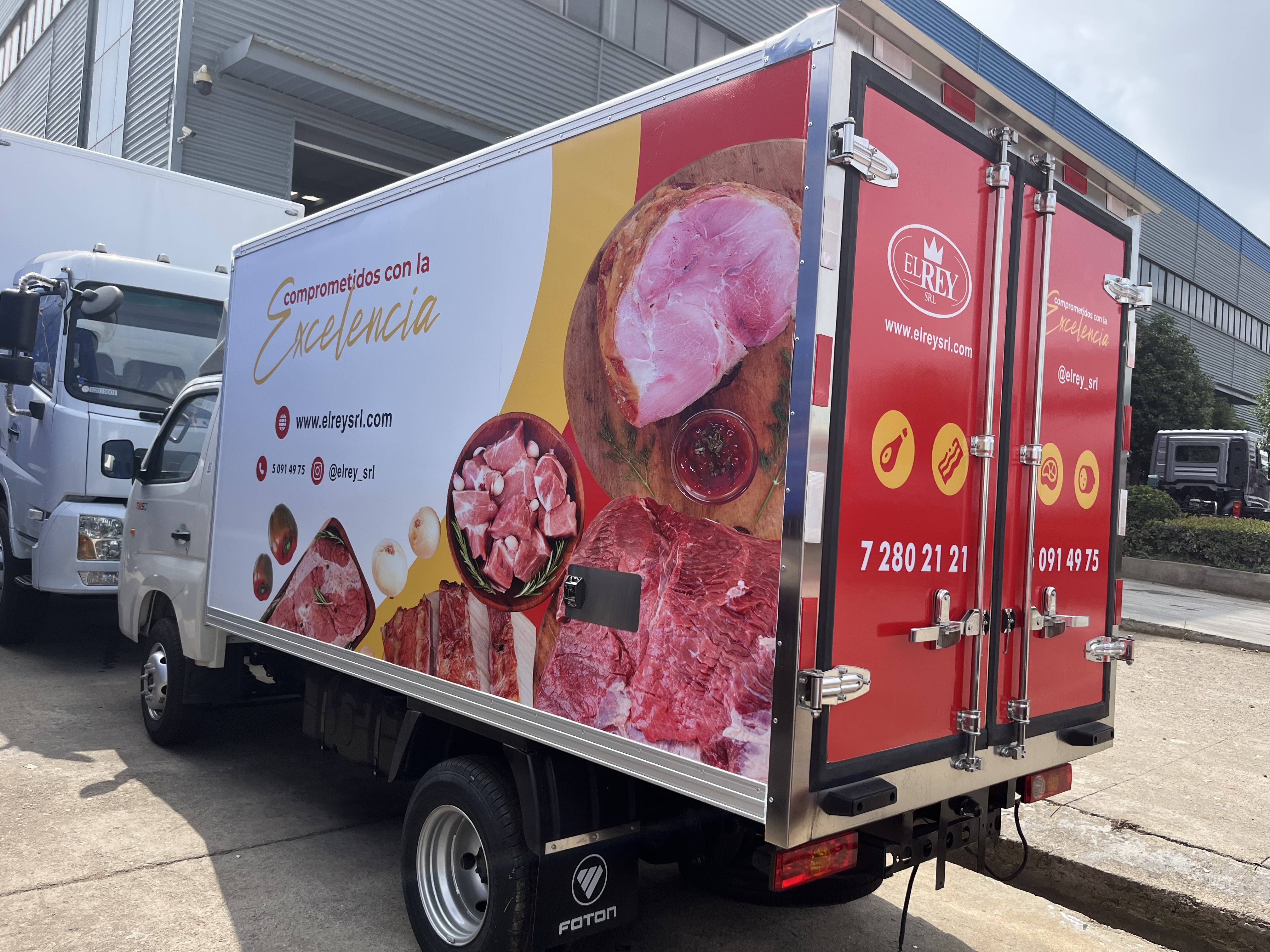

fridge truck

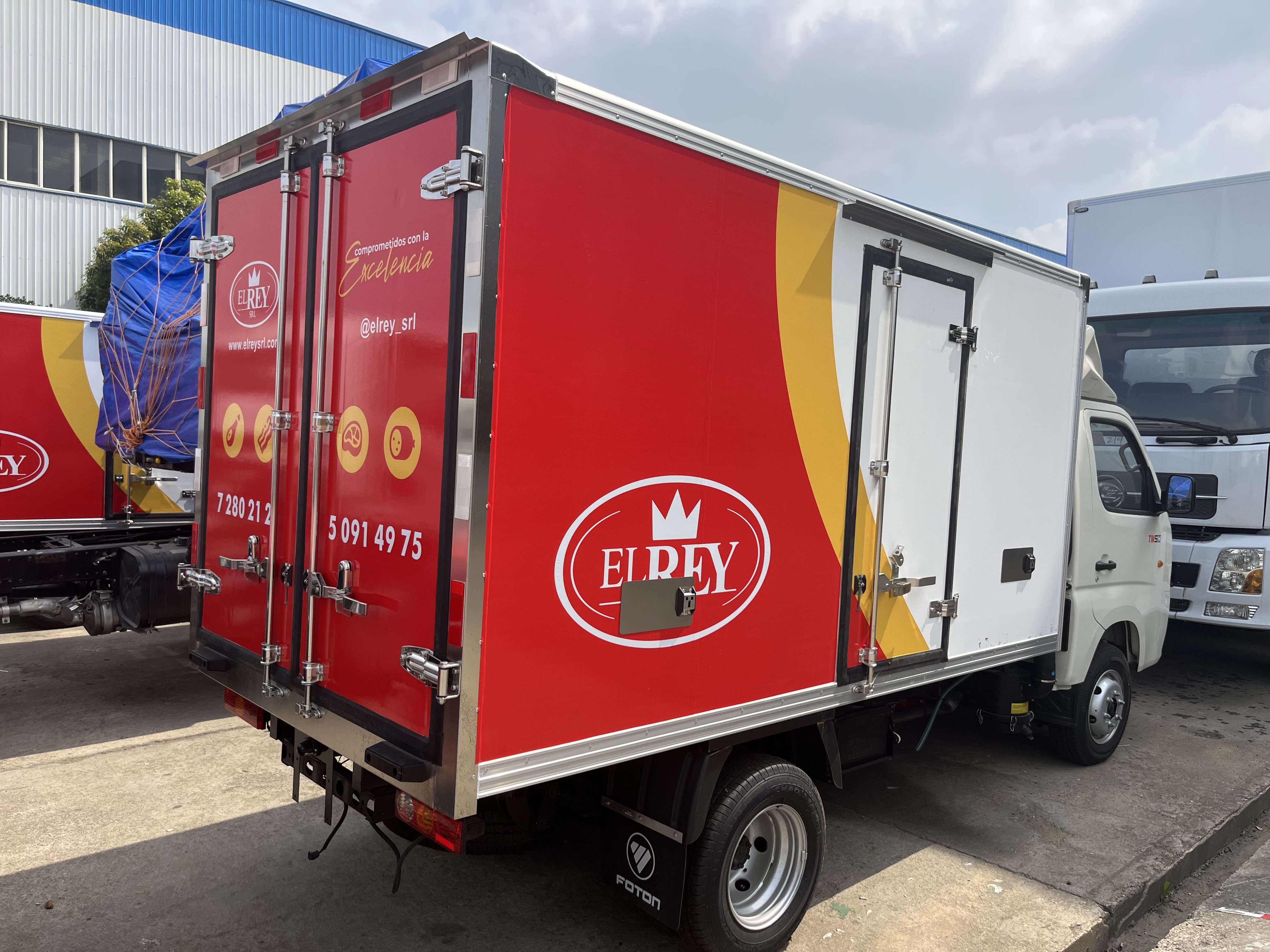

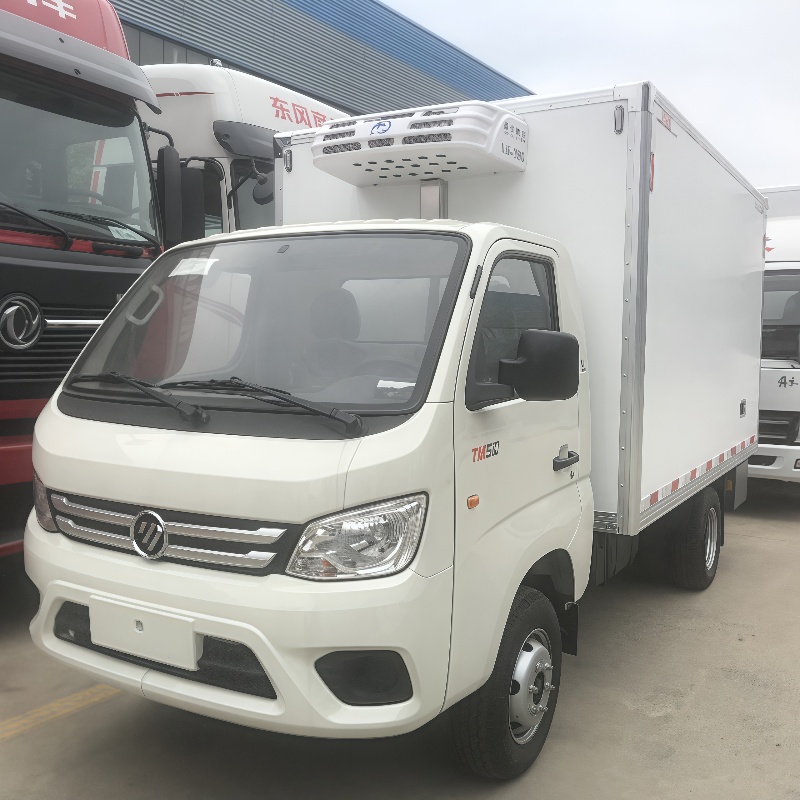

2Tons refrigerated truck for sale
hydraulic tail plate for small refrigerated van for sale

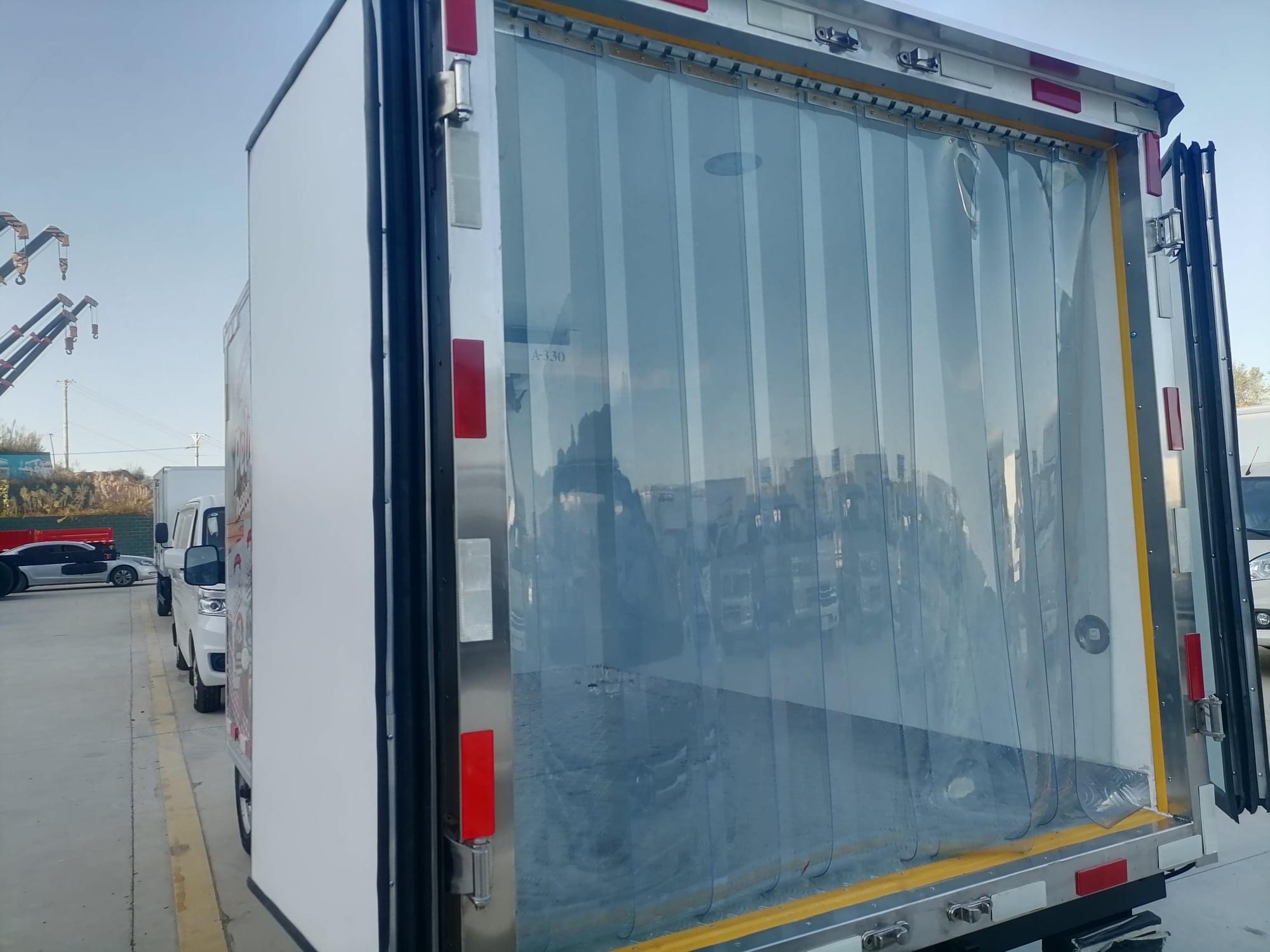

plastic curtains for fridge truck

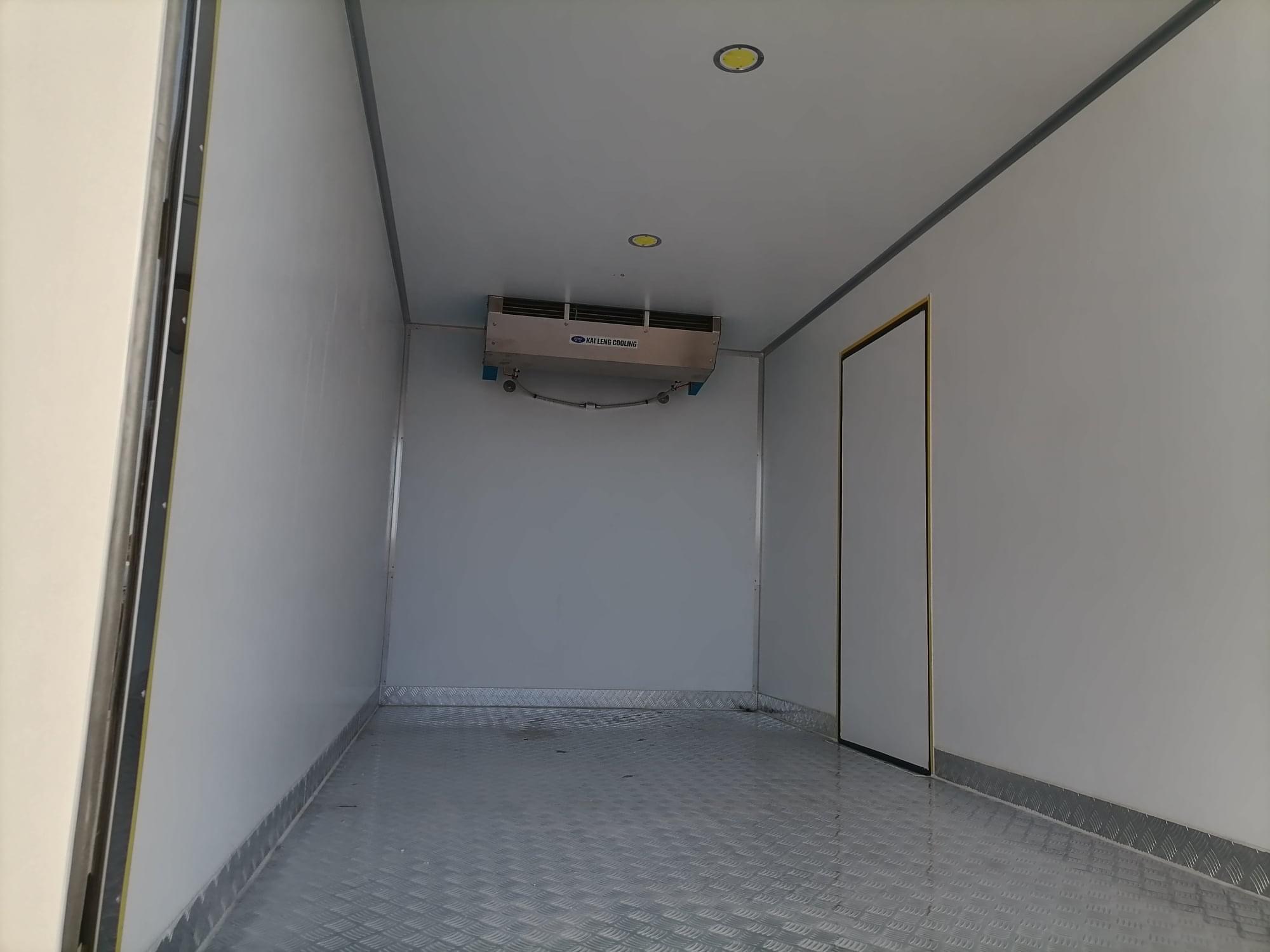

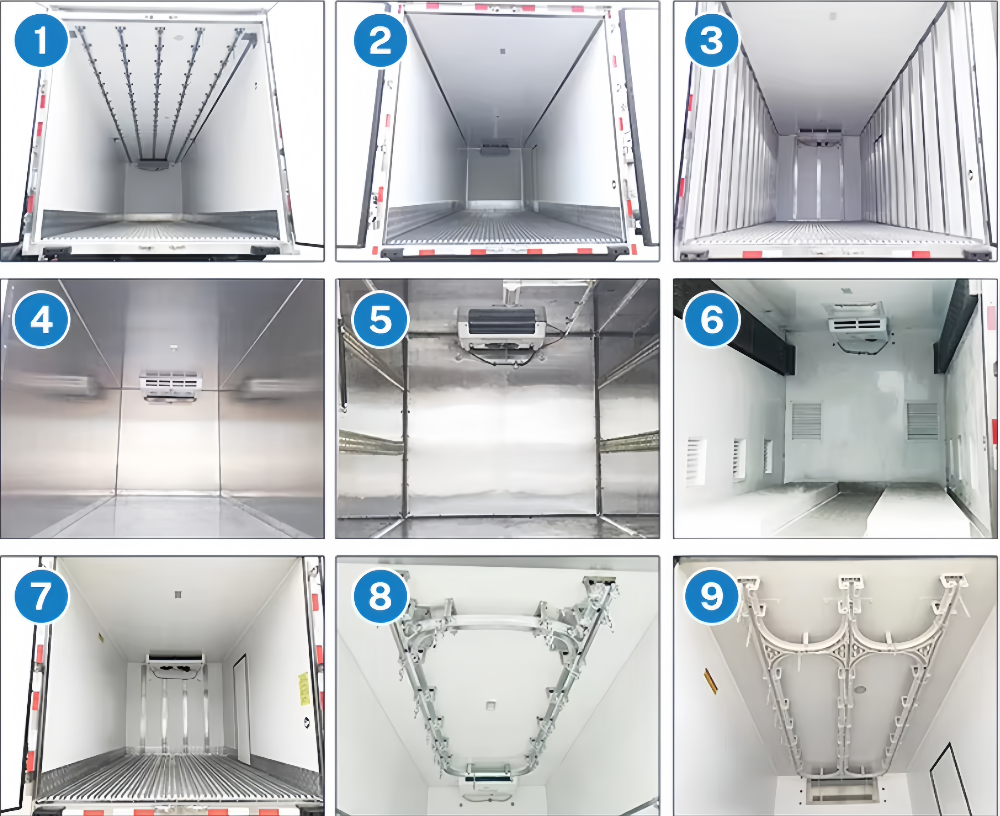

the interior van body of fridge truck side door optional

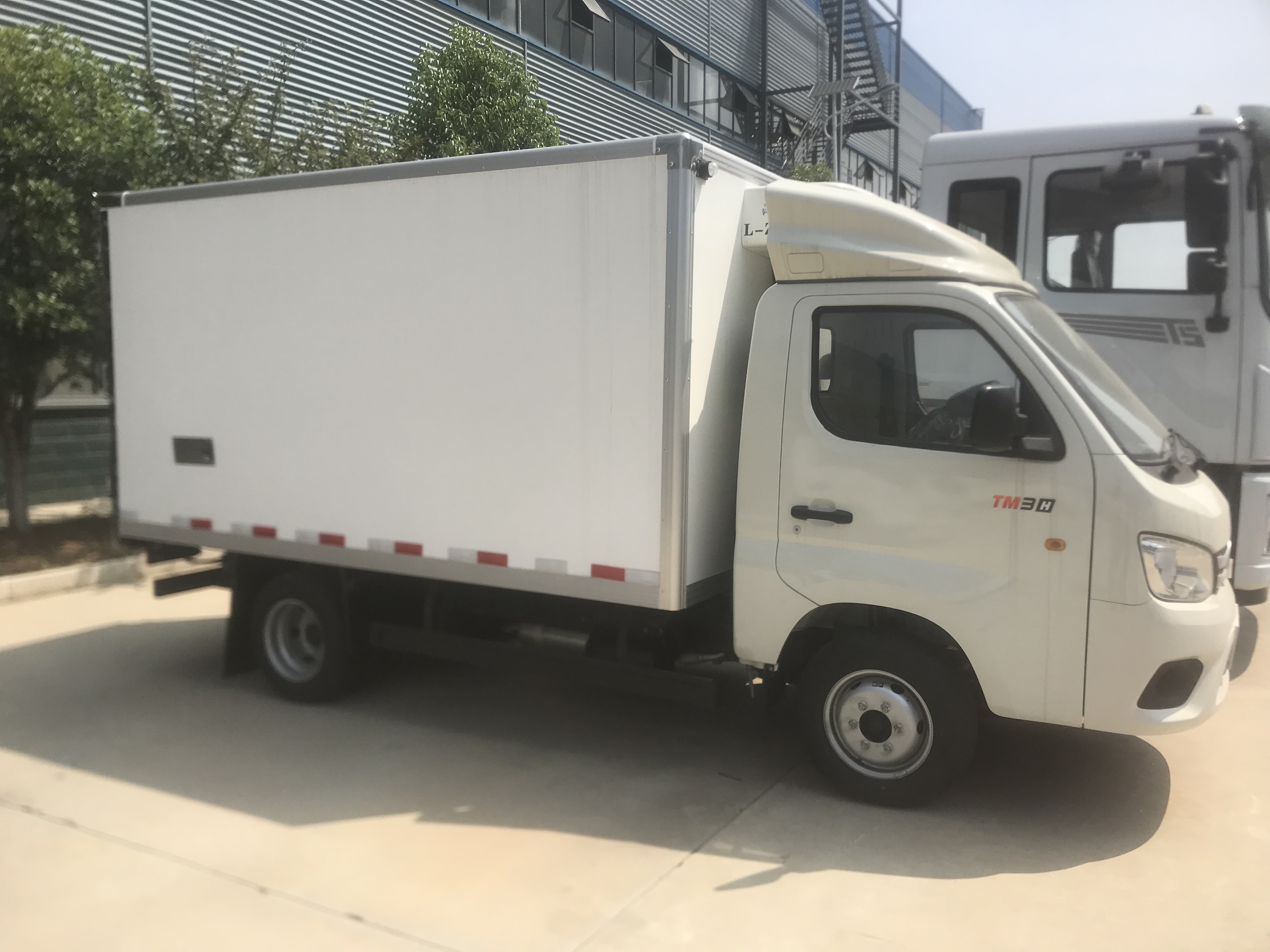

fridge truck

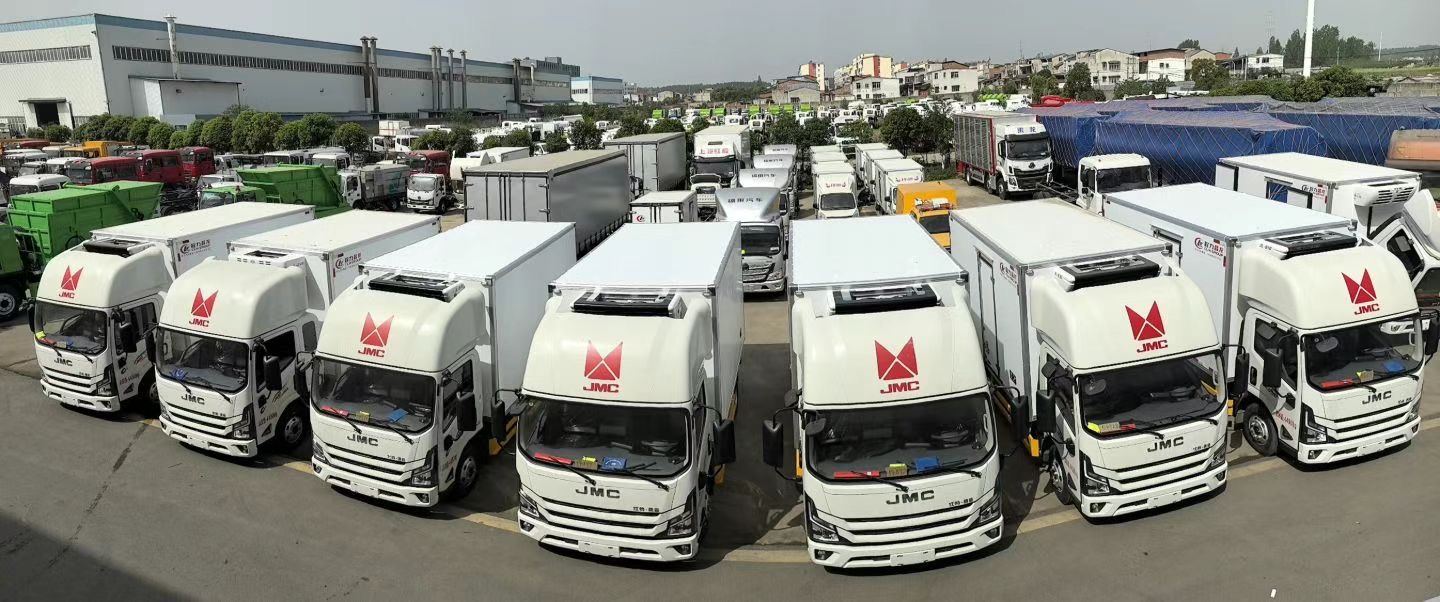

a batch of fridge truck
Key words: fridge truck, small refrigerated van for sale, 2Tons refrigerated truck for sale , foton refrigerated truck, reefer truck, cooler truck, frozen van truck, refrigerator van truck, chilled truck, box van truck,
A refrigerated truck, or fridge truck, or small refrigerated van for sale, or 2Tons refrigerated truck for sale is specially designed to allow you to transport perishable goods at controlled temperatures. Indeed, in many fields, such as the food, pharmaceutical or chemical sectors, products require low storage temperatures in order to preserve their properties or to keep them fit for consumption. As a result, these products must maintain a low and constant temperature during their transport between production and distribution sites, which are often far apart.
fridge truck! fridge truck! fridge truck!
We are a leading manufacturer of special trucks, tankers, trailers, and spare parts in China Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles
T/T 30-50% as deposit, and the rest before delivery. We'll show you the photos of the products and packages before you pay the balance
EXW, FOB, CFR, CIF, DAF, DDU
Generally, it will take 20 to 30 days after receiving your advance payment. The specific deliver time depends on the items and the quantity of your order
Yes. We have professional R&D team, we can produce the product exactly according to your requirements
We are direct sales from the factory, so the price is very competitive. Different products have different prices. The price also depends on your special needs. To know the exact price, please contact us
Yes, we have 100% test before delivery
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. lf you need, we will also supply original spare parts and you just need to pay the freight
