1. Adopting Ningde Times 53.58kWh third-generation brand new battery (with a warranty of eight years and 400000 kilometers)
2. The longest range in the same class can reach 295km, with lower energy consumption and higher operational efficiency,
3. Greater discharge depth, up to 90% of total battery capacity (second-generation batteries will be limited to 80% torque)
4. Compared to the 55.7kWh battery, the available power of the 55.7kWh battery is 44.5kWh, and the available power of the SAIC Yuejin 53kWh battery is 51kWh, with an additional 6.5 kWh available.
5. The best lightweight in the same class, with a chassis curb weight of 1580kg, which is about 300kg lighter than vehicles in the same class. The whole vehicle is not overweight and does not require disassembly of equipment and optional parts for registration.
6. The 100kw permanent magnet synchronous motor independently developed by SAIC Maxus has strong power, and the VCU and BMS control system jointly developed by SAIC and Bosch has better and more advanced control logic.
7. The protection level is IP68, which is better than all 55.7kwh products on the market!
8. The chassis configuration is rich, with standard features such as hill assist, cruise control, multiple driving modes, central locking with electric shake, Bluetooth+radio+USB, fog lights+daytime running lights, and many other rich configurations!

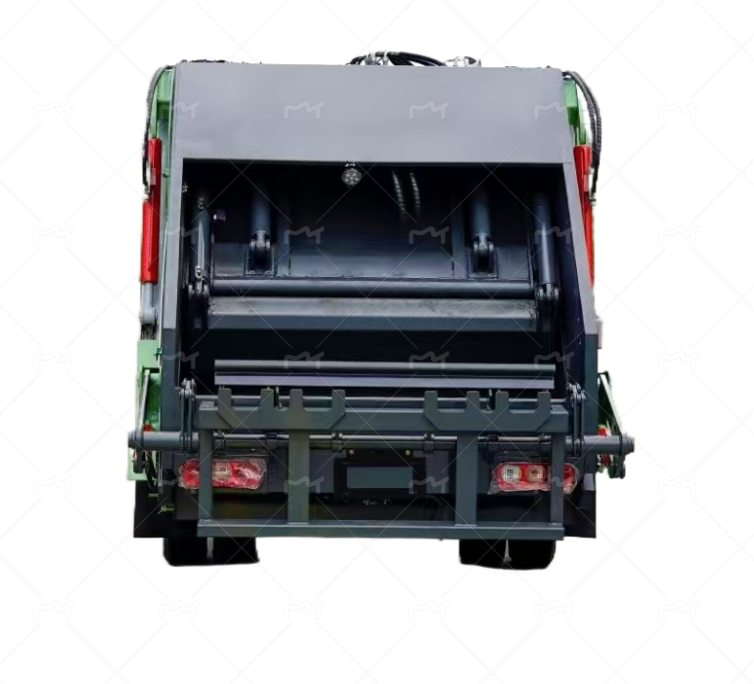

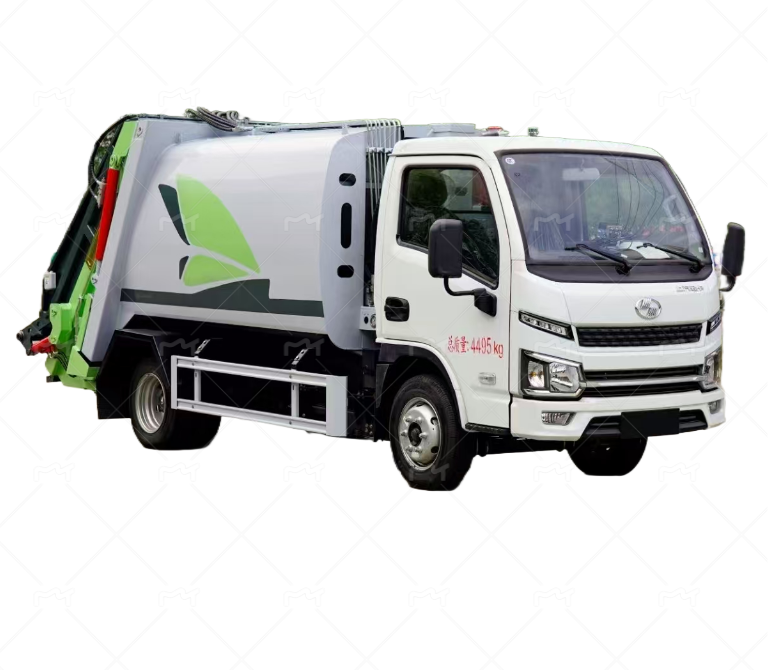

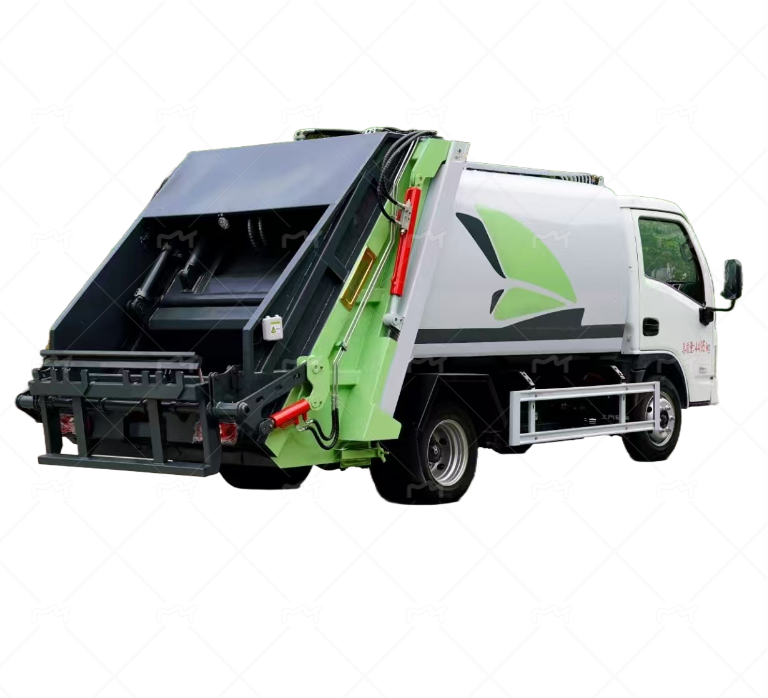

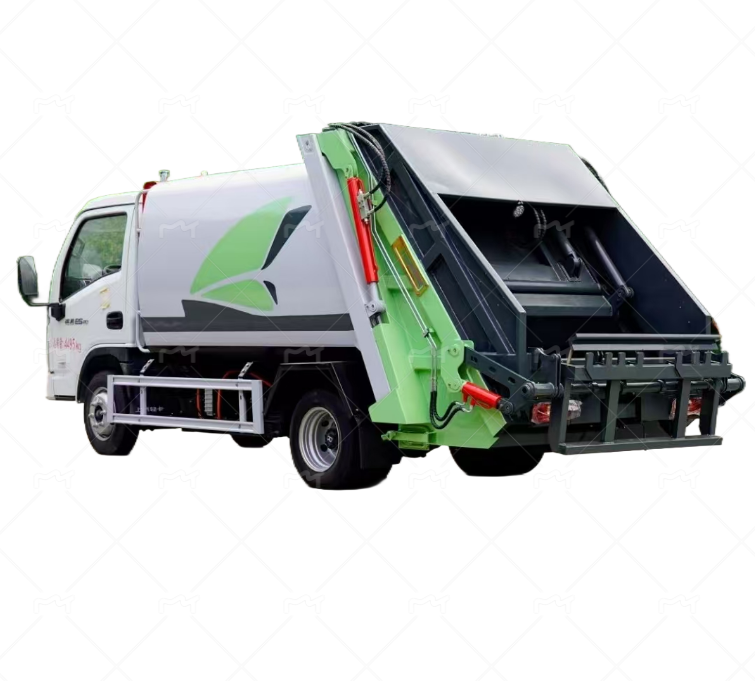

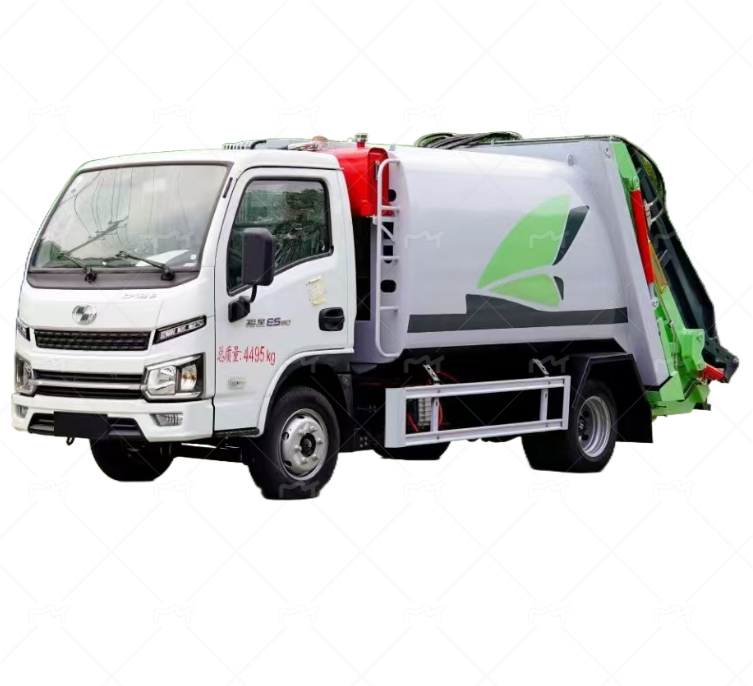

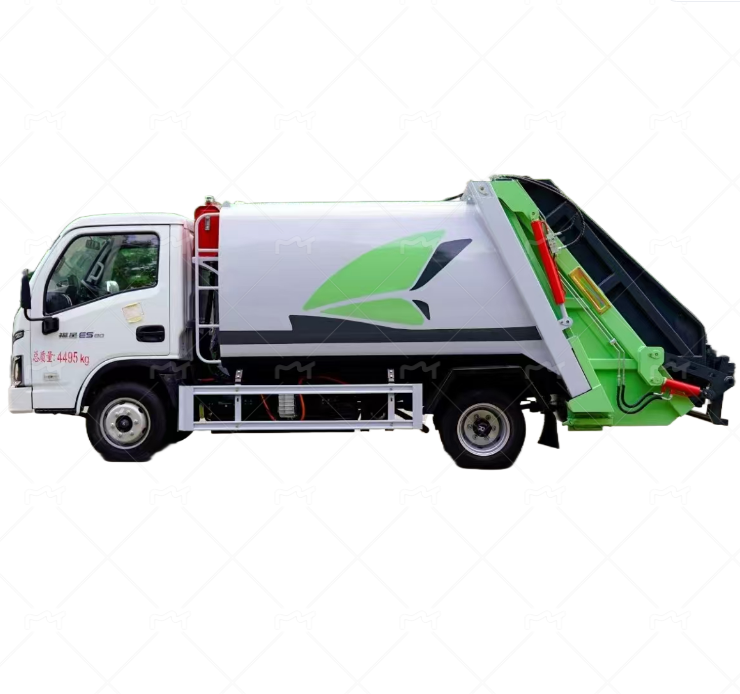

1. Other configurations: On the basis of SAIC Yuejin's pure electric Class II chassis, a dedicated garbage disposal and transportation vehicle is equipped with garbage bins, garbage fillers, and hydraulic systems, integrating mechanical, hydraulic (pneumatic), and electrical components.
2. Working principle: The whole vehicle is a fully sealed type, which can self compress, self dump, and all the sewage during the compression process enters the sewage tank, completely solving the secondary pollution during garbage transportation. It has the advantages of high pressure, good sealing, easy operation, and safety.
3. This product is suitable for garbage treatment and transportation on urban main roads, highways, residential areas, factories, garbage transfer centers, and other sites. The curved box greatly increases the volume of the box and enhances the overall aesthetics of the vehicle.
4. The permanent magnet synchronous motor directly takes power, specially matched for each vehicle, perfectly matched without a power take-off, saving more steps and reducing the failure rate compared to diesel vehicles.
5. The oil pump adopts the well-known domestic brand Hepres liquid oil pump, equipped with a compaction valve to increase compression density and increase loading capacity. The loading capacity is equivalent to two and a half times that of non compressed waste of the same tonnage.
6. The oil tank is enlarged and the volume is increased to prevent high temperature of hydraulic oil. All hydraulic oil must be added to the oil tank through a hydraulic oil filter to filter impurities in the hydraulic oil, reduce the failure rate, and effectively prevent damage to accessories. The multi way valve adopts a Sino foreign joint venture brand, and is matched with the Hepres multi way valve and Hepres oil cylinder, with a low failure rate and CAN bus control mode; Less wiring, low failure rate, automatic display of fault codes, convenient for maintenance and repair.
7. Homework automation: Adopting a dual system control of photoelectric switch and time, with one button unloading and wireless remote control device, all filling and unloading operations only need to be operated by one driver. It can set two operation modes: fully automatic and semi-automatic, which not only reduces the labor intensity of sanitation workers, but also greatly improves the working environment.
The homework system has dual functions of computer control and manual operation, greatly ensuring and improving the utilization rate of vehicles.
9. Flip mechanism: An optional flip mechanism with a garbage bin (or bucket) can be installed.
Trash compactor truck for sale!Waste compactor truck for sale!Isuzu garbage compactor truck!
Trash compactor truck for sale!Waste compactor truck for sale!Isuzu garbage compactor truck!
Trash compactor truck for sale!Waste compactor truck for sale!Isuzu garbage compactor truck!
Trash compactor truck for sale!Waste compactor truck for sale!Isuzu garbage compactor truck!
Trash compactor truck for sale!Waste compactor truck for sale!Isuzu garbage compactor truck!
Trash compactor truck for sale!Waste compactor truck for sale!Isuzu garbage compactor truck!
Trash compactor truck for sale!Waste compactor truck for sale!Isuzu garbage compactor truck!
Trash compactor truck for sale!Waste compactor truck for sale!Isuzu garbage compactor truck!
Trash compactor truck for sale!Waste compactor truck for sale!Isuzu garbage compactor truck!
Among special - purpose vehicle companies, the company has passed ISO9001 - 2008 quality management system certification, ISO14001 environmental management certification, OHSAS18001 occupational health and safety management system certification, 3C mandatory certification, automotive energy - saving and environmental - protection certification, new - energy vehicle certification, export product quality license certification, product quality certification, and EU CE certification, etc. It has obtained special production license qualifications such as A2, C2, C3 pressure vessels, truck - mounted cranes, vehicle - mounted cranes, fire trucks, and national equipment scientific research and production qualifications. The company has more than 200 independently innovative products that have obtained national patents.
The company offers over 6,000 varieties of vehicles, including sprinkler trucks, garbage trucks, sewage suction trucks, night - soil suction trucks, oil tank trucks, chemical trucks, wreckers, aerial work platforms, fire trucks, truck - mounted cranes, refrigerated trucks, van trucks, pressure vessels, road maintenance vehicles, flatbed transporters, bulk grain trucks, dry - mixed mortar trucks, beekeeper trucks, stage trucks, propaganda trucks, mobile vending trucks, heavy - duty truck - mounted cranes, concrete pump trucks, pharmaceutical transport vehicles, and food transport vehicles, etc. Its products are exported to more than 100 countries and regions in the Middle East, Africa, Southeast Asia, South America, etc. The company's output value has consistently ranked among the top in various provinces and cities across the country. Its exports cover more than 30 countries and regions such as North Korea, New South Wales, and Angola, and the market share of its leading products exceeds 20%.

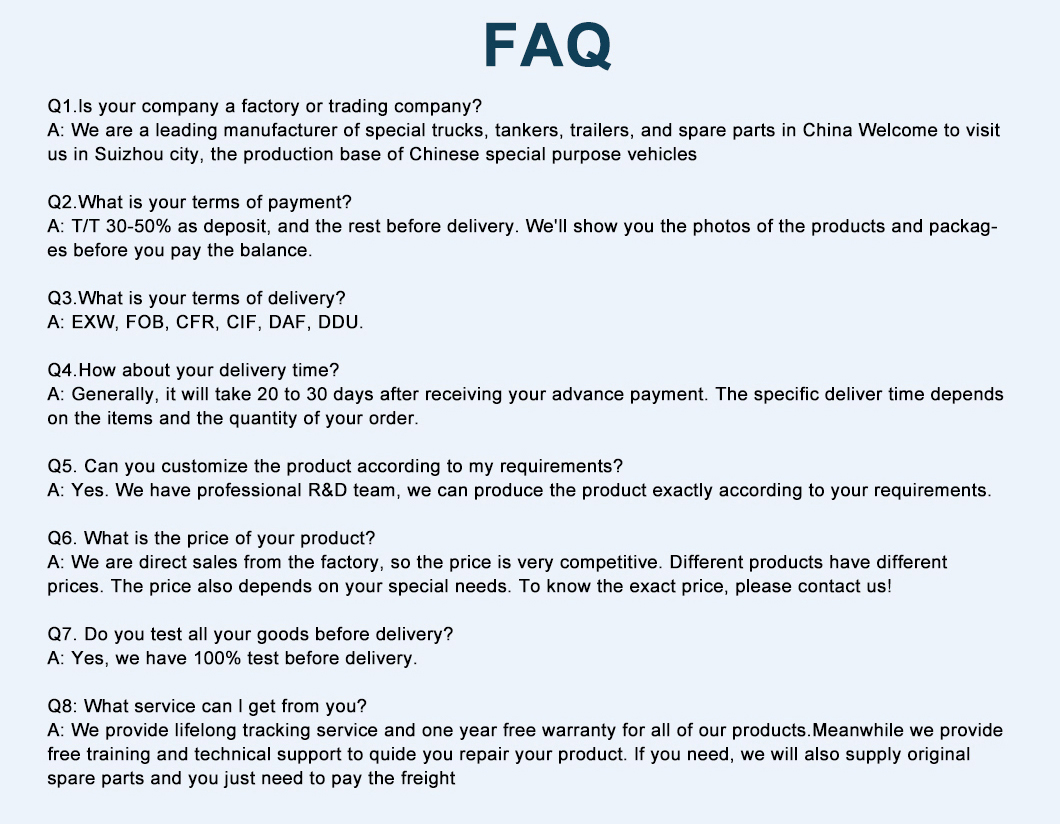

We are a leading manufacturer of special trucks, tankers, trailers, and spare parts in China Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles
T/T 30-50% as deposit, and the rest before delivery. We'll show you the photos of the products and packages before you pay the balance
EXW, FOB, CFR, CIF, DAF, DDU
Generally, it will take 20 to 30 days after receiving your advance payment. The specific deliver time depends on the items and the quantity of your order
Yes. We have professional R&D team, we can produce the product exactly according to your requirements
We are direct sales from the factory, so the price is very competitive. Different products have different prices. The price also depends on your special needs. To know the exact price, please contact us
Yes, we have 100% test before delivery
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. lf you need, we will also supply original spare parts and you just need to pay the freight
