BYD hybrid small refrigerated truck for sale

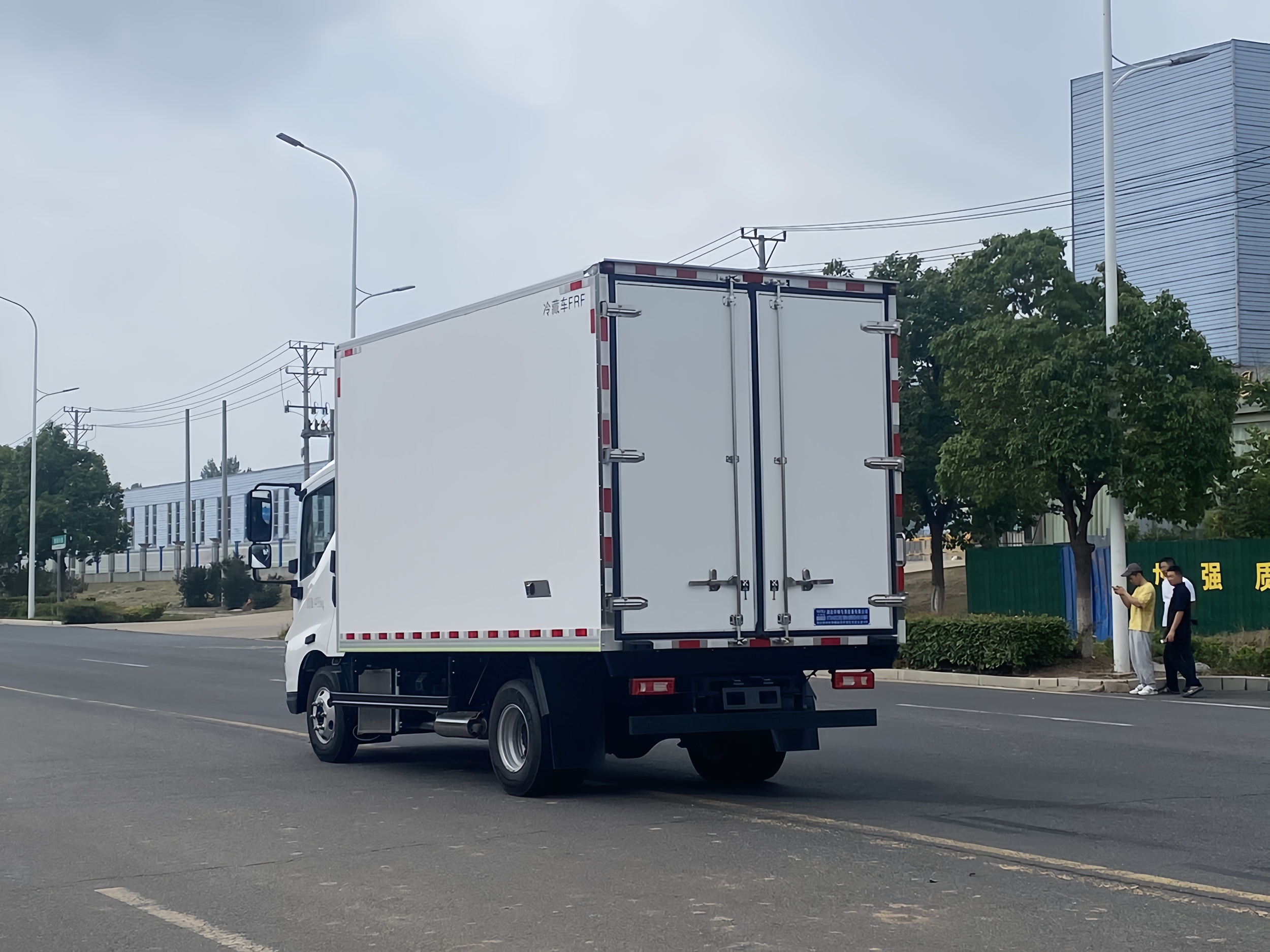

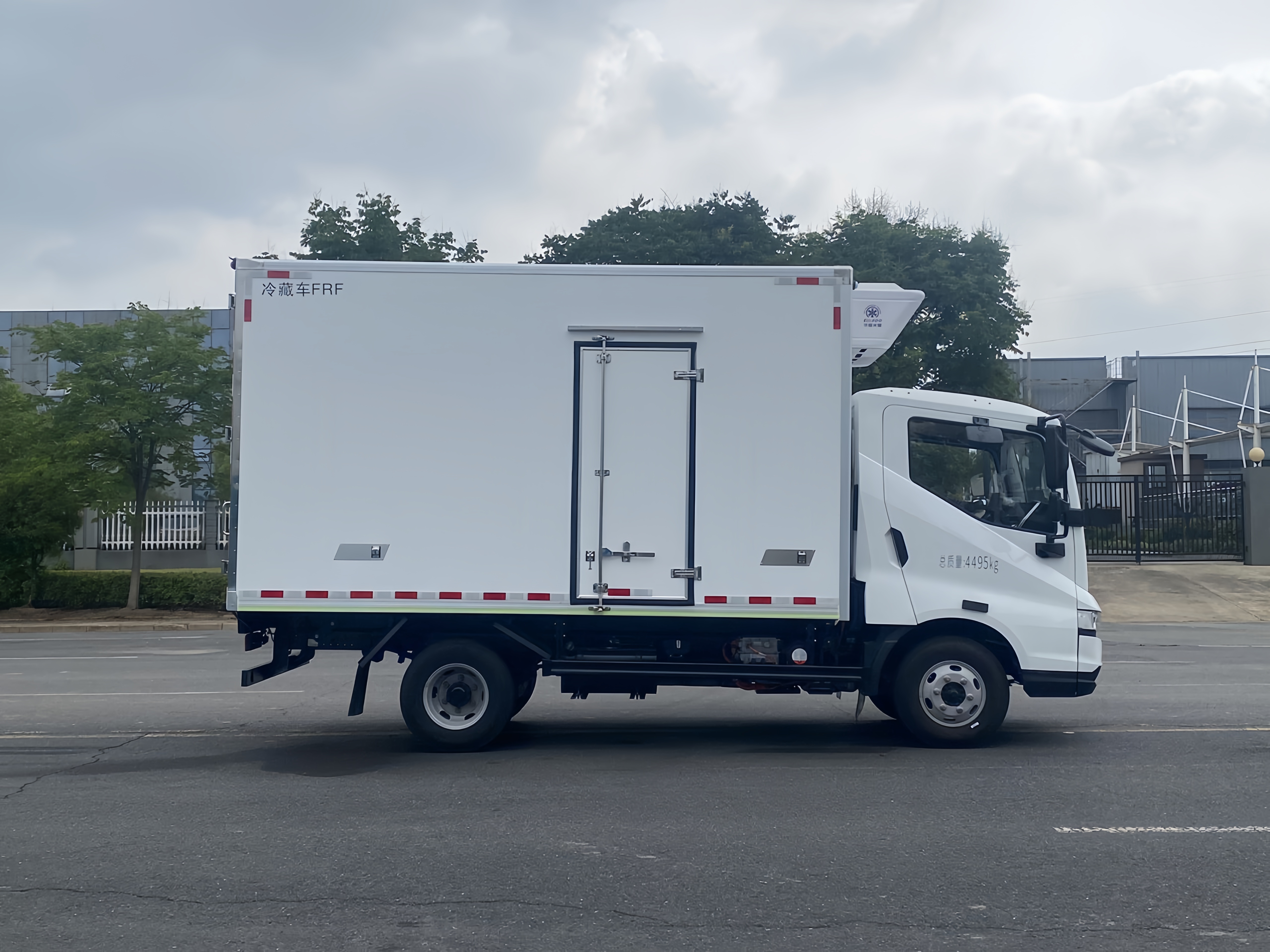

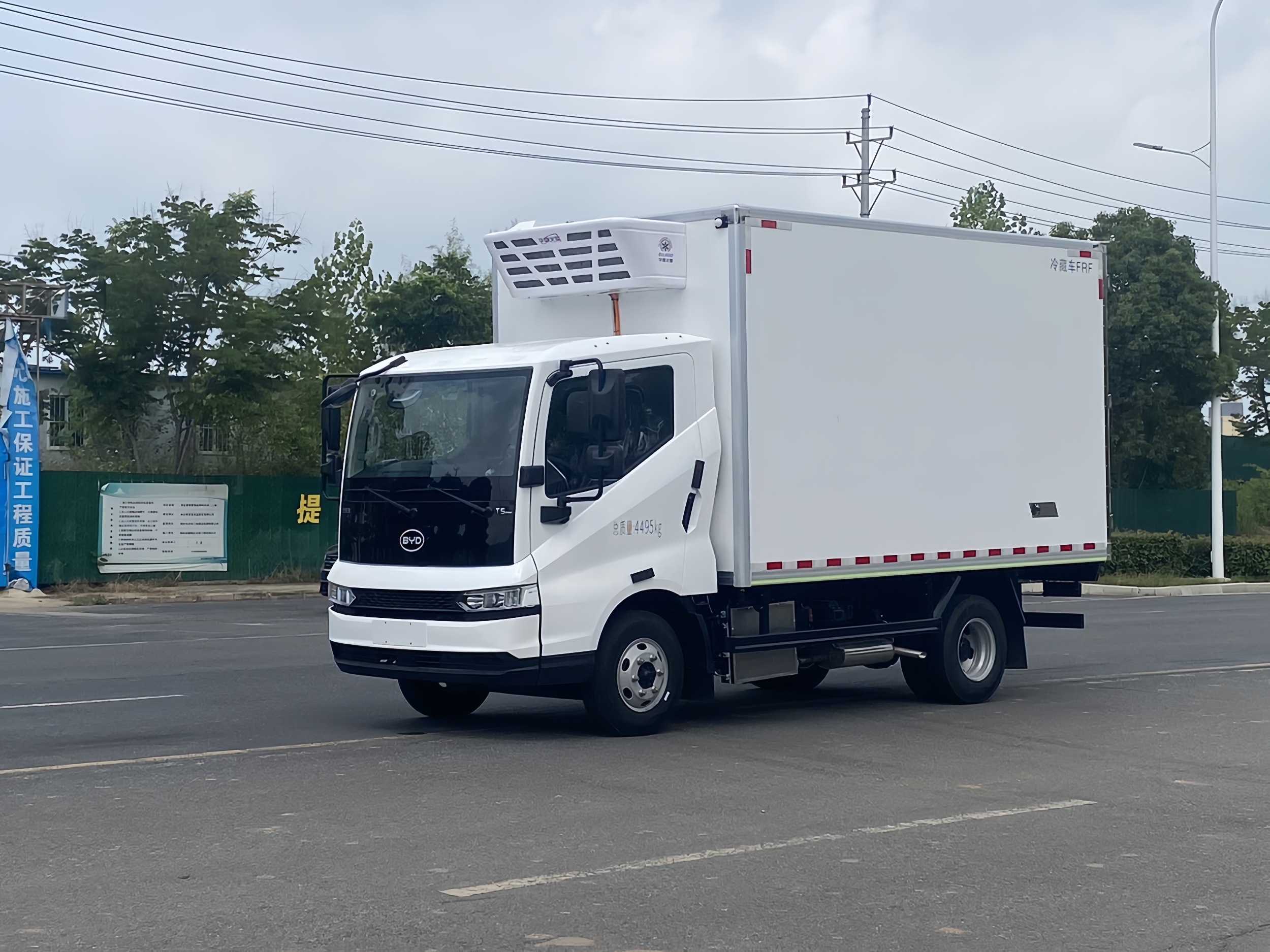

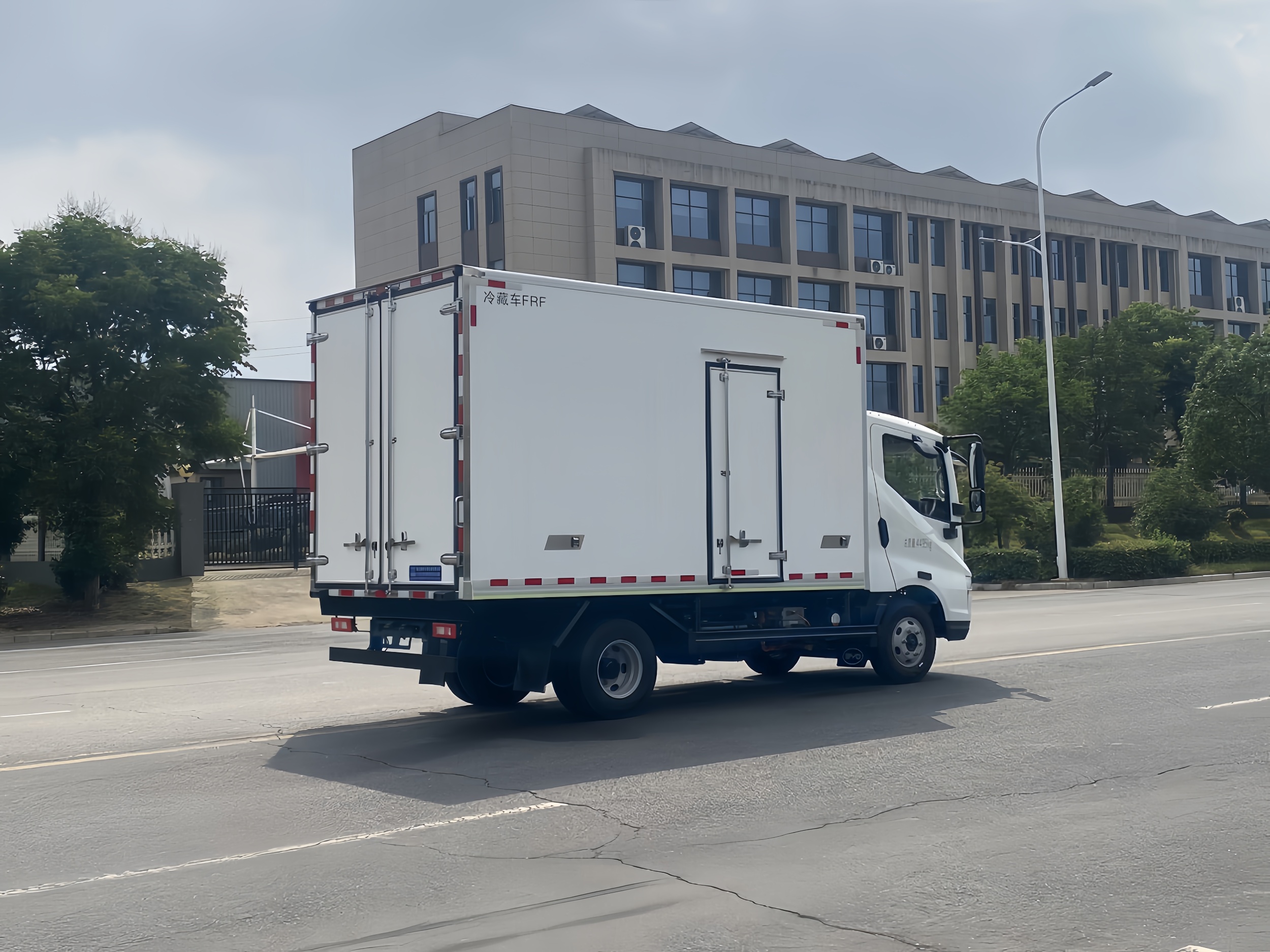

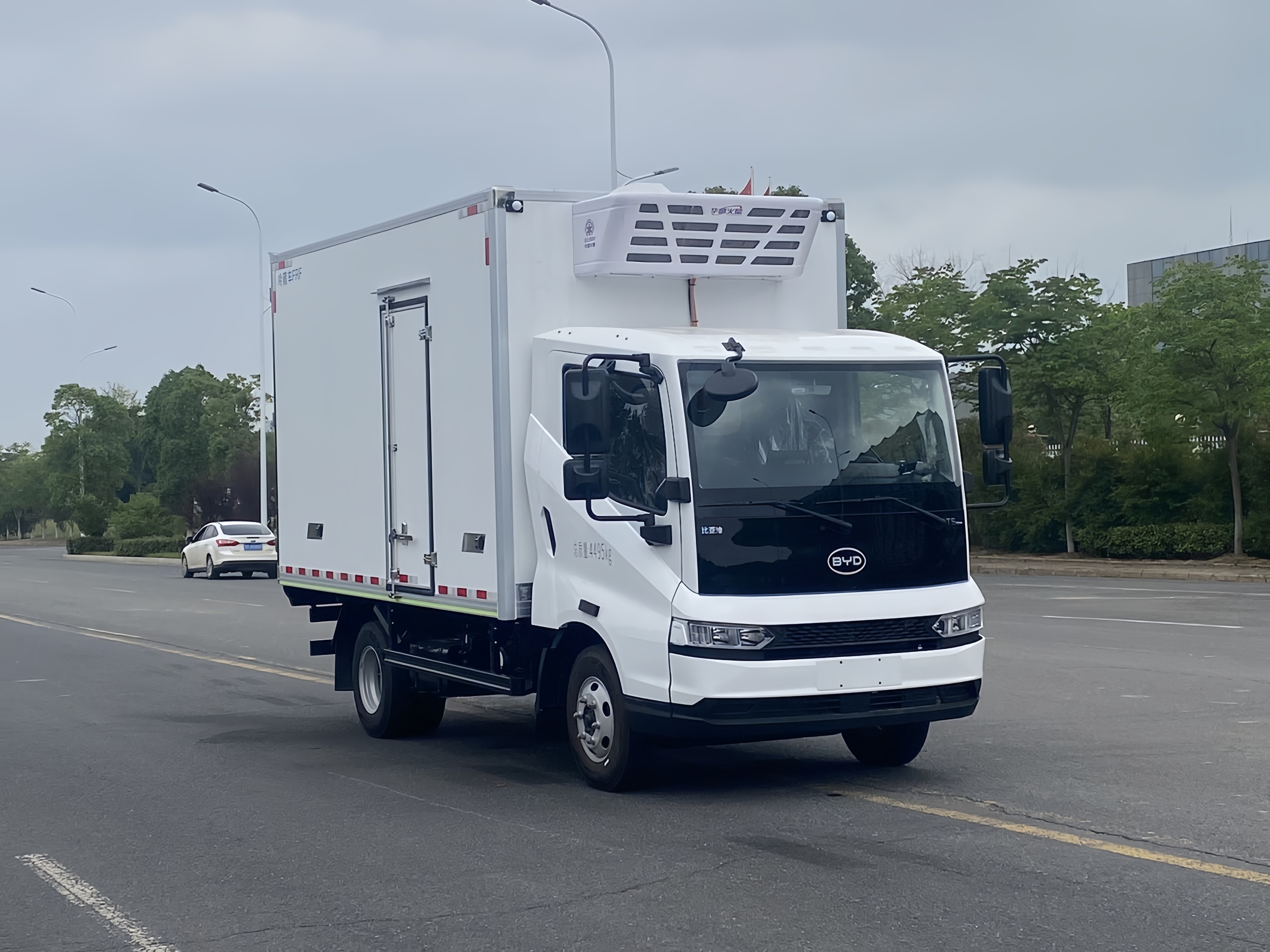

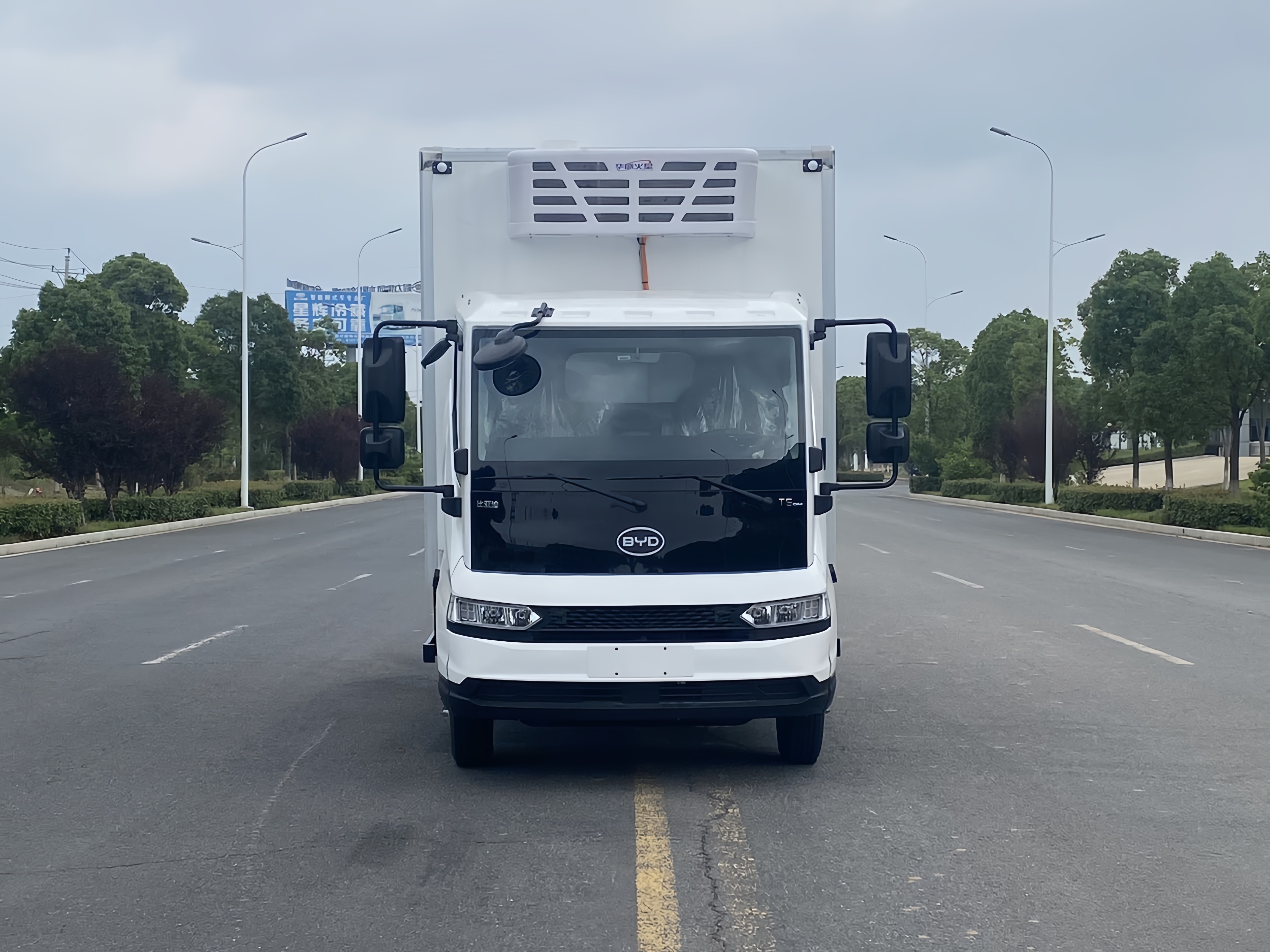

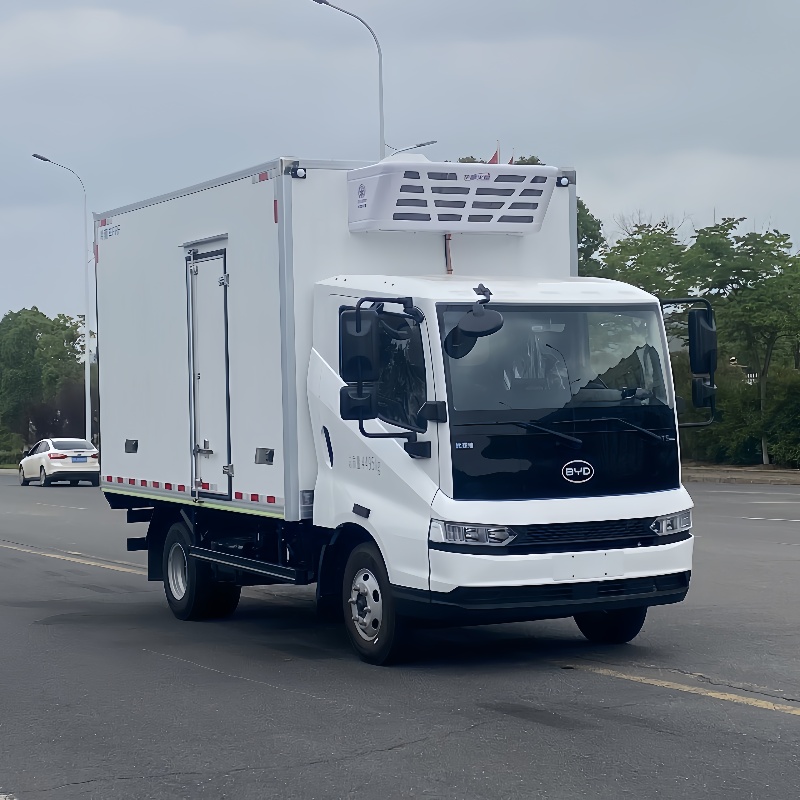

BYD T5DM hybrid refrigerated truck for sale

Chassis model: BYD1040A3HEVC1  BYD hybrid refrigerated truck

Vehicle size: 5998*2260*3380

Box size: 4000*2100*2200

Gross mass: 4495kg

Curb weight: 3440kg

Wheelbase: 3360

Power line: gasoline range-extended

Battery: blade battery (capacity 18.3kWh)

Pure electric cruising range: >50 km

Total cruising range: >500 km

 Product advantages of BYD hybrid refrigerated truck is as below.

 1. BYD blade battery has long battery life, high safety, and battery density of 168.64wh/kg. 2. The integrated rear axle design of BYD hybrid refrigerated truck has higher transmission efficiency, the drive motor 150kw is equivalent to 204 horsepower, the peak torque is 340NM, and the acceleration from 0 to 50 yards takes only 5.5s.

2. The three electric sources of BYD refrigerated truck  have a higher matching degree, which is more energy-saving, and the maximum speed is ≥100km/h.

3. Equipped with BYD BSC hydraulic braking system of BYD refrigerated truck , the maximum braking force is established within 140 milliseconds, which is more than 4 times higher than that of traditional vehicles (the braking distance is close to that of traditional air brakes)

4. BYD small refrigerated truck for sale 1.5T hybrid dedicated engine, the highest thermal efficiency is 41%

6. There is no partition in the middle of the seat, and it can be laid flat.

7. Configuration of small refrigerated truck for sale:

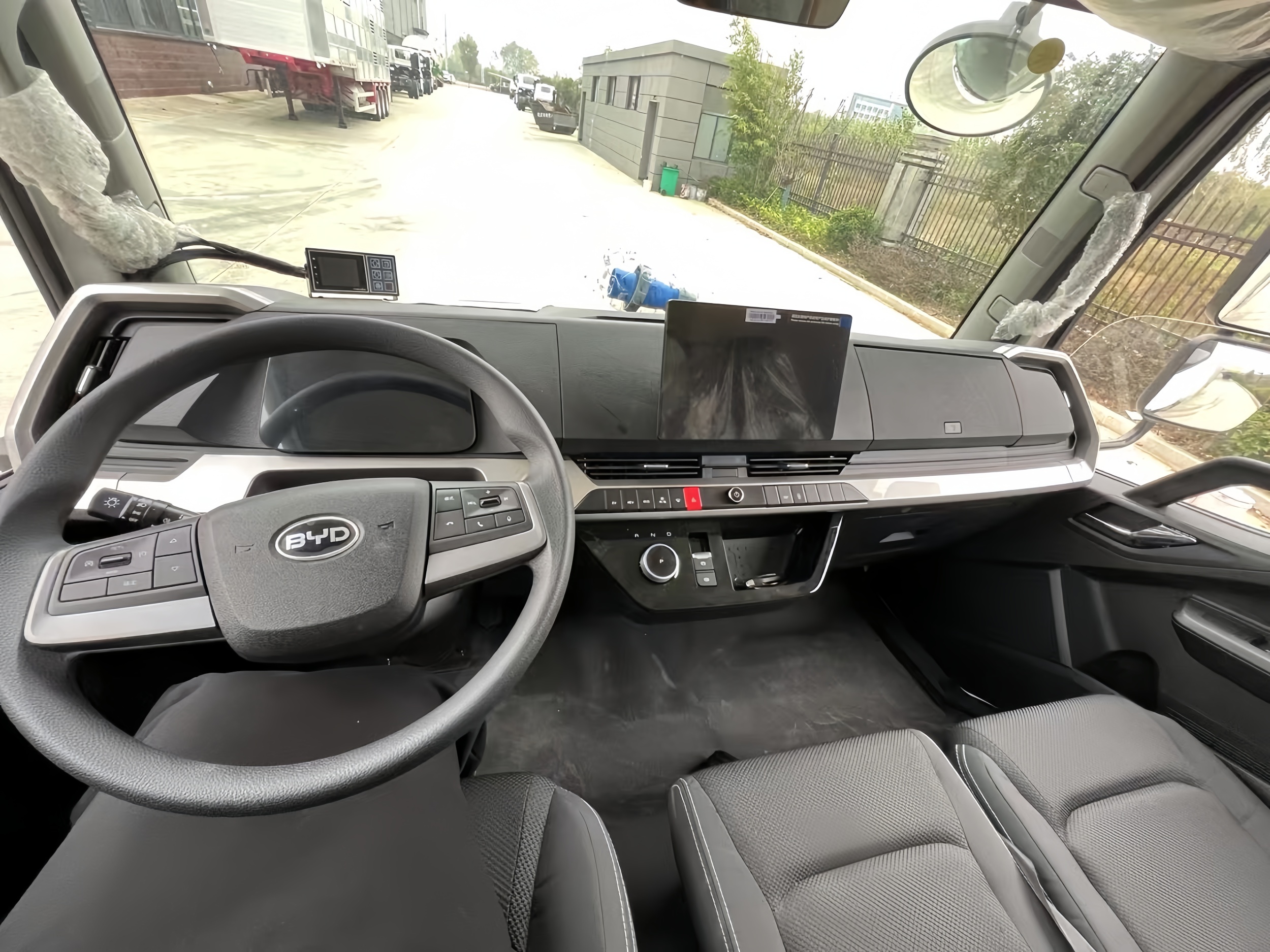

wide-body single-row cab, full LCD instrument cluster, one-button start, knob shift mode, automatic air conditioning, electric doors and windows, central locking, remote control key, multi-function steering wheel, daytime running lights + automatic headlights, front disc and rear drum, OTA remote upgrade, electronic parking system EPB, body stability system ESC, anti-lock brake ABS, hill start assist HHC, cruise control, 10.1-inch multimedia screen, DiLink intelligent network system (remote vehicle status query, anti-theft alarm status response, remote vehicle search, remote power on/off, remote unlocking, remote air conditioning, vehicle-mounted GPS navigation system, vehicle-mounted WIFI hotspot, intelligent voice control system), reversing radar, reversing image.

Warranty service: battery 6 years/300,000 kilometers; motor and electronic control; 5 years/250,000 kilometers; vehicle chassis; 3 years/100,000 kilometers.

Refrigerated van body configuration of BYD hybrid refrigerated truck is as below.

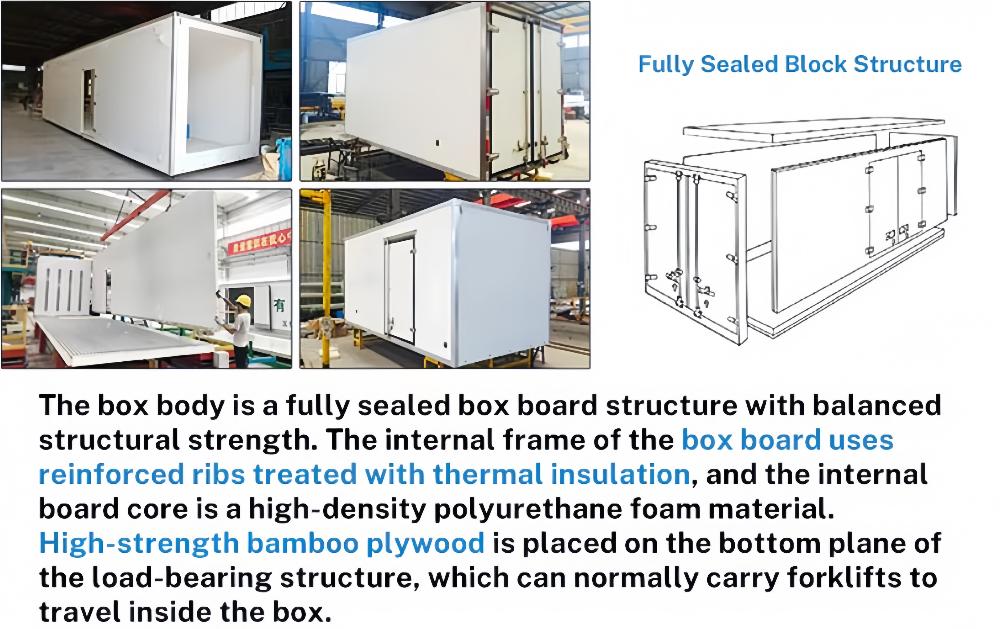

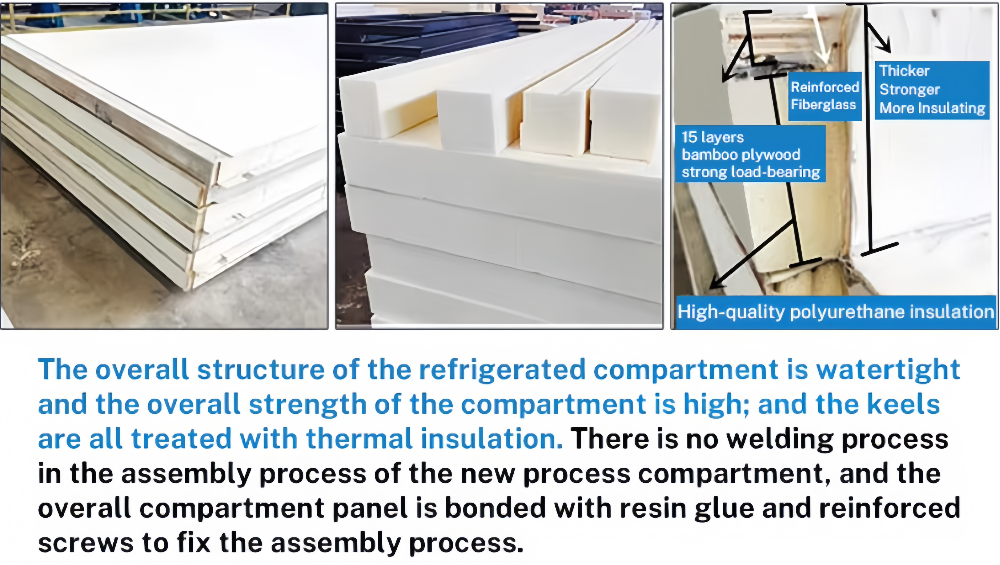

(1) Manufacturing process of BYD hybrid refrigerated truck: The box body adopts vacuum adsorption, sandwich composite bonding, and adopts thermal insulation technology. The anti-rust galvanized pipe is wrapped with wood and resin glue to seal and fill the gaps to enhance the anti-rust and thermal insulation performance. The thermal insulation performance reaches the national A-level standard.

(2) Box board material of BYD hybrid refrigerated truck: The inner and outer wall panels are made of domestic high-quality fiberglass (non-light-absorbing, good thermal insulation, strong hardness, and anti-oxidation); the middle insulation layer is XPS extruded board; the box body thickness is 8CM. The floor is made of aluminum patterned plate, and the door edge strips are made of labyrinth rubber sealing strips.

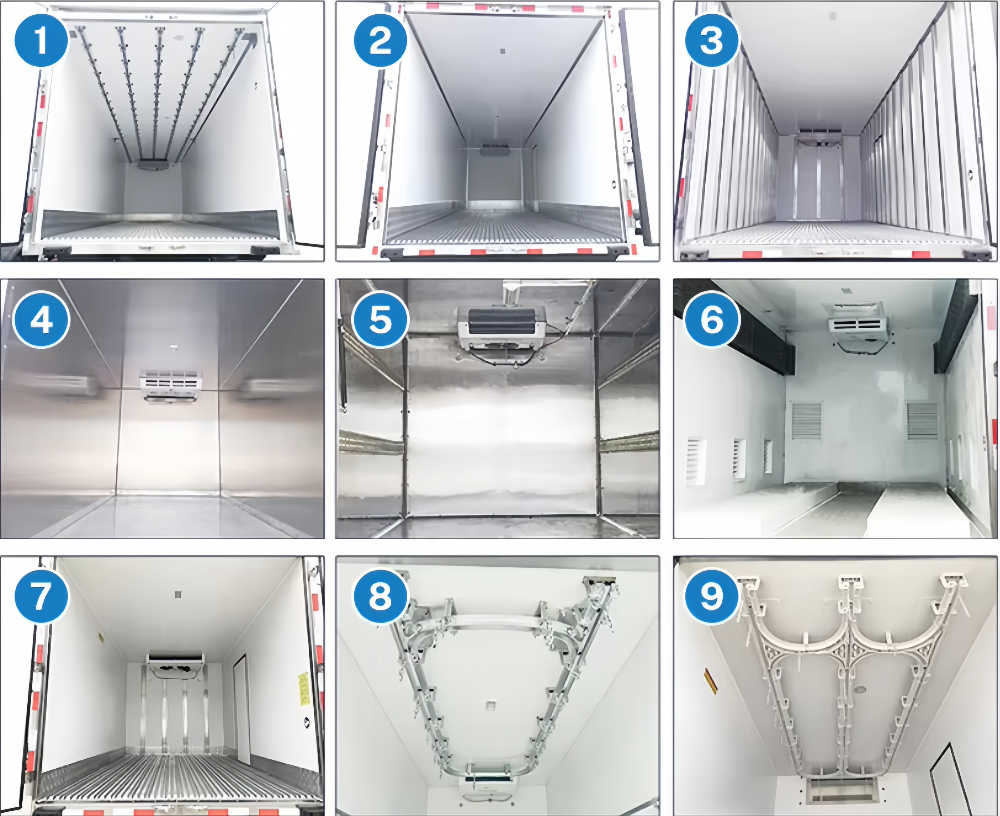

(3) Box body accessories of BYD hybrid refrigerated truck: aluminum alloy edging around the box body, stainless steel corners, stainless steel door locks, stainless steel door frames and hinges, and energy-saving LED lighting in the box body. Refrigeration unit: Black Shield, Asiana, Huasheng Mars, Kelly, Kaixue, Hanxue, imported cold king, Carrier and other minus 5-15° refrigeration units. Other optional configurations: movable frame meat hook, docking slide rails, inline slide rails, ventilation slots, insulation board, stainless steel interior.

Hybrid light truck T5 basic parameters of BYD hybrid small refrigerated truck for sale

The first 4.5T plug-in hybrid model created by BYD Power

The vehicle power is 18.3kWh, and the comprehensive fuel consumption is 9.2L/100km

 Equipped with BYD passenger car DM-i homologous blade battery, engine and controller, which is safer and more reliable.

 main technical parameters of BYD hybrid small refrigerated truck for sale

small refrigerated truck for sale refers to closed transport vehicles used to transport frozen or fresh goods. They are commonly used to transport frozen food (refrigerated trucks), dairy products (dairy transport trucks), vegetables and fruits (fresh goods transport trucks), vaccines and medicines (vaccine transport trucks), medical waste transport trucks, harmless treatment trucks, etc. Chengli small refrigerated truck for sale can be divided into bread-type refrigerated trucks, van-type refrigerated trucks, and semi-trailer refrigerated trucks, BYD refrigerated truck, according to the type of compartments. Meat hooks, waist rails, aluminum alloy rails, ventilation slots, ultraviolet disinfection devices, etc. can be added.
