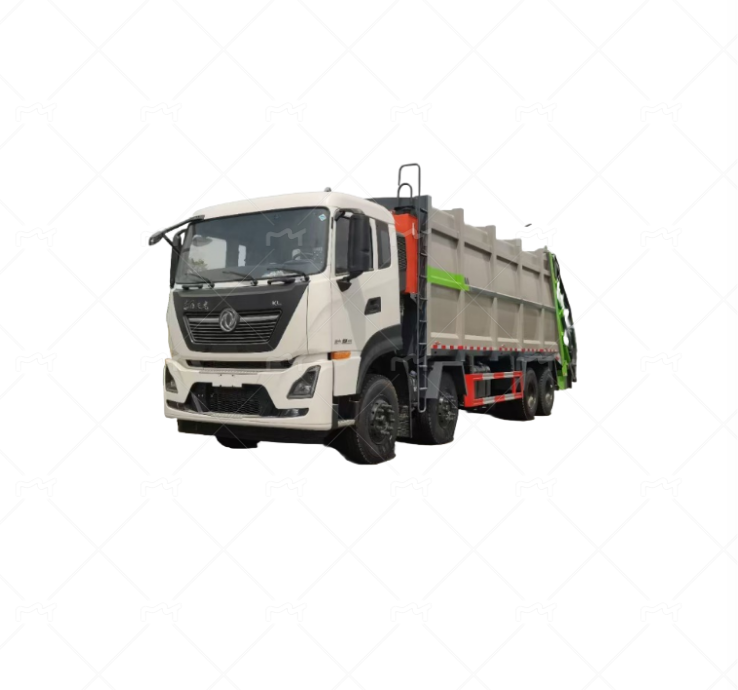

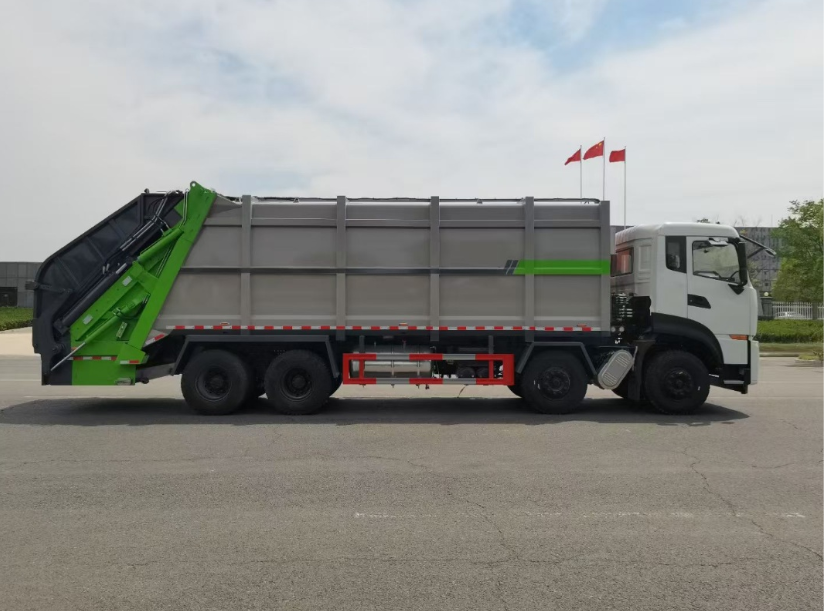

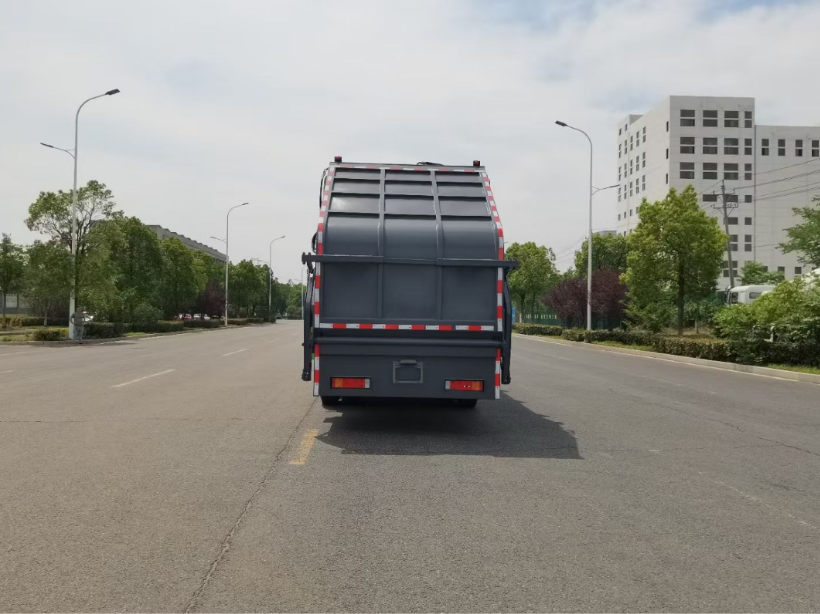

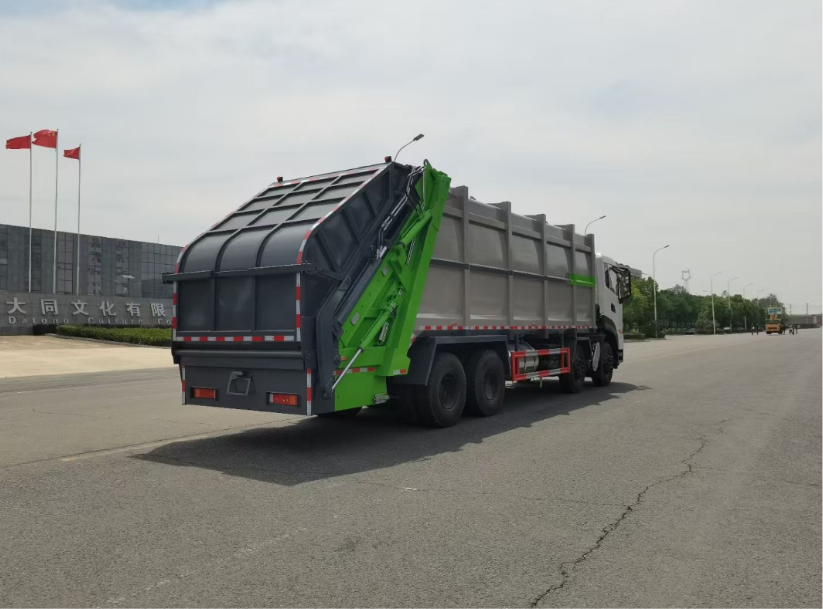

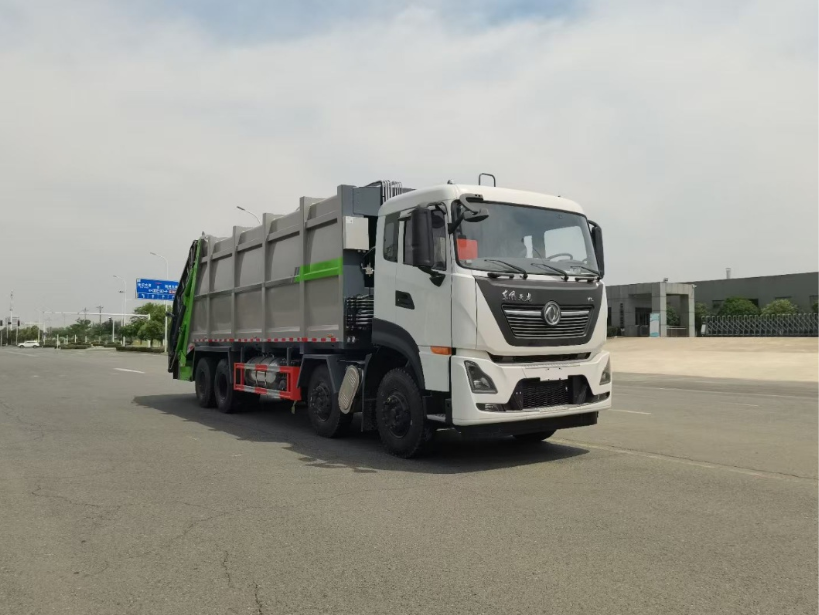

compression garbage truck, chassis configuration: wheelbase: 1995+4200+1350, engine: Longqing engine 350 horsepower, Fast 9-speed transmission, 11.00R20 steel wire tires. Equipped with a driving recorder, electric doors and windows, original air conditioning, airbag seats, central locking system, ABS, Directional assistance, air brake cut-off.
Upper configuration: With a capacity of 38 cubic meters, it is made of high-quality carbon steel (8mm) and lined with anti-corrosion and anti rust materials to extend the service life of the vehicle. Wanye (dual pump), Qiangtian high flow dual valve; Full floor bucket;
Upper structural components: The filler slide rail is made of 8mm high-strength steel, and the scraper plate pin shaft is thickened. The material is made of 40 chromium and has undergone quenching and tempering treatment. Durable and sturdy. The exterior paint uses electrophoretic paint, which is beautiful and attractive. Corrosion and rust prevention.
The upper accessories are all made of top domestic brands: the oil cylinder adopts Longyan Shanyou (the same model as Fujian Longma), the gear oil pump adopts Hefei Wanye (iron shell), the multi way valve adopts Shanghai Qiangtian, the super large hydraulic oil tank (with radiator), the dual power take-off and dual pressure valve (spare), and the chassis is equipped with a water sprinkler
Electronic control system: using Changsha Fuli (Germany Eaton operation panel, Japan Kawato remote control, Taiwan Yadeke electrical components)
The vehicle can also be equipped with a flipping mechanism (lifting hopper), which is driven by hydraulic cylinders and can be connected to garbage bins, garbage stations, etc. After manually or automatically pouring garbage into the hopper, the scraper (or push plate) inside the hopper is activated by hydraulic power to push the garbage into the interior of the carriage for compression treatment. By using the squeezing force of the push plate, the air and moisture contained in the garbage (partially) are discharged, compacting the originally fluffy garbage (such as cardboard boxes, plastics, kitchen waste, etc.) and significantly reducing its volume (usually compressed to 1/3-1/2 of its original volume). After the first batch of garbage is compressed, the push plate returns and the feeding device continues to feed new garbage. The push plate pushes the compression again, and this cycle continues until the carriage is filled with compacted garbage.
The compressed garbage is stored in the sealed chamber of the carriage, and rubber sealing strips are installed between the carriage, push plate, and feed inlet to prevent leakage of leachate, diffusion of odors, or scattering during transportation. By implementing a closed-loop process of "loading → compression and capacity reduction → sealed storage → unloading", secondary pollution can be reduced, resulting in an increase in single transportation volume。
compactor truck for sale！trash compactor truck for sale！isuzu garbage compactor truck！
compactor truck for sale！trash compactor truck for sale！isuzu garbage compactor truck！
compactor truck for sale！trash compactor truck for sale！isuzu garbage compactor truck！
compactor truck for sale！trash compactor truck for sale！isuzu garbage compactor truck！garbage truck
compactor truck for sale！trash compactor truck for sale！isuzu garbage compactor truck！
compactor truck for sale！trash compactor truck for sale！isuzu garbage compactor truck！
compactor truck for sale！trash compactor truck for sale！isuzu garbage compactor truck！
compactor truck for sale！trash compactor truck for sale！isuzu garbage compactor truck！
compactor truck for sale！trash compactor truck for sale！isuzu garbage compactor truck！
compactor truck for sale！trash compactor truck for sale！isuzu garbage compactor truck！
compactor truck for sale！trash compactor truck for sale！isuzu garbage compactor truck！
compactor truck for sale！trash compactor truck for sale！isuzu garbage compactor truck！
Among special - purpose vehicle companies, the company has passed ISO9001 - 2008 quality management system certification, ISO14001 environmental management certification, OHSAS18001 occupational health and safety management system certification, 3C mandatory certification, automotive energy - saving and environmental - protection certification, new - energy vehicle certification, export product quality license certification, product quality certification, and EU CE certification, etc. It has obtained special production license qualifications such as A2, C2, C3 pressure vessels, truck - mounted cranes, vehicle - mounted cranes, fire trucks, and national equipment scientific research and production qualifications. The company has more than 200 independently innovative products that have obtained national patents.
The company offers over 6,000 varieties of vehicles, including sprinkler trucks, garbage trucks, sewage suction trucks, night - soil suction trucks, oil tank trucks, chemical trucks, wreckers, aerial work platforms, fire trucks, truck - mounted cranes, refrigerated trucks, van trucks, pressure vessels, road maintenance vehicles, flatbed transporters, bulk grain trucks, dry - mixed mortar trucks, beekeeper trucks, stage trucks, propaganda trucks, mobile vending trucks, heavy - duty truck - mounted cranes, concrete pump trucks, pharmaceutical transport vehicles, and food transport vehicles, etc. Its products are exported to more than 100 countries and regions in the Middle East, Africa, Southeast Asia, South America, etc. The company's output value has consistently ranked among the top in various provinces and cities across the country. Its exports cover more than 30 countries and regions such as North Korea, New South Wales, and Angola, and the market share of its leading products exceeds 20%.

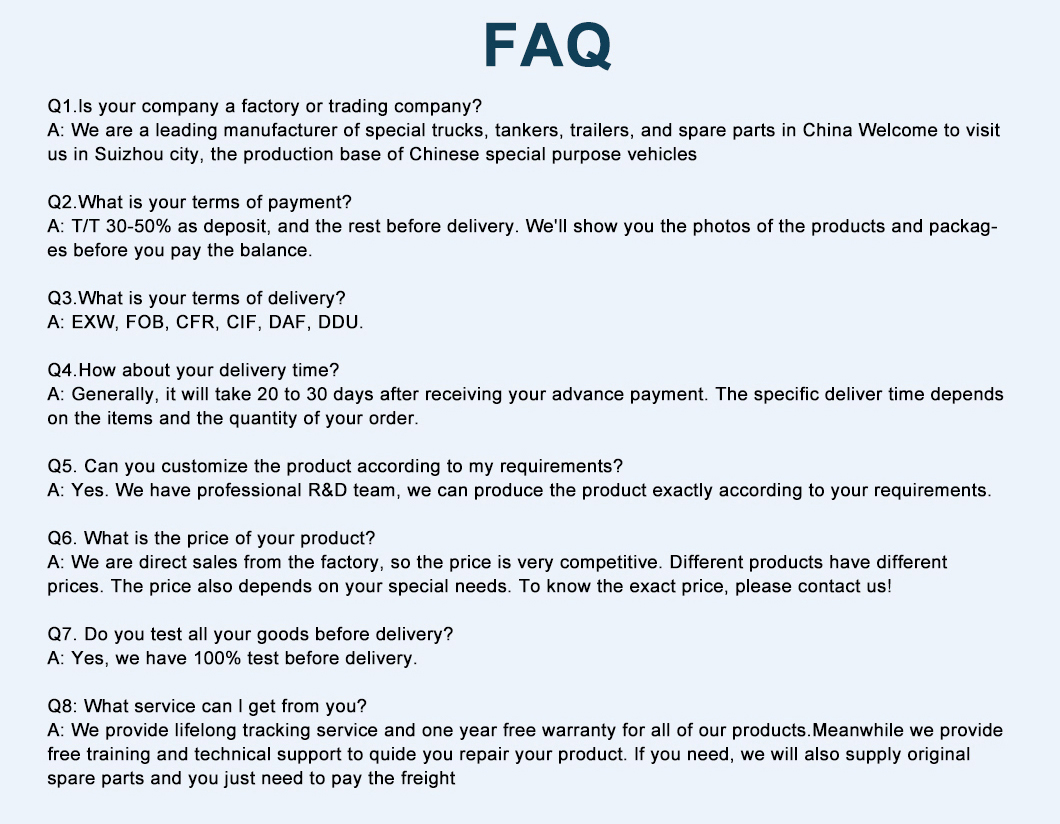

We are a leading manufacturer of special trucks, tankers, trailers, and spare parts in China Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles
T/T 30-50% as deposit, and the rest before delivery. We'll show you the photos of the products and packages before you pay the balance
EXW, FOB, CFR, CIF, DAF, DDU
Generally, it will take 20 to 30 days after receiving your advance payment. The specific deliver time depends on the items and the quantity of your order
Yes. We have professional R&D team, we can produce the product exactly according to your requirements
We are direct sales from the factory, so the price is very competitive. Different products have different prices. The price also depends on your special needs. To know the exact price, please contact us
Yes, we have 100% test before delivery
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. lf you need, we will also supply original spare parts and you just need to pay the freight
